Introduction
This manual provides essential information for the safe and efficient operation of your LG V7WD107H2E Washer Dryer. Please read all instructions carefully before installation and use. Keep this manual for future reference.
Safety Instructions
Always follow basic safety precautions to reduce the risk of fire, electric shock, or injury to persons when using this appliance. Failure to comply with these warnings could result in serious injury or death.
- Ensure the appliance is properly grounded.
- Do not allow children to play on or in the appliance.
- Keep flammable materials away from the appliance.
- Do not wash or dry articles that have been cleaned in, washed in, soaked in, or spotted with combustible or explosive substances.
- Unplug the appliance before cleaning or performing any maintenance.
For detailed safety information, refer to the comprehensive safety section in the full product manual.
Setup and Installation
Unpacking
Remove all packaging materials, including the transit bolts from the rear of the appliance. Keep packaging materials out of reach of children.
Location Requirements
Install the appliance on a firm, level floor. Ensure there is adequate space for ventilation and access to water and drain connections. Avoid direct sunlight or extreme temperatures.
Connecting Water Hoses
Connect the hot and cold water inlet hoses to the corresponding valves on the appliance and your household water supply. Ensure connections are tight to prevent leaks.
Connecting Drain Hose
Securely connect the drain hose to a standpipe or laundry tub, ensuring it is properly routed to prevent kinks or blockages.
Power Connection
Plug the power cord into a grounded electrical outlet. Do not use extension cords.
Leveling the Appliance
Adjust the leveling feet at the bottom of the appliance to ensure it is stable and level. This prevents excessive vibration and noise during operation.
Figure 1: Front view of the LG V7WD107H2E Washer Dryer, illustrating its design and controls.
Figure 2: Side view of the washer dryer, highlighting the water inlet and drain hose connections for proper installation.
Figure 3: Rear view of the appliance, showing the power cord, water hoses, and drain hose connections.
Operating Instructions
Control Panel Overview

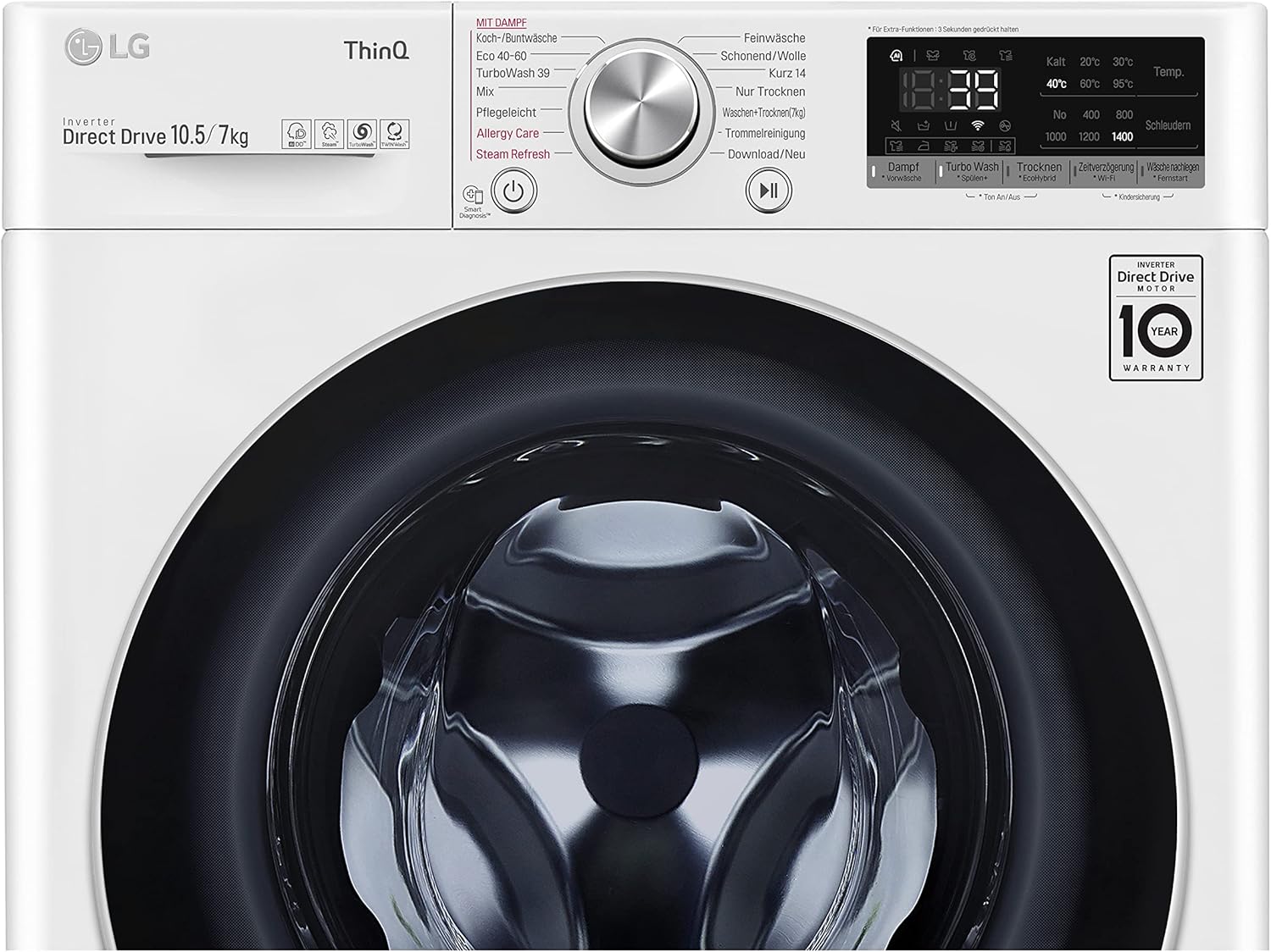

Figure 4: Detailed view of the control panel, including the program selector dial and digital display.
Loading Laundry
Open the door and load laundry into the drum. Do not overload the appliance. The maximum wash capacity is 10.5 kg, and the maximum dry capacity is 7 kg. Ensure items are evenly distributed.
Figure 5: The washer dryer with its door open, revealing the stainless steel drum ready for loading laundry.
Adding Detergent and Softener
Pull out the detergent dispenser drawer. Add the appropriate amount of detergent to the main wash compartment and fabric softener to the softener compartment. Do not exceed the maximum fill lines.
Figure 6: The detergent dispenser drawer pulled out, showing compartments for detergent and fabric softener.
Selecting a Cycle
Turn the program selector dial to choose the desired wash or dry cycle. The display will show the default settings for the selected cycle. Common cycles include:
- Cotton: For general cotton items.
- Mix: For a variety of fabrics.
- Synthetics: For synthetic fabrics.
- Delicates: For delicate items requiring gentle care.
- Allergy Care: Uses steam to reduce allergens.
- TurboWash™ 360°: For quick and efficient washing.
- Dry Only: For drying previously washed items.
Adjusting Options
Use the option buttons on the control panel to adjust temperature, spin speed, or add extra rinses as needed for your selected cycle.
Starting a Cycle
Press the Start/Pause button to begin the selected cycle. The appliance will lock the door and start filling with water.
Special Features
- AI DD™: This technology detects the weight and softness of the fabric, then automatically selects the optimal washing motions for improved fabric care.
- TurboWash™ 360°: Provides a thorough wash in approximately 39 minutes by using multiple spray nozzles to reach every corner of the drum.
- Steam: Utilizes steam to eliminate 99.9% of common allergens, such as dust mites, and can also help reduce wrinkles.
- ThinQ (Wi-Fi Function): Allows you to control and monitor your appliance remotely using the LG ThinQ app on your smartphone. You can download new cycles and diagnose issues.
Maintenance
Cleaning the Exterior
Wipe the exterior of the appliance with a soft, damp cloth. Do not use abrasive cleaners or solvents.
Cleaning the Detergent Dispenser
Periodically remove and clean the detergent dispenser drawer under running water to prevent detergent buildup.
Cleaning the Drum
Run a 'Tub Clean' or 'Drum Clean' cycle regularly to remove detergent residue and odors from the drum.
Cleaning the Drain Pump Filter
Locate the drain pump filter access panel at the bottom front of the appliance. Open the panel, drain any residual water, and then unscrew and clean the filter. This should be done periodically to prevent blockages.
Care After Each Use
After each wash or dry cycle, wipe the door seal and the inside of the door glass. Leave the door slightly ajar to allow the drum to air dry and prevent odors.
Troubleshooting
If you encounter issues with your appliance, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Appliance does not start | Power cord unplugged; door not closed properly; Start/Pause button not pressed. | Check power connection; ensure door is securely latched; press Start/Pause. |
| No water filling | Water taps closed; water inlet hoses kinked; water pressure too low. | Open water taps; straighten hoses; check household water pressure. |
| Excessive vibration/noise | Appliance not level; transit bolts not removed; uneven load. | Adjust leveling feet; remove transit bolts; redistribute laundry. |
| Drying results unsatisfactory | Overloaded; wrong dry cycle selected; lint filter clogged. | Reduce load size; select appropriate dry cycle; clean lint filter. |
If the problem persists after attempting these solutions, please contact LG customer support.
Specifications
Key specifications for the LG V7WD107H2E Washer Dryer:
- Model Number: V7WD107H2E
- Wash Capacity: 10.5 kg
- Dry Capacity: 7 kg
- Maximum Spin Speed: 1400 rpm
- Dimensions (W x D x H): 60 x 56.5 x 85 cm
- Weight: 77 kg
- Energy Efficiency Class (Wash): E
- Access Location: Front Load
- Features: AI DD™, TurboWash™ 360°, Steam, ThinQ (Wi-Fi)

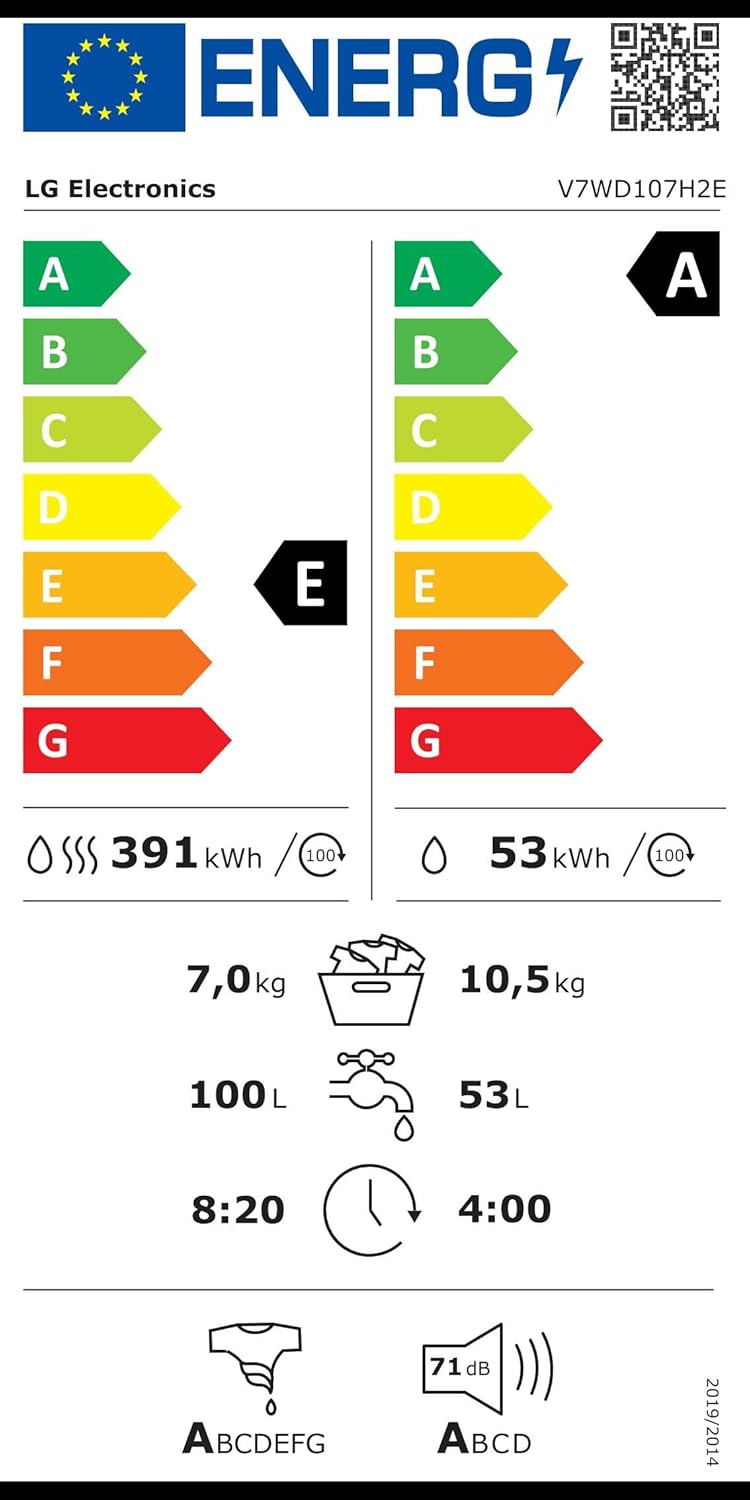

Figure 7: The energy label for the LG V7WD107H2E, detailing its energy consumption and efficiency ratings. For more information, visit the EPREL database.
Warranty and Support
Your LG V7WD107H2E Washer Dryer comes with a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions. For technical assistance, service requests, or to purchase genuine LG parts, please contact LG customer support through their official website or designated service centers.
When contacting support, please have your model number (V7WD107H2E) and serial number ready.
