SENRISE 165mm 48-Tooth Carbide Tipped Circular Saw Blade User Manual

1. Product Overview

This manual provides essential information for the safe and effective use of the SENRISE 165mm 48-Tooth Carbide Tipped Circular Saw Blade. This blade is designed for versatile cutting applications, including steel, aluminum, iron, non-ferrous metals, wood, and plastics.

Figure 1: Front view of the SENRISE 165mm 48-Tooth Carbide Tipped Circular Saw Blade, highlighting its multipurpose design and key specifications.

Key Features:

• Ultrafine Powdered Carbide: Ensures enhanced durability and precise cutting performance.
• Highly Balanced Substrate: Minimizes vibration during operation for smoother cuts and reduced user fatigue.
• Finely Ground Teeth: Each of the 48 teeth is precision-ground to ensure smooth and clean cuts across various materials.
• Superior Thin Saw Design: Facilitates faster cutting speeds and reduces material loss, optimizing efficiency.
• Radial Expansion Groove Design: Contributes to blade stability and prevents deformation, ensuring consistent performance.

2. Setup and Installation

Proper installation is crucial for safety and optimal performance. Always refer to your circular saw's instruction manual for specific blade changing procedures.

2.1 Safety Precautions Before Installation

• Disconnect Power: Always unplug the circular saw from the power source before attempting to change the blade.
• Wear Protective Gear: Use heavy-duty gloves to protect hands from sharp blade teeth. Wear safety glasses to protect eyes.
• Ensure Stability: Place the saw on a stable, flat surface.

2.2 Installation Steps

1. Remove Old Blade: Locate the blade arbor nut and blade lock button on your saw. Press the blade lock button and use the appropriate wrench to loosen and remove the arbor nut. Carefully remove the old blade.
2. Clean Arbor: Inspect the saw's arbor and flanges for any debris or rust. Clean them thoroughly to ensure the new blade sits flush.
3. Position New Blade: Place the SENRISE circular saw blade onto the arbor, ensuring the rotation arrow on the blade matches the rotation direction arrow on your saw's guard. The teeth should point towards the front of the saw, in the direction of the cut.
4. Secure Blade: Reinstall the outer flange and arbor nut. Press the blade lock button and tighten the arbor nut firmly with the wrench. Do not overtighten.
5. Check Guard: Ensure the blade guard operates freely and returns to its closed position.

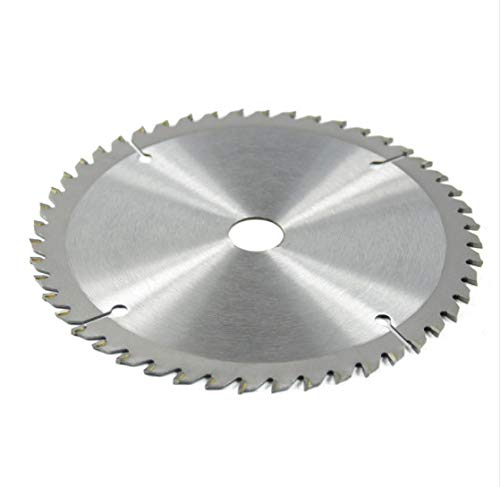

Figure 2: Angled view of the SENRISE 165mm 48-Tooth Carbide Tipped Circular Saw Blade, ready for installation.

3. Operating Instructions

This blade is designed for cutting steel, aluminum, iron, non-ferrous metals, wood, and plastics. Always follow general circular saw safety guidelines and specific instructions for your saw model.

3.1 General Safety Guidelines

• Personal Protective Equipment (PPE): Always wear safety glasses, hearing protection, and appropriate work gloves. Avoid loose clothing and jewelry.
• Work Area: Ensure your work area is clean, well-lit, and free of obstructions.
• Secure Workpiece: Always clamp or secure the material being cut to prevent movement during operation.
• Maintain Control: Hold the saw firmly with both hands. Do not force the blade through the material; let the blade do the work.
• Avoid Kickback: Be aware of potential kickback. Ensure the blade is sharp and the material is properly supported.

3.2 Cutting Different Materials

• Wood and Plastics: This blade provides clean cuts. Adjust saw speed according to material density.
• Metals (Steel, Aluminum, Iron, Non-Ferrous): This carbide-tipped blade is suitable for these materials. Use a slower, consistent feed rate. For metal cutting, it is often recommended to use a saw designed for metal cutting or a saw with appropriate speed control. Ensure proper cooling if cutting thicker metals.

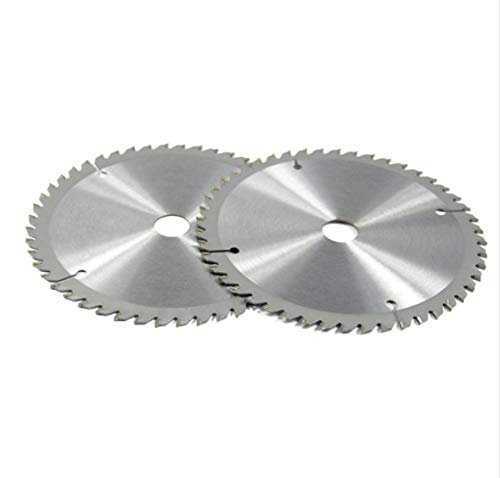

Figure 3: Two SENRISE 165mm 48-Tooth Carbide Tipped Circular Saw Blades, illustrating the consistent design.

4. Maintenance and Care

Regular maintenance extends the life of your blade and ensures consistent cutting performance.

4.1 Cleaning

• Remove Resin and Debris: After use, especially when cutting wood or plastics, resin and debris can build up on the blade. Use a specialized blade cleaner or a mild solvent (e.g., mineral spirits) and a stiff brush to remove buildup. Avoid abrasive cleaners.
• Dry Thoroughly: Ensure the blade is completely dry before storage to prevent rust.

4.2 Inspection

• Check Teeth: Regularly inspect the carbide teeth for signs of wear, chipping, or missing teeth. A dull or damaged blade can cause poor cuts and increase the risk of kickback.
• Blade Body: Check the blade body for cracks, bends, or warping. Do not use a damaged blade.

4.3 Storage

• Protective Storage: Store the blade in its original packaging or a protective blade case to prevent damage to the teeth and protect against moisture.
• Dry Environment: Store in a dry environment to prevent rust.

5. Troubleshooting Common Issues

If you encounter issues during operation, consider the following common problems and solutions:

• Poor Cut Quality (Rough Edges, Burning):
  • Cause: Dull blade, incorrect feed rate, resin buildup.
  • Solution: Clean the blade, inspect for damage, replace if dull. Adjust feed rate (slower for harder materials, faster for softer).
• Excessive Vibration or Noise:
  • Cause: Improper installation, loose arbor nut, damaged blade, saw malfunction.
  • Solution: Ensure blade is correctly installed and arbor nut is tight. Inspect blade for damage (bends, cracks). If the blade is fine, check your saw for issues.
• Blade Not Cutting Through Material:
  • Cause: Dull blade, incorrect blade for material, insufficient saw power.
  • Solution: Replace dull blade. Ensure the blade is appropriate for the material type and thickness. Verify your saw has adequate power.

6. Product Specifications

7. Warranty Information

Specific warranty details for the SENRISE 165mm 48-Tooth Carbide Tipped Circular Saw Blade are not provided in this document. For information regarding warranty coverage, terms, and conditions, please refer to the product packaging or contact SENRISE customer support directly. Keep your proof of purchase for any warranty claims.

8. Customer Support

For technical assistance, questions about product usage, or to report any issues, please contact SENRISE customer support. Contact information can typically be found on the product packaging, the manufacturer's official website, or through the retailer where the product was purchased.

Manufacturer: SENRISE

Model Number: 69693

Please have your product model number and purchase date available when contacting support.
