BaByliss Men Super-X Metal Series Trimmer Model 7700USDE

Introduction

This manual provides detailed instructions for the safe and effective use of your BaByliss Men Super-X Metal Series Trimmer, Model 7700USDE. This professional-grade cordless hair clipper features a robust metal handle and precision-engineered Japanese steel blades for effortless cutting across all hair types. It is designed for lasting performance and offers up to 3 hours of consistent cordless use thanks to its Lithium-ion technology.

Key features include a 5-position taper control for fine cut adjustment and a comprehensive set of 10 comb guides for various cutting lengths.

Image: The BaByliss Men Super-X Metal Series Trimmer shown alongside its full set of 10 comb guides, illustrating the complete package contents.

Important Safety Information

Please read all instructions carefully before use.

• Always unplug the trimmer before cleaning.
• Do not submerge the trimmer in water.
• Keep the trimmer away from heat sources.
• Avoid contact with eyes and skin.
• Use only the provided oil for blade maintenance.
• Do not disassemble the blades.
• Always supervise children when using the trimmer.
• Avoid using the trimmer on infants or near their ears.
• Only use the adaptor and attachments supplied with this appliance.

Package Contents

Your BaByliss Men Super-X Metal Series Trimmer package includes:

• 1 x Clipper (Model 7700USDE)
• 10 x Comb Guides (Grades 0.5-8, covering 1.5mm to 25mm)
• 2 x Ear Taper Guides (Left and Right)
• 1 x Charging Stand
• 1 x USB Cable
• 1 x Charging Adaptor (CA92)
• 1 x Oil (for blades)
• 1 x Storage Pouch
• 1 x Information Booklet

Image: The BaByliss Men Super-X Metal Series Trimmer presented in its retail packaging, highlighting the product's premium presentation.

Charging the Appliance

The clipper is equipped with Lithium-ion batteries. For optimal performance, ensure the unit is fully charged before its first use.

1. Connect the USB cable to the charging adaptor (CA92) and plug it into a suitable power outlet.
2. Place the clipper onto the charging stand, ensuring it is securely seated.
3. The blue LED charging indicator on the clipper will flash while charging.
4. For first use, charge the unit for 3 hours to achieve full super-charge performance. A full charge provides approximately 3 hours of cordless use.
5. When fully charged, the blue LED charging indicator will remain solid.
6. When the clipper is running low on charge, the LED indicator will flash rapidly, indicating approximately 15 minutes of battery use left.
7. For rapid charging, a 20-minute charge provides approximately 20 minutes of use.
8. The clipper can be used corded if the battery is completely flat.

Note:

• The clipper will not switch on whilst charging.
• To help maintain the optimum capacity of the rechargeable batteries, fully discharge the trimmer and then recharge it for 3 hours every 6 months.

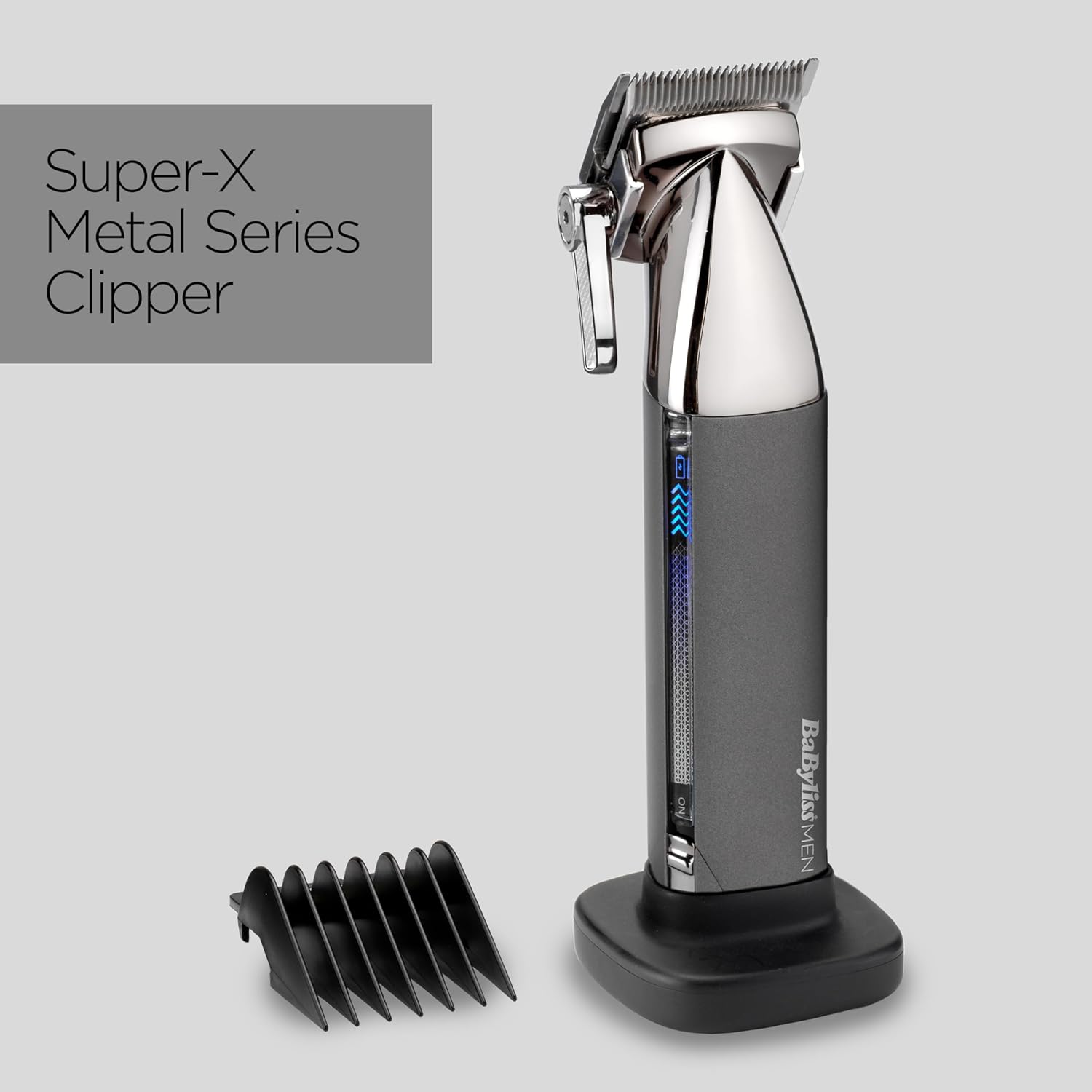

Image: The BaByliss Men Super-X Metal Series Trimmer positioned on its dedicated charging stand, ready for power replenishment.

Operating Instructions

General Use

• Always inspect the appliance before use to ensure the clipper blades are free from hair, debris, etc.
• Use on clean, dry hair that has been combed until tangle-free.

Attaching and Removing Comb Guides

• To attach a comb guide, ensure the appliance is switched off. Hold the comb guide with the teeth facing upwards and slide it over the blade. Push and click the rear of the comb guide into position.
• To remove a comb guide, switch the appliance off. Push the tab on the rear of the comb guide away from the head and lift off.

Clipping Techniques

Your clipper is supplied with 10 standard comb guides (1.5mm - 25mm) and left and right ear taper guides.

1. All Over Even Cut:
   • Attach the desired comb guide.
   • Switch the clipper to the 'I-ON' position.
   • Starting at the nape of the neck, hold the clipper with the comb guide flat against the head. Slowly move the clipper upwards and outwards through the hair.
   • Move the clipper in different directions to ensure all hair is cut evenly.
   • Once the desired length is achieved at the back, move to the sides and top.
   • For the top, hold the clipper with the teeth pointing towards the back of your head. Move the clipper upwards and outwards in rows from the front and sides of your head to the back.
2. Shorter Back and Sides with Length on Top:
   • Attach a longer comb guide for the top section of your hair.
   • Switch the clipper to the 'I-ON' position.
   • Hold the clipper to the front of your hair with the teeth pointing towards the back of your head. Move the clipper upwards and outwards in rows from the front and sides of your head to the back.
   • Once the desired length for the top is achieved, switch off the appliance and attach a shorter comb guide for the sides and back.
   • Starting at the nape of the neck, with the comb guide flat against the head, move the clipper upwards and outwards through the hair, blending as you go.
   • Repeat on the sides of the head, starting with the teeth of the clipper pointing towards the back of your head. For the top area above the ear, again moving the clipper upwards and outwards.
3. Outlining:
   • To neaten up the edges around your cut (e.g., neckline and sideburns), detach the comb guides.
   • Hold the clipper upside down with the front of the clipper facing towards your head.
   • Start at the neckline or sideburns and move the clipper downwards. This will give you a clean, smooth finish.

Image: A hand demonstrating how to hold the BaByliss Men Super-X Metal Series Trimmer with a comb guide attached, illustrating proper grip for use.

Taper Control

The taper control lever allows for fine cut adjustment, providing more precise clipping and fading capabilities.

• The blade cutting length without a comb guide is 0.8mm (Position 1).
• Pushing the lever up decreases the length of the cut.
• Each position will increase the length as follows:
• Position 1: 0.8mm
• Position 2: 0.8mm + 0.2mm = 1.0mm
• Position 3: 0.8mm + 0.4mm = 1.2mm
• Position 4: 0.8mm + 0.5mm = 1.3mm
• Position 5: 0.8mm + 0.6mm = 1.4mm

Image: A detailed view of the 5-position taper control lever on the trimmer, indicating its functionality for precise length adjustments.

Comb Guides and Ear Taper Guides

The appliance is supplied with 10 comb guides for various cutting lengths and 2 ear taper guides.

Standard Comb Guides

Left and Right Ear Taper Guides

These guides are designed to remove hair around the ears for a clean line. Always hold the clipper gently, adjusting based on which ear you are cutting above. Gently trim around and stroke towards the back of the neck.

Cleaning and Maintenance

To maintain optimum cutting performance and hygiene, the appliance should be cleaned after each use.

1. Ensure the appliance is switched off and unplugged before cleaning.
2. Blow away any remaining hair on the blades or use the cleaning brush provided.
3. Remove the comb guide. The comb guide can be rinsed under running water. Ensure it is dried thoroughly before storage or further use.
4. Do not disassemble the blades.
5. Oil the blades after every use to ensure optimum cutting performance. To oil, remove the comb guide, switch the appliance on, apply 2 drops of the provided oil to the blades, run for a few seconds, then wipe off any excess with a soft cloth.

Troubleshooting

If you encounter issues with your BaByliss Men Super-X Metal Series Trimmer, refer to the following common solutions:

• Appliance not turning on: Ensure the trimmer is fully charged. If using corded, ensure it is properly plugged in. Note that the clipper will not switch on while actively charging.
• Poor cutting performance: Ensure the blades are clean and free from hair or debris. Oil the blades as per the 'Cleaning and Maintenance' section. Check if the comb guide is correctly attached.
• Blinking blue LED lights during charging, but not charging: This may indicate a battery or charging system issue. Ensure the charging adaptor and USB cable are the original ones supplied and are functioning correctly. Try charging from a different power outlet. If the issue persists, contact customer support.
• Battery not holding charge: Ensure you are following the 'Preserving the Batteries' guidelines by fully discharging and recharging every 6 months.

Specifications

• Model Number: 7700USDE
• Brand: BaByliss
• Manufacturer: The Conair Group
• Power Source: Battery Powered (Lithium Ion)
• Cordless Use Time: Up to 3 hours
• Blade Material: Japanese Steel / Alloy Steel
• Handle Material: Metal
• Color: Silver, Grey
• Product Dimensions: 3.6 x 3.5 x 18 cm (L x W x H)
• Item Weight: 0.27 Kilograms
• Special Features: Cordless, USB Charging, Taper Control
• Recommended Uses: Beard, Ear, Hair Clipping
• Target Audience: Men

Warranty and Support

For warranty information or technical support, please refer to the information booklet included with your product or visit the official BaByliss website. Keep your proof of purchase for any warranty claims.

For further assistance, you may contact BaByliss customer service through their official channels.
