SchuhRia Professional Circuit Tester VVT-E02 User Manual

Introduction

The SchuhRia Professional Circuit Tester VVT-E02 is a robust tool designed for testing 6V-24V DC electrical circuits in various vehicles, including cars, SUVs, RVs, and more. This tester is essential for diagnosing electrical issues such as faulty wiring, short circuits, and continuity problems in automotive electrical systems, batteries, charging systems, and ignition systems. Its durable construction and user-friendly design make it suitable for both professional and home use.

Figure 1: Wide Application. The circuit tester is suitable for a broad range of 6V-24V DC electrical systems found in motorcycles, cars, RVs, boats, lawnmowers, and other machinery.

Product Features

• Wide Voltage Range: Professional automotive circuit tester with a 6-24V DC voltage test range.
• High Visibility LED: Features a quality LED bulb for clear circuit signal indication. Includes one spare bulb.
• Bidirectional Current/Voltage Test: Allows connection of the alligator clip to either negative or positive ground.
• Durable Construction: Equipped with a sharp stainless steel probe for piercing wires, an insulating protective rubber tip, and a high-quality acetate fiber body.
• Extended PU Spring Cable: A 140-inch (342.9 cm) long polyurethane spring wire provides flexibility and durability.
• Large Alligator Clip: Designed for easy, one-handed operation.

Figure 2: Product Components. This image illustrates the key features of the circuit tester, including its voltage display, ergonomic handle, nickel-plated probe, extended cable length, and large alligator clip.

Setup Instructions

1. Unpack the Tester: Carefully remove the circuit tester from its packaging.
2. Inspect Components: Verify that all components, including the probe, cable, alligator clip, and LED bulb, are intact and free from damage.
3. Prepare for Connection: Ensure the vehicle's ignition is off before connecting the tester to avoid accidental shorts or damage.
4. Connect the Alligator Clip: Attach the large alligator clip securely to a suitable ground point (negative terminal of the battery or a chassis ground) for testing positive circuits, or to a positive power source (positive terminal of the battery) for testing negative circuits. The tester supports bidirectional voltage testing.

Operating Instructions

This circuit tester is designed for quick and accurate voltage and continuity checks within 6V-24V DC systems.

1. Establish Connection: As described in the setup, connect the alligator clip to either a ground point or a positive power source, depending on the circuit you intend to test.
2. Probe the Circuit: Use the sharp stainless steel probe to touch the wire, terminal, or fuse you wish to test. The insulating rubber tip provides protection during use. For hard-to-reach areas or to pierce wire insulation, apply gentle pressure with the probe tip.
3. Observe the LED Indicator: If voltage is present and the circuit is complete, the LED bulb inside the tester's handle will illuminate. The brightness of the light may vary with different measured voltages.
4. Interpret Results:
   • LED On: Indicates voltage is present at the probed point.
   • LED Off: Indicates no voltage is present, suggesting an open circuit, a faulty component, or an incorrect ground/power connection for the alligator clip.
5. Testing Fuses: To test a fuse, connect the alligator clip to a known good ground. Touch the probe to both test points on top of the fuse. If the LED lights up on both sides, the fuse is good. If it lights up on one side but not the other, the fuse is blown.

Figure 3: Testing a Fuse. The image demonstrates the circuit tester being used to check a fuse, with the internal LED indicating the presence of voltage.

Figure 4: LED Bulb Brightness. This illustration highlights the design of the LED bulb, which is aligned with the probe for optimal brightness and visibility during testing.

Maintenance

• Cleaning: After each use, wipe the probe tip and the body of the tester with a clean, dry cloth to remove any dirt, grease, or moisture.
• Storage: Store the circuit tester in a dry, clean environment, away from extreme temperatures and direct sunlight. Keep the probe tip covered with its protective cap when not in use.
• Bulb Replacement: If the LED bulb fails to illuminate when voltage is present, it may need replacement. Unscrew the top cap of the tester to access the bulb. Replace it with the provided spare bulb or a compatible replacement (ensure correct voltage rating).
• Cable Inspection: Periodically inspect the polyurethane spring cable and alligator clip for any signs of wear, cuts, or damage. Do not use the tester if the cable insulation is compromised.

Troubleshooting

• LED Does Not Light Up:
  • Ensure the alligator clip has a secure connection to a good ground or power source.
  • Verify that the circuit being tested actually has voltage. Test on a known live circuit (e.g., battery terminal) to confirm the tester is working.
  • Check if the LED bulb is burnt out. Replace it if necessary (refer to Maintenance section).
  • Inspect the cable for any breaks or damage.
• Intermittent Light:
  • Check for loose connections at the alligator clip or where the probe contacts the circuit.
  • Ensure the probe tip is clean and making good contact.

Specifications

Figure 5: Product Dimensions. This diagram provides detailed measurements for the circuit tester's components, including the probe, handle, and extended cable.

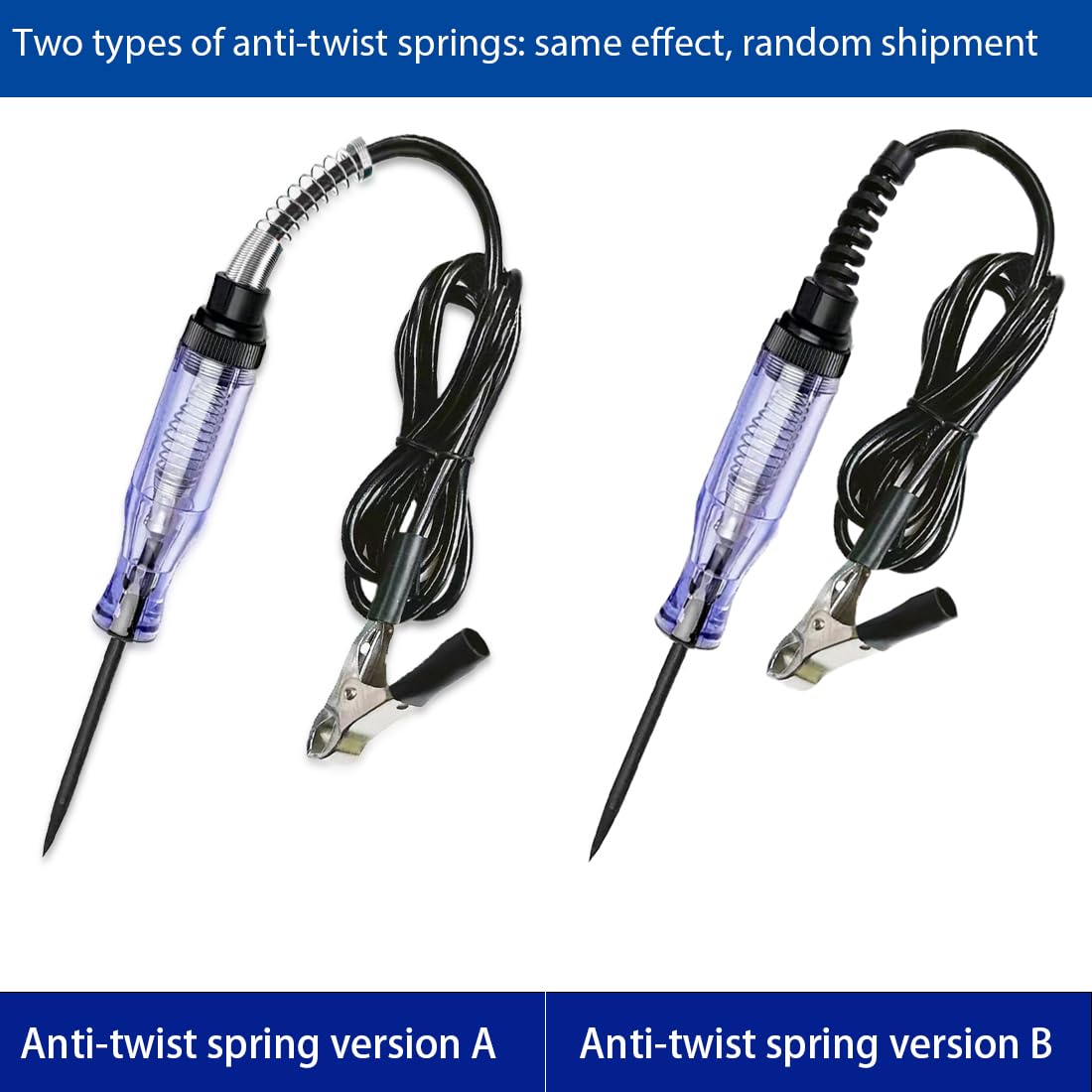

Figure 6: Anti-Twist Spring Variations. This image illustrates two possible designs for the anti-twist spring mechanism, both offering the same functional performance. Shipment of either version is random.

Warranty Information

This product comes with a standard manufacturer's warranty. For specific details regarding warranty coverage, duration, and claims process, please refer to the documentation included with your purchase or contact the manufacturer directly. Keep your proof of purchase for warranty validation.

Customer Support

For technical assistance, troubleshooting not covered in this manual, or inquiries about your SchuhRia Professional Circuit Tester VVT-E02, please contact SchuhRia customer support. Contact information can typically be found on the product packaging or the manufacturer's official website.
