Introduction
This manual provides essential information for the proper installation, use, and maintenance of your CUB CADET 720-04072A Star Knob. Please read this manual thoroughly before installation to ensure correct application and to prevent damage to the product or equipment.
Safety Information
Always ensure the equipment is turned off and disconnected from any power source before installing or removing the knob. Wear appropriate personal protective equipment (PPE) if necessary. Keep small parts away from children and pets to prevent choking hazards. Do not modify the knob or use it for purposes other than its intended design.
Product Overview
The CUB CADET 720-04072A Star Knob is a durable replacement part designed for various outdoor power equipment. It features a five-point star shape for easy gripping and a threaded metal insert for secure attachment.
Figure 1: Front view of the star knob, showing its five-point design and central threaded opening.
Figure 2: Back view of the star knob, highlighting the integrated metal threaded insert for secure fastening.

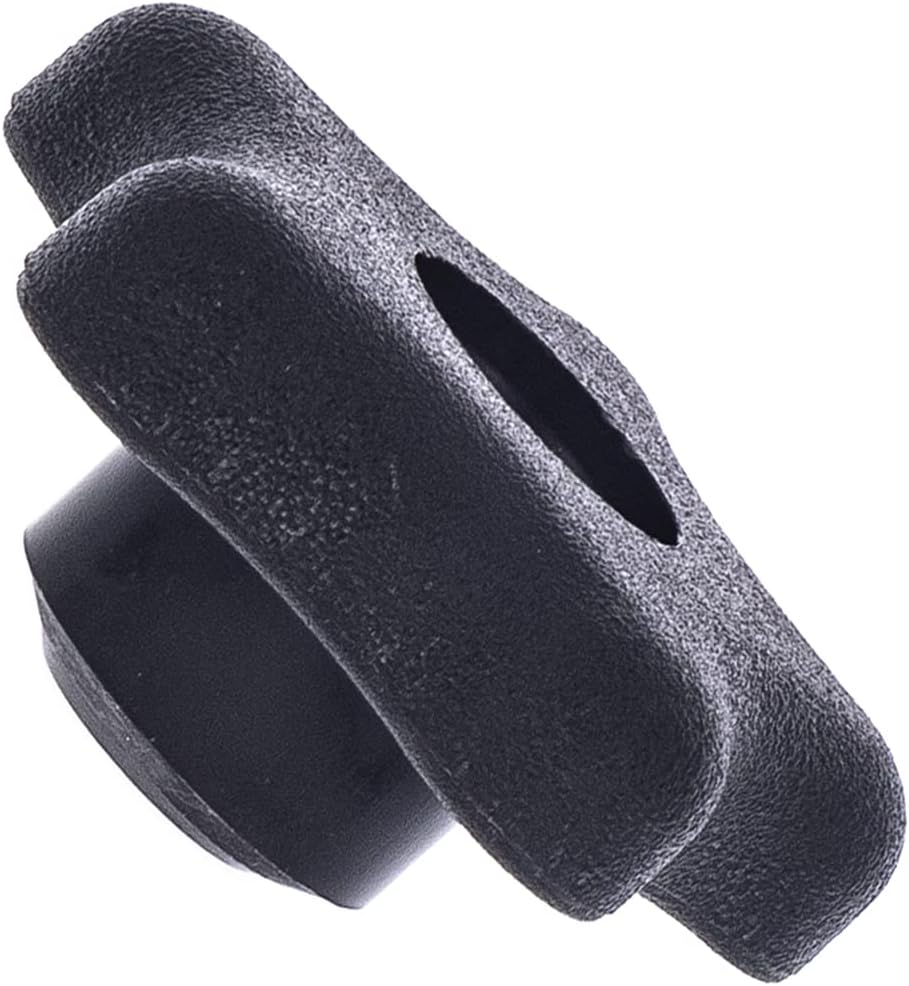

Figure 3: Side profile of the star knob, illustrating its ergonomic shape for comfortable grip and turning.
Figure 4: Angled view showing the base and the robust construction of the knob.
Installation
- Prepare Equipment: Ensure the equipment where the knob will be installed is stable, turned off, and any moving parts are secured.
- Identify Mounting Point: Locate the threaded stud or bolt on your equipment where the star knob is to be attached.
- Align and Thread: Carefully align the threaded insert of the star knob with the stud/bolt. Begin turning the knob clockwise by hand.
- Secure Tightening: Continue turning until the knob is hand-tight and securely fastened. Do not use tools to overtighten, as this may strip the threads or damage the knob.
Operating
The CUB CADET 720-04072A Star Knob is used for quick and easy manual adjustments or securing components on compatible equipment. To operate, simply turn the knob clockwise to tighten and counter-clockwise to loosen. Its star shape provides a comfortable grip for manual operation without the need for additional tools.
Maintenance
- Regular Inspection: Periodically inspect the knob for any signs of wear, cracks, or damage, especially around the threaded insert.
- Cleaning: Keep the knob and its threaded insert clean and free of dirt, debris, or grease. A damp cloth can be used for cleaning.
- Tightness Check: If the knob is used in an application that requires frequent loosening and tightening, regularly check its tightness to ensure it remains secure during operation.
- Replacement: Replace the knob immediately if it shows significant wear, damage, or if the threads are stripped, as this can compromise safety and functionality.
Troubleshooting
Knob is loose or does not tighten securely:
- Ensure the knob is fully threaded onto the stud/bolt.
- Inspect the threads on both the knob and the mating stud/bolt for wear, damage, or stripping. If threads are damaged, replacement of the knob or stud/bolt may be necessary.
Knob is difficult to turn:
- Check for any debris, dirt, or foreign objects in the threads of the knob or the stud/bolt. Clean thoroughly if found.
- Ensure the knob is not cross-threaded. If it is, carefully unthread it and re-align before attempting to tighten again. Do not force the knob.
Compatibility
The CUB CADET 720-04072A Star Knob is an Original Equipment Manufacturer (OEM) part designed for a wide range of Cub Cadet equipment. It replaces prior MPNs 706-426000-F, 706-1703, and 706-126014-F.
Compatible with various Cub Cadet models, including but not limited to:
- CC46ES
- CC500
- CC500BAT
- CC500EL
- CC550ES
- CC550SP
- CC760
- CC760ES
- CC94M
- CC98H
- CC98M
- CC999ES
- CSV050
- 11530
- 524SWE
- 526WE
- 528SWE
- 90026C Snow Throwers
- Z42
- Z48
- Z48L
- Z54
- Z54L
- Pro X 648
- Pro X 654
- Pro X 660
- Wide-Area GF1748
- Wide-Area HF1748
- Wide-Area HF1954
- And many more listed in your equipment's original owner's manual.
Always refer to your specific equipment's owner's manual to verify compatibility before purchasing or installing replacement parts.
Specifications
| Model Number | 720-04072A |
| Manufacturer | CUB CADET |
| Product Dimensions | 2.25 x 2.25 x 1.25 inches |
| Item Weight | 0.16 ounces |
Warranty and Support
For information regarding product warranty, technical support, or to purchase additional parts, please visit the official CUB CADET website or contact their customer service department. Please retain your proof of purchase for any warranty claims.
CUB CADET Official Website: www.cubcadet.com
