Makita DGP180Z 18V Cordless Grease Gun Instruction Manual

Introduction

This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your Makita DGP180Z 18V Cordless Grease Gun. Please read this manual thoroughly before using the tool to ensure proper handling and to prevent injury or damage.

The Makita DGP180Z is a powerful and efficient cordless grease gun designed for various lubrication tasks, offering portability and convenience. It is compatible with Makita 18V LXT Lithium-Ion batteries (sold separately).

Image: The Makita DGP180Z 18V Cordless Grease Gun, showing its compact design and battery slot.

Safety Information

Always observe basic safety precautions to reduce the risk of fire, electric shock, and personal injury. Keep this manual for future reference.

• Work Area Safety: Keep your work area clean and well-lit. Cluttered or dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
• Electrical Safety: This tool is battery-operated. Ensure the battery pack is fully charged before use. Do not expose power tools to rain or wet conditions.
• Personal Safety: Always wear eye protection. Use hearing protection when operating the tool for extended periods. Dress properly; do not wear loose clothing or jewelry. Keep hair, clothing, and gloves away from moving parts.
• Tool Use and Care: Do not force the tool. Use the correct tool for your application. Disconnect the battery pack from the tool before making any adjustments, changing accessories, or storing power tools.
• Battery Pack Safety: Use only battery packs specified by the manufacturer. Do not incinerate the battery pack even if it is severely damaged or completely worn out.

What's in the Box

The Makita DGP180Z is sold as a tool-only unit. The following items are typically included with the tool:

• Makita DGP180Z 18V Cordless Grease Gun (Tool Only)
• 400g Grease Barrel (Part No. 191B12-7)
• 47-1/4" Flexible Grease Gun Hose with Coupler (Part No. 191A79-9)

Note: Battery and charger are sold separately.

Image: The retail packaging for the Makita Cordless Grease Gun, indicating the LXT series and model DGP180Z.

Components Overview

Familiarize yourself with the various parts of your Makita DGP180Z Cordless Grease Gun:

• Battery Slot: For inserting the 18V LXT Lithium-Ion battery.
• Trigger Switch: Activates the grease gun.
• Lock-on Button: Allows for continuous operation without holding the trigger.
• LED Job Light: Illuminates the work area.
• Flow Rate Selector Dial: Adjusts the grease output rate (settings 1 and 2).
• Grease Barrel: Holds the grease cartridge.
• Flexible Hose with Coupler: Connects to grease fittings.

Image: Side view of the Makita DGP180Z, highlighting the main body, grease barrel, and flexible hose connection.

Image: A close-up view of the flow rate selector dial on the Makita DGP180Z, showing settings '1' and '2'.

Image: A detailed view of the integrated LED job light on the Makita DGP180Z, located near the handle.

Setup

1. Installing the Battery

1. Ensure the grease gun is turned off and the trigger is locked.
2. Align the battery pack with the battery slot on the tool.
3. Slide the battery pack into the slot until it clicks into place. Ensure it is securely latched.
4. To remove, press the release button on the battery and slide it out.

2. Loading a Grease Cartridge

The DGP180Z supports 400g grease cartridges.

1. Unscrew the grease barrel from the main body of the grease gun.
2. Pull the plunger rod all the way back and lock it into place.
3. Remove the caps from both ends of a new 400g grease cartridge.
4. Insert the cartridge into the grease barrel, ensuring it is fully seated.
5. Screw the grease barrel back onto the main body of the grease gun until it is hand-tight.
6. Release the plunger rod lock and push the rod forward to prime the grease gun.

Image: A user demonstrating the process of loading a grease cartridge into the Makita DGP180Z grease gun.

3. Attaching the Flexible Hose

1. Screw the flexible grease gun hose onto the outlet port of the grease gun until it is secure.
2. Ensure the coupler at the end of the hose is clean and free of debris.

Image: A user connecting the flexible hose's coupler to a grease fitting on a piece of machinery.

Operating

1. Adjusting Flow Rate

The DGP180Z features a two-speed flow rate selector dial:

• Setting 1 (Low Speed): Provides a slower, more controlled grease output, ideal for precise applications or when less grease is required.
• Setting 2 (High Speed): Delivers a faster grease output for quick lubrication of larger components or when speed is a priority.

Rotate the dial to select the desired flow rate before operating the tool.

2. Lubrication Procedure

1. Ensure the grease gun is primed and ready for use.
2. Firmly attach the coupler at the end of the flexible hose to the grease fitting on the component to be lubricated. Ensure a tight seal to prevent leakage.
3. Press the trigger switch to begin dispensing grease.
4. For continuous operation, press the lock-on button while the trigger is depressed. Press the trigger again to release the lock-on.
5. Observe the component being lubricated. Stop dispensing grease when resistance is felt or when the desired amount of grease has been applied.
6. To detach the coupler, twist it slightly while pulling it straight off the fitting.

Image: A user applying grease to a vehicle's wheel assembly using the Makita DGP180Z cordless grease gun.

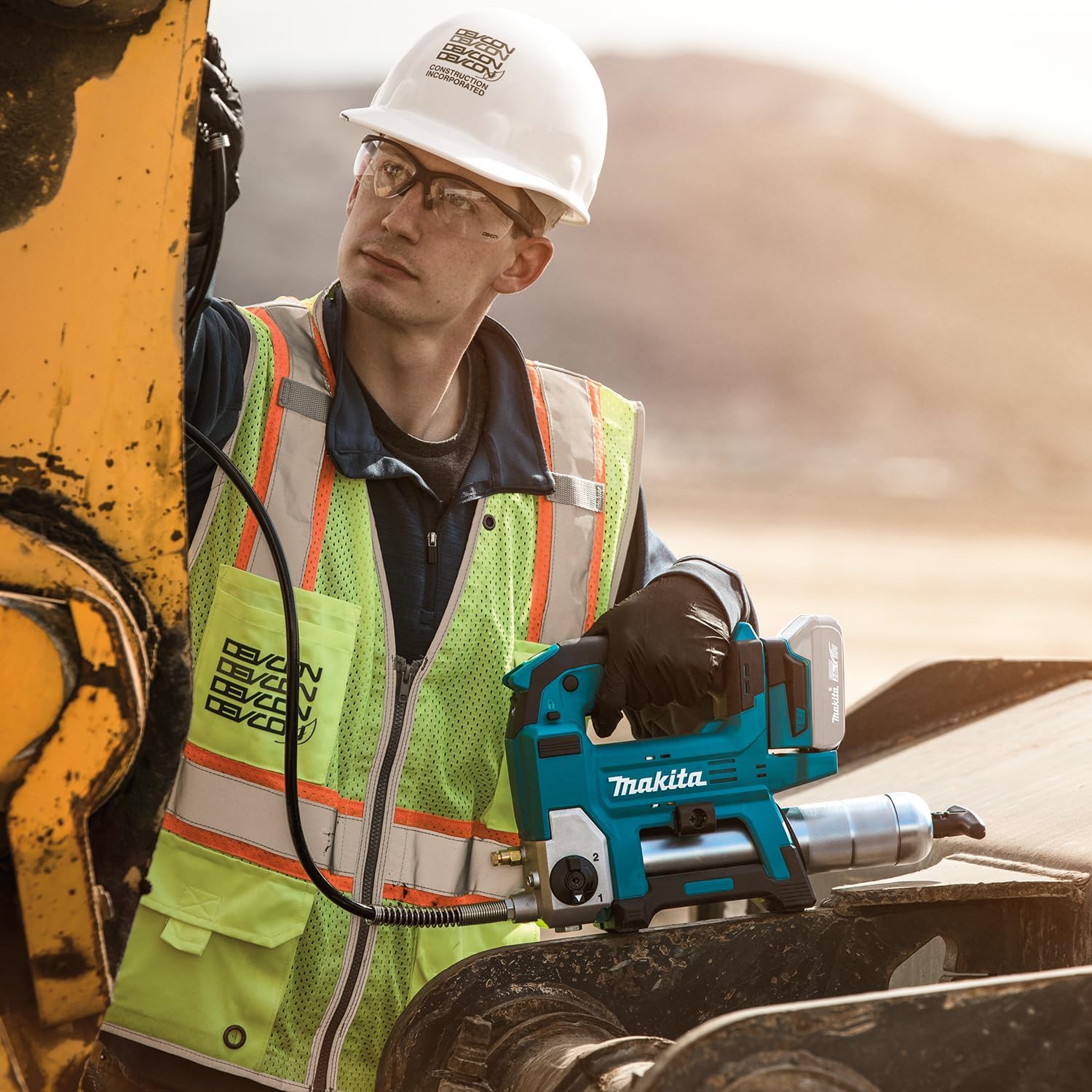

Image: A user lubricating a part of heavy machinery with the Makita DGP180Z, demonstrating its use in industrial settings.

Maintenance

Regular maintenance ensures the longevity and optimal performance of your grease gun.

• Cleaning: After each use, wipe down the tool with a clean, dry cloth. Do not use harsh chemicals or abrasive cleaners. Keep the grease barrel and hose free from external dirt and debris.
• Coupler Care: Regularly inspect the grease coupler for wear or damage. A worn coupler can lead to grease leakage. Replace if necessary.
• Storage: Store the grease gun in a clean, dry place, out of reach of children. Remove the battery pack before storing for extended periods.
• Grease Cartridge Replacement: When the grease cartridge is empty, follow the loading instructions in the Setup section to replace it.

Troubleshooting

Specifications

Warranty and Support

For warranty information and customer support, please refer to the official Makita website or contact your local Makita service center. Keep your purchase receipt as proof of purchase for warranty claims.

Makita Official Website: www.makitatools.com
