KIMISS Universal 12V 115dB Car Reversing Alarm Buzzer

1. Introduction

Thank you for choosing the KIMISS Universal 12V 115dB Car Reversing Alarm Buzzer. This device is designed to enhance safety by providing an audible warning when your vehicle is reversing, alerting pedestrians and other drivers to your presence. Please read this manual carefully before installation and use to ensure proper function and safety.

2. Product Overview

The KIMISS Car Reversing Alarm is a robust and reliable safety accessory for your vehicle. Its universal design ensures compatibility with most 12V vehicle electrical systems.

Image 1: The KIMISS Universal 12V 115dB Car Reversing Alarm Buzzer, a compact black unit with exposed red and black wiring.

Key Features:

• Wide Compatibility: Suitable for nearly all 12V vehicles, providing enhanced safety for passengers, pedestrians, and family members around a moving vehicle.
• Excellent Performance: Utilizes a high-quality voice coil and diaphragm material to produce a loud 115dB alarm sound.
• High Sensitivity & Durability: Designed for high sensitivity to improve reversing safety. Constructed from high-quality ABS material, ensuring reliability and long service life, resistant to rust and short-circuiting in wet conditions.
• Easy Installation: Comes with a fixed bracket for straightforward mounting and operation.

3. Specifications

4. Safety Information

• Loud Sound Warning: This alarm is very loud (115dB). Avoid prolonged exposure to the sound at close range. Do not use it near schools, hospitals, or residential areas late at night to prevent disturbance.
• Electrical Safety: Ensure the vehicle's power is off before attempting any installation. Incorrect wiring can cause damage to the product or the vehicle's electrical system. If unsure, consult a qualified automotive technician.
• Mounting: Securely mount the buzzer using the provided bracket to prevent it from dislodging during vehicle operation.
• Water Resistance: While designed to be durable and resistant to short-circuiting in rain, avoid submerging the unit in water.

5. Installation

The KIMISS Car Reversing Alarm is designed for universal fitment and comes with a fixed bracket for easy installation. Follow these general steps:

1. Choose a Mounting Location: Select a suitable location at the rear of your vehicle, ensuring it is protected from direct impact and allows the sound to propagate effectively. Common locations include near the bumper or within the trunk area.
2. Mount the Buzzer: Use the fixed bracket to securely attach the buzzer to the chosen location. Ensure the bracket is firmly fastened to the vehicle's chassis or a sturdy part of the bodywork.

Image 2: The reversing alarm unit shown with its integrated mounting bracket, ready for installation.

3. Wiring: The buzzer has two wires, typically red for positive (+) and black for negative (-).
• Connect the red wire (+) to the positive terminal of your vehicle's reverse light circuit. This ensures the alarm activates only when the vehicle is in reverse gear.
• Connect the black wire (-) to a suitable ground point on the vehicle's chassis.

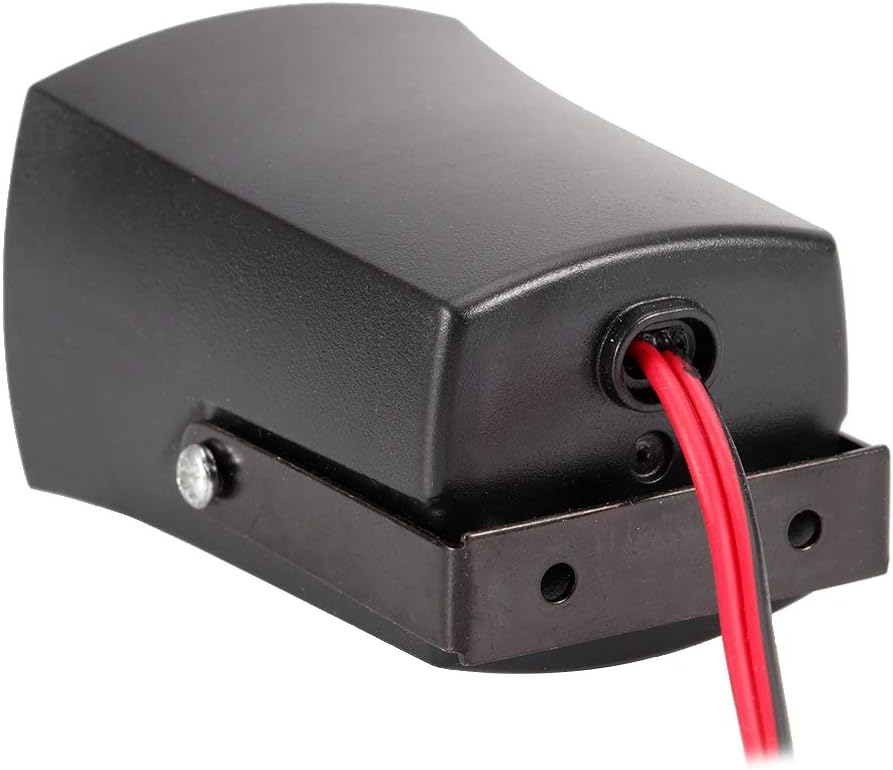

Image 3: A close-up view of the wiring connection point on the reversing alarm, showing the red and black wires.

4. Test the Installation: Once wired, turn on your vehicle and engage reverse gear (with the parking brake engaged for safety). The alarm should emit a loud beeping sound.

Note: If you are not confident with automotive electrical work, it is recommended to have the installation performed by a professional technician.

6. Operation

The KIMISS Car Reversing Alarm operates automatically. Once correctly installed and wired to your vehicle's reverse light circuit, it will activate whenever the vehicle's transmission is shifted into reverse gear. The 115dB sound will alert individuals in the vicinity that the vehicle is backing up, significantly reducing the risk of accidents.

Image 4: A car shown in a parking scenario, illustrating the context where the reversing alarm would be active, enhancing safety.

7. Maintenance

The KIMISS Car Reversing Alarm is designed for minimal maintenance. To ensure its longevity and reliable performance:

• Regular Cleaning: Periodically clean the exterior of the buzzer to remove dirt, dust, or debris that may accumulate. Use a soft, damp cloth. Avoid harsh chemicals.
• Inspect Connections: Occasionally check the wiring connections to ensure they remain secure and free from corrosion.
• Physical Damage: Inspect the unit for any signs of physical damage. If the casing is cracked or wires are exposed, replace the unit immediately.

8. Troubleshooting

If your KIMISS Car Reversing Alarm is not functioning as expected, consider the following:

• No Sound:
• Check all wiring connections (positive, negative, and reverse light trigger) to ensure they are secure and correctly connected.
• Verify that the reverse lights are functioning. If not, the issue may be with the vehicle's electrical system.
• Check the vehicle's fuse box for any blown fuses related to the reverse lights or accessory power.
• Weak or Intermittent Sound:
• Ensure the power supply to the buzzer is stable 12V. Low voltage can affect performance.
• Inspect the buzzer for any obstructions or damage to the sound outlet.
• Check for loose connections that might cause intermittent power.
• Constant Sound (not only in reverse):
• Re-check the wiring to ensure the positive wire is connected specifically to the reverse light circuit and not a constant 12V source.

If these steps do not resolve the issue, please contact customer support.

9. Warranty and Support

KIMISS products are manufactured to high-quality standards. For specific warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. If you encounter any issues or have questions regarding your product, please reach out to KIMISS customer support through the official website or your purchase platform.

When contacting support, please have your product model number (KIMISSr1a6usnydi1628) and purchase details readily available.
