Important Safety Information
- This product is not suitable for aggressive dogs. Consult a veterinarian or certified trainer if your dog exhibits aggressive behavior.
- If you are unsure about the suitability of this product for your dog, consult your veterinarian or a certified trainer.
- Danger of electric shock: The fence transmitter must only be used in a dry indoor environment.
- Do not leave the receiver collar on your dog for more than 12 hours per day.
- Reposition the collar on your pet's neck every 1 to 2 hours to prevent skin irritation.
- Clean the contact points on the dog's neck and the collar with a damp cloth weekly.
- If you observe any rash or sores, discontinue use of the collar immediately and allow the skin to heal completely before resuming use.
Package Contents
Please verify that all items listed below are included in your package:
- Wireless Transmitter (1)
- Waterproof and Rechargeable Receiver Collar (1)
- USB Cable (1)
- USB Charger (1)
- Conductive Rubber Covers (4)
- Metal Contact Points (2 sets: short and long)
- Reflective Fluorescent TPU Collar Belt (1)
- Test Light Tool (1)
- Mounting Screws (2)
- English Manual (1)
Figure 1: All components included in the SXDD Wireless Dog Fence System package. This includes the transmitter, receiver collar, USB cable, charger, contact points, reflective collar, test light, and mounting hardware.
Product Features
- 2-in-1 Functionality: Operates as both a wireless pet fence and a remote training system (buzzer, vibration, and static correction).
- LED Display: Features an LED display for clear indication of settings and signal levels.
- Adjustable Fence Range: Offers 5 signal levels for fence distance: 100 ft, 200 ft, 300 ft, 500 ft, and 990 ft. Note that actual range may vary by approximately ±16 ft depending on environmental factors.
- Rechargeable Units: Both the transmitter and receiver are equipped with rechargeable batteries.
- Waterproof Receiver: The receiver collar is designed to be waterproof and dustproof (IP67 rated).
- Enhanced Night Safety: Includes a reflective fluorescent TPU collar for improved visibility during nighttime use.
- Multi-Dog Support: Capable of controlling up to 3 dogs simultaneously (additional collars sold separately).
- Skin Protection: Comes with silicone sleeves to prevent direct contact between the pet's skin and metal probes.
- Optimal Performance: Designed for use in open outdoor areas without significant obstacles. The transmitter should be placed at least 1 meter (approximately 3.3 feet) above ground level for best signal transmission.
Setup Guide
1. Charging the Devices
Before initial use, fully charge both the wireless transmitter and the receiver collar. Connect the USB cable to the charger and then to the charging ports on each device. An indicator light will typically show charging status and turn off or change color when fully charged.
2. Transmitter Placement
For optimal performance, place the wireless transmitter in an open, elevated location, at least 1 meter (approximately 3.3 feet) above ground level. Avoid placing it near large metal objects or structures that could interfere with the signal. The system is designed for outdoor use and should not be used indoors.
Figure 2: Illustration of proper outdoor transmitter placement and theoretical range settings. The transmitter should be elevated and used in an open area for best signal coverage.
3. Attaching the Receiver Collar
- Select the appropriate metal contact points (short for short-haired dogs, long for long-haired dogs) and screw them securely into the receiver.
- Optionally, place the provided silicone covers over the metal contact points to enhance comfort and prevent direct skin contact.
- Thread the reflective fluorescent TPU collar belt through the receiver.
- Fit the collar snugly around your dog's neck. Ensure that the contact points touch the dog's skin. You should be able to fit two fingers comfortably between the collar and your dog's neck.
- Trim any excess collar strap if necessary.

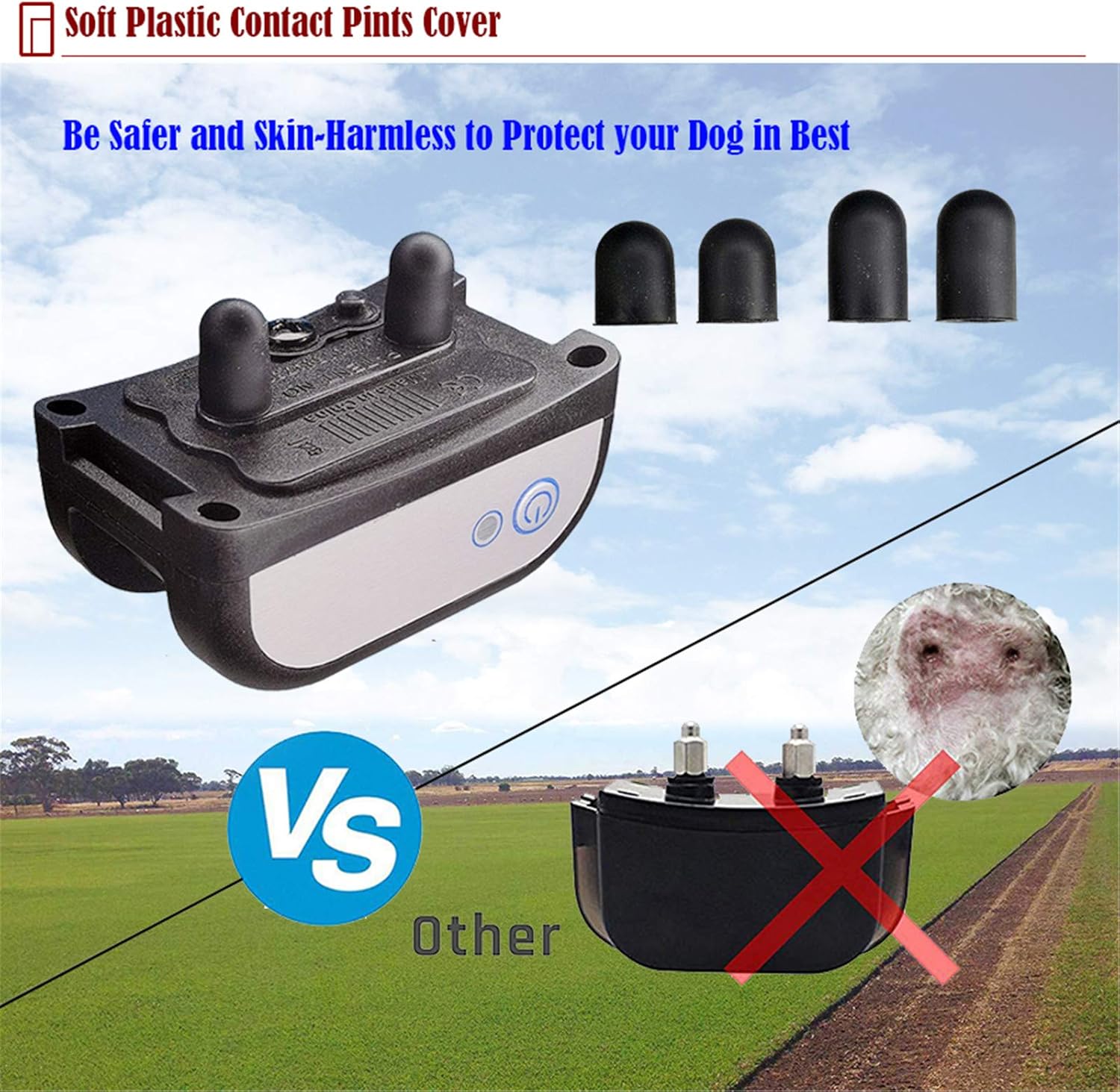

Figure 3: Receiver collar with soft plastic contact covers installed, designed for pet comfort and skin protection.
Figure 4: The reflective fluorescent TPU collar belt, enhancing visibility and safety during nighttime use.
4. Testing the System
Before placing the collar on your dog, test the system to ensure it is functioning correctly. Hold the receiver collar near the boundary you intend to set. The collar should emit a warning tone, followed by vibration and then static correction as you approach and cross the boundary. Use the provided test light tool to verify the static correction function by placing it over the contact points when the correction is active.
Operating Instructions
1. Powering On/Off
- Transmitter: Press the "ON/OFF" button on the transmitter to power it on or off. The LED display will illuminate when on.
- Receiver Collar: Press and hold the power button on the receiver collar until the indicator light illuminates to turn it on. Repeat to turn off.
2. Adjusting Fence Range
The transmitter allows you to adjust the wireless fence range. Use the "+" and "-" buttons on the transmitter to select one of the five available signal levels:
- Level 1: Approximately 100 feet radius
- Level 2: Approximately 200 feet radius
- Level 3: Approximately 300 feet radius
- Level 4: Approximately 500 feet radius
- Level 5: Approximately 990 feet radius
The selected level will be displayed on the transmitter's LED screen. Remember that actual range can vary due to environmental factors.
3. Training Your Dog
Effective training is crucial for your dog to understand the wireless fence system. Begin with short training sessions in the designated area. Introduce your dog to the boundary by walking them towards it. When the collar emits a warning tone, gently guide your dog away from the boundary. Consistency and positive reinforcement are key. Never use the system to punish your dog.
Maintenance
- Collar Cleaning: Weekly, clean the receiver collar and the contact points on your dog's neck with a damp cloth to prevent skin irritation and ensure proper function.
- Battery Care: Recharge the transmitter and receiver collar regularly. Avoid fully depleting the batteries to prolong their lifespan.
- Storage: When not in use for extended periods, store the system in a dry, cool place.
- Inspection: Periodically inspect the collar and transmitter for any signs of damage or wear. Replace components as needed.

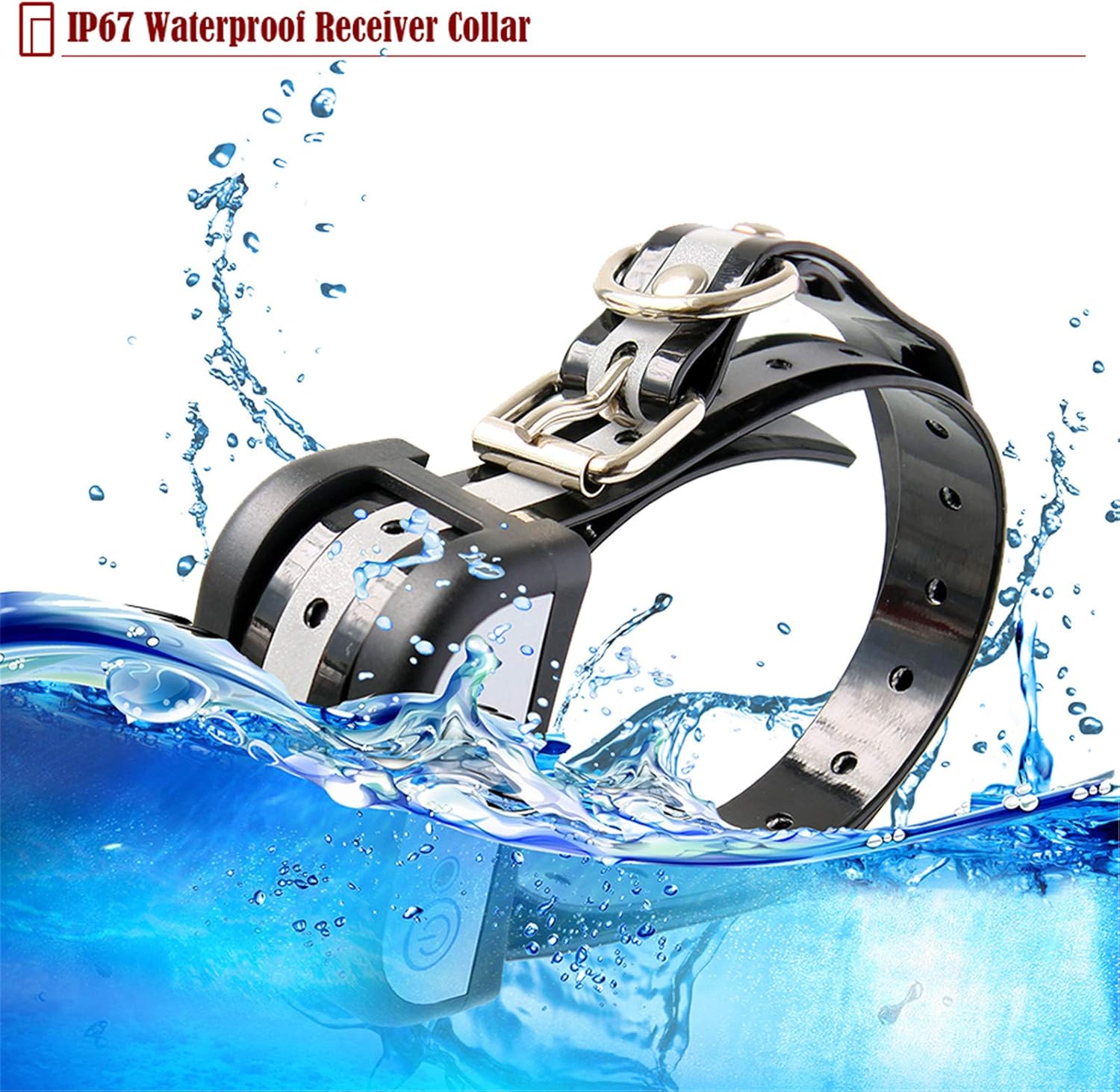

Figure 5: The IP67 waterproof receiver collar, designed to withstand water exposure, making it suitable for various outdoor conditions.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Collar not activating at boundary. |
|
|
| Dog not responding to correction. |
|
|
| Skin irritation on dog's neck. |
|
|
Specifications
| Model Number | B091F3DJDY |
| Brand | SXDD |
| Functionality | 2-in-1 Wireless Pet Fence & Remote Training System (Buzzer + Vibration + Static Correction) |
| Fence Range | Adjustable: 100 ft, 200 ft, 300 ft, 500 ft, 990 ft (radius) |
| Receiver Collar Rating | IP67 Waterproof and Dustproof |
| Power Source | Rechargeable batteries for both transmitter and receiver |
| Display | LED Display |
| Maximum Dogs Supported | 3 (with additional collars) |
Warranty and Customer Support
For information regarding warranty coverage, technical support, or replacement parts, please refer to the contact information provided with your purchase or visit the official SXDD website. Please have your model number (B091F3DJDY) and purchase date available when contacting support.
