BLACK+DECKER BXAC50E Evaporative Cooler User Manual

Product Overview

The BLACK+DECKER BXAC50E Evaporative Cooler is designed to refresh and humidify the air in your home, improving overall air quality. This versatile unit features three adjustable speeds and three operating modes (Normal, Breeze, and Night) to provide optimal airflow intensity. With an airflow capacity of 234 m³/h, it efficiently cools and humidifies spaces. The oscillating system ensures wide air distribution for faster room refreshment. It includes a removable 5-liter water tank for easy refilling and four ice containers for enhanced cooling performance. Convenient operation is provided through a remote control, touch-sensitive buttons, and four wheels for easy mobility. A 7.5-hour timer allows for scheduled operation and automatic shut-off.

Figure 1: Front view of the BLACK+DECKER BXAC50E Evaporative Cooler, showcasing its sleek design and front louvers.

Setup and Installation

1. Unpacking: Carefully remove the evaporative cooler from its packaging. Retain all packaging materials for future storage or transport.
2. Placement: Place the unit on a flat, stable surface. Ensure there is adequate space around the unit for proper airflow. The integrated wheels allow for easy positioning.

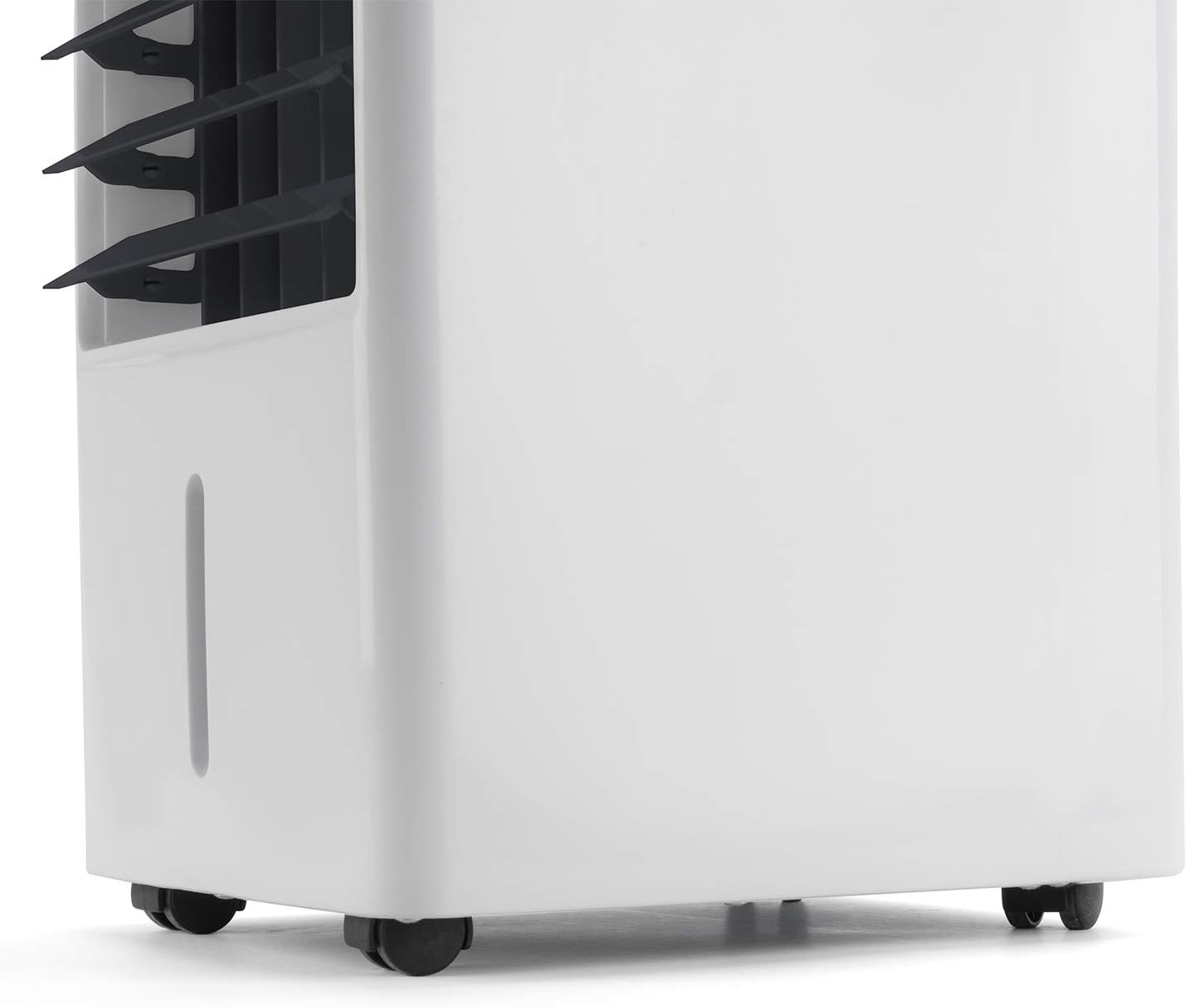

Figure 2: The base of the evaporative cooler with its four integrated wheels, designed for optimal mobility.
3. Filling the Water Tank:
   • Locate the removable water tank at the bottom rear of the unit.
   • Gently pull out the water tank.


   Figure 3: A hand demonstrating the removal of the water tank from the back of the unit for refilling.

   • Fill the tank with clean, cool water up to the "Max" indicator line. The tank has a 5-liter capacity.
   • Carefully slide the water tank back into its position until it clicks securely.
4. Using Ice Packs (Optional for Enhanced Cooling):
   • The unit comes with four ice containers. Freeze these ice containers in a freezer until solid.


   Figure 4: The four blue ice packs included with the evaporative cooler, used to enhance cooling performance.

   • Open the top lid of the evaporative cooler.
   • Place the frozen ice containers into the designated slots within the water tank area.


   Figure 5: Top view of the evaporative cooler with the lid open, showing the placement of the blue ice packs inside.

   • Close the top lid securely.
5. Power Connection: Plug the power cord into a standard electrical outlet (240V AC).

Operating Instructions

The BLACK+DECKER BXAC50E can be operated using the touch control panel on top of the unit or the included remote control.

Control Panel and Remote Control

Figure 6: Detailed view of the touch control panel on the top of the unit, showing various function buttons.

Figure 7: A hand holding the compact remote control, which provides convenient access to all functions.

Figure 8: A hand interacting with the touch control panel, demonstrating ease of use.

Functions

• Power On/Off: Press the Power button to turn the unit on or off.
• Speed Adjustment: Press the Speed button repeatedly to cycle through the three available fan speeds: Low, Medium, and High.
• Cooling/Humidification: Press the Cool button to activate the evaporative cooling and humidification function. Ensure the water tank is filled.
• Operating Modes: Press the Wind Type button to select between Normal, Breeze, and Night modes.
  • Normal Mode: Constant airflow at the selected speed.
  • Breeze Mode: Simulates natural wind with varying fan speeds.
  • Night Mode: Operates at a lower, quieter speed for undisturbed sleep.
• Oscillation: Press the Swing button to activate or deactivate the oscillating function, which distributes air across a wider area.
• Timer Function: Press the Time button repeatedly to set the operating timer from 0.5 hours up to 7.5 hours. The unit will automatically turn off once the set time has elapsed.

Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your evaporative cooler.

• Cleaning the Water Tank:
  • Before cleaning, always unplug the unit from the power outlet.
  • Remove the water tank as described in the "Setup" section.
  • Empty any remaining water.
  • Clean the tank with mild soap and water. Rinse thoroughly to remove all soap residue.
  • Allow the tank to air dry completely before reinserting it.
  • Recommendation: Clean the water tank at least once a week, or more frequently if used continuously, to prevent mold and mildew buildup.
• Cleaning the Air Filter:
  • The unit has an air filter located at the back.
  • Carefully remove the filter.
  • Clean the filter with a soft brush or vacuum cleaner to remove dust. For deeper cleaning, rinse with water and mild soap, then allow to dry completely.
  • Reinsert the dry filter.
• Exterior Cleaning: Wipe the exterior of the unit with a soft, damp cloth. Do not use abrasive cleaners or solvents.
• Storage: If storing the unit for an extended period, ensure the water tank and filter are clean and dry. Store in a cool, dry place, preferably in its original packaging.

Troubleshooting

If you encounter issues with your evaporative cooler, please refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact customer support.

Specifications

Figure 9: Diagram illustrating the dimensions of the evaporative cooler (Height: 80cm, Width: 30cm, Depth: 25cm).

Warranty and Support

For detailed warranty information, please refer to the warranty card or documentation included with your product packaging. BLACK+DECKER products typically come with a manufacturer's warranty covering defects in materials and workmanship.

For technical support, spare parts, or service inquiries, please visit the official BLACK+DECKER website or contact their customer service department. Contact details can usually be found on the product packaging or the brand's official website.
