SMOTIVEPRO 500cc Oil Suction Syringe User Manual

Introduction

The SMOTIVEPRO 500cc Oil Suction Syringe is a versatile and essential tool designed for efficient and clean fluid transfer in automotive and mechanical applications. This manual provides detailed instructions for the safe and effective use, setup, operation, and maintenance of your fluid transfer pump.

Safety Information

Always observe the following safety precautions when using the SMOTIVEPRO Oil Suction Syringe:

• Wear appropriate personal protective equipment (PPE), including gloves and eye protection, when handling fluids.
• Ensure the work area is well-ventilated to avoid inhaling fumes from fluids.
• Do not use the pump with highly corrosive or flammable liquids unless specifically designed for them. Refer to fluid manufacturer's safety data sheets.
• Keep the pump and fluids away from open flames, sparks, and heat sources.
• Dispose of used fluids responsibly according to local environmental regulations.
• Keep out of reach of children.
• Inspect the pump and hoses for any damage or wear before each use. Do not use if damaged.

Components

The SMOTIVEPRO 500cc Oil Suction Syringe comes with the following components:

• 500cc Syringe Body with Plunger
• Main Fluid Transfer Hose (approx. 40cm)
• Extension Hoses (various lengths and diameters)
• Silicone Connector
• Dual-way Connector
• Spare Rubber Sealing Rings (2x)

Figure 1: Complete set of SMOTIVEPRO 500cc Oil Suction Syringe with main body, hoses, and spare sealing rings.

Figure 2: Detail of the secure nut lock design for hose connection, ensuring stability and preventing leaks.

Setup

Follow these steps to prepare your SMOTIVEPRO Oil Suction Syringe for use:

1. Select the Appropriate Hose: Choose the hose that best fits the application. The main hose is suitable for general use, while extension hoses provide access to hard-to-reach areas. The total length with the 40cm extension hose is 85.2cm.
2. Attach the Hose: Insert the chosen hose into the pump's port. The locking design ensures a stable and secure connection. For the main hose, ensure the silicone connector is firmly in place if using the dual-way connector.
3. Check Sealing Rings: Verify that the double rubber sealing rings are properly seated within the syringe body to ensure an airtight seal and prevent leakage during operation. Spare rings are provided for replacement if needed.

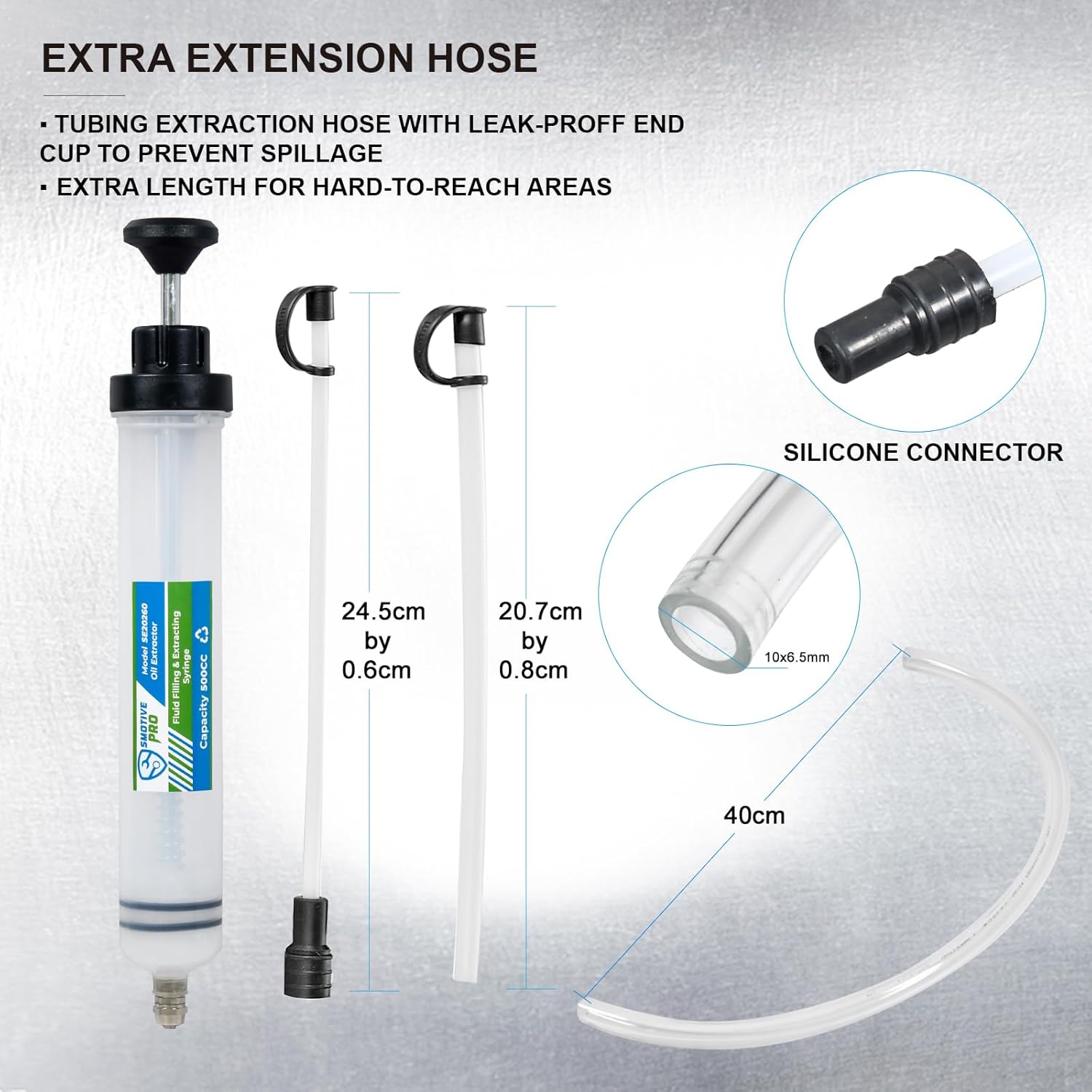

Figure 3: The syringe shown with its various extension hoses and the silicone connector, illustrating hose length and diameter options.

Operating Instructions

Fluid Extraction:

1. Prepare the Syringe: Ensure the plunger is fully pushed into the syringe body.
2. Insert Hose: Place the end of the hose into the fluid reservoir from which you wish to extract liquid.
3. Extract Fluid: Slowly pull the plunger handle outwards to create a vacuum, drawing the fluid into the syringe body. Continue pulling until the desired amount of fluid is extracted or the syringe is full (500cc capacity).
4. Remove and Transfer: Once extracted, carefully remove the hose from the reservoir. The locking design helps prevent accidental detachment. Transfer the fluid to a suitable waste container.

Fluid Refilling/Injection:

1. Fill the Syringe: Fill the syringe with the desired fluid. This can be done by drawing it in as described above, or by pouring it directly into the syringe body if the plunger is removed.
2. Insert Hose: Place the end of the hose into the reservoir or component you wish to refill.
3. Inject Fluid: Slowly push the plunger handle inwards to dispense the fluid from the syringe into the target reservoir.

Figure 4: The oil suction syringe actively extracting fluid from an automotive component, demonstrating its practical application.

Figure 5: The pump being used for fluid evacuation, ideal for removing used fluids from various automotive systems.

Maintenance

Proper maintenance ensures the longevity and performance of your SMOTIVEPRO Oil Suction Syringe:

• Cleaning: After each use, especially when transferring different types of fluids, thoroughly clean the syringe body and hoses. Disassemble the hoses for easier cleaning. Warm soapy water is generally sufficient, but for oil-based fluids, a degreaser may be necessary. Rinse thoroughly.
• Drying: Ensure all components are completely dry before reassembly and storage to prevent corrosion or residue buildup.
• Inspection: Regularly inspect the rubber sealing rings for signs of wear, cracking, or degradation. Replace them with the provided spare rings if necessary to maintain optimal sealing performance.
• Storage: Store the pump in a clean, dry place, away from direct sunlight and extreme temperatures.

Troubleshooting

Specifications

• Brand: SMOTIVEPRO
• Model Number: SE20260
• Capacity: 500cc (0.5 Liters)
• Material: High-quality plastic and metal components
• Product Dimensions: Approximately 34 x 5.5 x 0.1 cm (Syringe body)
• Item Weight: 420 g
• Hose Length (Main): Approximately 40 cm
• Total Hose Length (with extension): 85.2 cm

Figure 6: The syringe body with its approximate length of 40.5cm (16 inches).

Figure 7: Volume markings on the syringe body, indicating 50ml and 500ml capacity.

Figure 8: Detailed view of hose dimensions, showing an outer diameter of 10mm and a wall thickness of 2mm.

Warranty and Support

For warranty information or technical support regarding your SMOTIVEPRO Oil Suction Syringe, please refer to the contact information provided with your purchase or visit the official SMOTIVEPRO website. Keep your proof of purchase for warranty claims.
