Craftride Top Case T3 Instruction Manual

1. Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your new Craftride Top Case T3. This top case is designed to offer secure storage and enhanced comfort for passengers on your motorcycle. It features a durable ABS plastic construction with a stylish synthetic leather cover and an integrated backrest.

Please read this manual thoroughly before installation and use to ensure proper function and safety.

2. Package Contents

Upon unpacking, please verify that all the following components are included:

• Craftride Top Case T3 with integrated backrest
• Universal Mounting Plate
• Complete Mounting Hardware (bolts, nuts, washers, brackets)
• 2 Keys for the top case lock

Image: All components included in the package, showing the top case, mounting plate, various hardware pieces, and keys.

3. Installation Guide

The Craftride Top Case T3 is a universal product. While designed for various motorcycles, including the Honda VF 750 C Magna, some adjustments may be required for optimal fitment. Professional installation is recommended if you are unsure about any steps.

3.1 Preparing the Mounting Plate

1. Identify a suitable flat surface on your motorcycle's rear rack or passenger seat area where the universal mounting plate can be securely attached.
2. Position the mounting plate (as shown in the package contents image) on the desired location.
3. Mark the drilling points if new holes are required on your motorcycle's rack. Ensure the plate is centered and aligned properly.

3.2 Attaching the Mounting Plate

4. Using the provided mounting hardware (bolts, washers, brackets), secure the universal mounting plate to your motorcycle's rear rack.
5. Ensure all bolts are tightened firmly but do not overtighten to avoid damaging the rack or hardware.
6. Verify that the mounting plate is stable and does not wobble.

3.3 Mounting the Top Case

7. Align the bottom of the Top Case T3 with the universal mounting plate.
8. Slide the top case onto the plate until it clicks securely into place. Some models may require fastening additional screws from the inside of the top case to the mounting plate. Refer to the specific instructions provided with your hardware kit.
9. Test the security of the top case by gently pulling upwards and wiggling it to ensure it is firmly attached to the mounting plate.

Image: Side and front views of the Craftride Top Case T3, illustrating its design and how it would appear once mounted.

4. Operation

4.1 Opening and Closing the Top Case

• To open: Insert the key into the lock mechanism located on the front of the top case. Turn the key to unlock, then lift the lid.
• To close: Gently lower the lid until it latches. Ensure it is fully closed before locking.

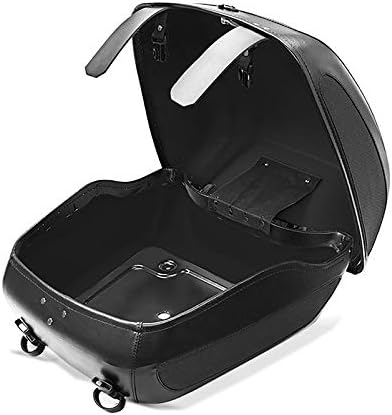

Image: The top case shown open, revealing its spacious interior for luggage storage.

4.2 Locking the Top Case

• Once the lid is closed, turn the key in the lock mechanism to the locked position.
• Remove the key. Always ensure the top case is locked when the motorcycle is unattended or in motion to prevent theft and accidental opening.

4.3 Passenger Comfort

The integrated backrest provides enhanced comfort for your passenger during rides. Ensure the backrest is clean and free from debris for optimal comfort.

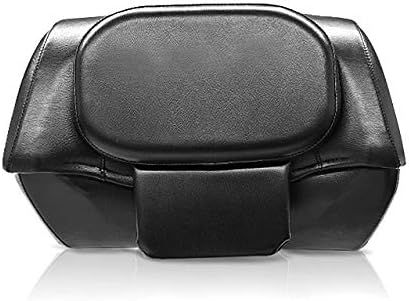

Image: Views of the top case highlighting the integrated backrest, designed for passenger comfort.

5. Maintenance and Care

Regular maintenance will prolong the life and appearance of your Craftride Top Case T3.

• Cleaning: Use a soft cloth and mild soap with water to clean the synthetic leather and ABS plastic surfaces. Avoid abrasive cleaners or solvents that could damage the material.
• Inspection: Periodically check all mounting hardware for tightness. Vibrations during riding can loosen bolts over time.
• Lubrication: Apply a small amount of silicone spray or graphite powder to the lock mechanism occasionally to ensure smooth operation.
• Storage: If storing the top case for an extended period, ensure it is clean and dry. Store in a cool, dry place away from direct sunlight.

6. Troubleshooting

7. Specifications

• Model: Craftride Top Case T3
• Material: High-strength, break-resistant ABS plastic with durable synthetic leather cover
• Color: Black
• Dimensions (approximate):
  • Height: max. 33 cm (13 inches)
  • Depth: 43 cm (16.9 inches)
  • Width: 47 cm (18.5 inches)
• Features: Integrated backrest, lockable (2 keys included), universal mounting plate
• Compatibility: Universal product, suitable for Chopper, Cruiser, and Custombikes, including Honda VF 750 C Magna. Adaptations may be required.

8. Warranty and Support

For any questions, concerns, or warranty claims regarding your Craftride Top Case T3, please contact the seller directly. The product is supplied by MOTEA DE - Motorrad. Einfach. Online. Please refer to your purchase documentation for specific return policies and support contact information.

Note: This product is from a small or medium-sized business in Germany, Austria, or Switzerland.
