1. Introduction
This manual provides essential instructions for the safe installation, operation, and maintenance of your COZYBASE Heated Towel Rack, Model CB001. Please read this manual thoroughly before installation and use, and retain it for future reference.
Image 1.1: COZYBASE Heated Towel Rack, Model CB001.
2. Safety Information
WARNING: To reduce the risk of fire, electric shock, or injury, observe the following:
- Read all instructions before using this appliance.
- This appliance is hot when in use. To avoid burns, do not let bare skin touch hot surfaces.
- Close supervision is necessary when this appliance is used by or near children or invalids.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner.
- Do not use outdoors.
- Do not immerse the appliance in water or other liquids.
- Connect to properly grounded outlets only.
- Installation must be performed by a qualified electrician for hardwired models, in accordance with all local codes and ordinances.
- Ensure the power supply is disconnected before installation or maintenance.
3. Product Features
The COZYBASE Heated Towel Rack offers several features designed for convenience and efficiency:
- Material: Constructed from durable Stainless Steel.
- Towel Capacity: Designed to heat two large bath towels on the front and store at least 10 towels on the back.
- Heating Bars: Features two vertical heating bars for larger towel coverage and faster heating.
- Timer Function: Includes a timer for 2-hour or 4-hour operation, with automatic shut-off for energy efficiency. A 24-hour thermostatic mode is also available.
- Rapid Heating: Reaches 130 degrees Fahrenheit within 5 minutes and maintains a constant temperature for 24 hours in thermostatic mode.
- Design: Sleek and modern design to complement various bathroom decors.
Image 3.1: Wide heating bars for efficient towel warming.
Image 3.2: Towel storage capability of the rack.
Image 3.3: Towel capacity illustration.
4. Specifications
| Model Number | CB001 |
| Brand | COZYBASE |
| Material | Stainless Steel |
| Color | Chrome |
| Heating Method | Electric |
| Item Weight | 8.93 pounds |
| Package Dimensions | 33 x 23 x 2.6 inches |
| Power Source | Hardwired or Plug-in |

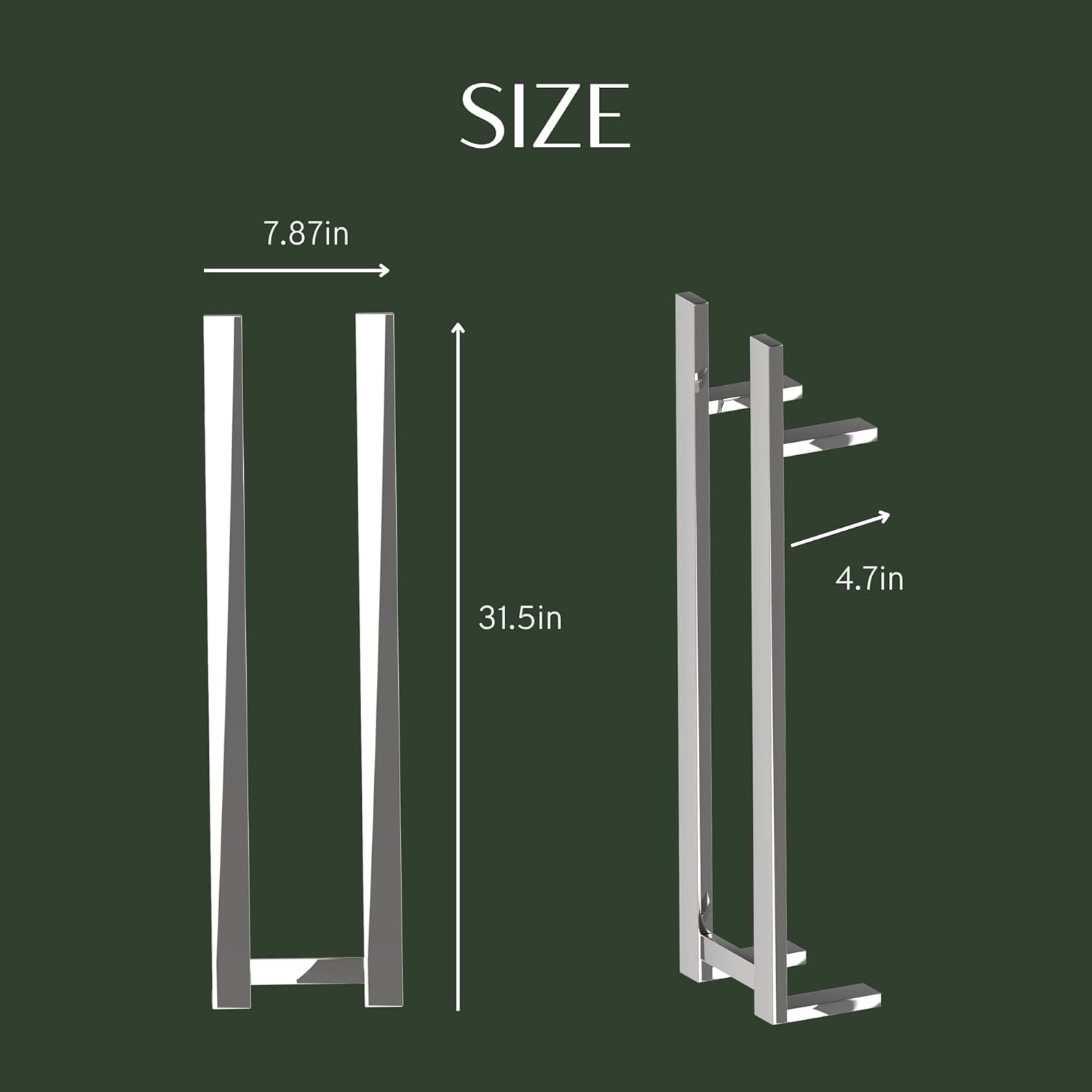

Image 4.1: Product dimensions.
5. Package Contents
Verify that all components are present before beginning installation:
- Heated Towel Rack Unit
- Mounting Hardware (screws, anchors, mounting brackets)
- Installation Template (if provided)
- User Manual (this document)
6. Installation
The COZYBASE Heated Towel Rack can be installed as either a hardwired or plug-in unit. Choose the appropriate method for your bathroom setup.
6.1 General Installation Steps (for both Hardwired and Plug-in)
- Choose Location: Select a suitable wall location in your bathroom, ensuring it is away from direct water spray and within reach of a power source (for plug-in) or electrical wiring (for hardwired).
- Mark Mounting Points: Use the provided installation template to mark the drilling points on the wall.
- Drill Holes: Drill holes at the marked points. Insert wall anchors if necessary.
- Attach Mounting Brackets: Secure the mounting brackets to the wall using the provided screws.
- Mount Towel Rack: Carefully attach the towel rack to the mounting brackets. Ensure it is level and securely fastened.
6.2 Hardwired Installation
IMPORTANT: Hardwired installation must be performed by a qualified electrician in compliance with all local electrical codes.
- Disconnect Power: Turn off power to the circuit at the main electrical panel.
- Prepare Wiring: If the unit comes with a plug, the cord will need to be cut and prepared for hardwiring.
- Connect Wiring: Connect the towel warmer's electrical wires to the household wiring inside the wall junction box. Ensure proper grounding.
- Secure Connections: Secure all wire connections with appropriate connectors.
- Complete Installation: Follow general installation steps (6.1) to mount the rack.
- Restore Power: Once installation is complete and verified, restore power at the main electrical panel.
Image 6.1: Hardwired installation diagram.
6.3 Plug-in Installation
This method allows for easier installation and relocation.
- Choose Location: Ensure the chosen location is near a grounded electrical outlet.
- Complete Installation: Follow general installation steps (6.1) to mount the rack.
- Plug In: Once securely mounted, plug the towel warmer into a grounded electrical outlet.
Image 6.2: Plug-in installation diagram.
7. Operating Instructions
The COZYBASE Heated Towel Rack features an integrated timer for convenient operation.
- Power On/Off: Press the power button (usually indicated by a circle with a vertical line) to turn the unit on or off.
- Set Timer: After powering on, press the timer button (often indicated by a clock icon or grid icon) to cycle through the available timer settings:
- 2H: The unit will operate for 2 hours and then automatically shut off.
- 4H: The unit will operate for 4 hours and then automatically shut off.
- ON (24H Thermostatic): The unit will remain on for 24 hours, maintaining a constant temperature of approximately 130°F (55°C), and then automatically shut off.
- Heating: The towel rack will begin heating immediately after being powered on or a timer setting is selected. It reaches its optimal temperature within 5 minutes.
Image 7.1: Control panel with timer function.
Video 7.1: Demonstration of the COZYBASE Heated Towel Rack's timer functions (2H, 4H, 24H thermostatic mode).
8. Maintenance
Regular cleaning and proper care will ensure the longevity and optimal performance of your towel rack.
- Cleaning: Disconnect power before cleaning. Use a soft, damp cloth to wipe down the surfaces. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish.
- Inspection: Periodically inspect the power cord (for plug-in models) and all connections for any signs of wear or damage. If any damage is found, discontinue use and contact customer support.
- Storage: If storing the unit for an extended period, ensure it is clean, dry, and stored in a safe place.
9. Troubleshooting
If you encounter issues with your COZYBASE Heated Towel Rack, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Towel rack does not heat. | No power supply; Unit not turned on; Faulty wiring (hardwired). | Check if the unit is plugged in (plug-in) or if the circuit breaker is tripped (hardwired). Ensure the power button is pressed. For hardwired units, consult a qualified electrician. |
| Timer function not working. | Incorrect timer setting; Unit malfunction. | Ensure you have selected a timer setting (2H, 4H, or ON). If the issue persists, contact customer support. |
| Unit is not heating sufficiently. | Overloaded with towels; Environmental factors (cold room). | Avoid overloading the rack with too many towels. Allow more time for heating in colder environments. |
If troubleshooting steps do not resolve the issue, please contact COZYBASE customer support.
10. Warranty and Support
COZYBASE provides a 2-year warranty against manufacturing defects for this product. Additionally, we offer lifetime maintenance support (accessories may incur a charge).
For any quality problems, technical assistance, or warranty claims, please contact COZYBASE customer support through the retailer where the product was purchased or visit our official website for contact information.
Image 10.1: Warranty and maintenance information.
