ECHOBBY Bazooka 1/8 Scale 4WD Nitro RC Buggy (Model hsp94081) Instruction Manual

1. Important Safety Information

Please read and understand all safety warnings and instructions before operating your ECHOBBY Bazooka Nitro RC Buggy. Failure to do so may result in injury or damage to the product.

• Age Restriction: This product is not a toy. It is intended for users 18 years and older due to the complexity of nitro engines and the use of flammable fuel. Adult supervision is required for all operations.
• Nitro Fuel: Nitro fuel is highly flammable and toxic. Store it in a cool, well-ventilated area away from ignition sources and out of reach of children and pets. Always handle fuel in a well-ventilated outdoor area. Avoid skin and eye contact.
• Hot Components: The engine, exhaust pipe, and surrounding components become extremely hot during operation. Avoid touching these parts to prevent burns. Allow the vehicle to cool completely before handling or performing maintenance.
• Moving Parts: Keep hands, face, and loose clothing away from all rotating parts (wheels, gears, drivetrain) when the engine is running to prevent entanglement and injury.
• Operating Environment: Operate the RC buggy in open, clear areas away from people, pets, vehicles, and obstacles. Do not operate near public roads, water, or in confined spaces.
• Ventilation: Never run the nitro engine indoors or in poorly ventilated areas. Exhaust fumes contain carbon monoxide, which is dangerous and potentially fatal.
• Battery Safety: Ensure proper polarity when installing batteries in the transmitter and receiver. Do not mix old and new batteries or different battery types. Remove batteries during long periods of non-use.

2. Product Overview

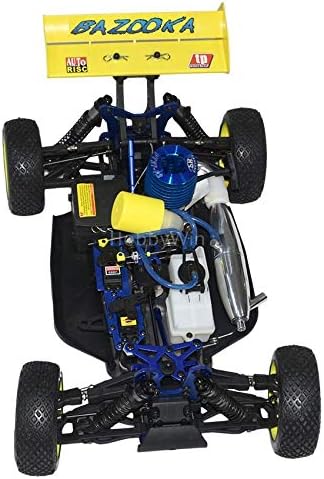

The ECHOBBY Bazooka 21cxp Nitro Buggy is a 1/8 scale 4WD off-road vehicle designed for performance and durability. This Ready-to-Run (RTR) model comes equipped with a 2.4Ghz radio control system and a powerful 21cxp nitro engine.

Key Features:

• Four-wheel drive system for superior traction.
• Enhanced suspension arms with adjustable width.
• High-quality main and differential gears.
• Durable 6061/T6 anodized aluminum radio tray and chassis.
• Solid universal joint cups and high-quality ball bearings.
• High-performance off-road knobby tires.
• Responsive disc brake system.
• Extra-large leak-proof fuel tank with spring-loaded fill cover.
• High-flow duty foam air filter.
• Polished exhaust pipe and manifold.
• Stylish off-road wing.

3. What's in the Box

Your ECHOBBY Bazooka Nitro RC Buggy package includes the following components:

• BAZOOKA 21cxp Nitro Buggy (fully assembled)
• 2Ch 2.4Ghz R/C System (Transmitter)
• High-flow duty foam air filter (pre-installed or separate)
• Polished exhaust pipe and manifold (pre-installed)
• Stylish off-road wing (pre-installed)
• Product Manual (this document)

Note: Fuel, glow plug igniter, and batteries for the transmitter and receiver are typically sold separately and are required for operation.

4. Setup

4.1. Battery Installation

Install appropriate batteries (not included) into both the 2.4Ghz transmitter and the receiver battery box located in the buggy. Ensure correct polarity. Refer to the markings inside the battery compartments.

4.2. Fueling the Vehicle

Carefully fill the fuel tank with high-quality nitro fuel (typically 16% or 20% nitro content, recommended by the manufacturer). Use a fuel bottle to avoid spills. Do not overfill. Ensure the fuel cap is securely closed after fueling.

4.3. Radio System Check

Before starting the engine, turn on the transmitter, then the receiver. Check for proper steering and throttle response. Ensure the throttle servo returns to neutral when the trigger is released. Adjust trim settings on the transmitter if necessary.

4.4. Engine Break-in Procedure

Proper engine break-in is crucial for the longevity and performance of your nitro engine. Follow these general steps, referring to specific engine instructions if available:

1. First Tank (Rich Setting): Start the engine with a very rich (fuel-heavy) carburetor setting. Run the engine at low to medium RPMs, avoiding high speeds or prolonged idling. Allow the engine to cool completely after the first tank.
2. Subsequent Tanks (Gradual Leaning): For the next 2-3 tanks, gradually lean the carburetor settings (reduce fuel, increase air) in small increments. Continue to run the engine at varying low to medium speeds, avoiding full throttle. Allow the engine to cool between tanks.
3. Observation: During break-in, observe engine temperature and smoke output. A properly rich engine will produce a consistent stream of blue smoke and run at a moderate temperature.

Consult online resources or experienced hobbyists for detailed nitro engine break-in guides if you are new to nitro RC.

5. Operating Your RC Buggy

5.1. Starting the Engine

1. Ensure the fuel tank is filled and the glow plug igniter is charged.
2. Place the glow plug igniter onto the glow plug on top of the engine.
3. Use the pull starter (or electric starter, if equipped) to crank the engine. It may take several pulls.
4. Once the engine starts, remove the glow plug igniter. The engine should idle smoothly.
5. If the engine stalls, re-attach the igniter and try again. Adjust the idle screw if necessary.

5.2. Driving Controls

The 2.4Ghz transmitter controls the buggy's movement:

• Steering Wheel: Turn left or right to control the buggy's direction.
• Throttle Trigger: Pull the trigger towards you to accelerate (forward). Push the trigger away from you to apply the brake.

5.3. Stopping the Engine

To stop the engine, you can:

• Pinch the fuel line (carefully, away from hot parts) to cut off fuel supply.
• Cover the exhaust outlet (briefly and carefully, using a rag) to create back pressure.
• Push the flywheel with a stick or screwdriver (use extreme caution, avoid fingers).

Never let the engine run out of fuel to stop it, as this can cause damage.

5.4. Post-Operation Checks

After each run, perform the following:

• Turn off the receiver, then the transmitter.
• Allow the engine to cool completely.
• Drain any remaining fuel from the tank.
• Perform engine after-run maintenance (see Maintenance section).
• Inspect the vehicle for any damage or loose parts.

6. Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your RC buggy.

6.1. Cleaning

After each use, especially in dusty or dirty conditions, clean the buggy. Use a soft brush, compressed air, or a damp cloth. Avoid using water directly on electronics or the engine.

6.2. Engine After-Run Care

After each running session, especially before storage, apply a few drops of after-run oil into the carburetor and glow plug hole. This prevents corrosion and lubricates internal engine components.

6.3. Chassis and Suspension Inspection

Regularly check for:

• Loose screws or nuts.
• Damaged suspension components (shocks, arms).
• Worn gears or drivetrain components.
• Proper lubrication of moving parts (e.g., universal joints).

6.4. Air Filter Maintenance

The foam air filter protects your engine from dirt. Clean and re-oil the air filter regularly, especially after running in dusty conditions. A dirty air filter can lead to poor engine performance and damage.

6.5. Tire Care

Inspect tires for wear and tear. Ensure wheels are securely fastened. Replace worn tires for optimal traction and handling.

7. Troubleshooting

This section addresses common issues you might encounter with your nitro RC buggy.

• Engine Won't Start:
  • Check if the glow plug igniter is charged and properly seated.
  • Ensure there is fuel in the tank and the fuel line is not pinched.
  • Check if the glow plug is functional (it should glow orange when removed and connected to the igniter).
  • Verify carburetor settings are not too lean or too rich.
• Engine Stalls Frequently:
  • Adjust idle speed.
  • Check for air leaks in the fuel system.
  • Ensure the engine is not overheating (running too lean).
  • Clean or replace the air filter.
• Loss of Control/Erratic Behavior:
  • Check transmitter and receiver battery levels.
  • Ensure antenna wires are not damaged or obstructed.
  • Verify servo connections and functionality.
  • Check for radio interference.
• Poor Performance/Lack of Power:
  • Adjust carburetor settings (may be too rich).
  • Check for a clogged fuel filter or exhaust.
  • Inspect the glow plug for wear.
  • Ensure there are no binding drivetrain components.

8. Specifications

Detailed specifications for the ECHOBBY Bazooka 21cxp Nitro Buggy (Model hsp94081):

• Model: BAZOOKA 21cxp Nitro Buggy
• Manufacturer: HSP Racing
• Item Model Number: hsp94081
• Length: 490mm
• Width: 305mm
• Height: 190mm
• Wheelbase: 320~325mm
• Gear Ratio: 1:11.71
• Ground Clearance: 27mm
• Weight: Approximately 3300g
• Wheel Diameter: 115mm
• Wheel Width: 42mm
• Engine: Nitro 21cxp
• R/C System: 2Ch 2.4Ghz
• Recommended Age: 18 years and up

9. Warranty and Support

For warranty information, technical support, or replacement parts, please contact your retailer or the manufacturer, HSP Racing. Keep your proof of purchase for any warranty claims.

Legal Disclaimer: Must be at least 18 years or over to purchase this product.
