BRTLX 150FT LED G40 Outdoor String Lights User Manual

Product Overview

The BRTLX 150FT LED G40 Outdoor String Lights are designed to provide warm, ambient lighting for various indoor and outdoor settings. Featuring shatterproof plastic bulbs and a durable, waterproof design, these lights are ideal for patios, gardens, balconies, parties, and events. The parallel connection ensures that if one bulb goes out, the rest remain lit.

Figure 1: BRTLX 150FT LED G40 Outdoor String Lights and packaging.

Setup and Installation

Follow these steps for proper installation of your BRTLX Outdoor String Lights:

1. Unpack and Inspect: Carefully remove the string lights from the packaging. Inspect all components for any visible damage. Ensure all 75 bulbs plus the 2 spare bulbs are present.
2. Plan Your Layout: Determine the desired path for your string lights. The 150-foot length provides ample coverage for large areas. Consider using cup hooks, zip ties, or guide wires for secure installation.
3. Secure the String: Use the integrated clips on each socket to easily hang the string. Ensure the string is securely fastened to prevent sagging or damage from wind.
4. Install Bulbs: Gently screw each G40 LED bulb into its respective E12 socket. The bulbs are shatterproof plastic, making them durable and safe to handle.
5. Connect Multiple Strands (Optional): These string lights are designed to be connectable. If you have multiple strands, align the male and female connectors and push them firmly together to create a longer continuous light display. Ensure the connection is secure and sealed if used outdoors.
6. Power Connection: Plug the string lights into a standard 120V AC power outlet. For outdoor use, ensure the outlet is a GFCI (Ground Fault Circuit Interrupter) protected outlet and that all connections are dry and secure.

Figure 2: Installing a G40 LED bulb into the E12 socket.

Figure 3: Examples of string light installations in different outdoor environments.

Operating Instructions

Once installed, operating your BRTLX string lights is straightforward:

• Power On/Off: Plug the lights into a power source to turn them on. Unplug them to turn them off.
• Dimmable Feature: These lights are dimmable. To utilize this feature, you will need a compatible external dimmer (not included). Connect the string lights to the dimmer according to the dimmer's instructions.
• Parallel Circuit Design: The lights are designed with a parallel circuit, meaning that if one bulb fails or is removed, the remaining bulbs on the strand will continue to function without interruption.

Figure 4: Illustration of the dimmable capability of the string lights.

Figure 5: The string lights create a warm and inviting atmosphere for social gatherings.

Maintenance

To ensure the longevity and optimal performance of your BRTLX string lights, consider the following maintenance tips:

• Regular Cleaning: Periodically wipe down the bulbs and wires with a soft, damp cloth to remove dust and debris. Ensure the lights are unplugged before cleaning.
• Weather Resistance: The lights have an IP45 waterproof rating, making them suitable for outdoor use in various weather conditions including rain, wind, and snow. However, for extreme weather events like hurricanes or heavy snow accumulation, it is advisable to temporarily take down the lights to prevent damage.
• Bulb Replacement: While the bulbs are shatterproof, if a bulb needs replacement, simply unscrew the old bulb and screw in a new one. Two spare bulbs are included for your convenience. Ensure the power is off before replacing bulbs.
• Storage: When not in use for extended periods, store the string lights in a cool, dry place, preferably in their original packaging or a protective container, to prevent tangling and damage.

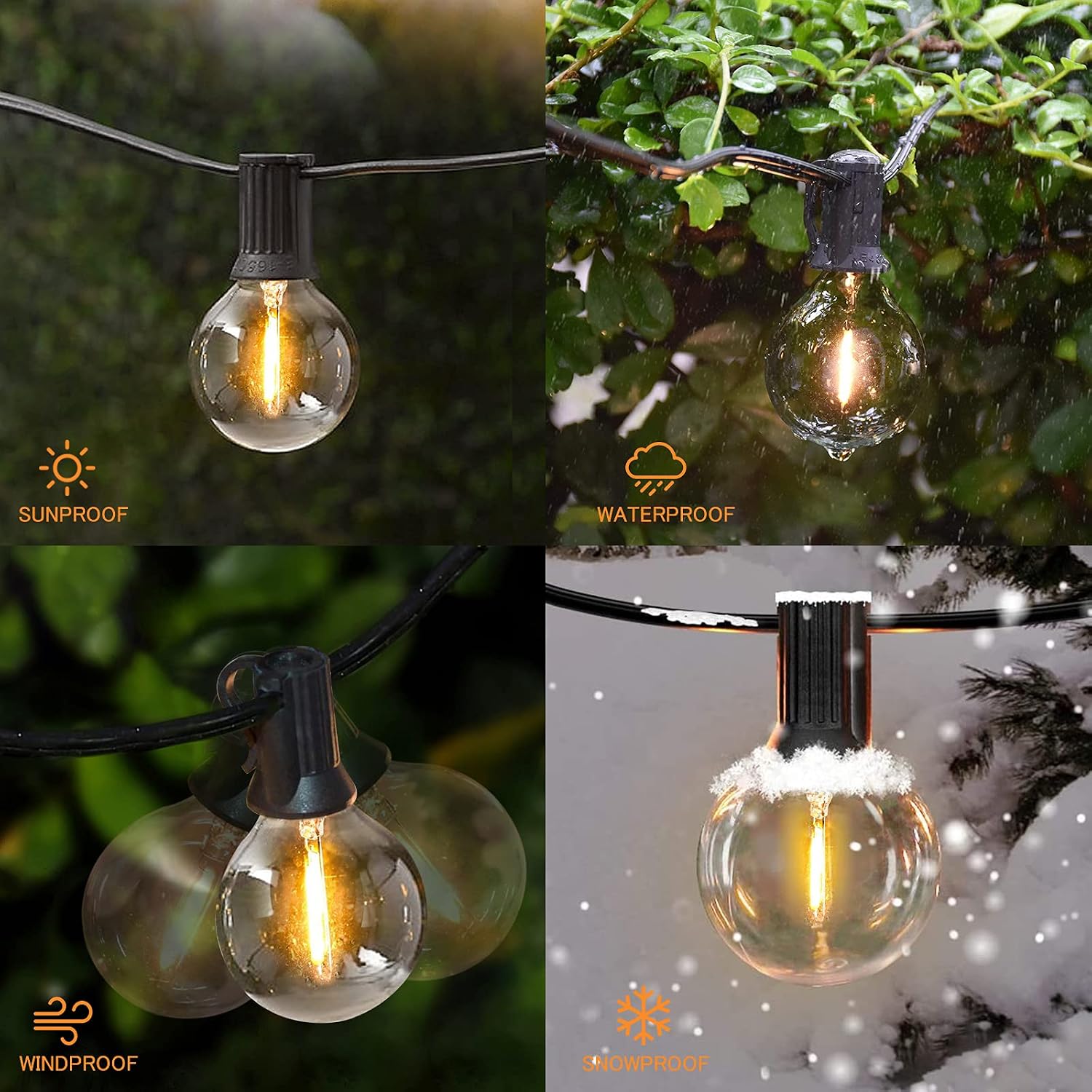

Figure 6: The string lights are designed to withstand various outdoor elements.

Troubleshooting

If you encounter any issues with your BRTLX string lights, refer to the following common troubleshooting steps:

If the problem persists after attempting these solutions, please contact BRTLX customer support for further assistance.

Specifications

Figure 7: Key specifications and dimensions of the string lights and bulbs.

Warranty and Support

BRTLX G40 LED string lights come with a one-year warranty from the date of purchase. This warranty covers manufacturing defects and ensures the product meets its specified performance standards under normal use.

If you encounter any problems or have questions regarding your product, please do not hesitate to contact our professional after-sales support team. We are committed to providing excellent service and assistance.

For support, please visit the BRTLX store on Amazon or refer to the contact information provided with your purchase documentation.

Thank you for choosing BRTLX products.
