Kalifon Commercial Freezer Instruction Manual
Model: KF-23B-Xin+
1. Introduction
Thank you for choosing the Kalifon Commercial Freezer. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your new freezer. Please read this manual thoroughly before installation and use, and keep it for future reference.
2. Safety Information
Always follow basic safety precautions when using this appliance to reduce the risk of fire, electric shock, or injury.
- Electrical Safety: Ensure the power supply matches the voltage requirements (110-115V/60Hz). Do not use extension cords. Always plug into a grounded outlet.
- Placement: Place the freezer on a strong, level surface capable of supporting its weight when fully loaded. Ensure adequate ventilation around the unit.
- Ventilation: Maintain clear space around the condenser coils for proper airflow to prevent overheating.
- Cleaning: Disconnect power before cleaning or performing any maintenance. Use non-abrasive cleaners.
- Children: Keep children away from the appliance, especially when the door is open.
- Flammable Materials: Do not store explosive substances or flammable materials inside the freezer.
3. Setup
3.1 Unpacking
Carefully remove all packaging materials. Inspect the freezer for any shipping damage. Report any damage to your supplier immediately.
3.2 Placement
Choose a location that is level, well-ventilated, and away from direct sunlight or heat sources. Ensure there is sufficient space for the door to open fully and for proper air circulation around the unit.
3.3 Leveling and Casters
The freezer comes with 4 casters, including 2 front locking casters. Ensure the unit is level by adjusting the casters. Lock the front casters to prevent movement once the freezer is in its final position.
3.4 Initial Power-Up
After placement, wait at least 2 hours before plugging in the unit to allow refrigerants to settle. Plug the freezer into a dedicated, grounded electrical outlet.
4. Operating Instructions
4.1 Temperature Control

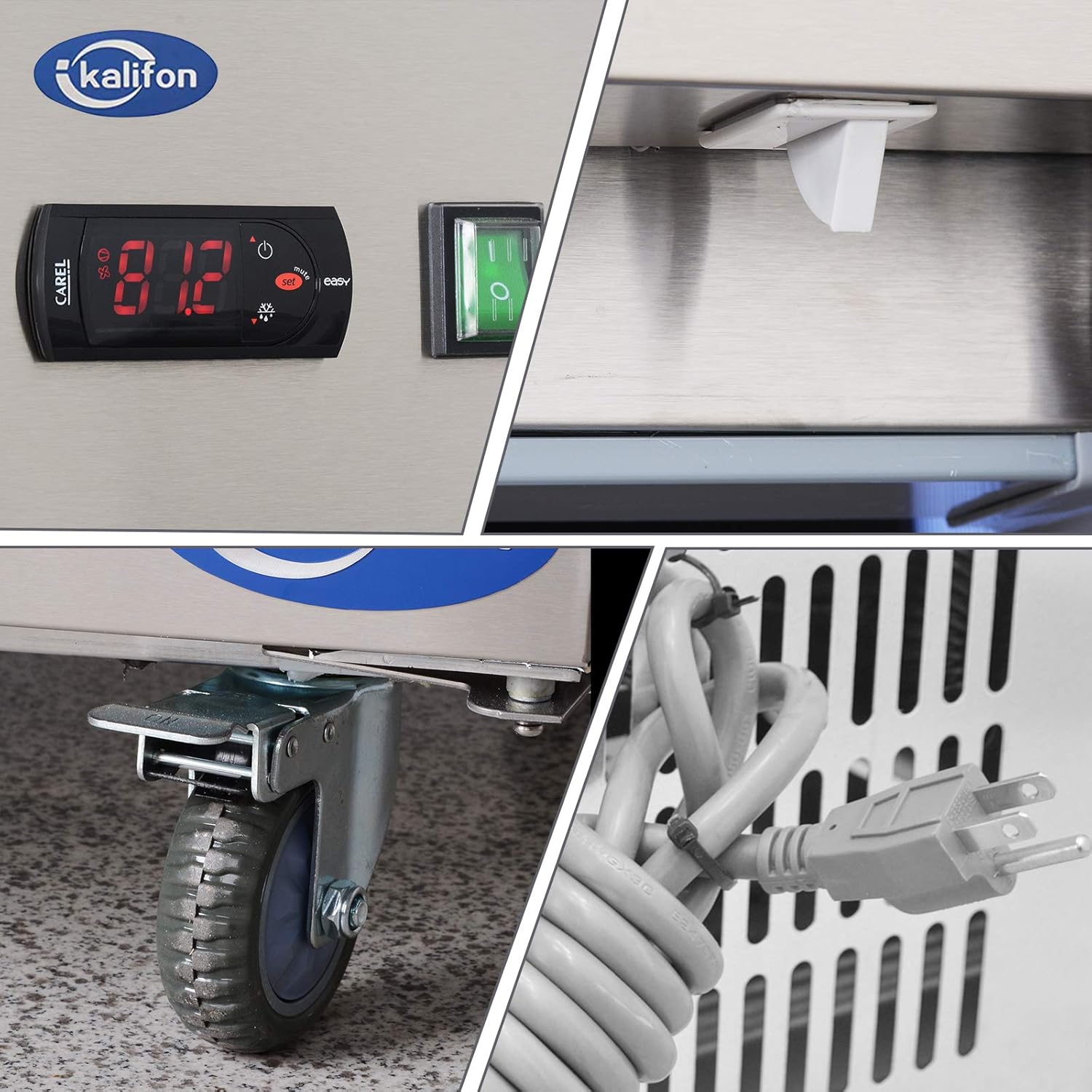

The freezer is equipped with a Digital Carel control with an LCD Display, allowing easy adjustments of temperature and defrost frequency. The recommended operating temperature range is -8°F to 0°F (-22.2°C to -17.7°C).
4.2 Loading the Freezer
The freezer features 4 corrosion-resistant shelves, each with a 155lbs loading capacity. Distribute items evenly to ensure proper air circulation and efficient cooling. Do not block the air vents inside the freezer.
5. Maintenance
5.1 Cleaning the Interior
Regularly clean the interior of the freezer with a mild soap and water solution. Rinse thoroughly and dry completely to prevent odors and maintain hygiene. The removable installation board makes it easy to access the condenser coil for cleaning and service.
5.2 Cleaning the Exterior
Wipe the stainless steel exterior with a soft cloth and a non-abrasive cleaner. Avoid harsh chemicals that can damage the finish.
5.3 Condenser Coil Cleaning
The condenser coil should be cleaned periodically (every 3-6 months) to ensure efficient operation. Unplug the unit before cleaning. Use a brush or vacuum cleaner to remove dust and debris from the coils.
5.4 Defrosting
The unit features an auto-defrost function. However, if excessive ice buildup occurs, manually defrost the unit by unplugging it and allowing the ice to melt. Remove all contents before manual defrosting.
6. Troubleshooting
Before contacting customer service, please refer to the following table for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Freezer not cooling | No power; thermostat set too high; condenser coil dirty; door not sealed properly. | Check power supply; adjust thermostat; clean condenser coil; check door gasket for leaks. |
| Excessive noise | Unit not level; fan motor issue; loose parts. | Level the unit; contact service for fan inspection; tighten any loose components. |
| Ice buildup | Door left open; faulty door gasket; excessive humidity. | Ensure door is closed; replace gasket if damaged; reduce humidity in the room. |
| Water on floor | Drain pan overflowing; clogged drain line. | Empty drain pan; clear drain line. |

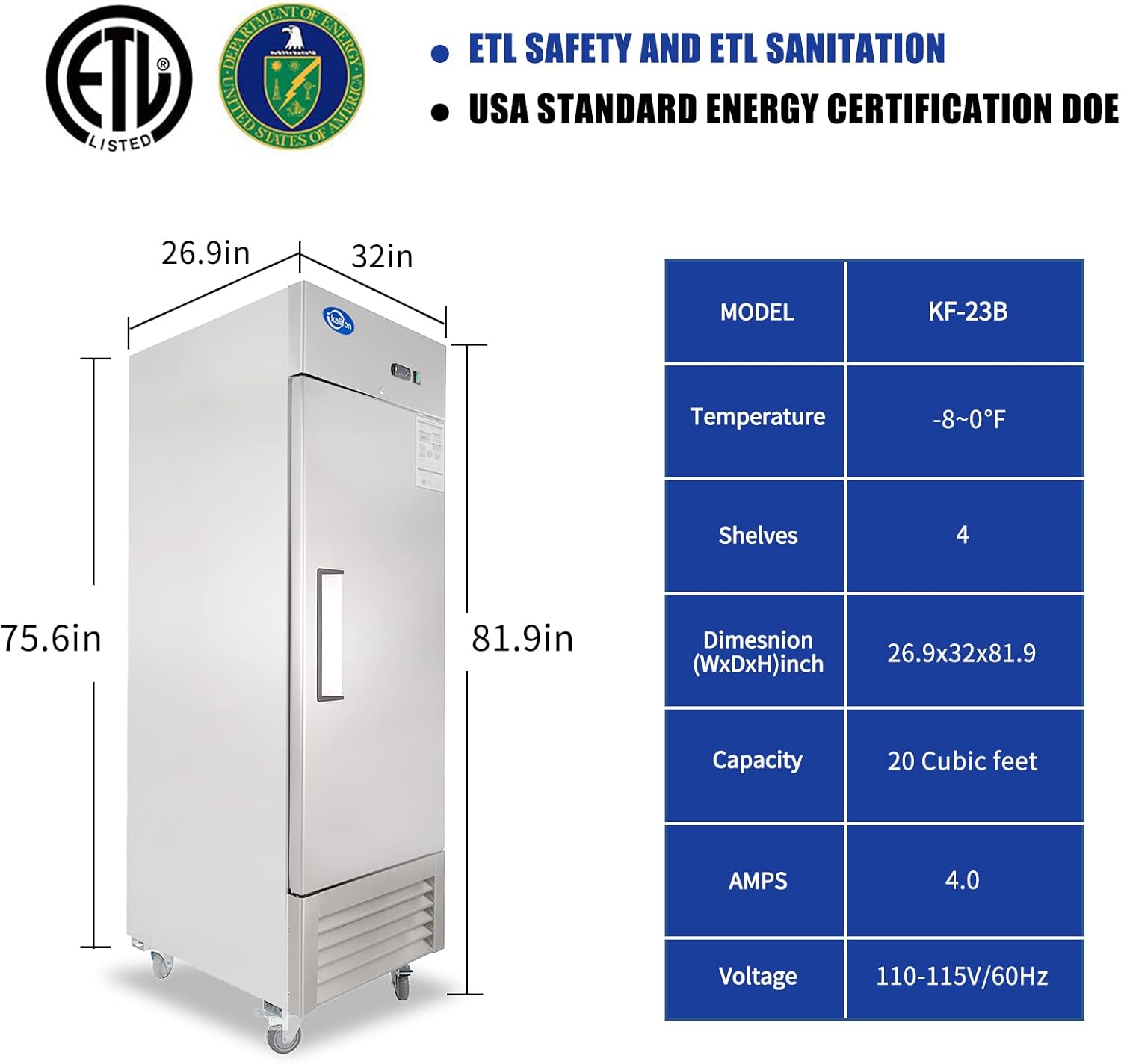

7. Specifications
Below are the technical specifications for the Kalifon Commercial Freezer, Model KF-23B-Xin+.
| Feature | Detail |
|---|---|
| Model Name | kalifon Commercial Freezer |
| Part Number | KF-23B-Xin+ |
| Capacity | 23 Cubic Ft. (approx. 20 Cubic feet in some diagrams) |
| Dimensions (W x D x H) | 30.7" W x 26.9" D x 81.9" H |
| Temperature Range | -8°F ~ 0°F (-22.2°C ~ -17.7°C) |
| Voltage | 115 Volts (110-115V/60Hz) |
| Shelves | 4 corrosion-resistant shelves (155lbs capacity per shelf) |
| Material Type | Stainless Steel (exterior and interior) |
| Certification | ETL Safety, ETL Sanitation, USA Standard Energy Certification DOE |
| Door Features | Self-closing, stay-open lockable door with recessed handles |
| Mobility | 4 casters with 2 front locking casters |
8. Warranty and Support
8.1 Warranty Information
The Kalifon Commercial Freezer comes with the following warranty:
- Compressor: 3-year warranty
- All Parts Labor: 1-year warranty
8.2 Customer Support
For any questions, technical assistance, or warranty claims, please contact Kalifon customer service. We provide 24-hour customer service.
For more information, you may also refer to the official product page or contact your retailer.
