1. Product Overview
The Senmubery 48T Differential Set (Model: 347817) is a high-quality replacement or upgrade part specifically designed for DF-Models 6684 ZD 8474 1/8 scale RC cars. This component is crucial for distributing power efficiently to the wheels, allowing for smooth turns and improved vehicle handling.
Key Features:
- Removable and replaceable metal differential for enhanced durability.
- Engineered for maximum energy conversion, ensuring efficient power transfer.
- Lightweight design for minimal impact on vehicle performance.
- Manufactured with high-quality materials for long-lasting reliability.
- Guaranteed to meet the specifications of compatible devices.
Figure 1.1: Front view of the Senmubery 48T Differential Set, showcasing its robust construction and gear design.
2. Specifications
| Attribute | Value |
|---|---|
| Brand | Senmubery |
| Model Number | 347817 |
| Item Weight | 2.56 ounces |
| Gear Teeth Count | 48T |
| Compatible RC Car Models | DF-Models 6684 ZD 8474 1/8 Car |
| Recommended Age | 5 years and up |

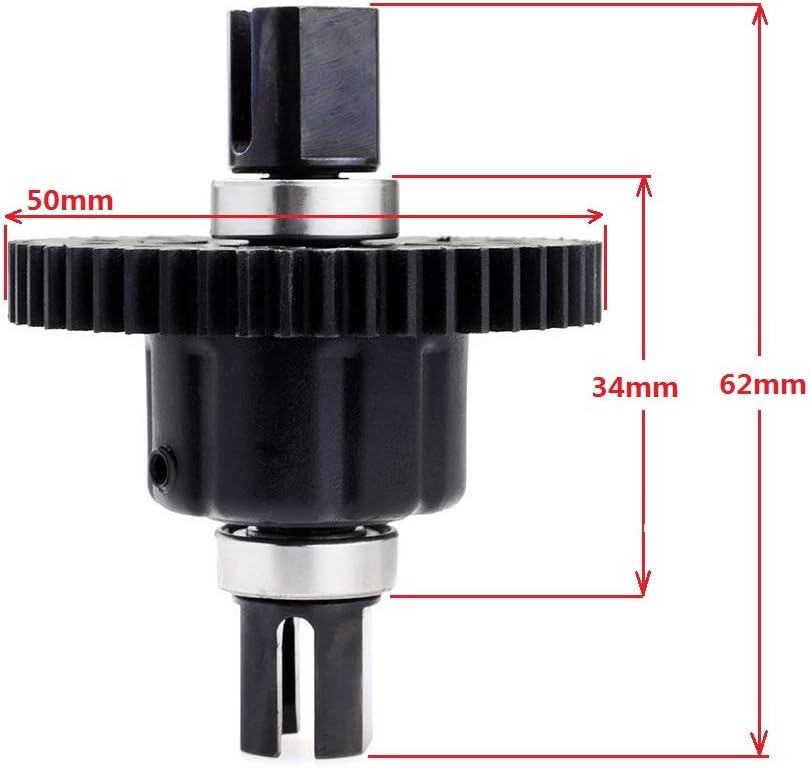

Figure 2.1: Dimensional view of the differential set, indicating key measurements for compatibility and fit.
3. Installation and Setup
Installing the 48T Differential Set requires basic mechanical knowledge and appropriate tools for RC car maintenance. Always refer to your specific RC car's service manual for detailed disassembly and reassembly instructions.
- Preparation: Ensure your RC car is powered off and the battery is disconnected. Place the car on a clean, stable surface.
- Access the Differential: Carefully remove the necessary components (e.g., chassis cover, suspension arms, drive shafts) to gain access to the existing differential housing.
- Remove Old Differential: Unbolt and carefully extract the old differential unit from its housing. Note the orientation of all parts for correct reassembly.
- Inspect Housing: Clean the differential housing and inspect for any debris or damage. Ensure the bearings are in good condition.
- Install New Differential: Insert the Senmubery 48T Differential Set into the housing. Ensure it seats correctly and aligns with the drive shafts.
- Secure and Reassemble: Fasten the differential with the appropriate screws. Reassemble all removed components in reverse order. Ensure all screws are tightened securely but do not overtighten.
- Initial Check: After reassembly, manually rotate the wheels to ensure smooth operation of the differential and drive train before powering on the vehicle.
Figure 3.1: Side view of the differential, illustrating the gear and bearing assembly, critical for proper installation.
4. Maintenance
Regular maintenance of your differential set will extend its lifespan and ensure consistent performance.
- Lubrication: Periodically check the differential fluid or grease levels. Replenish or replace as recommended by your RC car's manufacturer. Proper lubrication reduces wear on gears and bearings.
- Cleaning: After use, especially in dusty or dirty conditions, clean the exterior of the differential housing to prevent dirt ingress.
- Inspection: Regularly inspect the gear teeth for signs of wear, chipping, or damage. Check bearings for smooth rotation and replace if they feel gritty or have excessive play.
- Fastener Check: Ensure all screws securing the differential and its housing are tight. Vibrations during operation can loosen fasteners over time.
Figure 4.1: Close-up view of the 48T gear teeth, emphasizing the importance of regular inspection for wear and tear.
5. Troubleshooting
If you encounter issues with your differential, consider the following common problems and solutions:
- Excessive Noise or Grinding:
- Cause: Insufficient lubrication, worn gears, or foreign debris.
- Solution: Check and replenish differential fluid/grease. Inspect gears for damage and replace if necessary. Clean the differential housing thoroughly.
- Loss of Power or Uneven Power Distribution:
- Cause: Damaged internal components, worn out bearings, or loose drive shafts.
- Solution: Disassemble and inspect the differential's internal gears and bearings. Ensure drive shafts are securely connected and not stripped.
- Differential Locking Up:
- Cause: Over-tightened screws, seized bearings, or internal component misalignment.
- Solution: Loosen screws slightly if overtightened. Replace seized bearings. Reassemble the differential carefully, ensuring all parts are correctly aligned.
Figure 5.1: Top view of the differential, useful for checking alignment and component integrity during troubleshooting.
6. Warranty and Support
Senmubery products are manufactured to high standards. For specific warranty information, please refer to the product packaging or contact your retailer. Keep your proof of purchase for any warranty claims.
For technical support or inquiries regarding the Senmubery 48T Differential Set, please contact the manufacturer or your point of purchase. When contacting support, please provide the product model number (347817) and a detailed description of your issue.

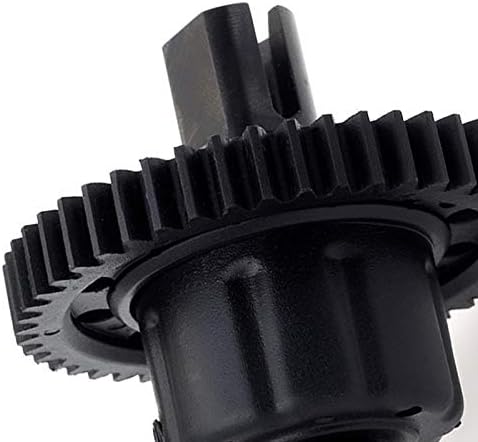

Figure 6.1: Detailed view of the differential housing, highlighting the material quality and construction.
