BHTOP MMA-160 ARC Welder Instruction Manual

1. Introduction and Safety Information

This manual provides essential information for the safe and effective operation of your BHTOP MMA-160 ARC Welder. Please read all instructions carefully before use and retain this manual for future reference. Proper use and maintenance will ensure optimal performance and extend the lifespan of your welding machine.

General Safety Warnings:

• Always wear appropriate personal protective equipment (PPE), including a welding helmet with proper shade, flame-resistant clothing, welding gloves, and safety shoes.
• Ensure the welding area is well-ventilated to avoid inhaling welding fumes.
• Protect bystanders from arc rays and sparks. Use welding screens if necessary.
• Never weld near flammable materials or in explosive atmospheres.
• Ensure proper grounding of the welding machine and workpiece to prevent electric shock.
• Do not touch live electrical parts.
• Disconnect power before performing any maintenance or adjustments.
• Keep children and unauthorized personnel away from the welding area.

2. Product Overview and Included Components

The BHTOP MMA-160 is a compact and efficient ARC welder designed for various welding tasks on steel and iron. It features IGBT technology, a digital display, and hot start functionality for improved arc ignition.

Included Components:

• BHTOP MMA-160 Welder Unit
• Electrode Holder
• Work Clamp (Earth Clamp)
• Input Power Adapter Cable
• Brush
• Folding Mask (basic eye protection)

Figure 2.1: The BHTOP MMA-160 Welder and its standard accessories, including the welder unit, power cable, electrode holder, earth clamp, and a cleaning brush.

Front Panel Controls:

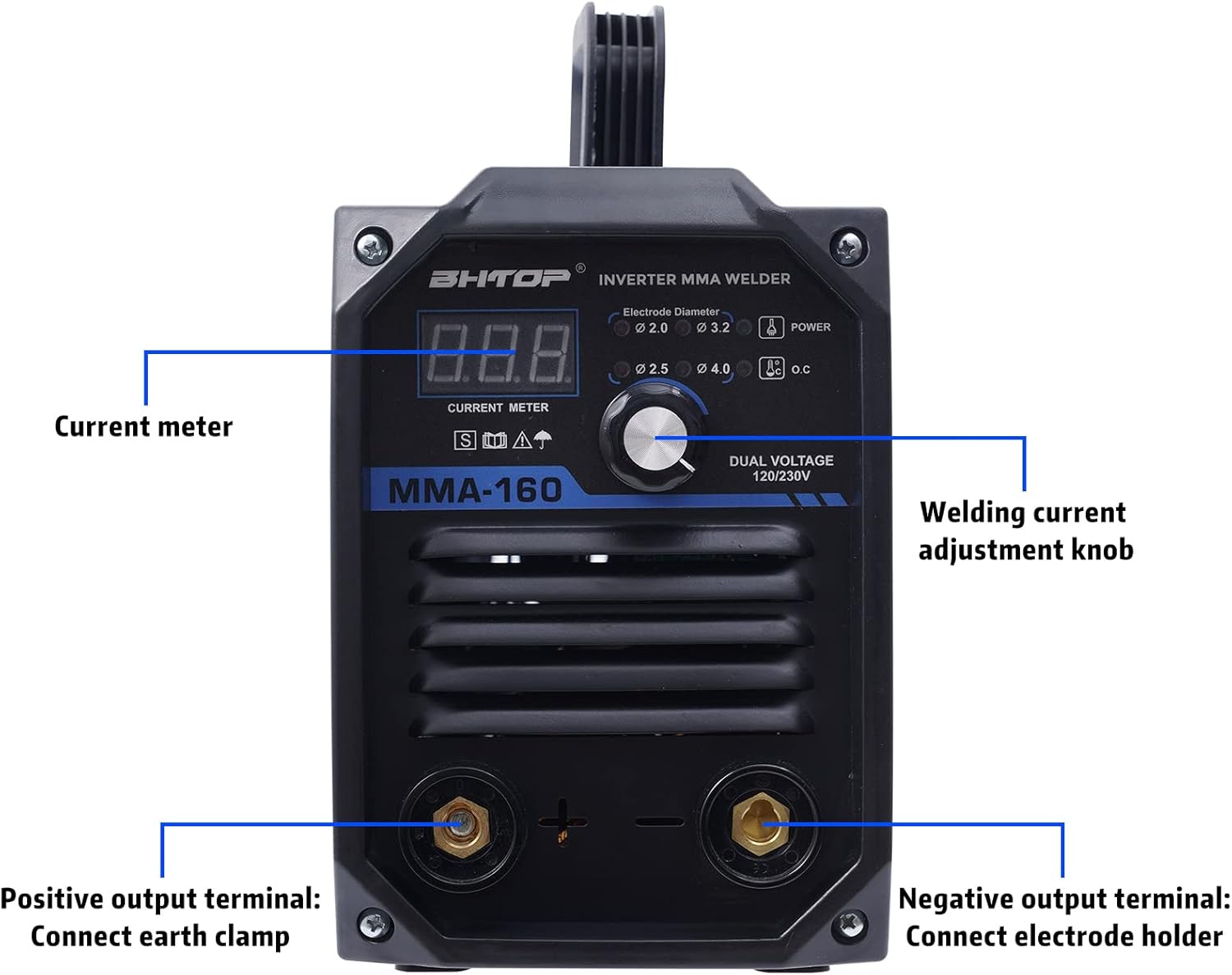

Figure 2.2: The front panel features a digital current meter, a welding current adjustment knob, indicators for electrode diameter (2.0mm, 2.5mm, 3.2mm, 4.0mm), a power indicator, and the positive (+) and negative (-) output terminals for connecting welding cables.

Rear Panel Connections:

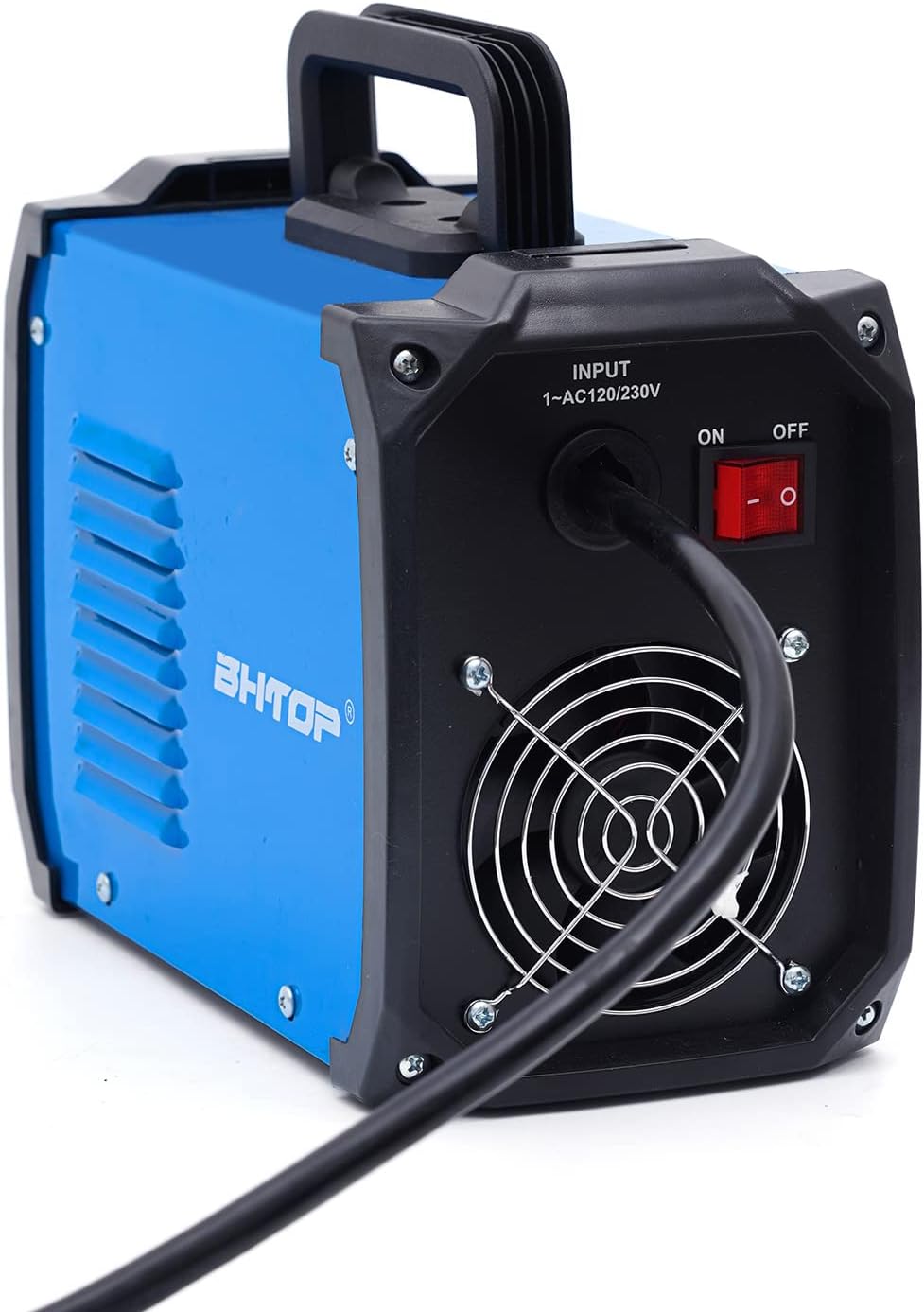

Figure 2.3: The rear panel includes the power input connection (1-AC120/230V), the main ON/OFF power switch, and a cooling fan vent to dissipate heat during operation.

3. Setup Instructions

1. Unpacking: Carefully remove the welder and all accessories from the packaging. Inspect for any damage.
2. Placement: Place the welder on a stable, level surface in a well-ventilated area, away from moisture and flammable materials. Ensure adequate space around the unit for airflow, especially around the rear cooling fan.
3. Connect Earth Clamp: Connect the work clamp (earth clamp) cable to the positive output terminal (+) on the front panel. Ensure a secure connection. Attach the clamp firmly to the workpiece or welding table, ensuring good electrical contact.
4. Connect Electrode Holder: Connect the electrode holder cable to the negative output terminal (-) on the front panel. Ensure a secure connection. Insert the welding electrode into the holder.
5. Power Connection: Connect the input power adapter cable to the power input on the rear panel. The MMA-160 supports dual voltage (120V/230V) and will automatically detect the input voltage. Plug the power cable into a suitable power outlet. Ensure the outlet can provide sufficient current for welding (up to 160A).
6. Initial Check: Before turning on, double-check all connections and ensure the welding area is clear and safe.

4. Operating Instructions

1. Power On: Flip the ON/OFF switch on the rear panel to the 'ON' position. The digital display on the front panel will illuminate, showing the current setting.
2. Adjust Welding Current: Use the welding current adjustment knob on the front panel to set the desired amperage. The digital display will show the selected current. Refer to electrode manufacturer specifications for recommended current ranges.
3. Electrode Diameter Selection: The front panel has indicators for common electrode diameters (2.0mm, 2.5mm, 3.2mm, 4.0mm). Select the appropriate diameter based on your electrode and material thickness.
4. Begin Welding: With all safety precautions in place, strike the arc by lightly touching the electrode to the workpiece and quickly lifting it slightly to establish a stable arc. Maintain a consistent arc length and travel speed for optimal weld quality. The 'Hot Start' feature assists in easier arc ignition.
5. Overload Safety: The welder is equipped with an overload safety protection system. If the unit becomes too hot or the voltage/current exceeds safe operating limits, it will automatically shut off to prevent damage. Allow the unit to cool down before resuming operation. The cooling fans will continue to operate to aid in heat dissipation.
6. Power Off: After welding, turn the ON/OFF switch to the 'OFF' position. Disconnect the power cable from the outlet.

Figure 4.1: The BHTOP MMA-160 welder in operation, demonstrating the arc welding process. Always ensure proper safety gear is worn.

Figure 4.2: The MMA-160 is suitable for welding various metal thicknesses, typically from 0.5mm to 5.0mm (0.2" to 2.0").

Product Demonstration Video:

5. Maintenance

Regular maintenance ensures the longevity and safe operation of your BHTOP MMA-160 welder.

• Cleaning: Periodically clean the exterior of the welder with a dry, soft cloth. Ensure the cooling vents on the rear panel are free from dust and debris to maintain proper airflow.
• Cable Inspection: Regularly inspect all welding cables, connections, and the power cord for any signs of damage, fraying, or loose connections. Replace damaged components immediately.
• Electrode Holder and Earth Clamp: Keep the electrode holder and earth clamp clean and free of spatter. Ensure good electrical contact surfaces.
• Storage: Store the welder in a dry, clean environment when not in use.

6. Troubleshooting

If you encounter issues with your BHTOP MMA-160 welder, refer to the following common troubleshooting steps:

• No Power: Check the power cable connection, the main power switch on the unit, and the circuit breaker or fuse in your electrical supply.
• Welder Shuts Off (Overload): If the welder automatically shuts off, it indicates an overheat or overcurrent condition. Allow the unit to cool down for several minutes. Ensure proper ventilation and that the cooling fan is operating. Reduce the welding current if consistently tripping.
• Poor Arc Ignition or Unstable Arc: Ensure the electrode is dry and correctly inserted into the holder. Check the earth clamp connection for good contact with the workpiece. Verify the welding current setting is appropriate for the electrode diameter and material.
• Excessive Spatter: Adjust the welding current. Too high or too low current can cause excessive spatter. Ensure proper arc length and travel speed.
• No Welding Output: Check all cable connections (electrode holder, earth clamp, power). Ensure the machine is powered on and not in an error state (e.g., overload protection).

If problems persist after following these steps, please contact customer support.

7. Specifications

8. Warranty and Support

The BHTOP MMA-160 Welder comes with a 1-year warranty from the date of purchase, covering manufacturing defects. Please retain your proof of purchase for warranty claims.

For technical support, warranty service, or inquiries regarding your product, please contact BHTOP customer service through the retailer where the product was purchased or visit the official BHTOP website for contact information.
