1. Introduction
Thank you for choosing the NEBO SLIM Mini Rechargeable Pocket Light. This compact and powerful flashlight is designed for everyday carry (EDC) and emergency situations, offering reliable illumination with its 250-lumen output and two light modes. Its durable, water-resistant design and magnetic base provide versatility for various tasks. This manual provides essential information for the safe and effective use, maintenance, and troubleshooting of your device.

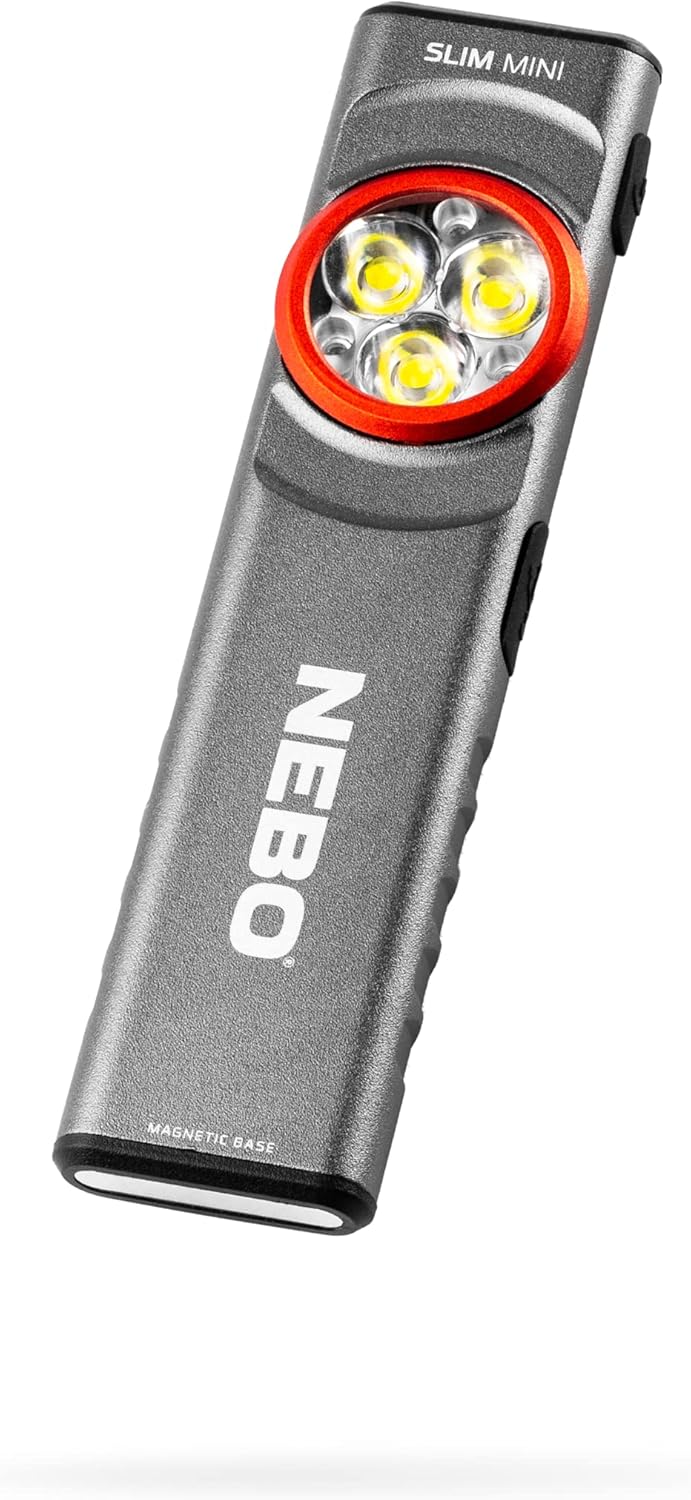

Figure 1.1: The NEBO SLIM Mini Rechargeable Pocket Light. This image displays the compact, gray flashlight with its red accent ring around the LED array and the NEBO logo prominently displayed on its body. The magnetic base is visible at the bottom.
2. Safety Information
Please read all safety warnings and instructions carefully before using this product. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Do not look directly into the light beam. The high-intensity light can cause temporary vision impairment or eye damage.
- Keep out of reach of children. This is not a toy.
- Do not disassemble, modify, or attempt to repair the device. Refer all servicing to qualified personnel.
- Do not expose the device to extreme temperatures, open flames, or immerse it in water beyond its IPX4 rating (splash-proof).
- Use only the provided USB-C charging cable or a certified equivalent.
- Dispose of the battery according to local regulations. Do not dispose of batteries in household waste or fire.
3. Package Contents
Verify that all items are present in the package:
- NEBO SLIM Mini Rechargeable Pocket Light
- USB-C to USB-A Charging Cable
4. Product Overview
Familiarize yourself with the components of your NEBO SLIM Mini:
- LED Array: Main light source.
- Power Button: Controls power and light modes.
- Charging Port (USB-C): For recharging the internal battery.
- Battery Charging Indicator: Shows charging status.
- Pocket Clip: Removable for versatile carrying options.
- Magnetic Base: Allows for hands-free attachment to metal surfaces.
Figure 4.1: The NEBO SLIM Mini held in hand, demonstrating its compact size and powerful illumination. The image highlights the bright light output from the device.

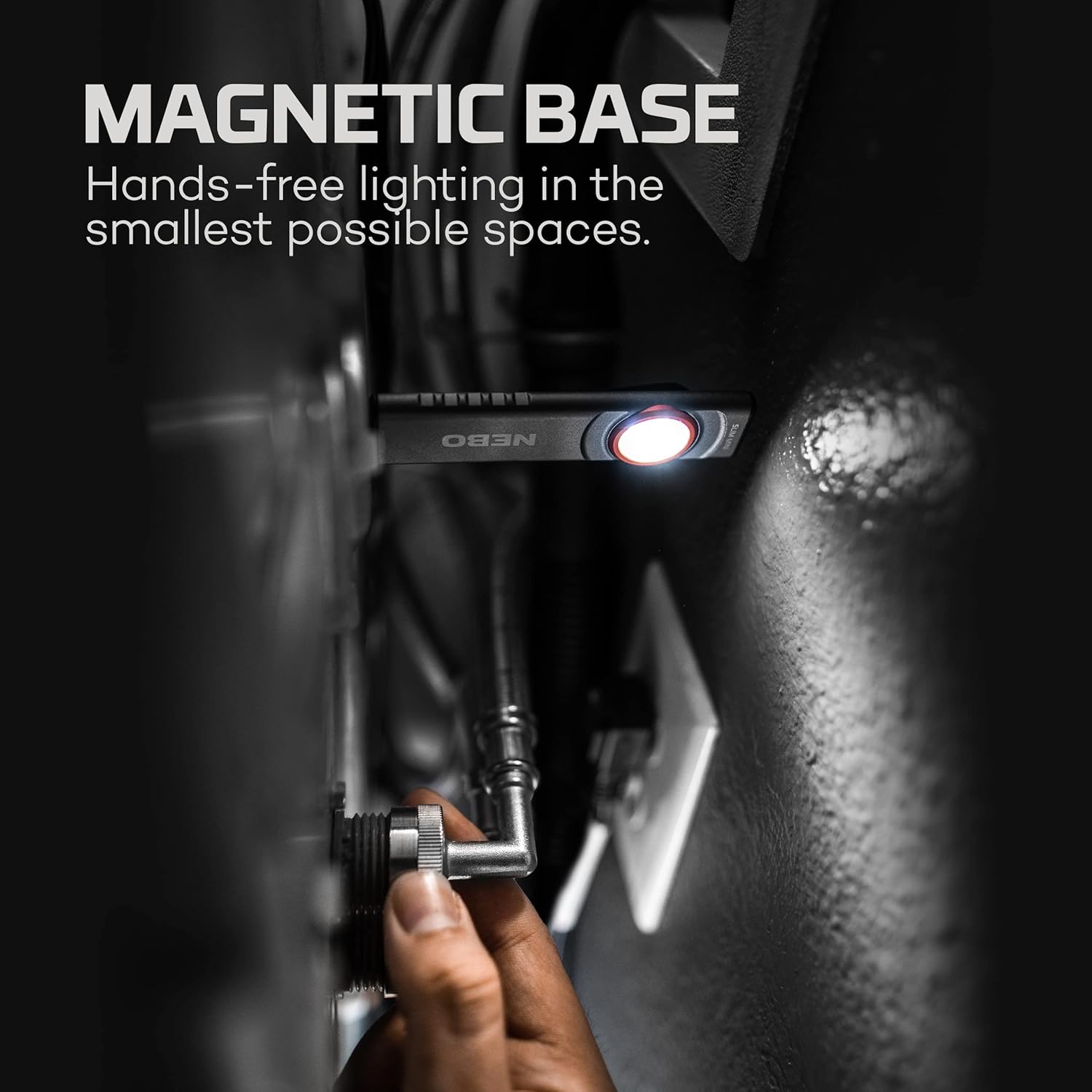

Figure 4.2: The NEBO SLIM Mini utilizing its magnetic base for hands-free lighting. The flashlight is shown attached to a metal surface, illuminating a tight space.
5. Setup
5.1 Initial Charging
Before first use, fully charge your NEBO SLIM Mini. The device comes with a built-in Lithium polymer rechargeable battery.
- Locate the USB-C charging port on the side of the flashlight.
- Connect the provided USB-C to USB-A charging cable to the flashlight.
- Plug the USB-A end of the cable into a standard USB power source (e.g., computer USB port, wall adapter, power bank).
- The battery charging indicator will illuminate to show charging status.
- A full charge typically takes 2 to 4 hours. The indicator will change or turn off once charging is complete.

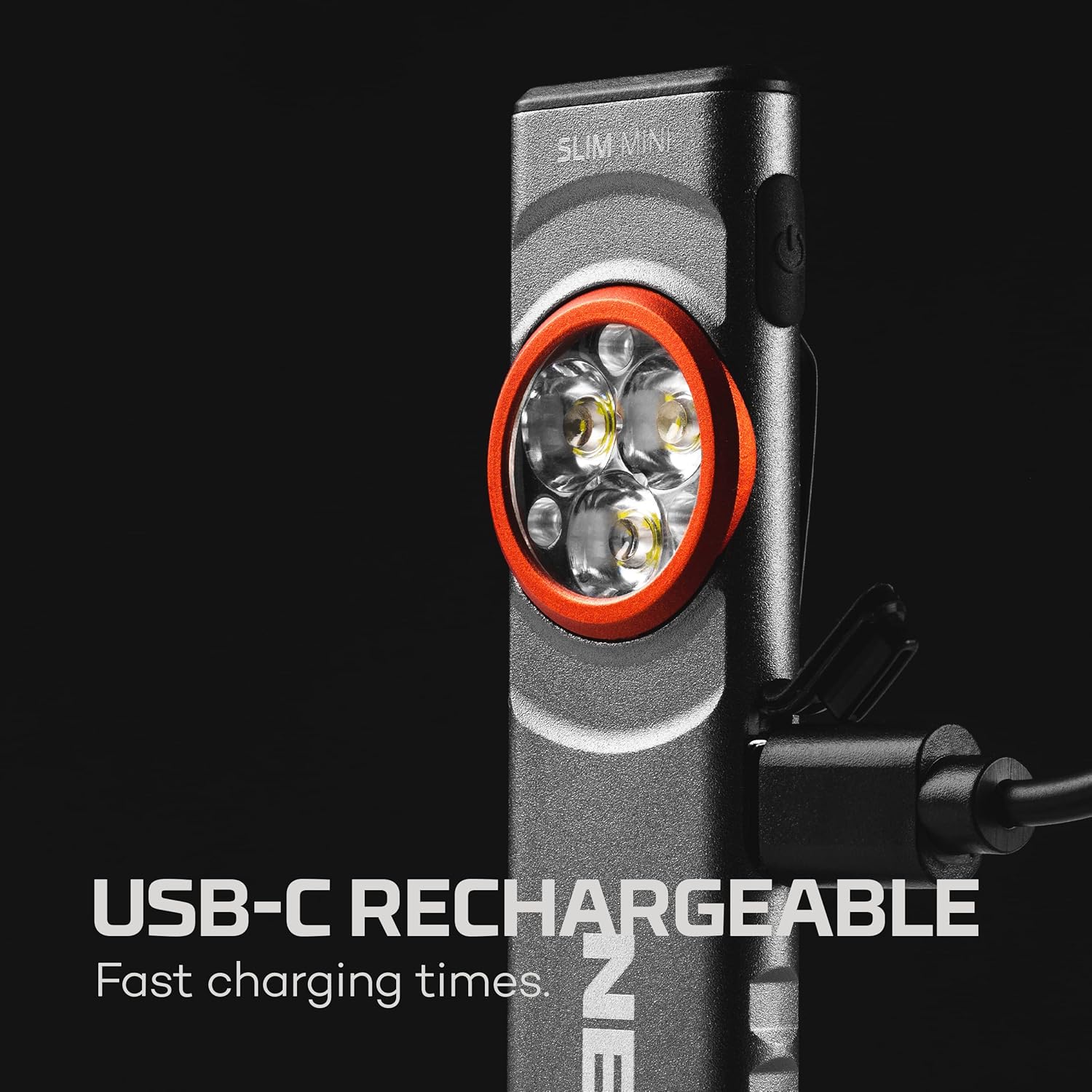

Figure 5.1: The NEBO SLIM Mini connected to its USB-C charging cable. This image illustrates the charging port and the process of connecting the cable for recharging.
6. Operating Instructions
The NEBO SLIM Mini features two light modes: High and Low.
6.1 Power On/Off and Mode Selection
- To turn the flashlight ON to High mode, press the Power Button once.
- To switch to Low mode, press the Power Button again while the light is on.
- To turn the flashlight OFF, press the Power Button a third time.
- If the light remains in one mode for more than 8 seconds, the next press of the Power Button will turn the unit OFF. This feature prevents cycling through modes unnecessarily.
7. Maintenance
Proper maintenance ensures the longevity and optimal performance of your NEBO SLIM Mini.
7.1 Cleaning
- Wipe the exterior of the flashlight with a soft, damp cloth.
- Do not use abrasive cleaners or solvents.
- Ensure the charging port cover is securely closed to maintain IPX4 water resistance.

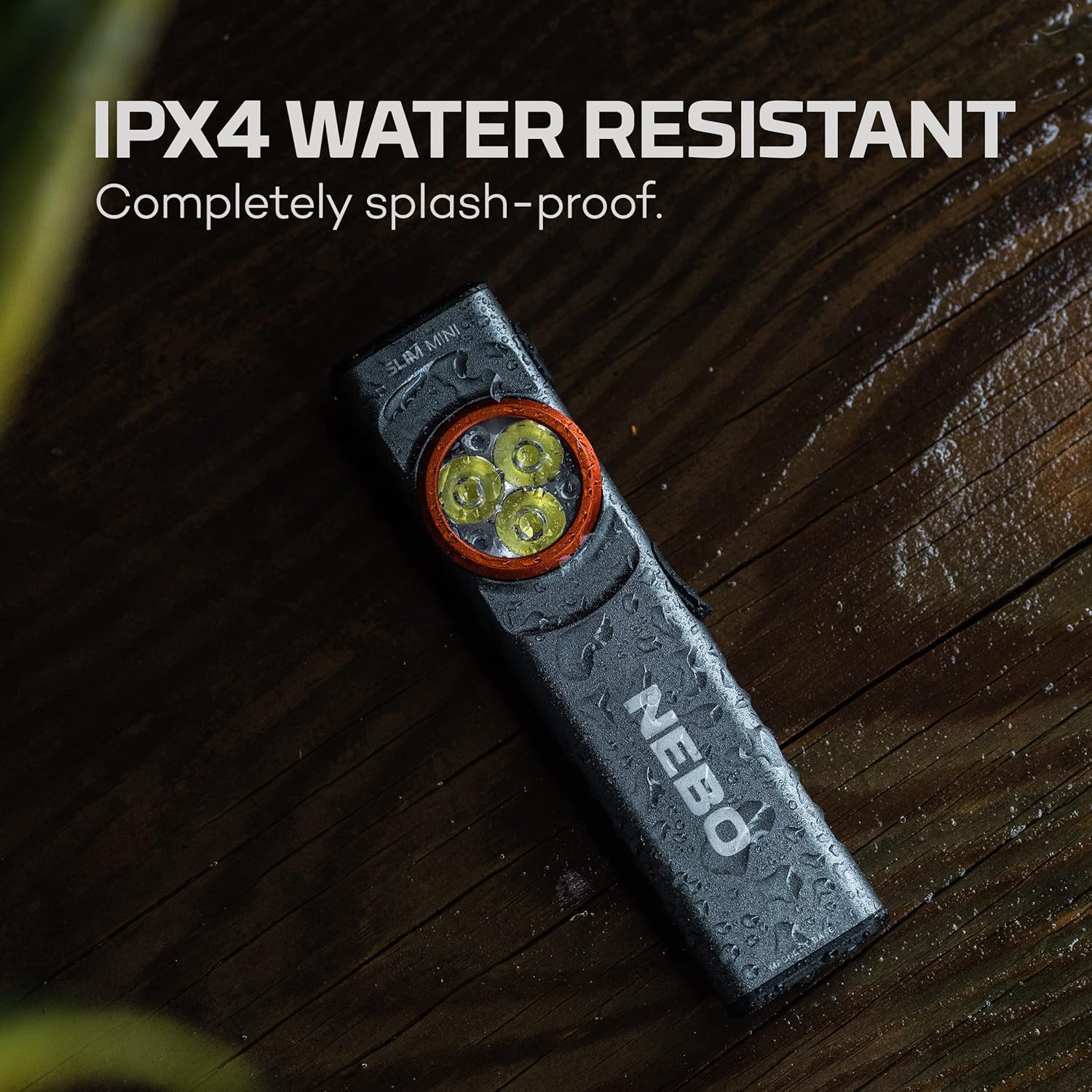

Figure 7.1: The NEBO SLIM Mini with water droplets on its surface, illustrating its IPX4 water-resistant capability. This indicates it is protected against splashing water from any direction.
7.2 Storage
- Store the flashlight in a cool, dry place away from direct sunlight and extreme temperatures.
- For long-term storage, charge the battery every 3-6 months to maintain battery health.
8. Troubleshooting
If you encounter issues with your NEBO SLIM Mini, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | Battery is depleted. | Recharge the flashlight using the USB-C cable. |
| Light is dim or flickers. | Low battery level. | Recharge the flashlight. |
| Flashlight does not charge. | Charging cable or power source issue. | Ensure the USB-C cable is properly connected. Try a different USB port or power adapter. |
| Magnetic base not holding securely. | Surface is not ferromagnetic or too thin. | Ensure the surface is made of a suitable magnetic material and is thick enough to provide sufficient magnetic attraction. |
If the problem persists after attempting these solutions, please contact NEBO customer support for further assistance.
9. Specifications
Detailed technical specifications for the NEBO SLIM Mini Rechargeable Pocket Light:
| Feature | Detail |
|---|---|
| Model Number | NEB-FLT-1042 |
| Light Source | LED |
| Brightness (High) | 250 Lumens |
| Brightness (Low) | 25 Lumens |
| Run Time (High) | 2 hours |
| Run Time (Low) | 10 hours |
| Beam Distance (High) | 67 meters |
| Beam Distance (Low) | 21 meters |
| Battery Type | 450 mAh Lithium Polymer Rechargeable |
| Charging Time | 2-4 hours (via USB-C) |
| Water Resistance | IPX4 (Splash-proof) |
| Impact Resistance | Yes |
| Material | Plastic, Durable Aluminum |
| Color | Storm Gray |
| Dimensions (L x W x D) | 4" x 1" x 0.54" (approx.) |
| Weight | 2.08 ounces (approx.) |

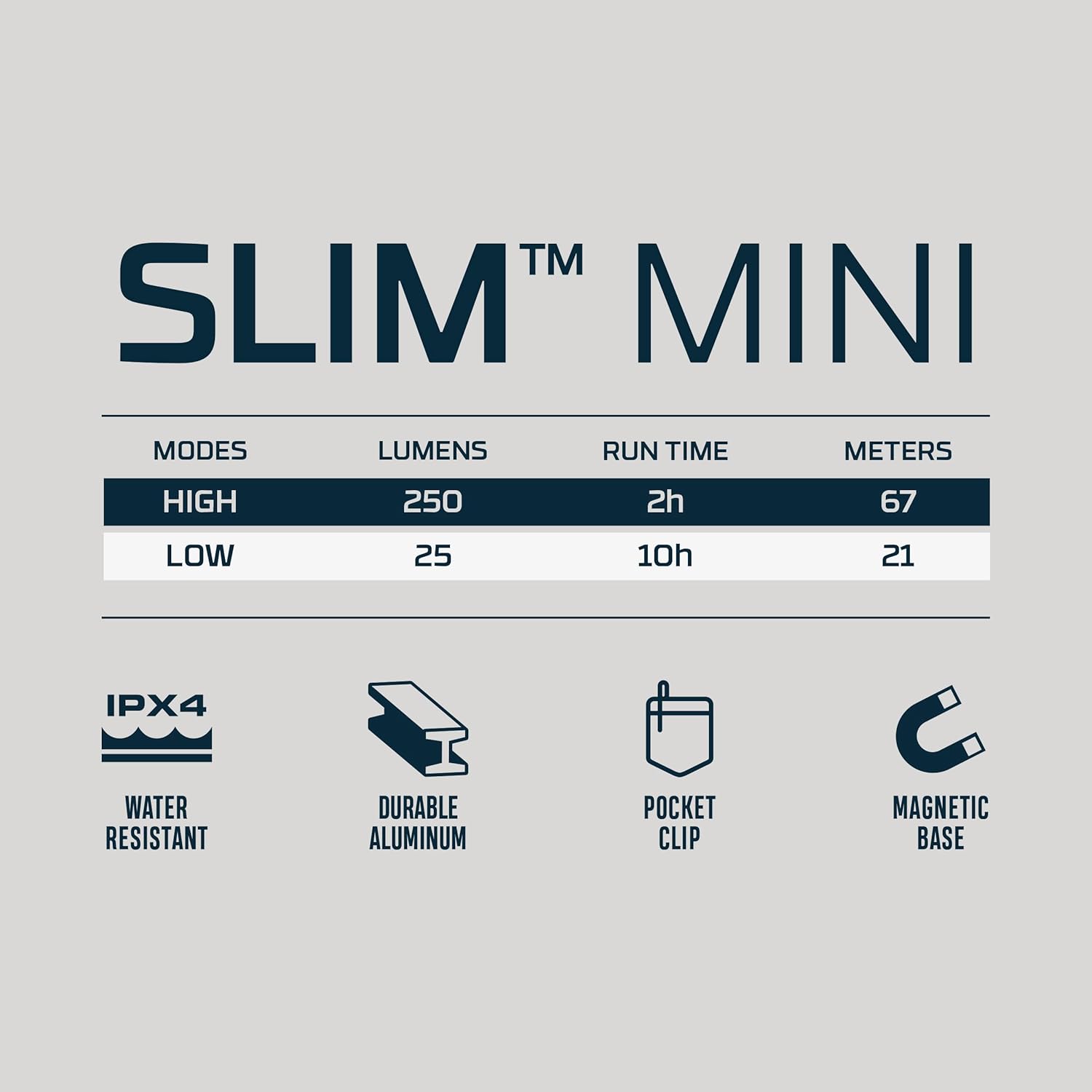

Figure 9.1: A visual summary of the NEBO SLIM Mini's performance specifications, including modes, lumens, run time, and beam distance, along with key features like water resistance, material, pocket clip, and magnetic base.
10. Warranty and Support
The NEBO SLIM Mini Rechargeable Pocket Light is covered by a 1-year manufacturer's warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use.
The warranty does not cover damage resulting from misuse, abuse, unauthorized modification, or normal wear and tear. Please retain your proof of purchase for warranty claims.
10.1 Customer Support
For technical assistance, warranty claims, or general inquiries, please visit the official NEBO website or contact their customer support directly. Refer to the product packaging or NEBO's official website for the most current contact information.
