Introduction
This manual provides detailed instructions for the operation, maintenance, and care of your NEBO SLYDE KING 1000 Lumen Rechargeable Flashlight (Model: NEB-FLT-1044). Please read this manual thoroughly before using the product to ensure proper function and longevity.
Image: The NEBO SLYDE KING 1000 Lumen Rechargeable Flashlight in its compact form.
Product Features
- 1000 Lumen LED Flashlight: Provides powerful illumination with 4x adjustable zoom for spotlight or floodlight.
- 500 Lumen COB Work Light: Integrated work light revealed by sliding the flashlight body.
- 7 Dimmable Light Modes: Includes High, Low, White High, White Low, Red High, Red Low, and Red Flash for various lighting needs.
- Rechargeable via USB-C: Convenient and fast charging capability.
- Magnetic Base: Allows for hands-free attachment to metal surfaces.
- Durable Construction: Impact-resistant, dustproof, and IP67 waterproof (submersible up to 1 meter for 30 minutes).
- Power Memory Recall: Remembers the last used light mode.
- Backlit On/Off Button: Serves as a charging and power indicator.
Setup
Charging the Device
Before initial use, fully charge your SLYDE KING flashlight. Connect the included USB-C charging cable to the flashlight's charging port and plug the other end into a USB power source. The backlit on/off button will indicate charging status.
- Charging Time: Approximately 4-6 hours for a full charge.
- Indicator: The power button will illuminate to show charging status.
Image: The flashlight's USB-C port with a charging cable inserted.
Operating Instructions
Power Button Functions
- Single Click: Turns the flashlight on to the last used mode (Power Memory Recall).
- Press and Hold: Activates dimming function for the current light mode. Release at desired brightness.
- Double Click: Activates the highest brightness setting for the current light source (flashlight or COB).
Flashlight Operation
The primary LED flashlight is located at the front of the device.
Image: The flashlight head emitting 1000 lumens of light.
- Turning On/Off: Press the power button once.
- Adjusting Zoom: Twist the head of the flashlight to transition between a wide floodlight spread and a narrow spotlight beam (4x zoom).
Image: The flashlight head with an indicator for 4X zoom adjustment.
COB Work Light Operation
To access the COB work light, slide the top section of the flashlight upwards. This reveals the integrated COB LED panel.
Image: The flashlight extended to reveal the COB work light.
Image: The COB work light section emitting 500 lumens.
- White Light Modes: The COB work light offers White High (500 lm) and White Low (dimmable).
- Red Light Modes: The COB work light also features Red High, Red Low (4 lm), and Red Flash for emergency signaling or preserving night vision.
Image: The COB work light section emitting red light.
Magnetic Base
The strong magnetic base allows for hands-free operation by attaching the flashlight to any metal surface.

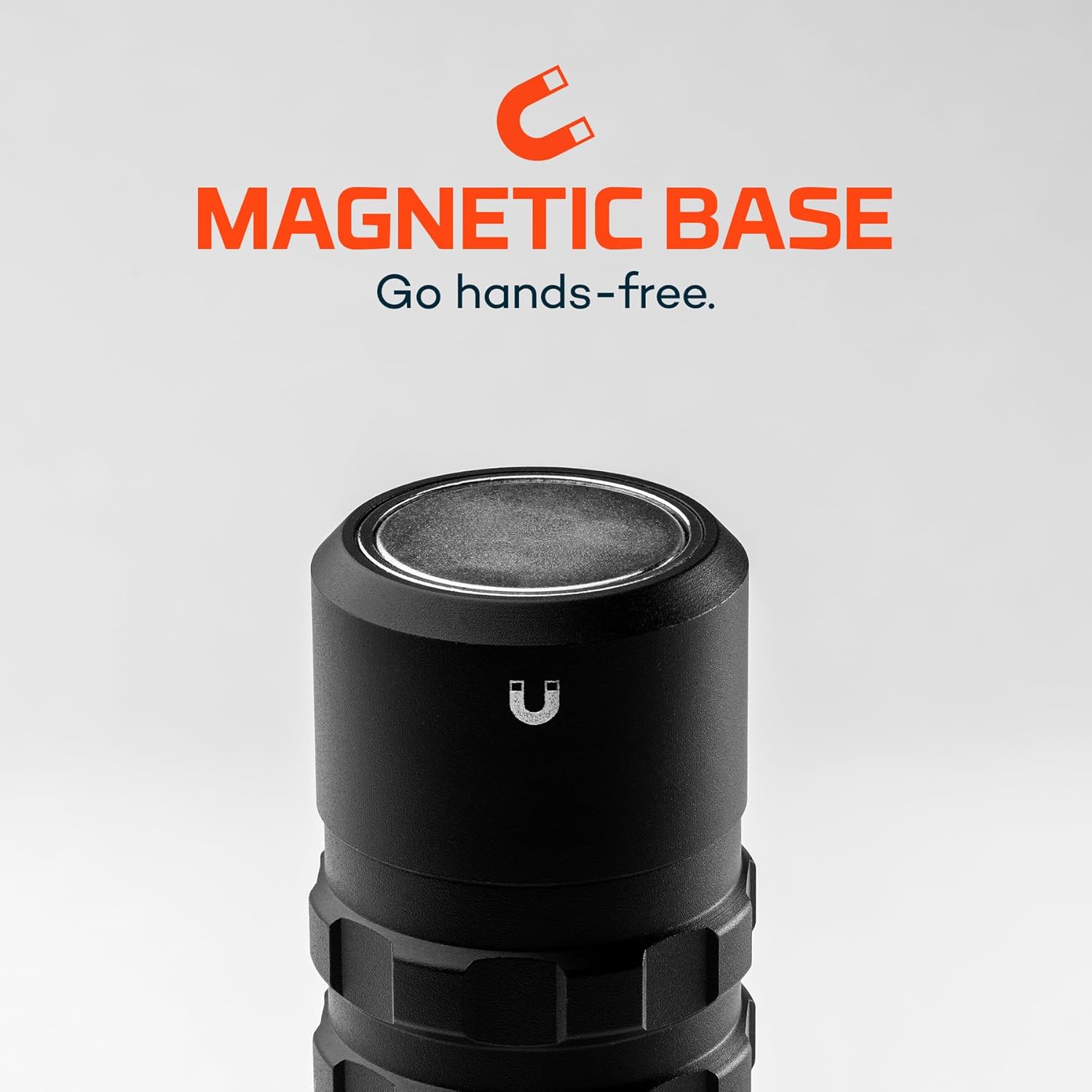

Image: The magnetic base of the flashlight.
Maintenance
Cleaning
Wipe the flashlight with a soft, damp cloth. Do not use abrasive cleaners or solvents. Ensure the charging port cover is securely closed before cleaning or exposing to water.
Storage
Store the flashlight in a cool, dry place away from direct sunlight. For long-term storage, it is recommended to charge the battery every 3-6 months to maintain battery health.
Troubleshooting
- Flashlight not turning on: Ensure the battery is charged. Connect to a USB-C charger and check the indicator light.
- Light is dim: The battery may be low. Recharge the flashlight. Also, check if the dimming function is active.
- Charging not working: Verify the USB-C cable is properly connected to both the flashlight and the power source. Try a different cable or power adapter.
- COB work light not activating: Ensure the flashlight body is fully extended to reveal the COB panel.
Specifications
| Feature | Specification |
|---|---|
| Model Number | NEB-FLT-1044 |
| Flashlight Brightness | Up to 1000 Lumens |
| COB Work Light Brightness | Up to 500 Lumens |
| Red Light Brightness (Low) | 4 Lumens |
| Battery | 2200 mAh (3.7V) Lithium-ion rechargeable battery |
| Charging Port | USB-C |
| Length (Compacted) | 7.48 inches (1.57"D x 1.57"W x 7.48"H) |
| Length (Extended) | 9.625 inches |
| Weight | 0.84 lbs (13.4 ounces) |
| Water Resistance | IP67 (Waterproof, submersible up to 1 meter for 30 minutes) |
| Zoom | 4x Adjustable |
| Material | Plastic |
Image: The flashlight demonstrating its IP67 waterproof capability.
Warranty and Support
The NEBO SLYDE KING 1000 Lumen Rechargeable Flashlight comes with a Full Warranty. For specific warranty details, claims, or technical support, please refer to the official NEBO website or contact NEBO customer service directly. Keep your proof of purchase for warranty purposes.
For further assistance, visit the official NEBO website: nebo.acgbrands.com
