1. Introduction
Thank you for choosing the MINKA-AIRE Stout 54-inch Ceiling Fan. This modern ceiling fan is designed to provide efficient air circulation and integrated LED lighting for your living space. Featuring a quiet motor and convenient remote control, it enhances comfort and style. This manual provides detailed instructions for safe installation, operation, and maintenance of your new ceiling fan.

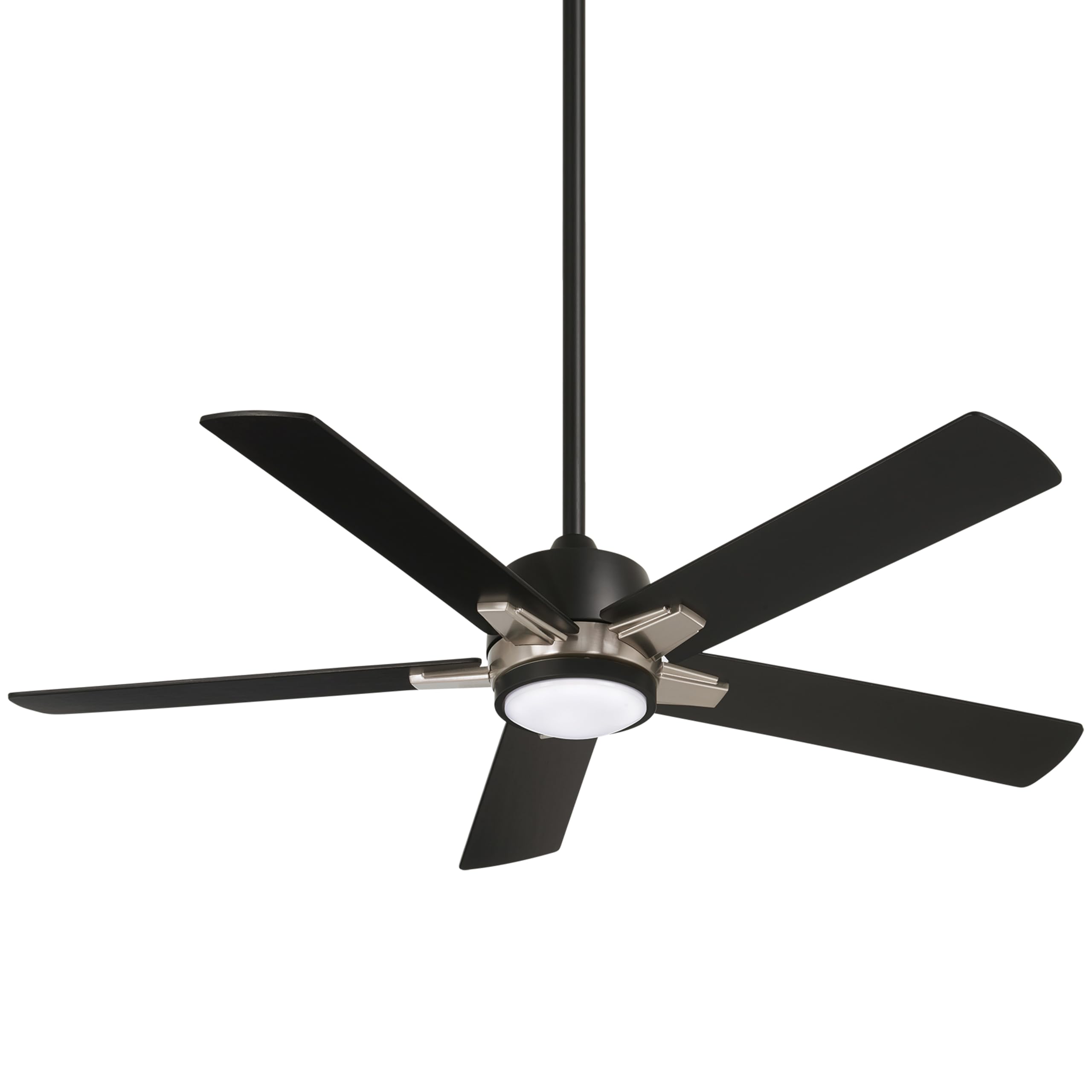

Figure 1: MINKA-AIRE Stout 54-inch Ceiling Fan with LED Light.
2. Important Safety Information
Please read and understand all instructions before beginning installation. Failure to follow these instructions may result in electric shock, fire, or personal injury.
- Electrical Safety: Always disconnect power at the main circuit breaker before installation or servicing. Ensure all wiring is in accordance with national and local electrical codes.
- Mounting: The ceiling fan must be mounted to a ceiling joist or a suitable support structure capable of supporting the fan's weight (approximately 15.72 lbs).
- Blade Clearance: Ensure there is adequate clearance between the fan blades and any obstructions.
- Professional Installation: If you are unsure about any part of the installation process, it is recommended to consult a qualified electrician.
- Proposition 65 Warning: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
3. Package Contents
Verify that all components are present and undamaged before proceeding with installation.
- Ceiling Fan Motor Assembly
- Five (5) Fan Blades
- Integrated 16 Watt Dimmable LED Light Module
- Etched Lens
- One (1) RCS213 - Three-speed Hand-held Remote Control
- One (1) 6-Inch Downrod
- Mounting Hardware Kit
- Installation Manual
4. Setup and Installation
This section outlines the general steps for installing your MINKA-AIRE Stout ceiling fan. Refer to the included detailed installation manual for specific diagrams and instructions.
- Prepare the Mounting Location: Ensure the electrical box is securely mounted to a structural support and is rated for ceiling fan support.
- Assemble the Downrod: Attach the 6-inch downrod to the motor assembly.
- Mount the Fan: Secure the fan assembly to the ceiling mounting bracket.
- Electrical Wiring: Connect the fan's electrical wires to the household wiring according to the provided wiring diagram. Ensure all connections are secure.
- Attach Fan Blades: Securely attach the five fan blades to the motor housing.
- Install Light Kit: Connect the integrated LED light module and attach the etched lens.
Figure 2: Detailed view of the fan's central hub and blades.
5. Operating Instructions
Your MINKA-AIRE Stout ceiling fan is operated using the included RCS213 remote control.
5.1 Remote Control Functions
Figure 3: RCS213 Hand-held Remote Control.
- Fan Speed Control: The remote allows you to select between three fan speeds (low, medium, high) to optimize airflow.
- Light On/Off/Dimming: Control the integrated LED light. Press to turn on/off, and hold to dim the light to your desired brightness.
- Fan Direction (Reversible Motor): The fan features a reversible motor for year-round use. In warm weather, set the fan to rotate counter-clockwise to create a cooling breeze. In cool weather, set it to rotate clockwise at a low speed to circulate warm air near the ceiling.
5.2 Smart Home Integration (Optional)
For enhanced control, your MINKA-AIRE Stout fan is WiFi compatible with the additional purchase of the Bond BD-1000 device. This allows you to connect your fan to the free Bond Home app (available for iOS and Android) and control it via your smartphone or smart home system.
- Purchase Bond BD-1000 separately.
- Download the Bond Home app.
- Follow the app's instructions to connect your fan to your internet WiFi network.
Figure 4: Smart Home Integration with Bond BD-1000 (sold separately).
6. Maintenance
Regular maintenance ensures optimal performance and longevity of your ceiling fan.
- Cleaning: To avoid damage to the finish, clean the fan with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Blade Care: Periodically check that all blade screws are tight. Loose blades can cause wobbling and noise.
- Light Module: The integrated LED light module is designed for long life and typically does not require replacement.
7. Troubleshooting
Before contacting customer support, review the following common issues and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not start | No power to the fan; loose wire connections; remote control battery low. | Check circuit breaker. Ensure all wiring connections are secure. Replace remote control battery (1 12V battery required). |
| Fan wobbles | Loose blade screws; unbalanced blades; improper mounting. | Tighten all blade screws. Ensure blades are balanced (balancing kit may be needed). Verify secure mounting to ceiling joist. |
| Light does not work | Loose wire connection; LED module issue; remote control battery low. | Check light kit wiring. Ensure remote control battery is functional. |
| Remote control not responding | Remote control battery low; remote not paired with fan. | Replace remote control battery. Refer to the remote control pairing instructions in the full manual. |
8. Specifications
| Feature | Detail |
|---|---|
| Brand | MINKA-AIRE |
| Model Name | F619L-CL/BN (Stout) |
| Color | Coal/Brushed Nickel |
| Product Dimensions | 54"D x 54"W x 15.28"H |
| Number of Blades | 5 |
| Blade Length | 54 Inches |
| Light Source | Integrated 16 Watt Dimmable LED |
| Control Method | Remote (RCS213) |
| Number of Power Levels | 3 (Fan Speeds) |
| Power Source | AC (120 Volts) |
| Air Flow Capacity | Up to 4602 Cubic Feet Per Minute (CFM) |
| Item Weight | 15.72 Pounds |
| Indoor/Outdoor Usage | Indoor |
| Special Feature | Adjustable Height, Reversible Motor |
Figure 5: Fan Performance Data (CFM, Watts, Efficiency).
9. Warranty and Support
The MINKA-AIRE Stout Ceiling Fan comes with a limited warranty. For detailed warranty information, please refer to the warranty card included with your product or visit the official MINKA-AIRE website.
For technical assistance, replacement parts, or any questions regarding your product, please contact MINKA-AIRE customer support. Contact information can typically be found on the manufacturer's website or in the product packaging.
