1. Introduction
This manual provides essential information for the proper use, installation, and understanding of the Niiyen L7805/LM7805 5V 1.5A Linear Positive Fixed Voltage Regulator. These devices are designed to provide a stable 5-volt output from a higher input voltage, making them suitable for a wide range of electronic applications requiring a regulated power supply.
Figure 1: Niiyen L7805/LM7805 Voltage Regulators.
2. Product Overview
The L7805 series of three-terminal positive regulators are available in the TO-220 package and several other packages with several fixed output voltages, making them useful in a wide range of applications. These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type employs internal current limiting, thermal shut-down, and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltage and currents.
Key Features:
- Fixed Output Voltage: Provides a stable 5V output.
- High Output Current: Capable of delivering up to 1.5A.
- Internal Protection: Features internal current limiting, thermal shut-down, and safe area protection for enhanced durability.
- Local Regulation: Ideal for on-card regulation, simplifying power distribution.
- Adjustable Voltage/Current: Can be configured with external components for adjustable output.
- Through-Hole Mounting: Designed for easy integration into circuit boards.
Figure 2: L7805 Voltage Regulator features and specifications summary.
3. Specifications
| Parameter | Value |
|---|---|
| Model Number | LM7805 |
| Output Type | Fixed |
| Output Voltage | 5V |
| Output Current | 1.5A |
| Line Regulation | 50mV |
| Load Regulation | 100mV |
| Maximum Operating Temperature | 150°C (302°F) |
| Minimum Operating Temperature | 0°C (32°F) |
| Mounting Style | Through Hole Mount |
| Product Dimensions | 4.33 x 1.18 x 0.39 inches |
| Weight | 0.71 ounces (per 10 pcs) |
Figure 3: L7805 Pinout Diagram.
4. Setup and Installation
The L7805 is a three-terminal device. Proper connection of the input, ground, and output pins is crucial for correct operation. It is recommended to use input and output capacitors for stability, especially when the regulator is located far from the power supply filter capacitors or when the load changes rapidly.
Basic Connection:
- Input Pin: Connect to the unregulated DC voltage source (typically 7V to 25V for a 5V output).
- Ground Pin: Connect to the common ground of your circuit.
- Output Pin: Connect to the circuit requiring a regulated 5V supply.
Recommended Capacitors:
- A 0.33µF capacitor on the input (between input and ground) is recommended if the regulator is far from the power supply filter.
- A 0.1µF capacitor on the output (between output and ground) is recommended to improve transient response.
Figure 4: Typical Application Circuit Diagram for L7805.
Ensure proper heat sinking is provided, especially when operating at higher input voltages or higher output currents, to prevent thermal shutdown.
5. Operating Principles
The L7805 is a linear voltage regulator. It operates by dissipating excess input voltage as heat to maintain a constant output voltage. For example, if you supply 12V to the input and draw 1A of current, the regulator will drop 7V (12V - 5V) across itself. This 7V multiplied by the 1A current results in 7W of power dissipated as heat (P = V * I). This heat must be effectively removed to prevent the device from overheating and entering thermal shutdown.
Thermal Considerations:
- The L7805 has internal thermal shutdown protection. If the junction temperature exceeds its limit (typically 150°C), the device will temporarily shut down to prevent damage.
- For currents above approximately 0.5A or significant input-output voltage differentials, a heatsink is highly recommended.
- The TO-220 package allows for easy attachment of standard heatsinks.

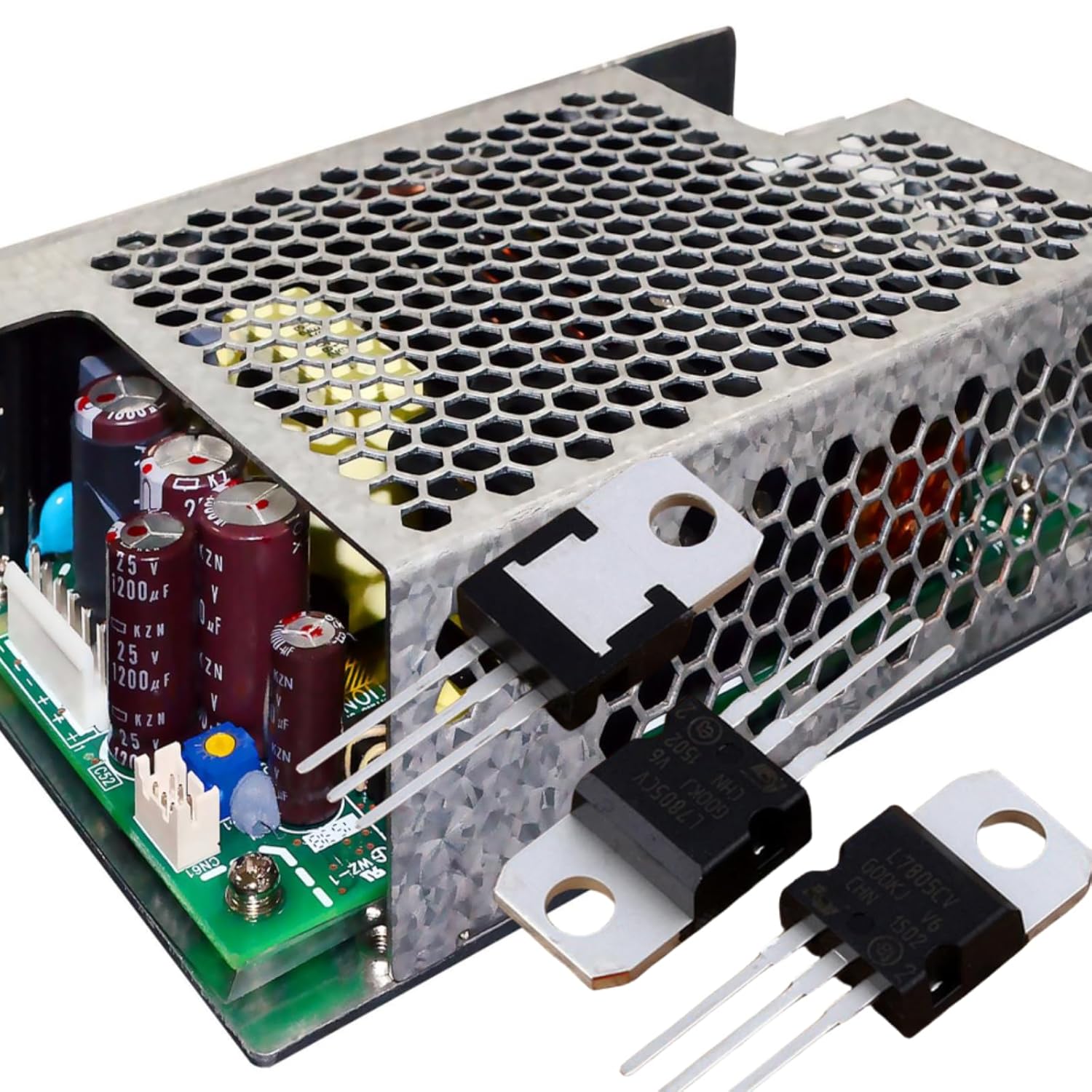

Figure 5: L7805 Regulators integrated into a power supply circuit.
6. Applications
The L7805 voltage regulator is versatile and widely used in various electronic circuits due to its simplicity and reliability. Common applications include:
- Regulated Power Supplies: Providing stable 5V for microcontrollers, sensors, and other low-power digital circuits.
- Limiting Circuits: Used to protect sensitive components from overvoltage.
- DIY Electronics Projects: A fundamental component for hobbyists and students.
- Automotive Electronics: Converting vehicle battery voltage to a stable 5V for various systems.
- Industrial Control Systems: Ensuring stable power for control logic.
Figure 6: Diverse applications of voltage regulators.
7. Maintenance
The L7805 voltage regulator is a robust and low-maintenance component. However, proper handling and environmental conditions contribute to its longevity and reliable operation.
General Guidelines:
- Storage: Store components in a dry, static-free environment, ideally in their original packaging or anti-static bags.
- Handling: Avoid excessive mechanical stress on the pins. Use appropriate tools for soldering and desoldering.
- Cleaning: If necessary, clean the component and surrounding PCB with isopropyl alcohol and a soft brush. Ensure no residue remains.
- Environmental Conditions: Operate within specified temperature ranges. Avoid exposure to excessive moisture or corrosive substances.
Figure 7: Proper packaging for L7805 regulators.
8. Troubleshooting
If you encounter issues with your L7805 voltage regulator, consider the following common problems and solutions:
- No Output Voltage or Low Output Voltage:
- Check Input Voltage: Ensure the input voltage is within the acceptable range (typically 7V to 25V for 5V output).
- Check Connections: Verify that all pins (Input, Ground, Output) are correctly connected and there are no cold solder joints or shorts.
- Overcurrent/Overload: The regulator may be shutting down due to excessive current draw. Reduce the load or use a regulator with a higher current rating.
- Thermal Shutdown: If the regulator is getting very hot, it might be entering thermal shutdown. Ensure adequate heat sinking is provided.
- Faulty Component: In rare cases, the component itself may be faulty. Test with a known good component if possible.
- Output Voltage Fluctuations or Noise:
- Missing Capacitors: Ensure input and output capacitors (as recommended in Section 4) are present and correctly sized.
- Grounding Issues: Poor grounding can introduce noise. Ensure a solid common ground connection.
- Load Changes: Rapid changes in load current can cause temporary fluctuations. Output capacitors help mitigate this.
- Excessive Heat:
- Insufficient Heat Sink: The most common cause. Ensure the heatsink is appropriately sized for the power dissipation (P = (V_in - V_out) * I_out).
- High Input Voltage: A larger difference between input and output voltage leads to more power dissipation. Consider a lower input voltage if possible, or a more efficient switching regulator for high differentials.
- High Output Current: Higher current draw increases power dissipation.
9. Warranty and Support
For warranty information and technical support regarding your Niiyen L7805/LM7805 Voltage Regulators, please refer to the retailer or manufacturer's official website where the product was purchased. Specific warranty terms and support contact details are typically provided at the point of sale or within the product packaging.
Niiyen is committed to providing high-quality, functional, and aesthetically pleasing products. For general inquiries or further assistance, please visit the official Niiyen brand page or contact their customer service as per the details available on their website.
