Master Airbrush PRO-88-CUP-1000 1000 ml Aluminum Gravity Feed Spray Gun Cup Instruction Manual

1. Introduction

This manual provides essential instructions for the proper use, setup, operation, maintenance, and troubleshooting of your Master Airbrush PRO-88-CUP-1000 1000 ml Aluminum Gravity Feed Spray Gun Cup. Please read this manual thoroughly before using the product to ensure safe and efficient operation.

The Master Airbrush PRO-88-CUP-1000 is a premium quality 1000 ml matte black aluminum gravity feed cup designed for use with Master Pro 44 and 88 Series High-Performance HVLP Spray Guns, as well as several other popular spray gun brands.

2. Product Overview

The PRO-88-CUP-1000 is a durable, one-piece aluminum cup designed for various automotive, industrial, and woodworking coatings. It features a drip-free plastic push-on lid and a female threaded gun connection.

Figure 1: Components of the PRO-88-CUP-1000. This image shows the snap-fitting matte-black plastic lid, the smooth matte finish 1-liter fluid cup, and the chrome-coated hex-nut fitting at the bottom.

Figure 2: Detailed view of the cup's features. This image highlights the drip-free lid construction style and the snap-fitting matte-black plastic lid, emphasizing its compatibility with Master Elite 88 Series High Performance HVLP Spray Guns.

3. Setup and Installation

1. Inspect the Cup: Before first use, inspect the cup and lid for any damage or manufacturing defects. Ensure the lid's sealing mechanism is intact.
2. Clean the Cup: Wash the cup thoroughly with an appropriate cleaning solution for your coating material to remove any manufacturing residues. Rinse well and dry.
3. Attach to Spray Gun:
   • Ensure your spray gun is compatible with a female threaded gravity feed cup connection.
   • Carefully thread the cup onto the spray gun's fluid inlet. Hand-tighten until secure. Do not overtighten, as this may damage the threads.
   • Verify that the cup is firmly attached and does not wobble.

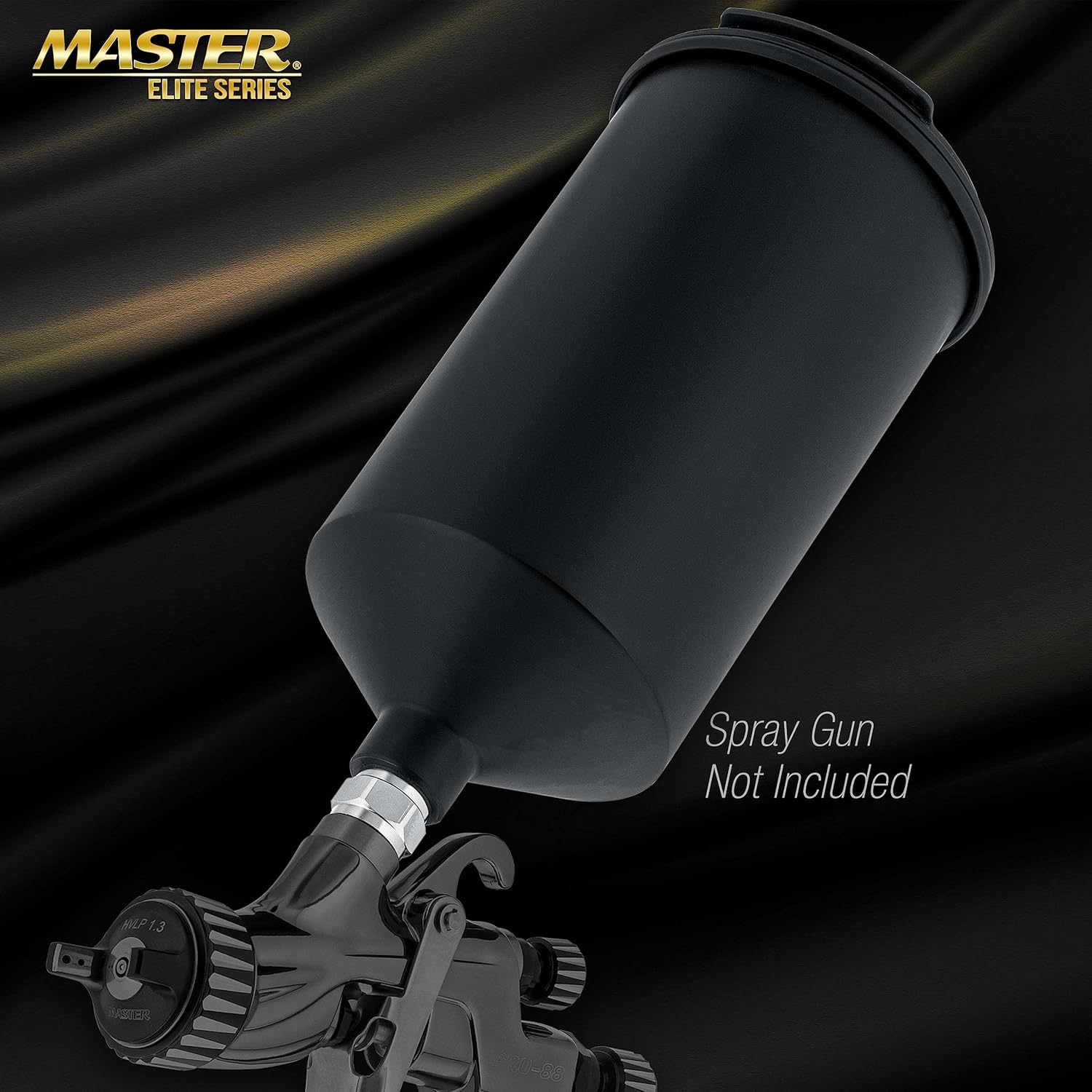

Figure 3: The PRO-88-CUP-1000 cup securely attached to a compatible spray gun. Note that the spray gun is not included with the cup.

4. Operating Instructions

1. Prepare Coating Material: Mix your paint or coating material according to the manufacturer's instructions. Strain the material to remove any impurities that could clog the spray gun.
2. Fill the Cup:
   • Remove the plastic push-on lid from the cup.
   • Pour the prepared coating material into the cup. Do not overfill; leave some space for air displacement.
   • Securely replace the push-on lid. Ensure it is seated properly to prevent drips and spills.
3. Adjust Spray Gun: Refer to your spray gun's manual for proper air pressure and fluid control settings for your specific coating material.
4. Begin Spraying: Hold the spray gun and cup assembly in a comfortable position. The gravity feed design ensures consistent material flow.
5. Monitor Fluid Level: Periodically check the fluid level in the cup during operation to avoid running out of material mid-spray.

5. Maintenance and Cleaning

Proper cleaning and maintenance are crucial for the longevity and performance of your spray gun cup.

1. Empty Remaining Material: After each use, empty any remaining coating material from the cup. Dispose of materials according to local regulations.
2. Initial Rinse: Fill the cup with an appropriate cleaning solvent (e.g., paint thinner, water, or specialized cleaner depending on your coating). Swirl the solvent around and spray a small amount through the gun to flush the fluid passages.
3. Disassemble and Clean:
   • Remove the cup from the spray gun.
   • Remove the lid.
   • Thoroughly clean the inside and outside of the cup and the lid with cleaning solvent and a brush. Pay attention to the threads and sealing surfaces.
   • Ensure all paint residue is removed.
4. Rinse and Dry: Rinse all components with clean water (if applicable for your solvent) and allow them to air dry completely before reassembly or storage.
5. Storage: Store the clean, dry cup in a safe place, away from dust and contaminants.

6. Troubleshooting

• Cup Leaks at Gun Connection:
  • Ensure the cup is threaded correctly and tightened securely to the spray gun.
  • Check for damage to the cup's threads or the spray gun's fluid inlet threads.
  • Verify if an O-ring or gasket is missing or damaged at the connection point (if applicable for your spray gun model).
• Lid Does Not Seal Properly / Drips:
  • Ensure the lid is fully seated and pushed down firmly onto the cup.
  • Inspect the lid and the rim of the cup for any damage, debris, or dried paint that might prevent a proper seal. Clean thoroughly.
• Paint Flow Issues (Clogging):
  • While not directly a cup issue, ensure paint is properly strained before filling the cup to prevent clogs in the gun.
  • Ensure the cup's internal passages (if any) are clean and free of dried paint.

7. Specifications

8. Warranty and Support

For specific warranty information and customer support, please refer to the official Master Airbrush website or contact your retailer. Keep your purchase receipt as proof of purchase.

For technical assistance or inquiries regarding product compatibility, please contact Master Airbrush customer service.
