GANPE LED Bathroom Mirror User Manual
Model: GANPE-HC2016-3240HWI
Brand: GP GANPE
Introduction
Welcome to the user manual for your new GANPE LED Bathroom Mirror. This smart mirror features hand wave induction for light control, integrated Bluetooth speakers, adjustable color temperature, dimmable lighting, and an anti-fog function. It is designed for both vertical and horizontal wall mounting, enhancing your bathroom experience with modern technology.
Image: GANPE LED Bathroom Mirror in a bathroom setting.
Important Safety Information
Read all instructions before installation and use to ensure safe operation and prevent damage.
- Ensure power is disconnected at the circuit breaker before performing any installation, maintenance, or cleaning.
- This product is IP44 waterproof rated, making it suitable for bathroom environments. However, avoid direct water spray on electrical components.
- The mirror features explosion-proof technology to prevent glass shattering upon impact, enhancing safety.
- For cleaning, use a soft, dry towel. Maintain good bathroom ventilation to prevent moisture buildup.
- Do not connect the mirror to an external dimmer switch line if you intend to use the mirror's built-in dimming function, as this may cause operational issues.
- If the product arrives damaged, contact the seller immediately for exchange or refund.
Package Contents
Please verify that all the following components are present in your package:
- 1 x GANPE LED Bathroom Mirror
- 1 x Installation Board (Template)
- 1 x Set of Wall Hardware and Screws
- 1 x User Manual (this document)
Installation Guide
The GANPE LED Bathroom Mirror offers flexibility and can be mounted either vertically or horizontally to best suit your bathroom layout.

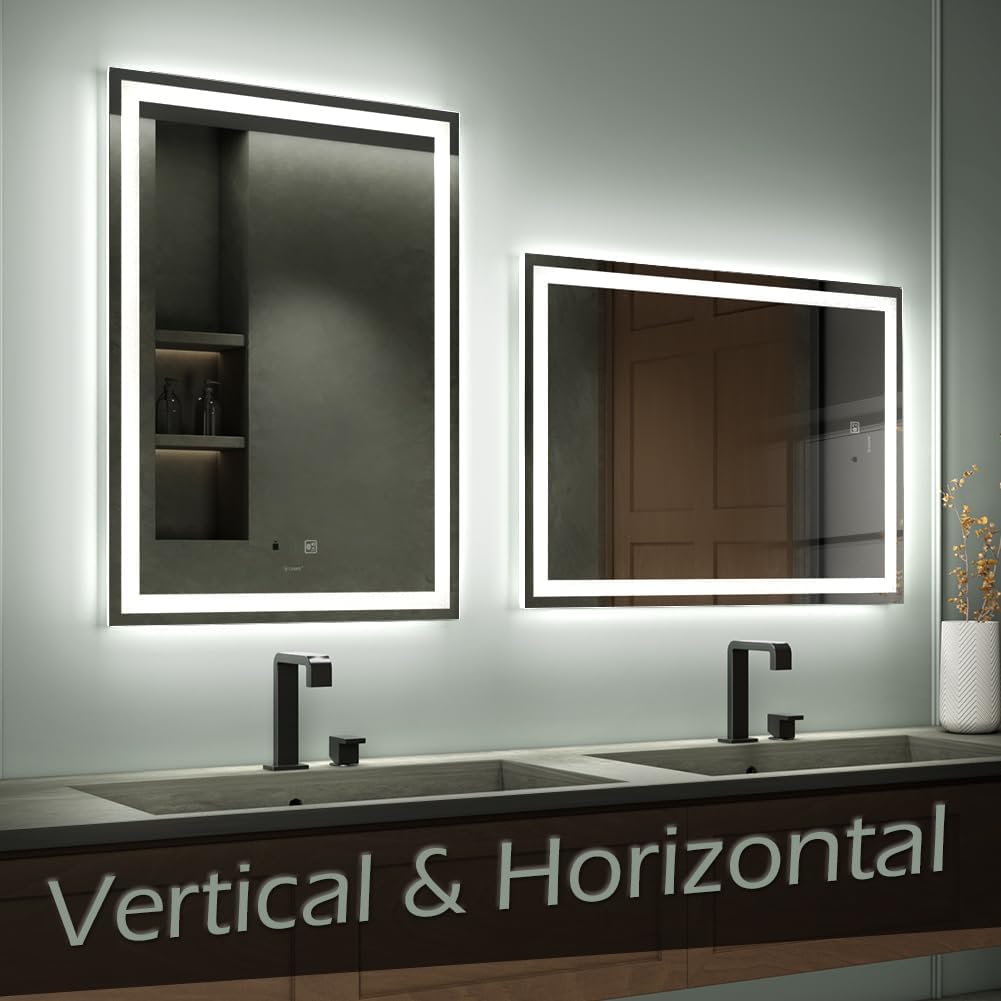

Image: Vertical and Horizontal mounting options.
Mounting Steps:
- Preparation: Choose your desired mounting orientation (vertical or horizontal). Ensure the wall is structurally sound and capable of supporting the mirror's weight (approximately 28 pounds).
- Marking: Use the provided installation board as a template. Place it on the wall in your desired position and orientation, then mark the drilling points accurately.
- Drilling: Drill holes at the marked points. Insert appropriate wall anchors if necessary, especially for drywall installations, to ensure a secure mount.
- Wiring:
- For Direct Wire Connection: Crucially, ensure power is OFF at the circuit breaker before proceeding. Connect the mirror's electrical wires to your bathroom's wiring according to local electrical codes. Use the provided wire nuts for secure connections.
- For Plug-in Installation: If your mirror comes with a plug, simply plug it into a suitable electrical outlet. Ensure the outlet is positioned so the mirror can sit flush against the wall without obstruction.
- Mounting: Carefully lift the mirror and align the mounting holes on the back of the mirror with the installed wall hardware. Secure the mirror firmly to the wall using the provided screws.
Image: Rear view of the mirror with wiring details.
Note: Professional installation by a qualified electrician is highly recommended for hardwired connections to ensure safety and compliance with electrical standards.
Operating Instructions
Hand Wave Induction Control:
The mirror features a newly upgraded patented hand wave sensor, allowing for touchless control of its lighting functions.
Image: Hand wave sensor controls for power, color, and dimming.
- Power On/Off: Wave your hand left or right in front of the sensor (located at the bottom of the mirror) to turn the lights on or off.
- Color Temperature Adjustment: Wave your hand up or down in front of the sensor to cycle through three distinct color temperature options: 6500K (Cool White), 4000K (Daylight), and 3000K (Warm Light). The mirror will automatically remember your last selected color temperature.
- Dimming: Move your hand back and forth (closer to and further from) the sensor to smoothly adjust the brightness level from 10% to 100%. The mirror retains the last brightness setting.
Image: Demonstration of hand wave control.
Bluetooth Functionality:
The mirror includes integrated Bluetooth speakers, allowing you to enjoy music or podcasts with 360-degree surround sound while in your bathroom.
Image: Bluetooth speaker feature in use.
- Activate Bluetooth: Locate the Bluetooth icon on the mirror's surface and tap it. The icon will illuminate, indicating that Bluetooth is active and ready for pairing.
- Pairing: On your smartphone or tablet, navigate to the Bluetooth settings. Search for available devices and select "GANPE Mirror" from the list.
- Connect: When prompted, enter the password "6688" to complete the pairing process.
- Play Music: Once successfully connected, you can play any audio from your device, and it will stream through the mirror's integrated speakers.
Video: This video demonstrates the hand wave sensor controls for power, color temperature, and dimming, as well as the Bluetooth pairing process for the GANPE LED Bathroom Mirror. It highlights the mirror's smart features and ease of use.
Anti-Fog Function:
The mirror is equipped with an anti-fog feature to ensure a clear reflection, even in steamy bathroom conditions after a shower.
Image: Anti-fog feature in action.
The anti-fog function activates automatically when the mirror is powered on. It works by gently heating a specific section of the mirror surface, preventing condensation and maintaining a clear viewing area.
Maintenance and Care
Proper care will ensure the longevity and optimal performance of your GANPE LED Bathroom Mirror.
- Cleaning: For general cleaning, use a soft, dry, lint-free cloth. For more stubborn spots, a mild glass cleaner can be applied directly to the cloth (never directly onto the mirror surface or frame). Ensure the bathroom is well-ventilated during cleaning.
- Avoid Abrasives: Do not use abrasive cleaners, harsh chemicals, ammonia-based products, or sharp objects on the mirror surface or frame, as these may cause permanent damage or scratches.
- Electrical Safety: Always ensure the mirror is disconnected from power before performing any deep cleaning or maintenance that involves touching electrical components.
Troubleshooting
If you encounter any issues with your mirror, please refer to the following table for common problems and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Lights not turning on | No power supply or loose connection | Check electrical connections and ensure the circuit breaker is not tripped. If hardwired, confirm the wall switch is in the ON position. |
| Hand wave sensor unresponsive | Obstruction or incorrect gesture | Ensure no objects are blocking the sensor area. Perform the wave gesture clearly and directly in front of the sensor. |
| Bluetooth not connecting | Incorrect pairing or device issues | Ensure Bluetooth is activated on the mirror (tap the icon). Verify the password "6688". Restart both your device and the mirror, then attempt to pair again. |
| Mirror fogs up | Anti-fog not active or insufficient | Ensure the anti-fog function is turned on. Allow a few minutes for the defogger to reach optimal temperature. |
| Lights flicker or dim unexpectedly | Incompatible dimmer switch or power fluctuation | Do not connect the mirror to an external dimmer switch. Ensure a stable power supply to the mirror. |
Specifications
Detailed technical specifications for your GANPE LED Bathroom Mirror.
| Feature | Detail |
|---|---|
| Brand | GP GANPE |
| Model | GANPE-HC2016-3240HWI |
| Dimensions | 32"L x 40"W |
| Material | 4MM Ultra-thin High-definition Copper-free Silver Mirror, Glass |
| Lighting | LED, Dimmable (10%-100%), 3 Color Temperatures (6500K, 4000K, 3000K) |
| Control | Hand Wave Induction Sensor |
| Audio | Integrated Bluetooth Speakers (Password: 6688) |
| Special Features | Anti-Fog, Memory Function (brightness & color temperature), Explosion-proof |
| Waterproof Rating | IP44 |
| Mounting Type | Wall Mount (Vertical & Horizontal) |
| Item Weight | 28 Pounds |
| UPC | 789622468534 |
Warranty and Support
Your GANPE LED Bathroom Mirror is backed by a comprehensive warranty and dedicated customer support.
Warranty: This product comes with a 1-year warranty for the entire unit and free replacement of parts for three years from the date of purchase.
Customer Support: For any questions, technical assistance, or warranty claims, please contact GANPE-US directly. Their team is available to help you with any product-related inquiries.
Note: Please refer to your original purchase documentation or the manufacturer's website for specific warranty terms, conditions, and the most up-to-date contact information.
