EVVO AI10 Cordless Vacuum Cleaner User Manual

1. Introduction

Thank you for choosing the EVVO AI10 Cordless Vacuum Cleaner. This manual provides essential information for the safe and efficient use, maintenance, and troubleshooting of your new appliance. The EVVO AI10 features an Inverter Motor, a 24V Lithium-ION battery offering up to 60 minutes of autonomy, and a powerful 220W + 30W suction system with cyclonic technology. It is designed for versatile cleaning across various surfaces.

2. Safety Instructions

• Read all instructions before using the appliance.
• Do not use the vacuum cleaner outdoors or on wet surfaces.
• Do not allow children to operate the vacuum cleaner. Close supervision is necessary when used near children.
• Do not pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Ensure the filter is correctly installed before use.
• Use only manufacturer-recommended attachments.
• Turn off the appliance before performing any maintenance or cleaning.
• Store the vacuum cleaner in a dry, indoor location.

3. Product Components

The EVVO AI10 Cordless Vacuum Cleaner comes with several components designed for efficient cleaning:

• Main Unit: Contains the motor, dustbin, and battery.
• Extension Tube: Connects the main unit to the floor brush or other attachments for extended reach.
• Motorized Floor Brush: Equipped with a powerful 30W motor for effective cleaning of carpets and hard floors.
• Crevice Tool: Ideal for narrow spaces and corners.
• Upholstery Brush: Suitable for cleaning furniture and delicate surfaces.
• Wall Mount: For convenient storage and charging.
• Charger: For recharging the 24V Lithium-ION battery.

Figure 3.1: Main components of the EVVO AI10 Cordless Vacuum Cleaner.

Figure 3.2: Included accessories for different cleaning tasks.

4. Setup

4.1 Assembly

1. Connect the Extension Tube: Insert the extension tube into the main unit until it clicks securely into place.
2. Attach the Floor Brush: Connect the motorized floor brush to the other end of the extension tube, ensuring it locks firmly.
3. Alternative Attachments: For handheld use, attach the crevice tool or upholstery brush directly to the main unit.

4.2 Initial Charging

Before first use, fully charge the battery. The 24V Lithium-ION battery provides up to 60 minutes of runtime on a full charge.

1. Connect the charger to the charging port on the main unit or the wall mount.
2. Plug the charger into a power outlet.
3. The charging indicator light will illuminate. Allow the battery to charge completely before disconnecting.

5. Operating Instructions

5.1 Power On/Off

Press the power button on the main unit to turn the vacuum cleaner on. Press it again to turn it off.

5.2 Speed and Mode Selection

The EVVO AI10 offers multiple cleaning modes:

• Minimum Speed: Suitable for light cleaning and extending battery life.
• Maximum Speed: Provides powerful suction for stubborn dirt and debris.
• Special Functions: Dedicated modes for carpets and hard floors can be selected with a single click using the central buttons. These functions optimize motor speed and brush rotation for the specific surface type.

5.3 Using Attachments

Select the appropriate attachment for your cleaning task:

• Motorized Floor Brush: Use for general floor cleaning on both carpets and hard surfaces. Its individual 30W power ensures effective dirt pickup.
• Crevice Tool: Attach directly to the main unit or extension tube to clean tight corners, edges, and narrow gaps.
• Upholstery Brush: Ideal for cleaning sofas, curtains, and other fabric surfaces.

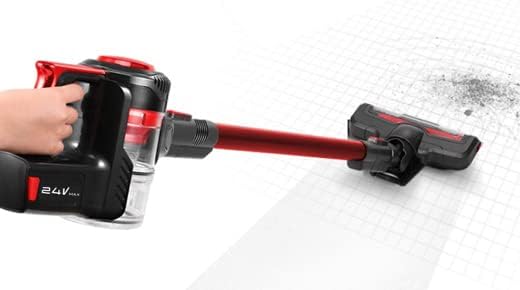

Figure 5.1: Vacuuming a hard floor with the motorized brush.

6. Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your EVVO AI10 vacuum cleaner.

6.1 Emptying the Dustbin

Empty the dustbin regularly, especially when it reaches the MAX fill line, to maintain strong suction power. The dustbin is designed for easy emptying.

1. Hold the main unit over a trash can.
2. Press the dustbin release button to open the bottom flap and release the collected debris.
3. Close the flap securely after emptying.

Figure 6.1: Emptying the dustbin.

6.2 Cleaning the Filters

The EVVO AI10 features a HEPA filter system. Regular cleaning of the filters is crucial for maintaining suction and air quality.

1. Twist and pull to remove the dustbin from the main unit.
2. Separate the filter components (pre-filter, mesh filter, and HEPA filter).
3. Tap off any loose dust from the filters.
4. Rinse the filters under cold running water until the water runs clear. Do not use detergents.
5. Allow all filter components to air dry completely for at least 24 hours before reassembling and reinserting into the vacuum cleaner. Ensure they are completely dry to prevent damage to the motor.

Figure 6.2: Exploded view of the filter system.

Figure 6.3: Washing the filter components.

6.3 Cleaning the Motorized Brush

Periodically check the motorized brush for tangled hair or debris. Use scissors to cut away any tangled hair and remove it. Ensure the brush roll spins freely.

7. Troubleshooting

If you encounter issues with your EVVO AI10, refer to the following common problems and solutions:

8. Specifications

Technical specifications for the EVVO AI10 Cordless Vacuum Cleaner:
