SoBuy FSB19-XL-N Console Table Instruction Manual

1. Introduction

This manual provides comprehensive instructions for the assembly, operation, and maintenance of your SoBuy FSB19-XL-N Console Table. The SoBuy FSB19-XL-N is a versatile and modern console table designed to enhance various spaces in your home, such as hallways, entryways, living rooms, or bedrooms. It features an MDF wood tabletop and a sturdy metal frame with four legs.

2. Safety Information

• Read all instructions carefully before beginning assembly and use.
• Ensure all parts are present and undamaged before assembly. Do not proceed with assembly if any parts are missing or damaged.
• Assemble the product on a soft, clean surface (e.g., carpet or cardboard) to prevent scratches or damage.
• Keep small parts and packaging materials away from children and pets to prevent choking hazards.
• Do not exceed the maximum load capacity of 50 kg (110 lbs) for the tabletop. Overloading can cause instability and damage.
• Place the table on a level and stable surface to prevent tipping.
• Periodically check all screws and connections to ensure they remain tight and secure.

3. Package Contents

Before assembly, verify that all components listed below are included in your package:

• MDF Wood Tabletop
• Metal Frame Components
• 4 Metal Legs
• Assembly Hardware (screws, bolts, washers, etc.)
• Installation Tool (screwdriver)
• Assembly Guide

4. Setup and Assembly

Assembly is required for this console table. It is recommended that two people perform the assembly for ease and safety.

Required Tools:

• Screwdriver (included)

Assembly Steps:

1. Unpack all components and lay them out on a clean, soft surface.
2. Refer to the illustrated assembly guide provided in the package. Each part is numbered for easy identification.
3. Attach the metal frame components together using the provided hardware. Ensure all connections are aligned correctly.
4. Securely attach the four metal legs to the assembled frame. Do not overtighten screws initially; tighten them fully once all parts are in place.
5. Mount the MDF wood tabletop onto the metal frame, securing it with the appropriate hardware.
6. Attach the small protective pads or adjustable feet to the bottom of each leg. These pads help protect your floor from scratches and allow for minor leveling adjustments.
7. Once fully assembled, gently lift and place the table in its desired location.

Figure 1: Product Dimensions Diagram. The table measures 120cm in length, 20cm in depth, and 80cm in height.

Figure 2: Detail of the metal leg structure, showing the sturdy frame design.

Figure 3: Close-up of an adjustable foot, designed to protect floors and provide stability.

5. Operation and Usage

The SoBuy FSB19-XL-N Console Table is designed for various indoor applications:

• Entryway Table: Ideal for holding keys, mail, and decorative items near your entrance.
• Sofa Table: Place behind a sofa to hold lamps, drinks, or books.
• Side Table/Accent Table: Use in living rooms or bedrooms for displaying decor, plants, or as a functional surface.
• Space-Saving Desk: Can function as a narrow desk in small spaces.

Ensure that the total weight placed on the tabletop does not exceed the maximum load capacity of 50 kg (110 lbs).

Figure 4: Console table used as a sofa table in a living room setting.

Figure 5: Console table serving as an entryway display surface.

6. Maintenance and Care

Proper care will ensure the longevity and appearance of your console table:

• Cleaning: Wipe the surfaces with a soft, damp cloth. Avoid using abrasive cleaners, harsh chemicals, or solvents, as these can damage the finish.
• Spills: Clean up spills immediately to prevent staining, especially on the MDF wood tabletop.
• Protection: Use coasters under drinks and protective pads under decorative items to prevent marks and scratches.
• Stability Check: Periodically check all assembly hardware (screws, bolts) and tighten them if necessary to maintain stability.
• Floor Protection: Ensure the protective pads on the bottom of the legs are intact and properly positioned to prevent scratching your floors.

Figure 6: Detail of the MDF wood tabletop texture.

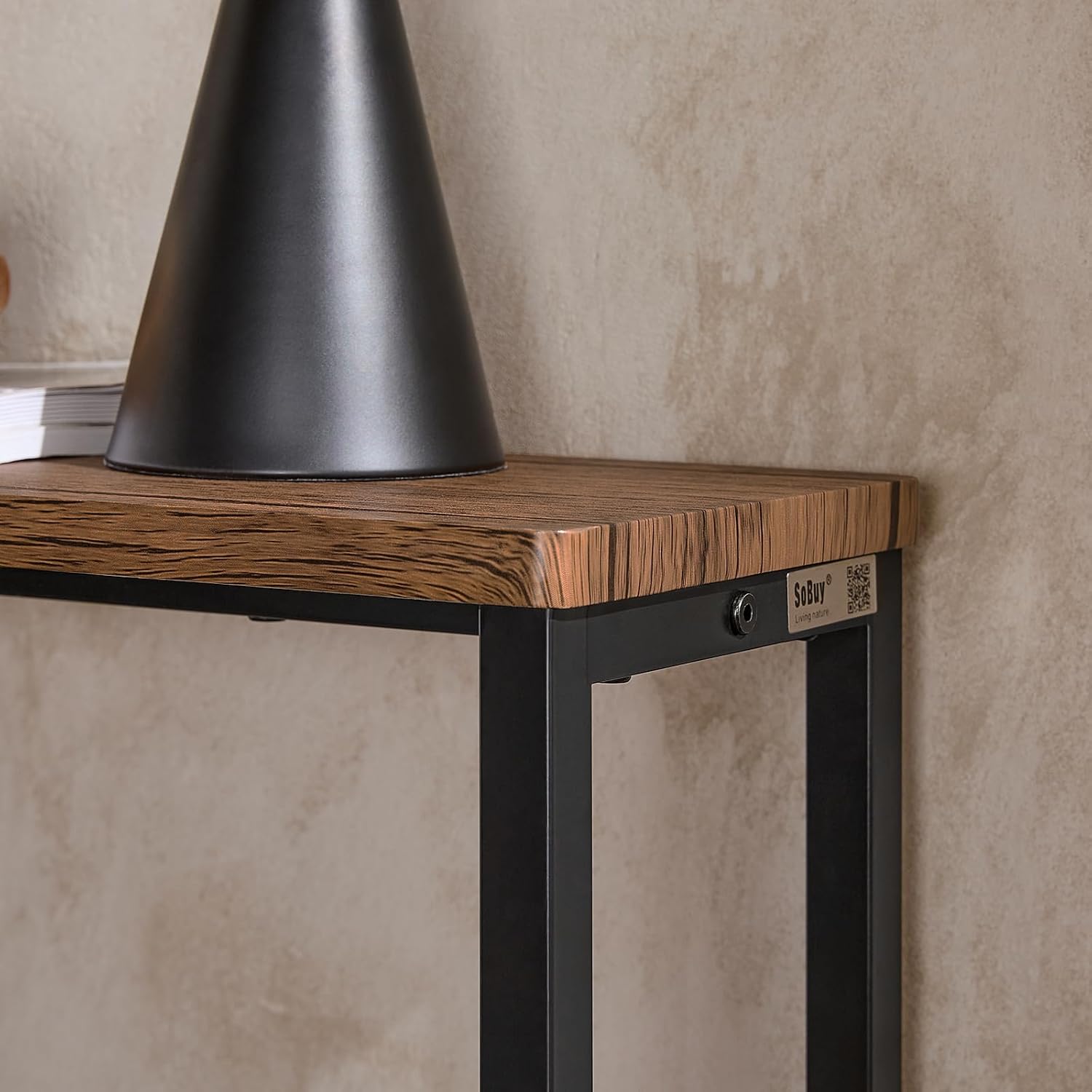

Figure 7: View of the tabletop edge and the integrated SoBuy branding.

7. Troubleshooting

Problem: The table is wobbly or unstable.

Solution: Check all screws and bolts to ensure they are fully tightened. Adjust the leveling feet on the bottom of each leg to compensate for uneven floor surfaces.

Problem: Parts are missing from the package.

Solution: Refer to the 'Package Contents' section and the assembly guide to confirm. Contact SoBuy customer support for assistance with missing parts.

Problem: The floor is getting scratched.

Solution: Ensure that the protective pads or adjustable feet are correctly installed on the bottom of all four legs. Replace any worn or missing pads.

8. Specifications

9. Warranty and Support

SoBuy is committed to providing quality products and customer satisfaction.

• Returns: If you are not satisfied with your product or encounter any issues, please contact SoBuy customer service for a free return label and assistance.
• Assembly Assistance: All SoBuy furniture includes numbered parts and illustrated instructions for straightforward assembly. If you require further assistance during assembly, please reach out to our support team.

For any further questions, concerns, or support needs, please visit the official SoBuy store or contact our customer service department.
