Tiara Innoflame Electric Fireplace

1. Introduction

Thank you for purchasing the Tiara Innoflame Electric Fireplace. This appliance is designed to provide supplemental heat and a realistic flame effect, enhancing the ambiance of your living space. Please read this manual thoroughly before installation, operation, or maintenance to ensure safe and efficient use of your fireplace. Keep this manual for future reference.

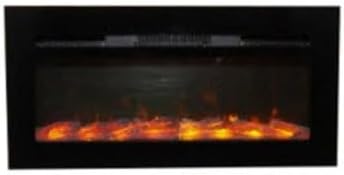

Figure 1: Front view of the Tiara Innoflame Electric Fireplace. This image shows the sleek black frame, the realistic log bed, and the vibrant flame effects.

2. Important Safety Information

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

• Read all instructions before using this heater.
• This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces.
• Extreme caution is necessary when any heater is used by or near children or invalids and whenever the heater is left operating unattended.
• Do not operate any heater with a damaged cord or plug or after the heater malfunctions, has been dropped or damaged in any manner.
• Do not use outdoors.
• Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Arrange cord away from traffic area and where it will not be tripped over.
• To disconnect heater, turn controls to off, then remove plug from outlet.
• Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater.
• To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use on soft surfaces, like a bed, where openings may become blocked.
• This heater has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint, or flammable vapors or liquids are used or stored.
• Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons.
• Always plug heaters directly into a wall outlet/receptacle. Never use with an extension cord or relocatable power tap (outlet/power strip).

3. Package Contents

Carefully remove all components from the packaging and check against the list below. Ensure all items are present and undamaged before proceeding with installation.

• Tiara Innoflame Electric Fireplace Unit (Model: RV36D80F-MT1)
• Infra-red Remote Control
• Log Ember Bed (pre-installed)
• Instruction Manual

4. Installation Guide

This electric fireplace is designed for recessed installation in a wall or cabinet, or can be used freestanding. Ensure the chosen location is dry, level, and has access to a standard 120V, 60Hz electrical outlet.

4.1 Site Preparation

• Ensure the area is clear of obstructions and flammable materials.
• For recessed installation, create an opening that accommodates the fireplace dimensions. Refer to the diagram below for precise measurements.
• Ensure the power cord can reach a grounded outlet without being stretched or pinched.

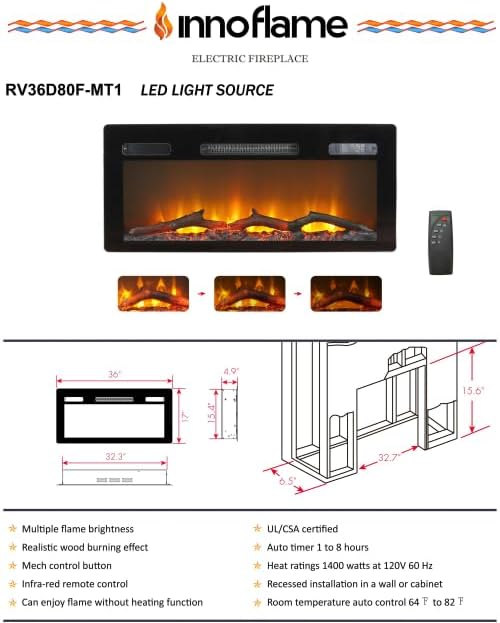

Figure 2: Dimensional diagram and key features. This diagram illustrates the precise measurements for recessed installation (32.7" W x 15.6" H x 6.5" D) and highlights features like multiple flame brightness, realistic wood burning effect, mechanical control buttons, infra-red remote control, and the ability to operate flames without heat.

4.2 Recessed Installation

1. Prepare the wall or cabinet opening according to the dimensions provided in Figure 2. The recommended opening size is approximately 32.7 inches wide by 15.6 inches high by 6.5 inches deep.
2. Carefully slide the fireplace unit into the prepared opening.
3. Secure the fireplace unit using appropriate mounting hardware (not included, as specific hardware depends on wall/cabinet material) through the designated mounting holes on the unit's frame.
4. Plug the power cord into a standard 120V, 60Hz grounded electrical outlet.

4.3 Freestanding Installation

1. Place the fireplace unit on a firm, level surface.
2. Ensure there is adequate clearance around the unit for proper ventilation (at least 3 feet from combustible materials).
3. Plug the power cord into a standard 120V, 60Hz grounded electrical outlet.

Figure 3: Top view of the fireplace unit. This image provides a view of the top ventilation grille and the integrated control panel, which includes buttons for power, flame, heat, and timer functions.

5. Operating Instructions

Your electric fireplace can be operated using the control panel located on the unit (refer to Figure 3) or the included infra-red remote control.

5.1 Control Panel Operation

The control panel features several buttons for direct control:

• Power Button: Turns the fireplace ON/OFF.
• Flame Button: Cycles through multiple flame brightness settings.
• Heat Button: Activates the heating function. Press to cycle through heat settings (e.g., Low, High, Off). The unit provides 5118 BTU heat output, rated at 1400 watts at 120V 60Hz.
• Timer Button: Sets the auto-off timer from 1 to 8 hours.
• Temperature Control: The unit features automatic room temperature control, maintaining a temperature between 64°F and 82°F.

5.2 Remote Control Operation

The infra-red remote control duplicates the functions of the control panel, allowing convenient operation from a distance. Ensure the remote has working batteries and is pointed towards the fireplace unit.

• Power: Turns the unit ON/OFF.
• Flame: Adjusts flame brightness.
• Heat: Controls heat settings.
• Timer: Sets the auto-off timer.

Note: The flame effect can be enjoyed independently without activating the heating function.

6. Maintenance and Care

Regular maintenance will ensure the longevity and optimal performance of your electric fireplace.

• Cleaning: Always unplug the fireplace before cleaning. Use a soft, damp cloth to wipe down the exterior surfaces. Do not use abrasive cleaners or sprays.
• Ventilation: Ensure the air intake and exhaust vents are kept clear of dust and debris. Periodically vacuum these areas.
• Light Bulbs: The flame effect uses LED light sources, which are designed for long life and typically do not require replacement.
• Storage: If storing the fireplace for an extended period, unplug it and store it in a dry, dust-free location.

7. Troubleshooting

If you experience issues with your fireplace, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact customer support.

8. Product Specifications

9. Warranty and Customer Support

Tiara products are manufactured to high-quality standards. For warranty information or technical support, please refer to the contact details provided with your purchase documentation or visit the manufacturer's official website. Please have your model number (RV36D80F-MT1) and purchase date ready when contacting support.
