Introduction
Thank you for choosing the Casaria Lorca 3x3m Gazebo. This instruction manual provides essential information for the safe and correct assembly, operation, and maintenance of your new gazebo. Please read this manual thoroughly before assembly and retain it for future reference.
Safety Information
Warning:
- Before use, carefully assemble the gazebo and anchor it to the ground with the provided pegs and guy ropes.
- Note the metal eyelets in the roof and handle them with care to avoid injury.
- Do not use the gazebo in strong winds, heavy rain, or snow. Disassemble and store it in adverse weather conditions to prevent damage.
- Keep children and pets away from the assembly area.
- Ensure all connections are secure before use.
Package Contents
Verify that all components listed below are present in your package. If any parts are missing or damaged, please contact customer support.
- 1x Lorca Gazebo frame (metal structure)
- 1x Roof cover (100% polyester, 100% polyurethane, UV 50+ protection)
- Side panels (integrated, with zippers)
- 20x Pegs
- Guy ropes

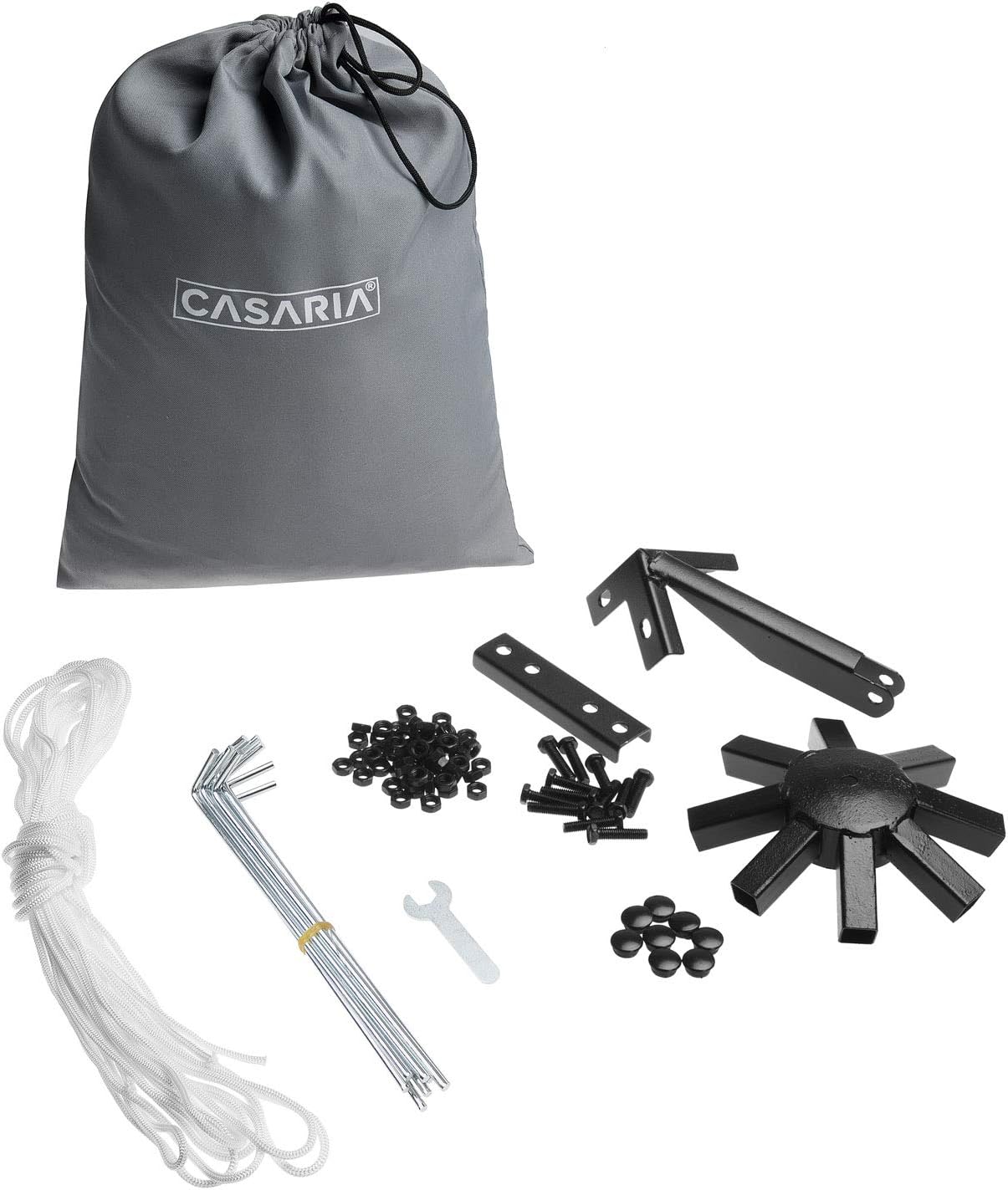

- Accessory bag (containing small parts, plastic caps for eyelets, tools)
- Assembly material
Setup Instructions
Follow these steps for proper assembly of your Casaria Lorca Gazebo. It is recommended to have at least two people for assembly.
- Unpack Components: Carefully remove all parts from the packaging and lay them out on a clean, flat surface. Check against the package contents list.
- Assemble the Frame: Connect the metal poles using the interlocking system. Ensure all connections are secure. Refer to the diagram for correct orientation of the frame sections.
- Attach the Roof Cover: Place the polyester roof cover over the assembled frame. Secure the roof cover to the poles using the integrated velcro fasteners. Ensure the roof is taut and evenly distributed.
- Secure Side Panels: The side panels are integrated. Use the zippers to open or close them as desired.
- Install Eyelets and Caps: The roof features metal eyelets to prevent water pooling. Use the provided plastic caps to close these eyelets when not needed.
- Anchor the Gazebo: Use the 20 pegs and guy ropes to securely anchor the gazebo to the ground. This is crucial for stability, especially in windy conditions.
Operating Instructions
The Casaria Lorca Gazebo is designed for temporary outdoor use, providing shade and shelter for various events.
- Shade and UV Protection: The roof cover offers UV 50+ protection, providing a comfortable shaded area.

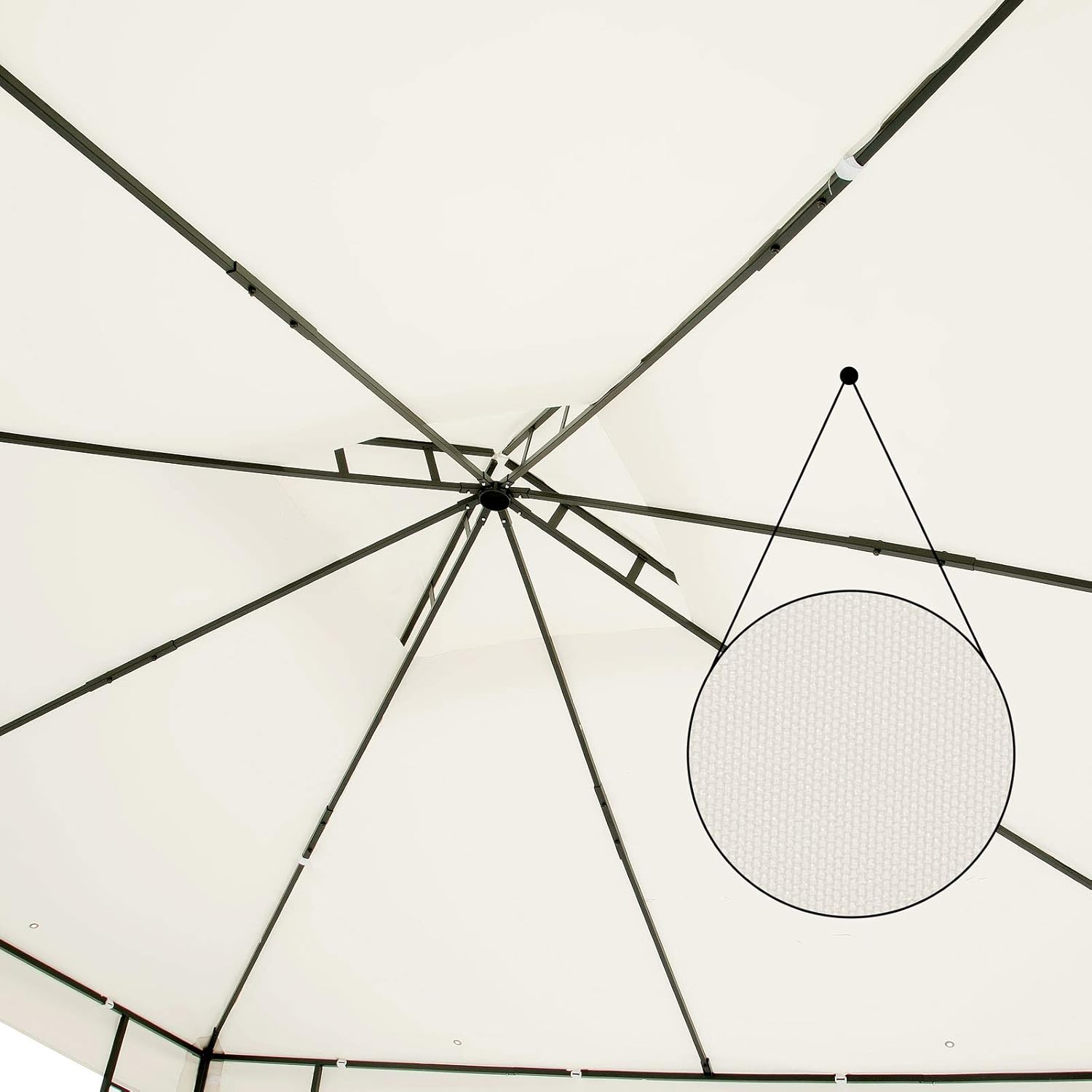

- Air Circulation: The integrated double roof design ensures pleasant air circulation, preventing heat buildup.
- Side Panels: The side panels can be opened or closed using the zippers to adjust privacy, shade, and protection from light wind.
- Water Repellency: The roof material is water-repellent. In case of rain, ensure the eyelets are open to allow water to drain, or use the plastic caps to close them if light rain is expected and you wish to keep the interior dry.
- Weather Conditions: This gazebo is not designed for extreme weather. Disassemble and store the gazebo during strong winds, heavy rain, or snow to prevent damage and ensure safety.
Maintenance
Proper maintenance will extend the lifespan of your gazebo.
- Cleaning: Clean the fabric parts with a mild soap solution and a soft brush or cloth. Rinse thoroughly with clean water and allow to air dry completely before storage. Do not use harsh chemicals or abrasive cleaners.
- Frame Care: Wipe the metal frame with a damp cloth. If rust appears, clean it and apply a rust-inhibiting paint.
- Storage: When not in use for extended periods or during adverse weather, disassemble the gazebo. Clean all parts and ensure they are completely dry before storing them in a cool, dry place, away from direct sunlight.
- Inspection: Regularly inspect all components for wear and tear, especially connections, fabric integrity, and anchoring points. Replace any damaged parts immediately.
Troubleshooting
Here are solutions to common issues you might encounter:
| Problem | Possible Cause | Solution |
|---|---|---|
| Gazebo is unstable. | Not properly anchored; loose frame connections. | Ensure all pegs and guy ropes are securely fastened. Check and tighten all frame connections. |
| Water pooling on the roof. | Eyelets are closed; roof not taut enough. | Open the metal eyelets to allow water drainage. Re-tension the roof cover using velcro fasteners. |
| Difficulty assembling frame poles. | Incorrect orientation; burrs on metal. | Refer to the assembly diagram for correct orientation. Gently file any burrs if present. Ensure parts are aligned before pushing. |
| Side panels not closing smoothly. | Zippers are misaligned or dirty. | Check for any fabric caught in the zipper. Clean zippers if necessary. Ensure the gazebo frame is square. |
Specifications
- Model: Casaria Lorca

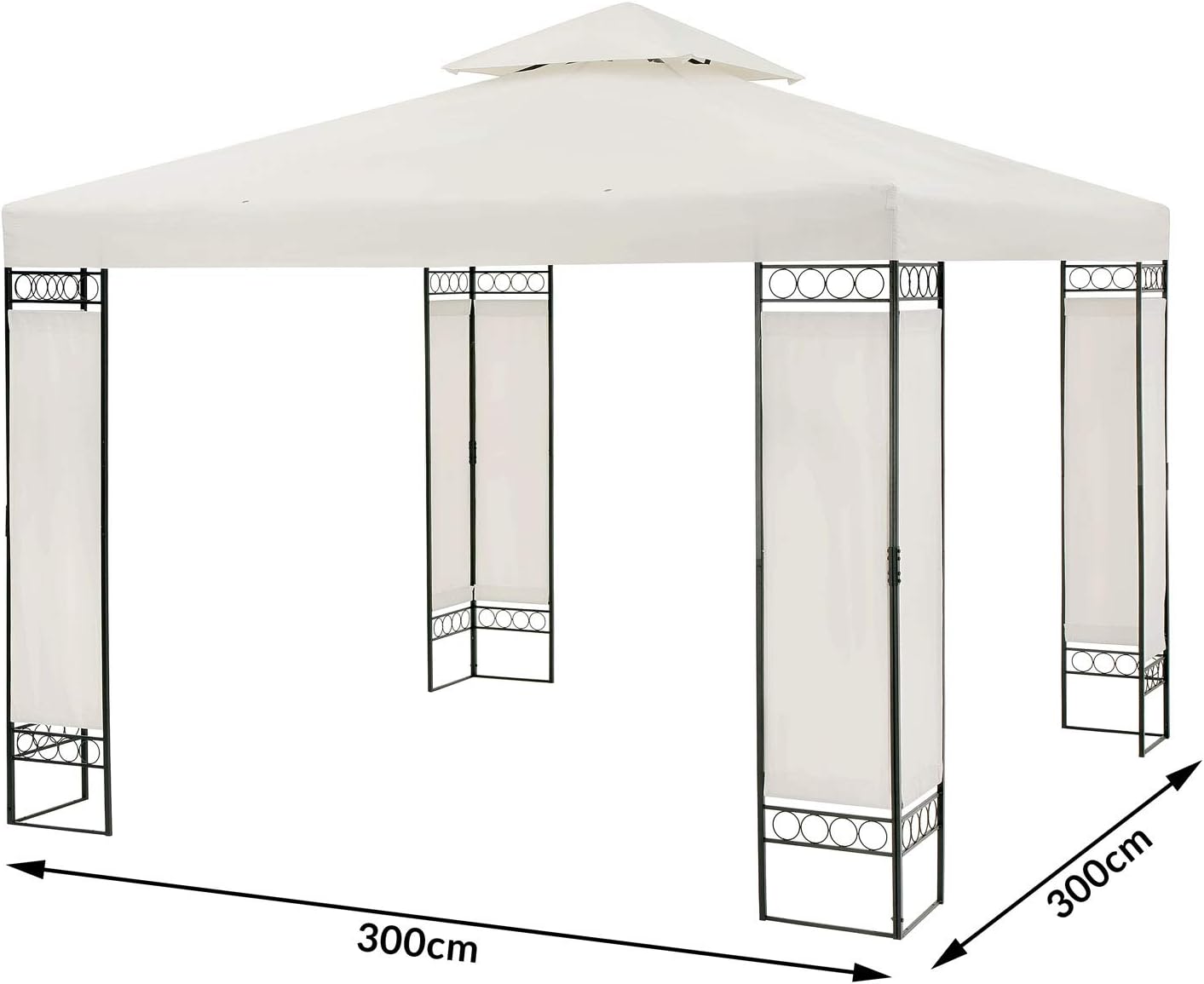

- Dimensions: 3L x 3W x 2.6H meters (9.84 ft x 9.84 ft x 8.53 ft)
- Frame Material: Metal
- Roof Material: 100% Polyester, 100% Polyurethane coating
- UV Protection: UV 50+
- Water Resistance: Water-repellent
- Weight: 28.4 kg (28400 Grams)
- Assembly Required: Yes
- Color: Crema (Cream) - Note: Other colors may be available for different variants.
- Manufacturer: Casaria
- Country of Origin: China
Warranty Information
Casaria products are manufactured to high-quality standards. For specific warranty details, please refer to the warranty card included with your purchase or contact Casaria customer support directly. Generally, products are covered against manufacturing defects for a period specified by local consumer protection laws.
Note: Damage caused by improper assembly, misuse, neglect, or extreme weather conditions is typically not covered under warranty.
Support
If you have any questions, require assistance with assembly, or need to report a missing/damaged part, please contact Casaria customer support.
- Online Support: Visit the official Casaria store on Amazon for more information and contact options: Casaria Store
- Manufacturer Contact: Refer to the packaging or included documentation for direct manufacturer contact details.
