EverStart MAXX 12-Volt DC Digital Air Compressor User Manual

1. Introduction

The EverStart MAXX 12-Volt DC Digital Air Compressor is a portable and efficient tool designed for inflating vehicle tires, bicycle tires, and various sports equipment. Featuring a digital display, auto-stop functionality, and an integrated LED work light, this compressor provides convenient and precise inflation. Its compact design and 12V DC power source make it ideal for on-the-go use, connecting directly to your vehicle's accessory outlet.

2. Safety Information

• Always operate the compressor in a well-ventilated area.
• Do not leave the compressor unattended while in use.
• Keep out of reach of children.
• Ensure the compressor is cool before storing.
• Do not exceed the maximum pressure rating of the item being inflated. Refer to the item's manufacturer specifications.
• Avoid direct contact with the nozzle and hose during and immediately after operation, as they may become hot.
• Use only with a 12-volt DC power source (vehicle accessory outlet).

3. Package Contents

Verify that all items are present in the package:

• EverStart MAXX 12-Volt DC Digital Air Compressor
• Brass-tipped Sure Fit nozzle
• Extended 12V DC power cable
• Accessory inflation adapters (e.g., needle for sports balls, plastic nozzle for inflatables)

4. Product Overview

Familiarize yourself with the components of your EverStart MAXX Air Compressor:

Figure 4.1: Front view of the EverStart MAXX Digital Air Compressor, showing the main body, air hose, and LED light.

Figure 4.2: Side view of the compressor, highlighting the digital display, control buttons, and the 12V DC power plug.

• Digital Display: Shows current pressure and target pressure.
• Control Buttons: Used to set desired pressure and change units.
• Inflation Trigger: Activates the compressor.
• Air Hose with Sure Fit Nozzle: Connects to the item being inflated.
• 12V DC Power Cable: Connects to your vehicle's accessory outlet.
• LED Work Light: Illuminates the work area.

5. Setup

1. Connect to Power: Insert the 12V DC power plug firmly into your vehicle's accessory outlet. Ensure your vehicle's engine is running to provide stable power.
2. Prepare Nozzle: Ensure the brass-tipped Sure Fit nozzle is securely attached to the air hose. If inflating items other than standard tire valves, select the appropriate accessory adapter and attach it to the Sure Fit nozzle.

6. Operating Instructions

6.1 Inflating Vehicle Tires

1. Check Tire Pressure: Refer to your vehicle's owner's manual or the sticker on the driver's side door jamb for the recommended tire pressure (PSI).
2. Attach Nozzle: Screw the Sure Fit nozzle onto the tire valve stem until it is finger-tight. The digital display will show the current tire pressure.
3. Set Desired Pressure: Use the '+' and '-' buttons on the compressor to set your desired target pressure.
4. Start Inflation: Squeeze the inflation trigger to begin inflating. The compressor will automatically stop once the set pressure is reached.
5. Disconnect: Unscrew the nozzle from the valve stem. A small amount of air may escape, which is normal. Replace the valve cap.

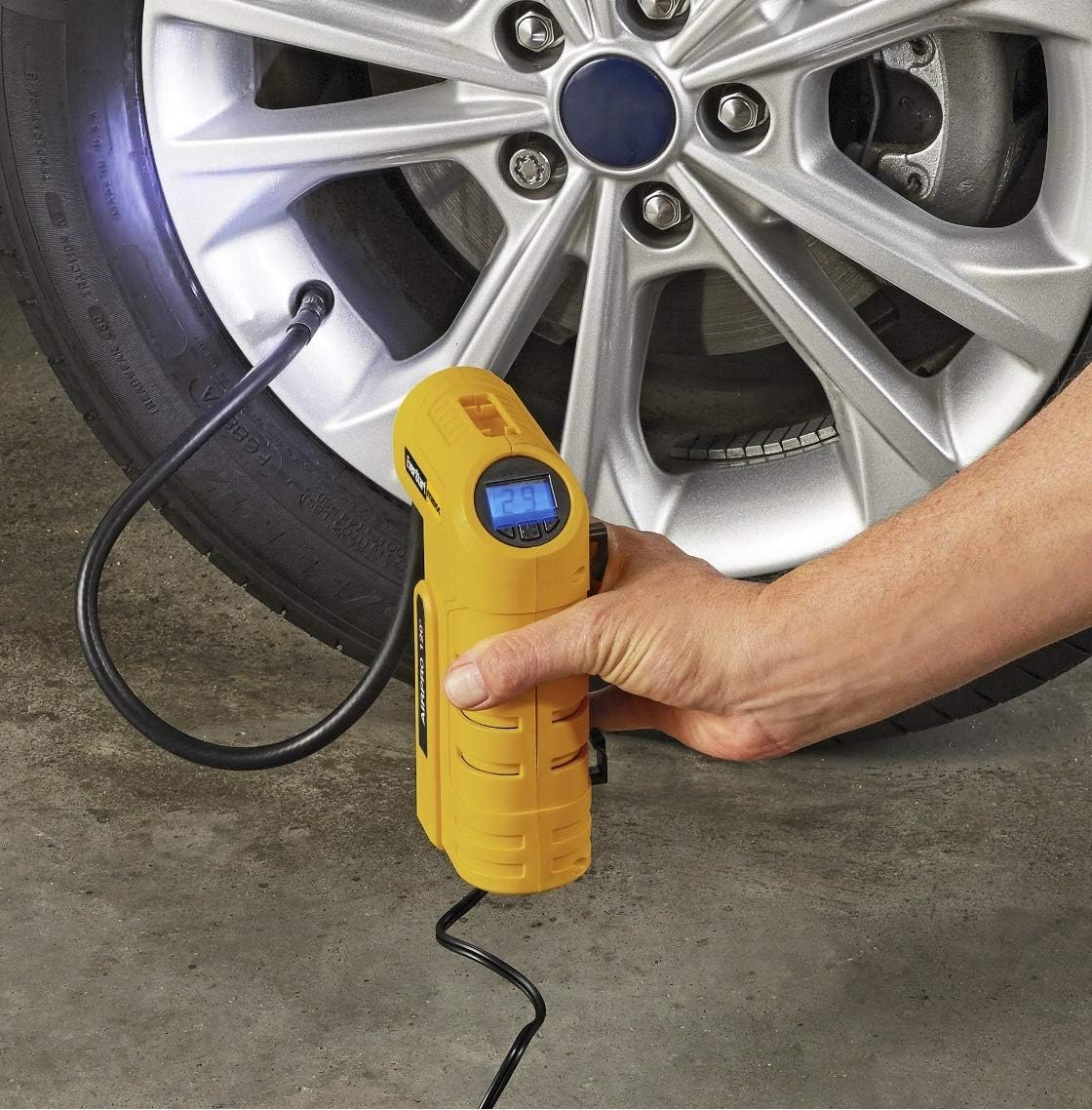

Figure 6.1: The EverStart MAXX compressor in use, connected to a car tire valve stem for inflation.

6.2 Inflating Sports Equipment and Bicycle Tires

1. Attach Adapter: Select the appropriate inflation adapter (e.g., needle for sports balls, small nozzle for inflatables) and securely attach it to the Sure Fit nozzle.
2. Connect to Item: Insert the adapter into the valve of the item to be inflated.
3. Set Desired Pressure: Use the '+' and '-' buttons to set the target pressure. Refer to the item's manufacturer for recommended pressure.
4. Start Inflation: Squeeze the inflation trigger. The compressor will stop automatically when the set pressure is reached.
5. Disconnect: Remove the adapter from the item.

Figure 6.2: Inflating a basketball using the EverStart MAXX compressor with the appropriate needle adapter.

Figure 6.3: The compressor connected to a bicycle tire, demonstrating its versatility for various inflation needs.

6.3 Using the Auto-Stop Functionality

The auto-stop feature ensures precise inflation. Once you set the desired pressure on the digital display, the compressor will automatically shut off when that pressure is achieved, preventing over-inflation.

Figure 6.4: A close-up view of the backlit digital display, showing the current or target pressure reading.

6.4 Using the LED Work Light

The integrated LED work light provides illumination for your work area, which is particularly useful when operating in low-light conditions or at night. The light can be activated independently of the compressor's inflation function.

Figure 6.5: A detailed view of the bright LED work light located at the front of the compressor, providing illumination.

7. Maintenance and Storage

• Cleaning: Wipe the compressor exterior with a damp cloth. Do not use harsh chemicals or abrasive cleaners.
• Storage: Store the compressor in a cool, dry place, away from direct sunlight and extreme temperatures. Ensure the hose and cable are neatly coiled to prevent damage.
• Inspection: Periodically inspect the power cable, air hose, and nozzle for any signs of wear or damage. Do not use if damaged.

8. Troubleshooting

• Compressor does not turn on:
  • Ensure the 12V DC power plug is fully inserted into the vehicle's accessory outlet.
  • Check your vehicle's fuse for the accessory outlet.
  • Ensure the vehicle's engine is running.
• Compressor runs but does not inflate:
  • Verify the Sure Fit nozzle is securely attached to the valve stem/adapter.
  • Check for kinks or blockages in the air hose.
• Inaccurate pressure reading:
  • Ensure the nozzle is properly sealed to the valve stem.
  • Calibrate the gauge if possible (refer to manufacturer's specific instructions if available, though typically not user-adjustable).
• Compressor overheats:
  • Allow the compressor to cool down for at least 10-15 minutes before resuming operation.
  • Avoid continuous operation for extended periods.

9. Specifications

10. Warranty and Support

For warranty information or technical support, please refer to the product packaging or contact EverStart customer service directly. Keep your purchase receipt as proof of purchase.
