1. Product Overview
This manual provides instructions for the FGDCHNJ 1800W High Power Electric Pressure Washer, designed for efficient cleaning of various outdoor surfaces. It features a powerful motor, multiple spray nozzles, and a foam cannon for versatile applications.
Image: The FGDCHNJ Electric Pressure Washer with its included accessories, including various nozzles, foam cannon, and hoses.
2. Safety Information
Read and understand all safety warnings and instructions before operating the pressure washer. Failure to follow warnings and instructions may result in electric shock, fire, and/or serious injury.
- Electrical Safety: Always connect to a grounded outlet. Do not operate in wet conditions or with damaged cords.
- Water Pressure: High-pressure spray can cause injury. Never direct the spray at people, pets, or electrical devices.
- Personal Protective Equipment: Wear safety glasses, hearing protection, and appropriate clothing.
- Chemicals: Use only pressure washer safe detergents. Follow detergent manufacturer's instructions.
- Child Safety Switch: Ensure the child safety switch is engaged when the unit is not in use to prevent accidental operation.
Image: Close-up of the pressure washer gun handle, highlighting the Total Stop System and Child Safety Switch for user safety.
3. Components and What's in the Box
The FGDCHNJ Electric Pressure Washer comes with several components to facilitate various cleaning tasks.
- Pressure Washer Unit: Main unit with motor, pump, and hose reel.
- High-Pressure Hose: 20 ft (6m) hose for connecting the gun to the washer.
- Spray Gun: Ergonomic gun with safety features.
- Quick-Connect Nozzles: Four color-coded nozzles (0°, 15°, 25°, 40°) for different spray patterns.
- Foam Cannon: For applying detergent and creating thick foam.
- Nozzle Holder: For convenient storage of nozzles.
- Power Cord: 16 ft power cord.
Image: The pressure washer unit displaying key specifications such as Max Pressure (2030 PSI), Max Flow (1.76 GPM), Rated Voltage (120V/60Hz), Pressure Hose (20 ft), Power Cord (25 ft), and Adjustable Nozzles (0/15/25/40).
4. Setup Instructions
Follow these steps to assemble and prepare your pressure washer for use.
- Step 1: Take Out Pressure Hose. Uncoil the high-pressure hose from the unit.
- Step 2: Connect to Gun. Attach one end of the high-pressure hose to the spray gun. Ensure a secure connection.
- Step 3: Connect to Washer. Attach the other end of the high-pressure hose to the pressure washer unit's outlet.
- Step 4: Garden Hose to Faucet. Connect your garden hose to a water faucet.
- Step 5: Connect to Washer. Connect the garden hose to the water inlet on the pressure washer unit.
- Step 6: Gun Connect Nozzle Heads. Select the desired quick-connect nozzle or foam cannon and attach it to the spray gun.
- Step 7: Connect to Power. Plug the power cord into a grounded electrical outlet.
- Step 8: Turn On Washer. Turn on the pressure washer unit.
Image: A visual guide showing the 8 steps for setting up the pressure washer, from uncoiling the hose to turning on the unit.

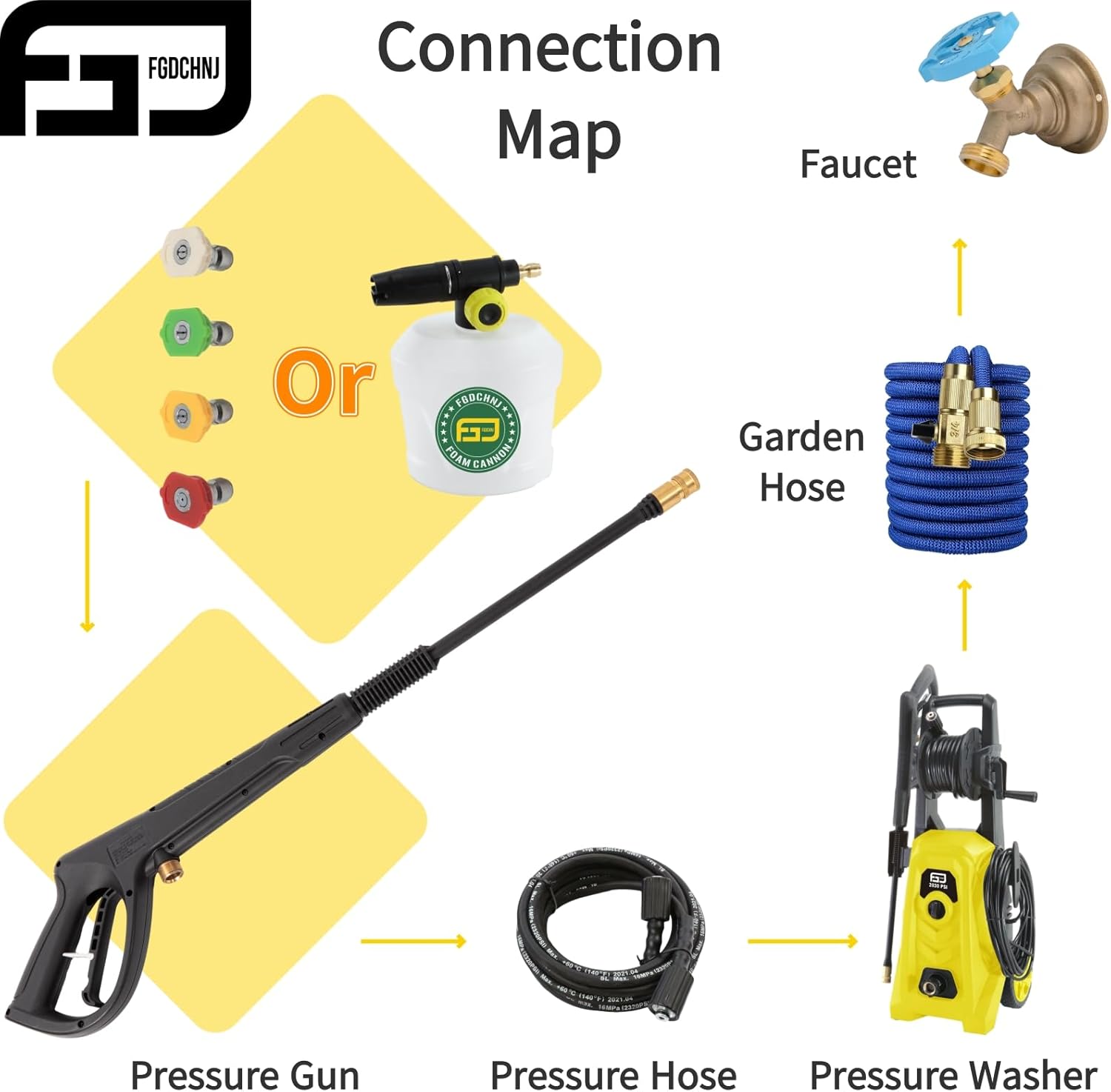

Image: A diagram illustrating the connections between the faucet, garden hose, pressure washer, pressure hose, pressure gun, and various nozzles or foam cannon.
5. Operating Instructions
5.1 Using Quick-Connect Nozzles
The pressure washer includes four quick-connect nozzles, each designed for specific cleaning tasks:
- 0° Red Nozzle: Produces a concentrated, high-pressure stream. Use for hard-to-reach areas, stubborn stains, and crevices. Use with extreme caution as it can damage surfaces.
- 15° Yellow Nozzle: Provides a powerful, narrow spray. Ideal for removing stubborn dirt from concrete, brick, and other hard surfaces.
- 25° Green Nozzle: Offers a wider, medium-pressure spray. Suitable for general cleaning of home siding, wood decks, fences, cars, and lawn equipment.
- 40° White Nozzle: Delivers a wide, gentle spray. Best for cleaning delicate surfaces like windows and screens.
Image: A visual representation of the four quick-connect nozzles (red 0°, yellow 15°, green 25°, white 40°) and their recommended uses.
Image: A person using the pressure washer to clean a wooden deck, demonstrating its effectiveness on outdoor surfaces.
5.2 Using the Foam Cannon
The foam cannon allows for the application of detergent to create a thick foam, enhancing cleaning effectiveness, especially for vehicles.
- Fill the foam cannon bottle with appropriate pressure washer detergent.
- Attach the foam cannon to the spray gun using the 1/4-inch quick-connect.
- Adjust the water regulator (+) (-) on the foam cannon to control the amount of foam produced.
- Adjust the spray nozzle head to change the spray pattern from a fan to a cylindrical stream.
- Spray the desired surface, allowing the foam to dwell before rinsing.
Image: A detailed view of the foam cannon, pointing out its adjustable nozzle head, 1/4-inch quick connector, foam thickness controller, and 1000ml capacity.
Image: A person using the foam cannon attachment to apply a thick layer of foam to a red car, demonstrating its use for vehicle cleaning.
6. Maintenance
Proper maintenance ensures the longevity and optimal performance of your pressure washer.
- After Each Use:
- Turn off the power and water supply.
- Squeeze the trigger to release any remaining pressure in the system.
- Disconnect hoses and drain all water from the pump, hose, and spray gun to prevent freezing damage.
- Clean the nozzles and foam cannon thoroughly.
- Storage: Store the pressure washer in a dry, frost-free area. Use the power cord hook and nozzle holder for organized storage.
- Inlet Filter: Regularly check and clean the water inlet filter to prevent debris from entering the pump.
Image: The pressure washer unit featuring a crank with a hose reel, designed for easy and organized storage of the high-pressure hose.
7. Troubleshooting
Refer to this section for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| No Power | Power cord unplugged, circuit breaker tripped, GFCI tripped. | Check power connection, reset circuit breaker/GFCI. |
| No Water Pressure | Water supply off, kinked hose, clogged inlet filter, air in pump. | Ensure water supply is on, straighten hose, clean filter, bleed air from pump by running with gun open. |
| Pulsating Pressure | Air in pump, restricted water flow, worn nozzle. | Bleed air, check water supply, clean/replace nozzle. |
| Motor Stops | Overheating (thermal overload), low voltage. | Allow unit to cool, check power supply voltage. |
8. Specifications
| Feature | Detail |
|---|---|
| Brand | FGDCHNJ |
| Model Number | FGD-PreWasher2030-Y |
| Power Source | Electric |
| Maximum Pressure | 2030 PSI |
| Maximum Flow Rate | 1.76 Gallons Per Minute (GPM) |
| Hose Length | 20 Feet (240 Inches) |
| Power Cord Length | 16 Feet |
| Item Weight | 17 Pounds |
| Product Dimensions | 12.5"L x 10"W x 40"H |
| Tank Volume (Detergent/Foam) | 0.22 Gallons |
| Color | Yellow |
| Certification | CSA |
9. Warranty and Support
For warranty information or technical support, please contact FGDCHNJ customer service. Details are typically provided with your product packaging or on the official brand website.
Please retain your proof of purchase for any warranty claims.
