DIWANGUS 16 Inch Stainless Steel Grab Bars Instruction Manual

1. Introduction

Thank you for choosing DIWANGUS 16 Inch Stainless Steel Grab Bars. These grab bars are designed to provide reliable support and enhance safety in bathrooms, showers, and other areas where additional stability is needed. Constructed from durable stainless steel with a non-slip knurled texture, they offer a secure grip for users. Please read this manual thoroughly before installation and use to ensure proper function and safety.

2. Safety Information

• Proper Installation is Crucial: Ensure the grab bars are securely mounted into wall studs or appropriate blocking. Do not rely solely on drywall anchors unless specifically rated for the required weight and application. Improper installation can lead to serious injury.
• Weight Capacity: These grab bars are designed to support up to 500 pounds (226 kg) of pulling force when properly installed. Do not exceed this weight limit.
• Regular Inspection: Periodically check the grab bars for any signs of looseness, corrosion, or damage. Tighten screws if necessary. Replace the product if any damage is observed.
• Cleaning: Use mild soap and water for cleaning. Avoid abrasive cleaners or harsh chemicals that could damage the finish or material.
• Intended Use: These grab bars are intended for providing balance and support. They are not designed for use as a swing, ladder, or for any other purpose that could compromise their structural integrity.

3. Package Contents

Verify that all components are present before beginning installation:

• 16 Inch Stainless Steel Grab Bar (x2)
• Mounting Screws (x6 per bar, total x12)
• Expansion Glue Sticks / Wall Anchors (x6 per bar, total x12)
• Decorative Covers (x2 per bar, total x4)

Image: Grab bar dimensions and included components.

4. Setup and Installation

Follow these steps for secure installation. It is recommended to install into wall studs for maximum stability. If installing into tile or other surfaces, ensure appropriate anchors are used and consult a professional if unsure.

1. Step 1: Select Location and Mark. Choose the desired installation location. Use the grab bar as a template to mark the screw hole positions on the wall. Ensure the location is suitable for the user's height and needs.
2. Step 2: Drill Holes. Using a 6mm drill bit, carefully drill pilot holes at the marked locations. Ensure the drill bit is appropriate for your wall material (e.g., wood, tile, concrete).
3. Step 3: Insert Wall Anchors. Insert the provided expansion glue sticks (wall anchors) into the drilled holes. Tap gently with a hammer until they are flush with the wall surface.
4. Step 4: Mount Grab Bar. Align the grab bar's mounting plates with the inserted wall anchors. Insert the mounting screws through the grab bar's base and into the anchors. Tighten the screws firmly with a screwdriver until the grab bar is secure against the wall.
5. Step 5: Attach Decorative Covers. Place the decorative covers over the mounting plates to conceal the screws.
6. Step 6: Test Security. Gently apply pressure to the installed grab bar to ensure it is firmly attached and does not wobble. Do not apply full body weight until you are confident in its stability.

Image: Detailed installation steps for the grab bar.

5. Operating Instructions

The DIWANGUS grab bars are designed for passive support. Once installed, they provide a stable handhold for maintaining balance and assisting with movement in areas like bathrooms, showers, and near stairs. The knurled texture ensures a non-slip grip, even when wet.

Image: Non-slip knurled texture for secure grip.

These grab bars are suitable for various users and applications:

• Bathroom and Shower: Provides support when entering or exiting the shower/bathtub, or when standing.
• Near Toilets: Offers assistance for sitting down and standing up.
• Stairways and Corridors: Enhances stability when navigating these areas.
• General Support: Can be used by children, the elderly, pregnant women, and individuals with mobility challenges.

Image: Examples of grab bar usage by different individuals.

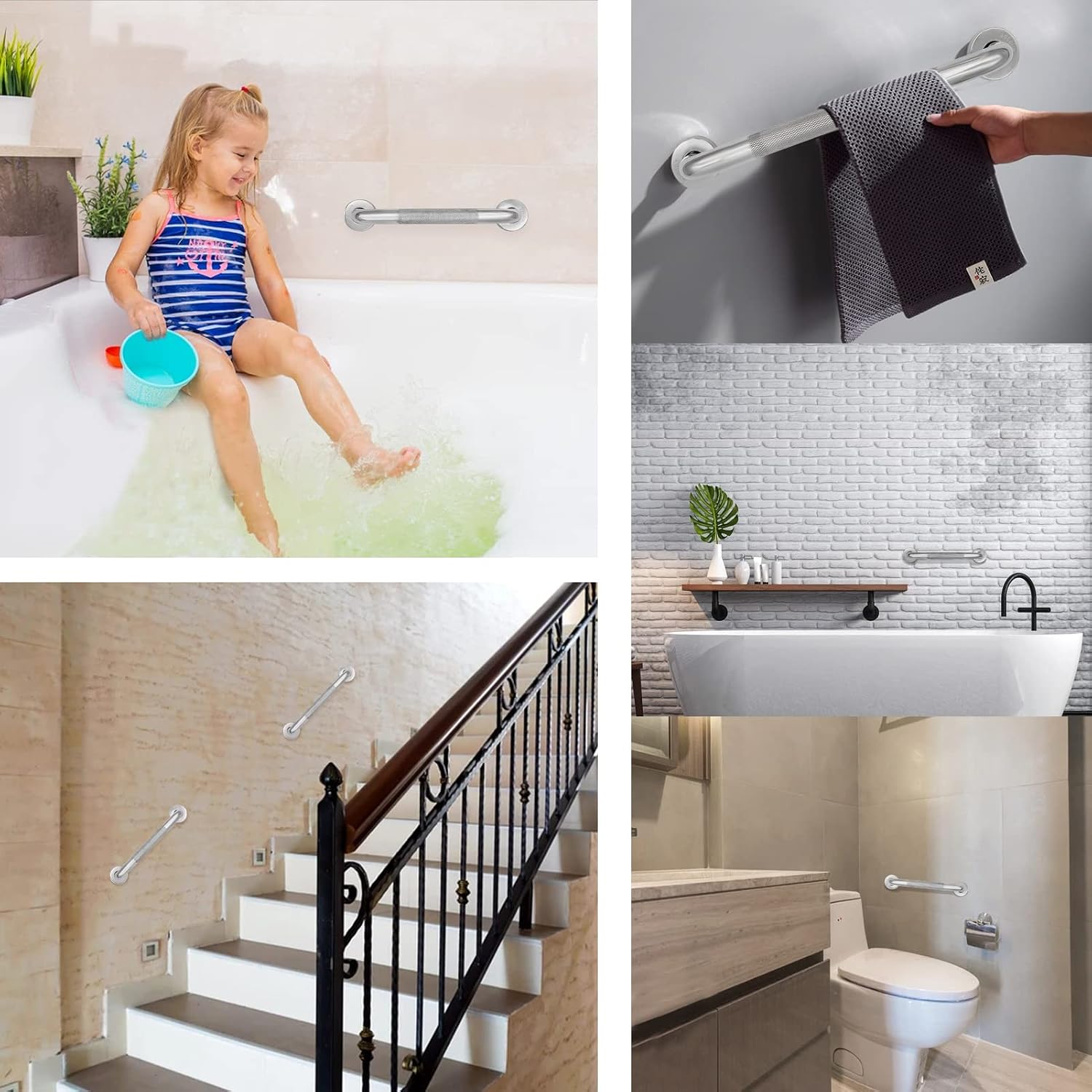

Image: Versatile applications of the grab bar in different home settings.

6. Maintenance

To ensure the longevity and continued performance of your DIWANGUS grab bars, follow these maintenance guidelines:

• Cleaning: Wipe the grab bars regularly with a soft cloth and mild, non-abrasive soap and water. Rinse thoroughly and dry to prevent water spots.
• Avoid Harsh Chemicals: Do not use abrasive cleaners, scouring pads, ammonia-based cleaners, or bleach, as these can damage the stainless steel finish.
• Inspect Fasteners: Periodically check all mounting screws to ensure they remain tight. Re-tighten if any looseness is detected.
• Corrosion Check: Although made of stainless steel, prolonged exposure to harsh chemicals or standing water can affect the finish. Inspect for any signs of rust or corrosion, especially in high-humidity environments.

7. Troubleshooting

If you encounter issues with your grab bars, consider the following:

• Grab Bar Feels Loose:
  • Solution: Re-tighten all mounting screws. If the screws do not hold, the wall anchors may be compromised. Consider using stronger anchors or relocating the grab bar to a wall stud.
• Decorative Covers Fall Off:
  • Solution: Ensure the covers are correctly snapped into place. If they continue to fall, a small amount of silicone adhesive can be used on the inside edge of the cover to secure it, ensuring it can still be removed for maintenance.
• Signs of Rust/Discoloration:
  • Solution: Clean immediately with a stainless steel cleaner or a paste of baking soda and water. Rinse thoroughly. Ensure the area is well-ventilated and dry after use. If rust persists, the grab bar may need replacement.

8. Specifications

Image: Material and weight capacity details.

9. Warranty and Support

Specific warranty information is not provided in this manual. For details regarding warranty coverage, returns, or technical support, please refer to the product packaging or contact the retailer from whom the product was purchased. You may also visit the official DIWANGUS brand store or website for further assistance.
