1. Introduction
Thank you for choosing the HOSTILE H123 TYPHOON Custom Wheel. This manual provides essential information for the proper installation, maintenance, and care of your new wheel. Adhering to these guidelines will ensure optimal performance and longevity.
Image 1.1: Front view of the HOSTILE H123 TYPHOON Custom Wheel, showcasing its Blade Cut finish and multi-spoke design.
2. Safety Information
Always prioritize safety during installation and maintenance. Improper installation can lead to serious injury or damage to your vehicle.
- Professional Installation Recommended: It is highly recommended that wheels be installed by a certified automotive technician.
- Correct Fitment: Ensure the wheel's specifications (diameter, width, bolt pattern, offset, hub bore) match your vehicle's requirements. Consult your vehicle's owner's manual or a qualified technician.
- Proper Tools: Use appropriate tools for installation, including a torque wrench to ensure lug nuts are tightened to the manufacturer's specifications.
- Tire Mounting: Tires must be mounted by a professional using proper equipment to avoid damage to the wheel or tire.
- Lug Nut Torque: Always tighten lug nuts to the vehicle manufacturer's recommended torque specifications. Over-tightening or under-tightening can cause wheel damage or detachment.
3. Setup and Installation
Follow these general steps for installing your new HOSTILE H123 TYPHOON wheels. Always refer to your vehicle's service manual for specific instructions and torque values.
- Pre-Installation Inspection: Before mounting, carefully inspect each wheel for any signs of damage from shipping. Do not install damaged wheels.
- Clean Hub Surface: Ensure the vehicle's hub mounting surface is clean and free of rust, dirt, or debris. Use a wire brush if necessary.
- Tire Mounting: Have tires professionally mounted and balanced on the wheels. Ensure proper valve stems are used.
- Mount Wheel to Vehicle: Carefully place the wheel onto the vehicle's hub, aligning the bolt pattern. Ensure the wheel sits flush against the hub.
- Install Lug Nuts: Hand-tighten all lug nuts in a star pattern until snug.
- Torque Lug Nuts: Using a torque wrench, tighten the lug nuts in a star pattern to the vehicle manufacturer's specified torque. Do not use an impact wrench for final tightening.
- Re-torque Check: After driving approximately 50-100 miles, re-check the lug nut torque to ensure they remain properly tightened.

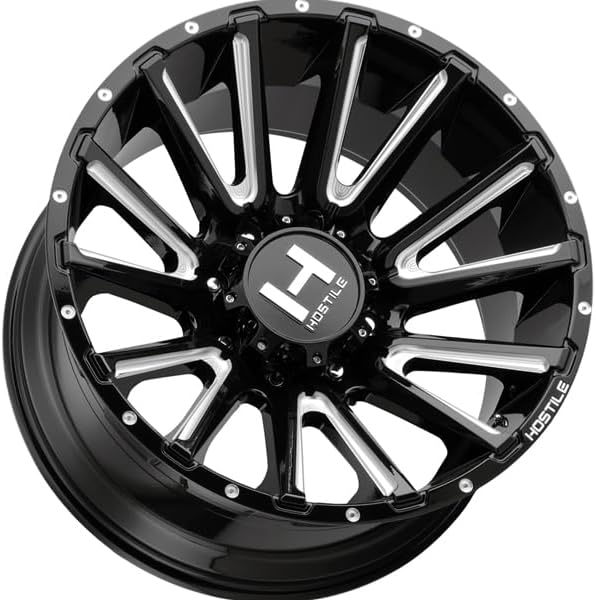

Image 1.2: Angled view of the HOSTILE H123 TYPHOON Custom Wheel, highlighting the bolt pattern and hub area.
4. Operating Guidelines
Once installed, proper operation and regular checks are crucial for safety and performance.
- Tire Pressure: Maintain correct tire pressure as recommended by your vehicle manufacturer. Check tire pressure regularly, especially before long trips.
- Lug Nut Checks: Periodically check lug nut torque, especially after encountering rough terrain or significant temperature changes.
- Driving Habits: Avoid aggressive driving over potholes or curbs, which can damage wheels and tires.
5. Maintenance
Regular cleaning and inspection will help preserve the appearance and integrity of your HOSTILE H123 TYPHOON wheels.
- Cleaning: Wash wheels regularly with mild automotive soap and water. Use a soft brush or sponge. Rinse thoroughly to remove all soap residue.
- Avoid Harsh Chemicals: Do not use abrasive cleaners, strong detergents, or acid-based wheel cleaners, as these can damage the finish.
- Inspection: Periodically inspect wheels for any signs of damage, such as cracks, bends, or corrosion. Address any issues promptly.
- Tire Rotation: Follow your vehicle manufacturer's recommendations for tire rotation, which can help ensure even tire wear and prolong wheel life.
6. Troubleshooting
This section addresses common issues you might encounter with your wheels.
| Issue | Possible Cause | Solution |
|---|---|---|
| Vehicle Vibration | Unbalanced tires, bent wheel, loose lug nuts, improper installation. | Have tires re-balanced, inspect wheels for damage, check lug nut torque, re-install wheels correctly. |
| Loose Lug Nuts | Improper initial torque, settling of components. | Re-torque lug nuts to vehicle manufacturer specifications in a star pattern. |
| Air Leakage Around Rim | Improper tire bead seating, damaged tire bead, damaged valve stem, bent rim. | Have a professional inspect and re-seat the tire, replace valve stem, or repair/replace wheel if damaged. |
7. Specifications
Key specifications for the HOSTILE H123 TYPHOON Custom Wheel:
| Feature | Specification |
|---|---|
| Brand | HOSTILE |
| Model | H123 Typhoon |
| Part Number | H123-2010818047B |
| Wheel Size | 20x10 Inches |
| Rim Width | 10 Inches |
| Offset | -19 Millimeters |
| Bolt Pattern (Number of Holes) | 8 |
| Pitch Circle Diameter | 180 Millimeters |
| Hub Bore (Estimated from 125.2mm in keywords) | 125.2 mm |
| Color/Finish | Blade Cut (Black Milled) |
| Construction | Cast |
| Item Weight | 46.1 Pounds |
| UPC | 842213133560 |
8. Warranty and Support
For specific warranty information regarding your HOSTILE H123 TYPHOON Custom Wheel, please refer to the documentation provided at the time of purchase or contact the manufacturer directly. Warranty terms typically cover manufacturing defects and may vary.
For technical support or inquiries, please contact your authorized dealer or the HOSTILE customer service department. Keep your purchase receipt and product details readily available when seeking support.
