USWELDWIRE MIG Gun Parts Instruction Manual

1. Introduction

This manual provides essential instructions for the proper use, installation, and maintenance of USWELDWIRE MIG Gun Parts, specifically the .030 Mig Kit. These parts are designed for compatibility with Titanium Mig 140, 170, and Unlimited 200 welders, including models 64804, 64805, and 64806. Adhering to these guidelines will help ensure optimal performance and longevity of your welding equipment.

Before installation, carefully compare the provided parts with your existing components to ensure correct fitment. Refer to the image below for a visual representation of the kit components.

Figure 1: Overview of USWELDWIRE .030 Mig Kit components. This image displays the various parts included in the kit, such as contact tips, gas nozzles, and tip holders, arranged for clear identification.

2. Setup and Installation

Proper installation of MIG gun consumables is crucial for effective welding and consistent wire feeding. Follow these general steps for replacing components:

1. Safety First: Always disconnect power to the welding machine before performing any maintenance or part replacement.
2. Remove Old Parts: Unscrew the gas nozzle, then the contact tip holder, and finally the contact tip from the MIG gun. Note the order of removal.
3. Install New Contact Tip: Select the correct .030 contact tip from the kit. Screw it firmly into the contact tip holder. Ensure it is snug but do not overtighten.
4. Install Tip Holder: Screw the contact tip holder assembly onto the MIG gun neck.
5. Install Gas Nozzle: Slide the gas nozzle over the contact tip holder and secure it. Some nozzles may twist on, while others may simply push on and be held by friction or a spring. Ensure the nozzle is seated correctly to provide adequate gas shielding.

Verify that all connections are secure and that the wire feeds smoothly through the new contact tip before reconnecting power and beginning welding operations.

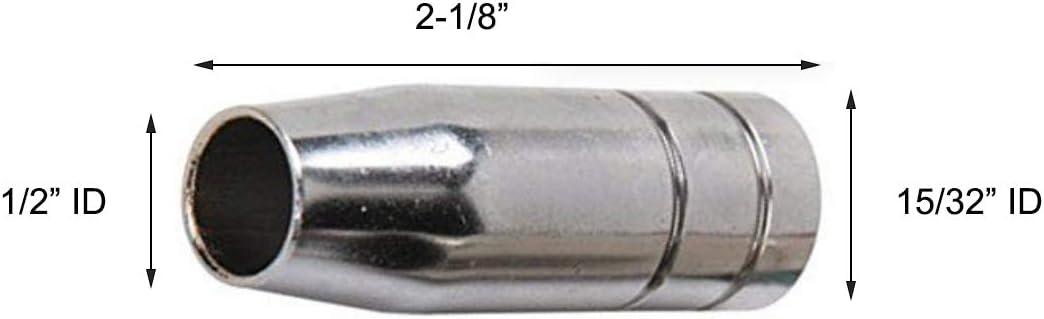

Figure 2: Dimensional diagram of a MIG gun gas nozzle. This image illustrates the key measurements of a gas nozzle, including its length and internal diameters, which are important for ensuring proper fit and function.

3. Operation

Once the MIG gun parts are correctly installed, the welding process can commence. The primary function of these components is to facilitate the transfer of electrical current to the welding wire and to direct shielding gas to the weld puddle.

• Contact Tip: The contact tip guides the welding wire and transfers the electrical current. Ensure the correct tip size (.030 in this kit) matches your welding wire diameter. A worn or incorrect tip can lead to poor arc stability and wire feeding issues.
• Gas Nozzle: The gas nozzle directs the shielding gas to protect the weld puddle from atmospheric contamination. Ensure it is clean and free from spatter to maintain an even gas flow.
• Tip Holder: The tip holder secures the contact tip and provides the electrical connection to the MIG gun.

Always operate your welding equipment according to the manufacturer's safety guidelines and recommended settings for your specific welding application.

4. Maintenance

Regular maintenance of your MIG gun parts will extend their lifespan and ensure consistent welding quality.

• Clean Regularly: After each welding session, inspect the gas nozzle for spatter buildup. Use a reamer or pliers specifically designed for MIG nozzles to remove spatter. Excessive spatter can obstruct gas flow and lead to porosity in welds.
• Inspect Contact Tip: Check the contact tip for wear, such as an enlarged bore or signs of arcing. A worn tip can cause erratic wire feeding, poor arc starts, and reduced current transfer. Replace the contact tip as needed.
• Check Tip Holder: Ensure the tip holder is clean and free of debris. A good electrical connection between the tip holder and contact tip is essential.
• Storage: Store spare parts in a clean, dry environment to prevent corrosion and damage.

5. Troubleshooting

If you encounter issues during welding, consider the following common problems related to MIG gun parts:

• Poor Arc or Erratic Wire Feed:
  • Check if the contact tip is worn or the wrong size. Replace if necessary.
  • Ensure the contact tip is screwed in tightly to ensure good electrical contact.
• Porosity in Weld:
  • Inspect the gas nozzle for spatter buildup that might be blocking gas flow. Clean or replace the nozzle.
  • Ensure the gas nozzle is properly seated on the MIG gun.
• Wire Burnback (wire melting back into the contact tip):
  • This often indicates a worn contact tip or incorrect welding parameters. Replace the contact tip.

Always consult your welding machine's manual for specific troubleshooting steps related to the welder itself.

6. Specifications

7. Warranty and Support

Specific warranty information for this USWELDWIRE MIG Gun Parts kit is not provided in the product details. For warranty inquiries or technical support, please contact the seller or manufacturer directly through your purchase platform or their official website.

Always retain your proof of purchase for any warranty claims.
