1. Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your Sojag Savino 10 x 12 Ft. Gazebo. The Savino gazebo is designed to enhance your outdoor living space, offering shade and protection from insects. It features a durable aluminum frame with AkzoNobel's Interpon powder-coating for corrosion resistance and UV-protected polycarbonate roof panels. A nylon mosquito net is included for comfort.
Please read all instructions carefully before beginning assembly and retain this manual for future reference.

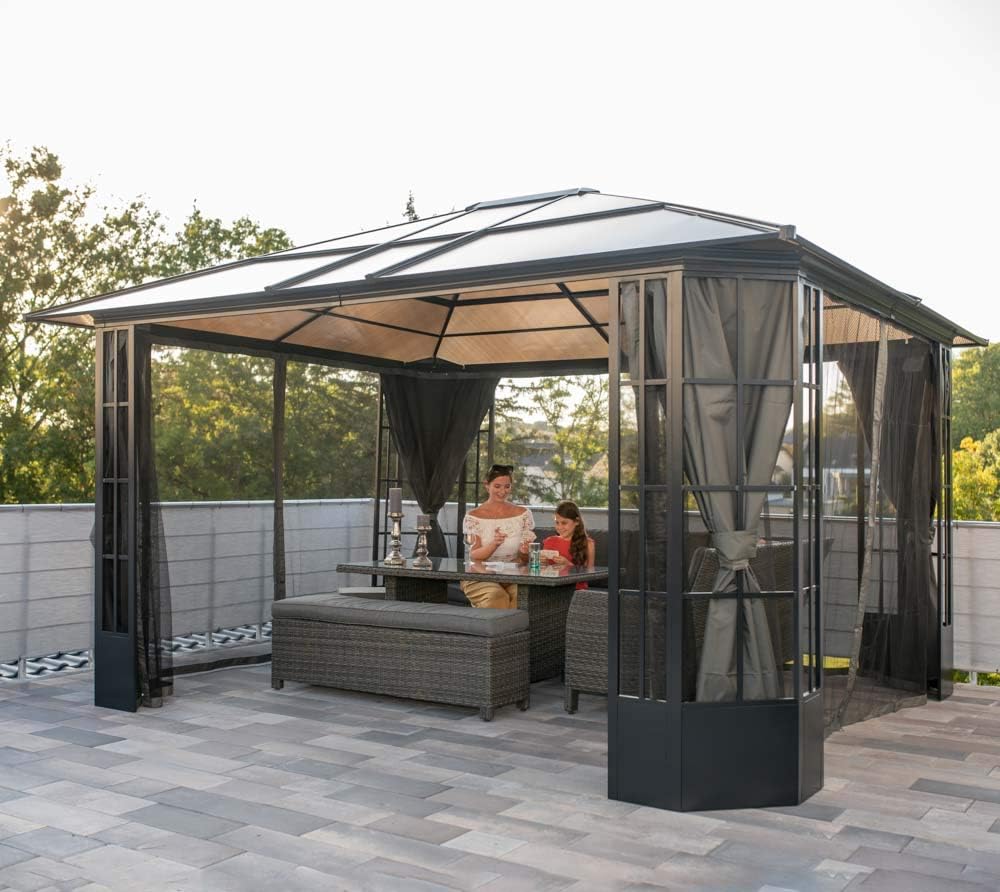

Image 1.1: The Sojag Savino Gazebo providing a comfortable outdoor living area.
2. Safety Information
Always prioritize safety during assembly and use of the gazebo. Failure to follow these instructions may result in injury or damage to the product.
- Two-Person Assembly: Assembly requires a minimum of two people for safety and ease of installation.
- Site Selection: Choose a level and stable surface for installation. Ensure adequate clearance from overhead obstructions and power lines.
- Anchoring: Securely anchor the gazebo to the ground using appropriate hardware to prevent wind uplift.
- Snow Accumulation: Remove any significant snow accumulation from the gazebo roof to prevent structural damage. The gazebo is designed for year-round use, but heavy snow loads can compromise its integrity.
- Weather Conditions: In extreme weather conditions (e.g., strong winds, heavy storms), it is recommended to remove the mosquito netting and any optional curtains to prevent damage.
- Children and Pets: Keep children and pets away from the assembly area.
- Tools: Use only the recommended tools and ensure they are in good working condition.
3. Setup and Assembly
The Sojag Savino Gazebo is designed for straightforward assembly. Please ensure all parts are present before beginning. Refer to the included detailed assembly guide for step-by-step illustrations.
3.1. Required Tools (Not Included)
- Ladder
- Phillips head screwdriver
- Adjustable wrench
- Safety gloves
3.2. Pre-Assembly Checks
- Unpack all components and verify against the parts list in your assembly guide.
- Ensure the chosen assembly site is clear of debris and level.
3.3. Assembly Steps Overview
- Frame Assembly: Begin by assembling the main aluminum frame structure. Connect the posts and beams according to the diagrams.
- Roof Panel Installation: Carefully install the polycarbonate roof panels onto the assembled frame. Ensure panels are correctly oriented and secured.
- Mosquito Netting Attachment: Attach the nylon mosquito netting to the integrated double track system.
- Anchoring: Securely anchor the gazebo posts to the ground using the provided hardware or suitable alternatives for your surface.

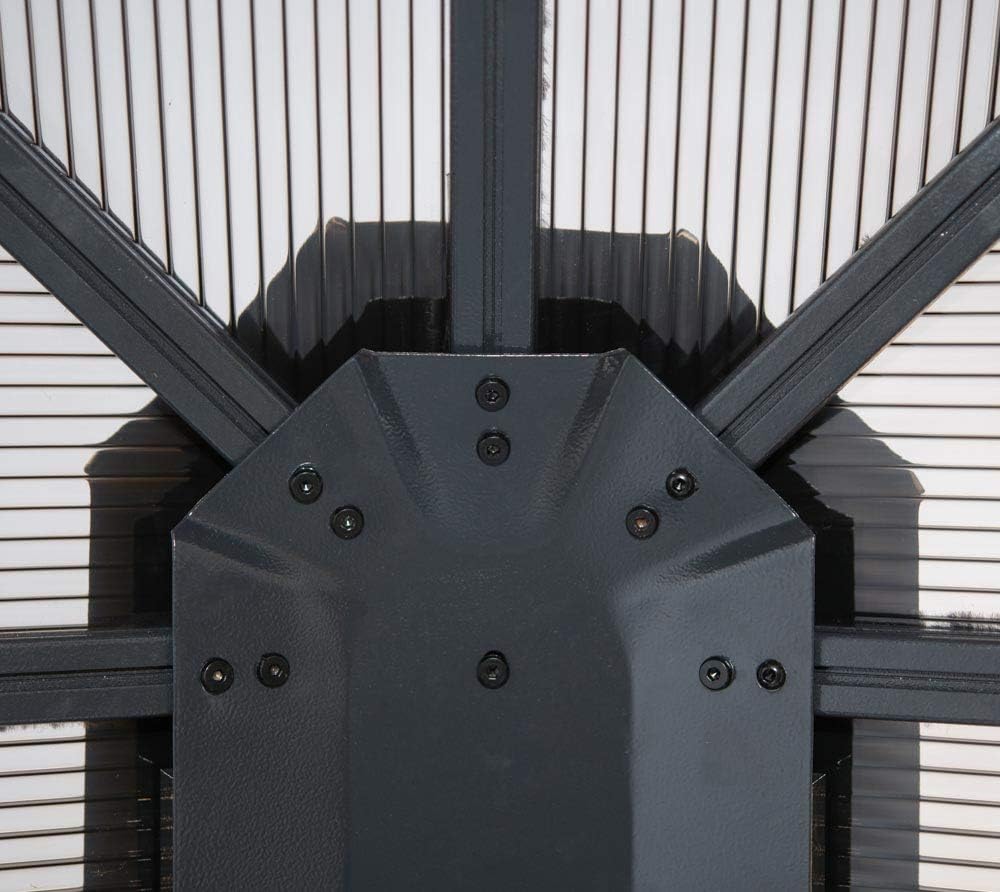

Image 3.1: Detail of the robust aluminum roof frame and polycarbonate panels.
Image 3.2: Anchoring points at the base of a gazebo post for stability.
4. Operating Instructions
The Sojag Savino Gazebo is designed for ease of use, providing a versatile outdoor shelter.
4.1. Mosquito Netting
The included nylon mosquito netting can be easily deployed or retracted along the integrated double track system. This system allows you to enclose the gazebo to protect against insects while maintaining airflow.
Image 4.1: Deploying the mosquito netting for insect protection.
Image 4.2: The gazebo fully enclosed with the mosquito netting.
4.2. Double Track System
The innovative double track system allows for simultaneous use of the mosquito netting and optional outdoor curtains (sold separately). This provides flexibility to customize your level of shade, privacy, and insect protection.
Image 4.3: The double track system allows for both netting and curtains.
5. Maintenance
Regular maintenance will help prolong the life and appearance of your Sojag Savino Gazebo.
- Cleaning the Frame: Clean the aluminum frame with a mild soap and water solution. Rinse thoroughly with clear water and dry with a soft cloth. Avoid abrasive cleaners or harsh chemicals.
- Cleaning the Roof Panels: The polycarbonate roof panels can be cleaned with a soft cloth, mild soap, and water. Do not use brushes or abrasive materials that could scratch the surface.
- Mosquito Netting: The nylon mosquito netting can be hand-washed with mild soap and water. Allow to air dry completely before storing or reattaching.
- Snow Removal: As mentioned in the safety section, it is crucial to remove snow accumulation from the roof to prevent structural damage. Use a soft broom or snow rake to gently clear snow.
- Seasonal Inspection: Periodically check all bolts, screws, and connections to ensure they are tight. Inspect the frame for any signs of damage or corrosion.
6. Troubleshooting
This section addresses common issues you might encounter with your gazebo.
- Loose Connections: If the gazebo feels unstable, check all bolts and screws. Tighten any loose fasteners.
- Damaged Netting: Small tears in the mosquito netting can often be repaired with a patch kit. For larger damage, replacement netting may be available from the manufacturer.
- Water Leakage: Ensure all roof panels are correctly seated and sealed. Check for any gaps or misalignments.
- Difficulty Sliding Netting/Curtains: Clean the tracks of the double track system to remove any debris. Lubricate with a silicone-based spray if necessary.
If you encounter issues not covered here or require further assistance, please contact Sojag customer support.
7. Specifications
| Feature | Detail |
|---|---|
| Brand | Sojag |
| Model | Savino |
| Product Dimensions (L x W x H) | 142.71" x 117.12" x 106.3" (10 x 12 Ft. nominal) |
| Item Weight | 219.1 Pounds |
| Frame Material | Aluminum with AkzoNobel Interpon Powder Coating |
| Roof Material | UV Protected Polycarbonate |
| Water Resistance Level | Waterproof |
| Ultraviolet Light Protection | Yes |
| Assembly Required | Yes (2 people recommended) |
| Color | Charcoal |

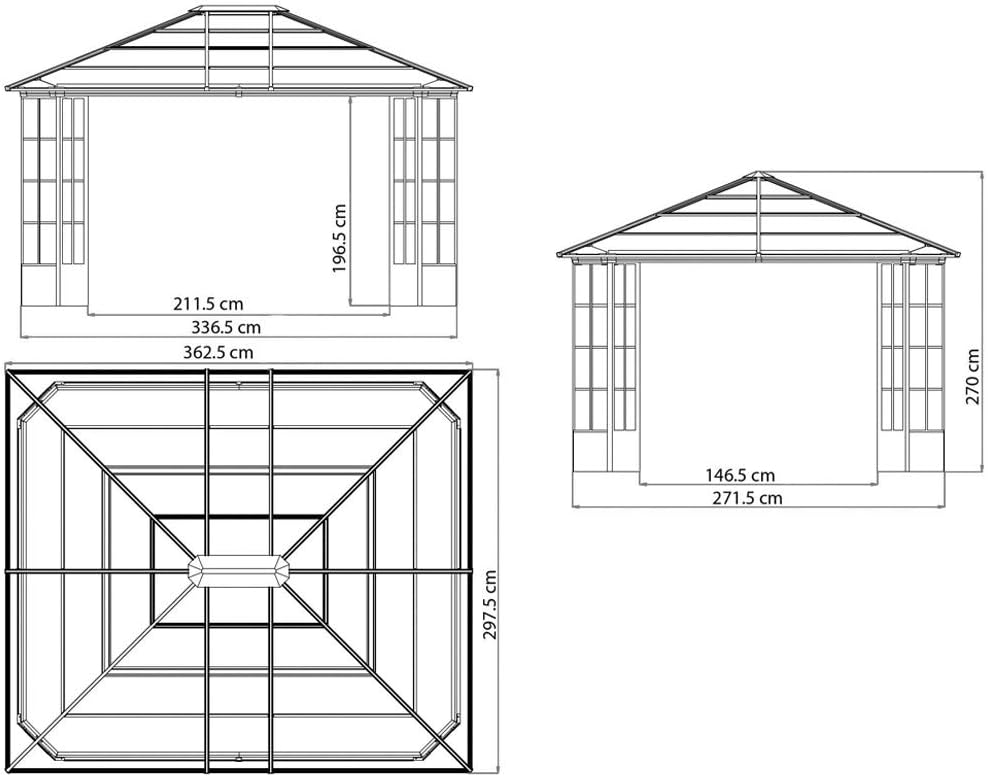

Image 7.1: Technical dimensions of the Sojag Savino Gazebo.
8. Warranty Information
The Sojag Savino Gazebo comes with a 1-year manufacturer's warranty. This warranty covers defects in materials and workmanship under normal use and service. Please retain your proof of purchase for warranty claims.
The warranty does not cover damage caused by improper assembly, misuse, neglect, accidents, or extreme weather conditions (e.g., failure to remove snow accumulation). For specific warranty terms and conditions, please refer to the documentation included with your product or contact Sojag customer support.
9. Customer Support
For assistance with assembly, missing parts, or any other inquiries regarding your Sojag Savino Gazebo, please contact Sojag customer support. Contact information can typically be found on the product packaging or the official Sojag website.
When contacting support, please have your model name (Savino) and ASIN (B08T5LVDJQ) readily available to expedite service.
