Utheer Grill Cooking Grate Replacement Parts User Manual

1. Product Overview

This manual provides essential information for the installation, use, and maintenance of your Utheer Grill Cooking Grate Replacement Parts. These grates are designed to replace existing cooking surfaces in compatible Char-Broil grills, offering a durable and safe cooking experience.

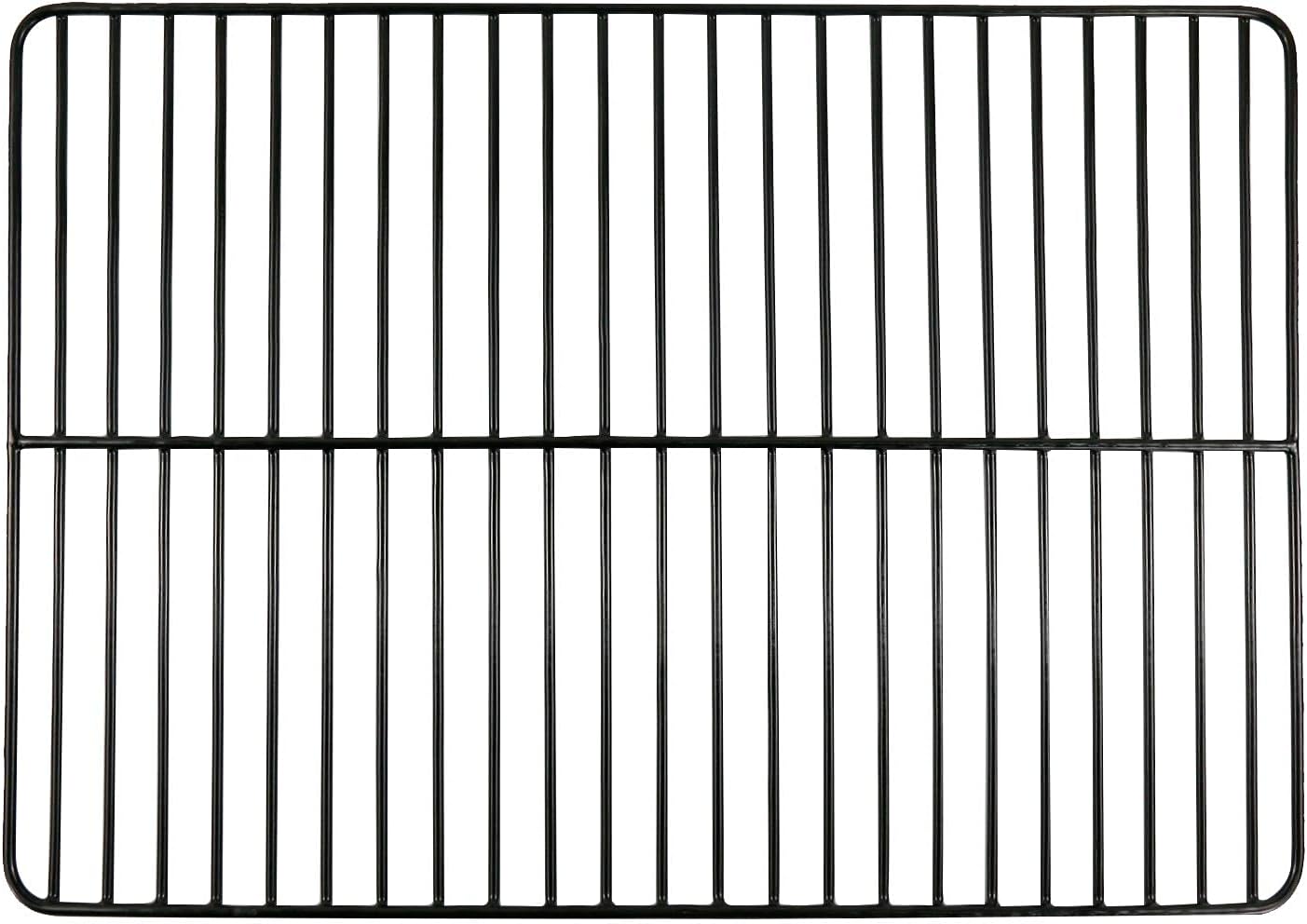

Figure 1: Utheer Grill Cooking Grate. This image shows the full view of the black porcelain-coated steel grill grate, featuring a rectangular shape with evenly spaced bars for cooking.

Key Features:

• Material: Constructed from durable porcelain-coated steel for enhanced corrosion resistance and heat distribution.
• Safety: Designed to be harmless to the human body, ensuring safe food preparation.
• Durability: Heavy-duty construction for long-lasting use compared to original parts.
• Flavor Enhancement: Engineered to make food more flavorful by distributing heat evenly.
• Easy to Clean: Porcelain wire surface reduces food sticking, simplifying the cleaning process.

Figure 2: Premium Cooking Grate Features. This image highlights the benefits of the grate, including its porcelain wire construction, durability, even heat distribution, and ability to enhance food flavor. A close-up of the grate's surface is also shown.

2. Compatibility and Dimensions

Compatible Grill Models:

These replacement cooking grates are specifically designed to fit the following Char-Broil Classic 280 2-Burner Liquid Propane Gas Grills:

• Char-broil 461611513
• Char-broil 463610712
• Char-broil 463620413
• Char-broil 463621711
• Char-broil 461611514
• Char-broil 463620409
• Char-broil 463620414
• Char-broil 464622013
• Char-broil 461670719
• Char-broil 463620410
• Char-broil 463620415
• Char-broil 464622213
• Char-broil 463610512
• Char-broil 463620411
• Char-broil 463620511
• Char-broil 464622214
• Char-broil 463610513
• Char-broil 463620412
• Char-broil 463620809
• Char-broil 465621215
• Char-broil 466632011

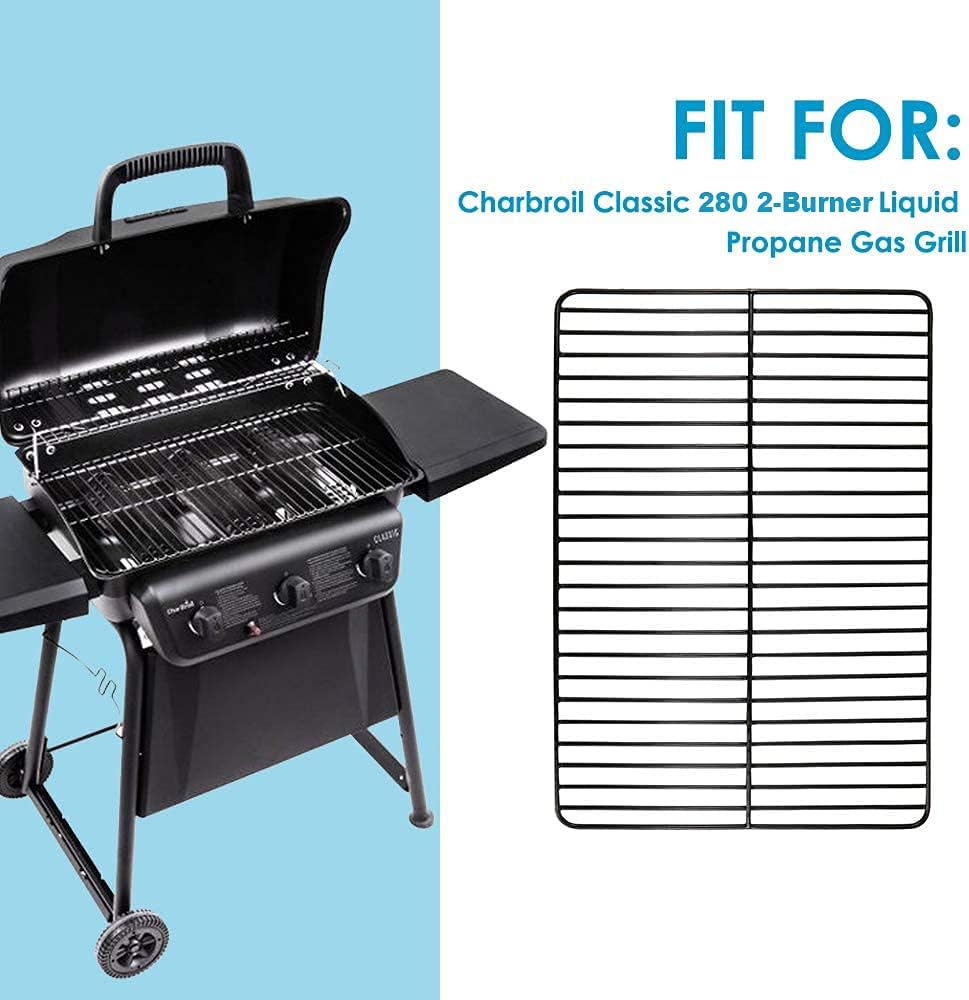

Figure 3: Grill Grate Compatibility. This image displays the Utheer grill grate alongside a Charbroil Classic 280 2-Burner Liquid Propane Gas Grill, illustrating how the grate is designed to fit this specific grill model.

Product Dimensions:

Each cooking grid measures:

• Length: 19.7 inches (approximately 50.04 cm)
• Width: 13.8 inches (approximately 35.05 cm)

It is recommended to double-check your grill's dimensions before ordering to ensure a perfect fit.

Figure 4: Grill Grate Dimensions. This image clearly labels the length (19.7 inches) and width (13.8 inches) of the grill grate, emphasizing the importance of checking dimensions before purchase.

3. Setup and Installation

The Utheer Grill Cooking Grates are designed for straightforward replacement. Ensure your grill is completely cool and turned off before proceeding.

1. Remove Old Grates: Carefully lift and remove the existing cooking grates from your grill.
2. Clean Grill Interior: It is advisable to clean any debris or residue from the grill's interior, especially the grate supports, before installing new grates.
3. Place New Grates: Position the Utheer Grill Cooking Grates onto the designated supports within your grill. Ensure they sit flat and are stable.
4. Verify Fit: Gently push down on the grates to confirm they are securely seated and do not wobble.

No tools are typically required for the installation of these replacement grates.

4. Operating and Usage

Once installed, the Utheer Grill Cooking Grates function like standard grill grates. For optimal performance and longevity, consider the following:

• Preheating: Always preheat your grill with the grates in place for at least 10-15 minutes before cooking. This ensures even heat distribution and helps prevent food from sticking.
• Oiling Grates: Lightly oil the grates before placing food on them, especially for the first few uses. This further reduces sticking.
• Heat Distribution: The porcelain steel construction is designed to distribute heat evenly across the entire cooking surface, promoting consistent cooking results.

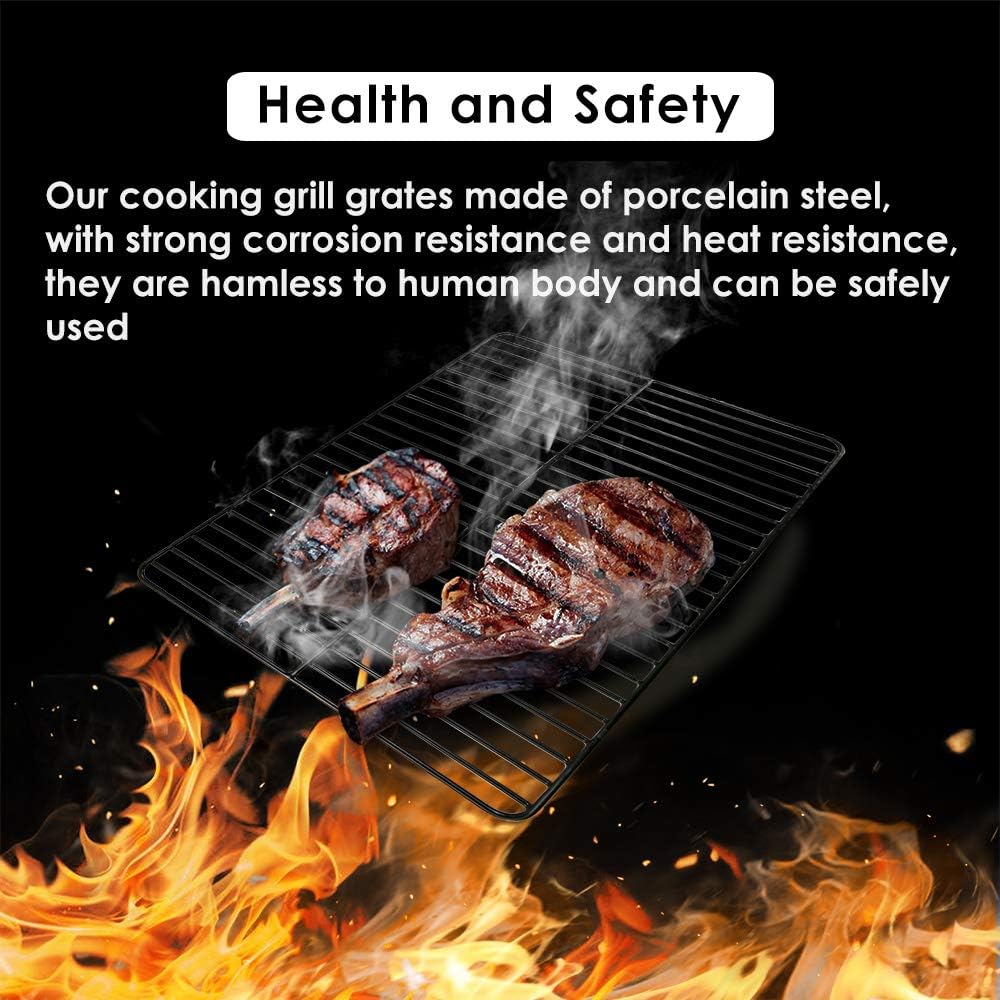

Figure 5: Health and Safety of Grill Grates. This image illustrates the grill grates in use over an open flame with food cooking, emphasizing their strong corrosion resistance, heat resistance, and safety for human use due to their porcelain steel construction.

5. Maintenance and Cleaning

Proper maintenance extends the life of your Utheer Grill Cooking Grates and ensures continued safe use. The porcelain wire surface is designed for easy cleaning.

1. Immediate Cleaning: After each use, once the grates have cooled slightly but are still warm, wipe off excess oil and food residue with a paper towel or cloth.
2. Deep Cleaning: For more thorough cleaning, preheat the grill for about 15 minutes. Then, use a grill brush with soap and water to clean the grates.
3. Avoid Standing Water: Do not leave standing water on the cooking grates for longer than 10-15 minutes, as this can affect the porcelain coating over time.
4. Drying: If you clean with soap and water, always dry the grate immediately with a towel to evaporate any remaining moisture before storing.

Figure 6: Easy to Clean Grill Grates. This image demonstrates the cleaning process, showing a grill brush with soap and water being used on the grate, along with text instructions for wiping off residue and preheating for cleaning.

6. Troubleshooting

While these grill grates are designed for durability and ease of use, here are some common considerations:

• Food Sticking: Ensure grates are properly preheated and lightly oiled before cooking. Excessive food residue from previous cooks can also cause sticking; ensure thorough cleaning.
• Uneven Cooking: Verify that the grates are seated correctly and flat on the grill supports. Ensure your grill's burners are functioning properly and distributing heat evenly.
• Rusting (unlikely with porcelain coating): While porcelain-coated steel is highly resistant to rust, prolonged exposure to moisture, especially standing water, can compromise the coating over time. Always dry grates thoroughly after cleaning and store in a dry environment.

7. Specifications

8. Warranty and Support

Specific warranty information for Utheer Grill Cooking Grate Replacement Parts is not provided in this manual. For details regarding warranty coverage, returns, or technical support, please refer to the product listing on the retailer's website or contact Utheer customer service directly.

Please retain your purchase receipt as proof of purchase for any warranty claims.
