Introduction
Thank you for choosing the MFLASMF 10W Solar Street Light. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your solar-powered floodlight. Please read these instructions carefully before use and retain them for future reference.
This solar light is designed for outdoor use, providing bright illumination for areas such as gardens, patios, garages, and pathways. It features a remote control for convenient operation, an intelligent light sensor for automatic dusk-to-dawn lighting, and an IP65 waterproof rating for durability in various weather conditions.
Product Overview
Components
The MFLASMF 10W Solar Street Light package includes the following components:
- 1 x Solar Panel with 5m (16.4 ft) Extension Cable
- 1 x 10W LED Solar Light Unit
- 1 x Remote Control
- 1 x Installation Tool Kit (screws and anchors)
- 1 x User Manual (this document)
Image: All components of the MFLASMF 10W Solar Street Light, including the solar panel, LED light unit, remote control, and mounting accessories.
Key Features
- Smart Light Sensor: Automatic illumination from dusk to dawn.
- Long Working Hours: Up to 8-12 hours of continuous operation on a full charge.
- Durable & Waterproof: Constructed from aluminum alloy with a high-quality polysilicon panel, IP65 rated for outdoor use.
- Flexible Installation: 5m (16.4 ft) cable allows separate placement of the solar panel and light unit.
- Remote Control: Offers intelligent timing, adjustable brightness, and manual ON/OFF functions.
- 180° Rotatable Bracket: Allows for multi-angle adjustment of the light.
Image: Illustration of the solar panel's energy-saving capabilities, highlighting efficient conversion rates and long-lasting illumination from the large capacity battery.
Specifications
| Feature | Specification |
|---|---|
| Solar Panel | 5V / 5W Polysilicon |
| Battery | 3.7V 2500mAh Lithium Battery |
| LED Light Source | 10 LEDs |
| Waterproof Rating | IP65 |
| Charging Time | 8 hours (full direct sunlight) |
| Working Time | 10-12 hours (fully charged) |
| Light Color | White Light |
| Lifespan | 50,000 hours |
| Extension Cable Length | 5 m (16.4 ft) |
| Remote Control Distance | Up to 6 meters |
| Weight | 1.5 kg |
Setup and Installation
Pre-Installation
- Initial Charge: Before first use, ensure the solar panel is fully charged under direct sunlight for 8 to 10 hours. This activates the battery and ensures optimal performance.
- Choose Location: Select a location for the solar panel that receives maximum direct sunlight throughout the day. The light unit can be installed in a darker area, thanks to the long extension cable.
Mounting Instructions
- Mount the Solar Panel: Using the provided screws and anchors, securely mount the solar panel in your chosen sunny location. Adjust the bracket to ensure the panel faces the sun for maximum exposure.
- Mount the Light Unit: Attach the LED light unit to a wall or desired surface using the remaining screws and anchors. The 180° rotatable bracket allows you to direct the light beam as needed.
- Connect the Cable: Connect the extension cable from the solar panel to the LED light unit. Ensure the connection is secure and waterproof.
Image: An MFLASMF solar street light installed on an outdoor wall, providing illumination to a patio. A hand holds the remote control, demonstrating its use.
Operating Instructions
The MFLASMF Solar Street Light offers both automatic and remote-controlled operation modes.
Automatic Mode (Dusk-to-Dawn)
After the initial charge and installation, the light can operate automatically:
- Press the "ON/OFF" button on the remote control twice to activate the smart light sensor.
- The light will automatically turn on at dusk and turn off at dawn.
- Ensure the solar panel is not obstructed by light sources at night, as this may prevent the light from activating.

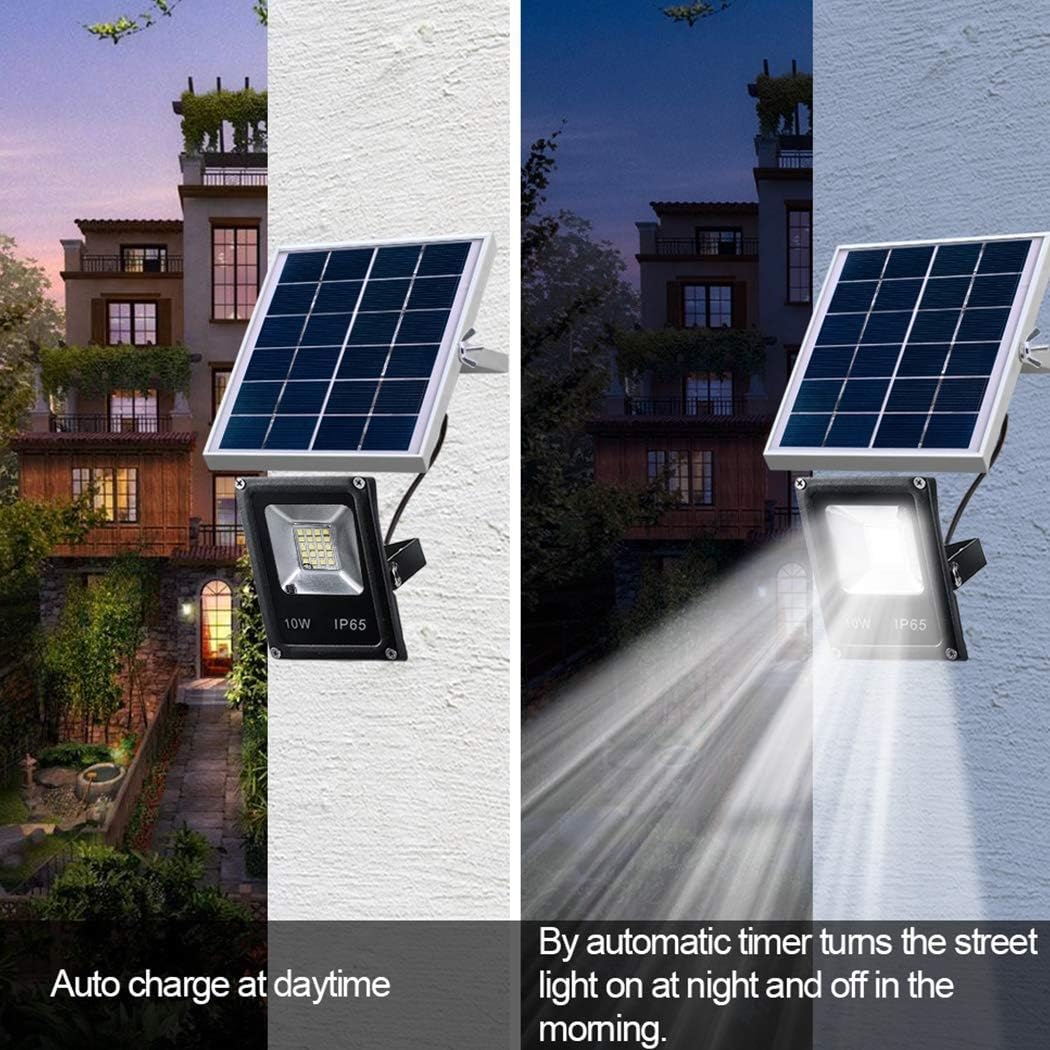

Image: A split image demonstrating the solar light's functionality: on the left, the light unit and solar panel are shown during the day, indicating automatic charging; on the right, the light is illuminated at night, demonstrating automatic activation.
Remote Control Operation
The included remote control allows for manual control and timing functions. Ensure the remote is pointed towards the light unit for effective operation (up to 6 meters distance).
Remote Control Functions
The remote control provides various settings for your solar light:
Image: A detailed diagram of the remote control, showing buttons for AUTO mode, 3h/5h/8h timing, ON/OFF, full brightness, and semi-brightness. It also indicates the 6-8 meter range and that two AAA batteries are included.
- AUTO Mode: Activates the dusk-to-dawn sensor function.
- 3H / 5H / 8H Timing Lighting: Sets the light to stay on for 3, 5, or 8 hours after activation, then turn off.
- ON: Manually turns the light on.
- OFF: Manually turns the light off.
- Full Bright Mode: Sets the light to maximum brightness.
- Semi Bright Mode: Sets the light to a reduced brightness level.
Note: The remote control requires 2 AAA batteries (included). Ensure the remote is pointed directly at the light unit for optimal response.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your solar street light.
- Clean the Solar Panel: Periodically wipe the solar panel surface with a soft, damp cloth to remove dust, dirt, leaves, or snow. A clean panel ensures efficient charging.
- Inspect Connections: Occasionally check the cable connections between the solar panel and the light unit to ensure they remain secure and free from damage.
- Battery Care: The integrated lithium battery is designed for long life. Avoid prolonged storage of the light in a completely discharged state. If storing, ensure it is charged periodically.
- Weather Resistance: The IP65 rating means the light is protected against dust and low-pressure water jets. While designed for outdoor conditions, extreme weather may temporarily affect performance.
Troubleshooting
If you encounter issues with your MFLASMF Solar Street Light, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on at night. | Insufficient solar panel charge. | Ensure the solar panel is placed in direct sunlight for 8-10 hours. Clean the panel surface. |
| Solar panel is obstructed or in shade. | Relocate the solar panel to an area with maximum sun exposure. | |
| Light sensor detects ambient light. | Ensure no other light sources (streetlights, house lights) are shining on the solar panel at night. | |
| Light is dim or only stays on for a short time. | Battery not fully charged due to cloudy weather or insufficient sunlight. | Allow several days of full sunlight for the battery to fully charge. Performance depends on geographical location and weather. |
| Remote control is not working. | Remote batteries are dead or incorrectly inserted. | Replace the 2 AAA batteries in the remote control. Check polarity. |
| Remote not pointed at the light unit. | Ensure the remote is aimed directly at the light unit within the 6-meter range. |
If problems persist after attempting these solutions, please contact customer support.
Warranty and Support
The MFLASMF 10W Solar Street Light comes with a 12-month worry-free warranty from the date of purchase.
This warranty covers manufacturing defects and malfunctions under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or natural disasters.
For warranty claims, technical support, or any questions regarding your product, please contact MFLASMF customer service through your purchase platform. Please have your order number and product model readily available.
Important Safety Information
- Do not attempt to disassemble or modify the product. This may cause damage and void the warranty.
- Keep the product away from fire or extreme heat sources.
- Ensure all connections are secure and waterproof during installation.
- Do not stare directly into the LED light when it is on, as it may cause eye strain.
- Dispose of the product and its components (especially batteries) according to local regulations.
