KOVHIHAV 12V Li-ion Replacement Battery User Manual

Introduction

This manual provides essential information for the safe and effective use of your KOVHIHAV 12V Li-ion Replacement Battery. This battery is designed to be compatible with Craftsman Nextec 9-11221 tools and replaces part number 320.11221. Please read all instructions carefully before initial use and retain this manual for future reference.

Safety Information

Lithium-ion batteries require careful handling. Adhere to the following safety guidelines:

• Do not disassemble: Attempting to disassemble the battery can lead to electric shock, fire, or exposure to hazardous materials.
• Avoid short circuits: Do not short-circuit the battery terminals. This can cause severe heat, fire, and explosion.
• Proper disposal: Do not dispose of the battery in fire. Lithium-ion batteries can explode when exposed to high temperatures. Dispose of batteries according to local regulations.
• Charging temperature: Only charge the battery within the recommended temperature range of 40°F-105°F (4°C-40°C).
• Storage: Store the battery in a cool, dry place away from direct sunlight and extreme temperatures.
• Use compatible chargers: Always use a charger specifically designed for 12V Lithium-ion batteries compatible with Craftsman Nextec tools.
• Keep away from children: Store batteries out of reach of children.

Setup

1. Initial Charging

Before first use, fully charge the battery. Connect the battery to a compatible 12V Lithium-ion charger. The charger's indicator light will typically show when charging is complete.

2. Battery Installation

Ensure your Craftsman Nextec tool is turned off before installing or removing the battery. Align the battery with the battery slot on your tool and slide it in until it clicks securely into place. Ensure a firm connection to prevent power interruptions during operation.

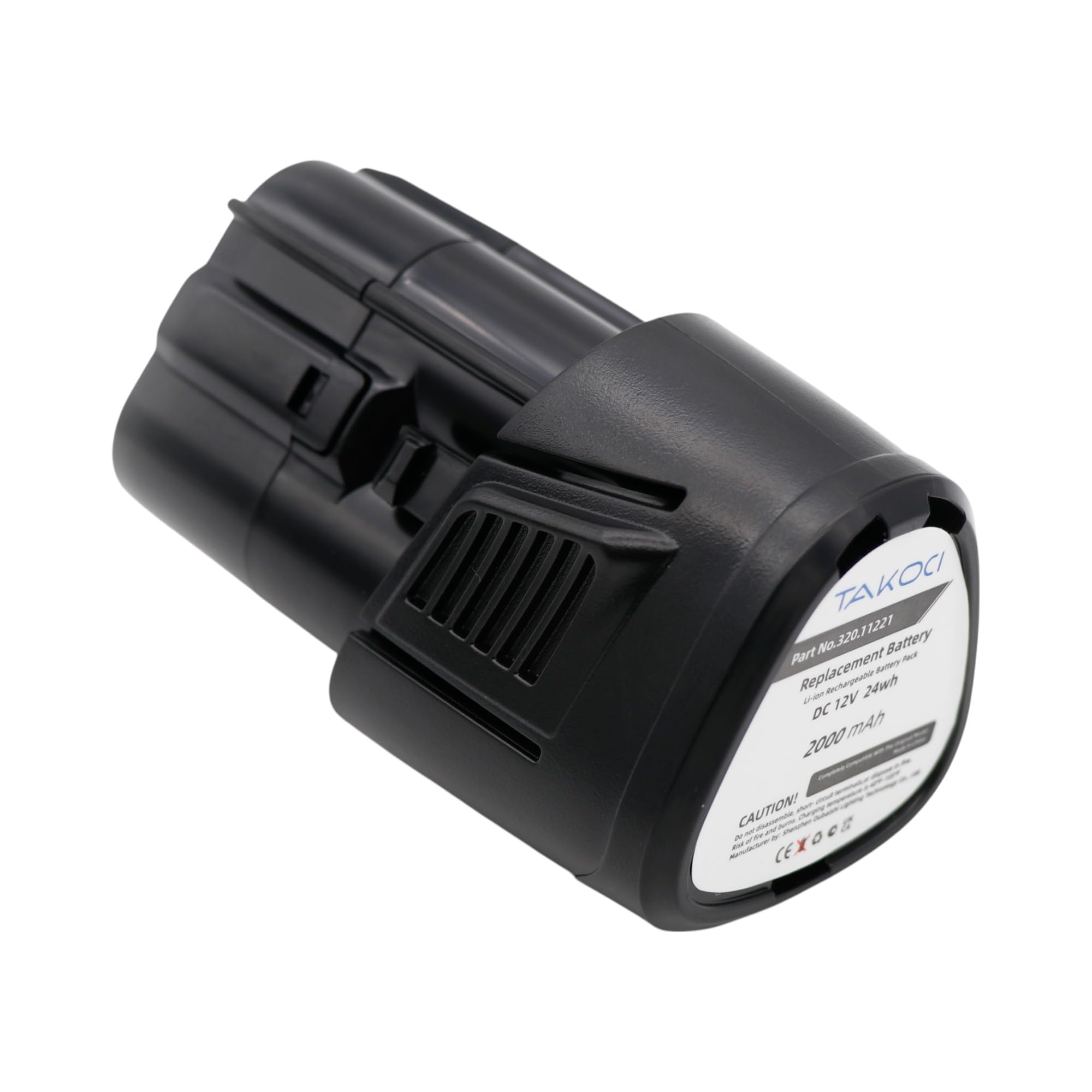

Figure 1: Side view of the KOVHIHAV 12V Li-ion Replacement Battery, showing its general shape and design for compatibility with Craftsman Nextec tools.

Figure 2: Bottom view of the battery, illustrating the electrical contacts that connect to the power tool. Ensure these contacts are clean and free of debris for optimal performance.

Operating Instructions

1. Charging the Battery

• Always use the appropriate 12V Li-ion charger for Craftsman Nextec batteries.
• Insert the battery into the charger. Follow the charger's instructions for proper connection.
• Monitor the charger's indicator lights to determine charging status. Disconnect once fully charged.
• Avoid overcharging, though modern Li-ion chargers typically have protection circuits.

2. Using the Battery

• Once installed, operate your tool as per its own instruction manual.
• Do not force the battery into the tool or charger.
• If the tool's performance decreases significantly, the battery may need recharging.

3. Removing the Battery

Turn off the tool. Press the battery release button (if present on your tool) and slide the battery out of the tool's housing.

Maintenance

1. Storage

• For long-term storage, store the battery at approximately 50% charge.
• Store in a cool, dry place, away from direct sunlight, moisture, and extreme temperatures (below 32°F / 0°C or above 120°F / 49°C).
• Recharge the battery every 3-6 months during long storage periods to prevent deep discharge.

2. Cleaning

• Keep battery terminals clean and free of dirt or grease. Use a clean, dry cloth to wipe them if necessary.
• Do not use solvents or harsh chemicals to clean the battery.

3. Disposal

Do not dispose of Lithium-ion batteries with household waste. They contain materials that can be harmful to the environment. Contact your local waste management authority for information on proper recycling or disposal options for Li-ion batteries.

Troubleshooting

• Battery not charging:
  • Ensure the battery is properly seated in the charger.
  • Verify the charger is plugged into a working power outlet.
  • Check for any damage to the battery or charger.
  • Ensure the charging temperature is within the recommended range (40°F-105°F).
• Short run time:
  • Ensure the battery is fully charged before use.
  • Battery capacity can decrease over time with repeated charge cycles.
  • Operating tools in extreme temperatures can affect battery performance.
• Battery not fitting into tool/charger:
  • Verify that the battery model (Nextec 9-11221 / 320.11221) is compatible with your specific tool or charger.
  • Check for any obstructions or debris in the battery slot of the tool or charger.
  • Do not force the battery.

Specifications

Figure 3: Top view of the battery, displaying the product label with key specifications and safety warnings.

Warranty and Support

Warranty Information

This KOVHIHAV replacement battery comes with a 1-Year Replacement Warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by misuse, abuse, unauthorized modification, or improper storage.

Customer Support

If you have any questions regarding the compatibility, operation, or maintenance of your battery, or if you encounter any issues, please contact the seller or manufacturer for assistance. Providing details of your battery and tool model, along with any relevant pictures, can help expedite support.
