Solar Power Bank 20000mAh User Manual

Introduction

Thank you for choosing the TOENNESEN Solar Power Bank 20000mAh. This portable power bank is designed to provide reliable power for your electronic devices on the go, featuring dual USB outputs, a powerful LED flashlight, and a durable, waterproof design. Please read this manual carefully before use to ensure optimal performance and safety.

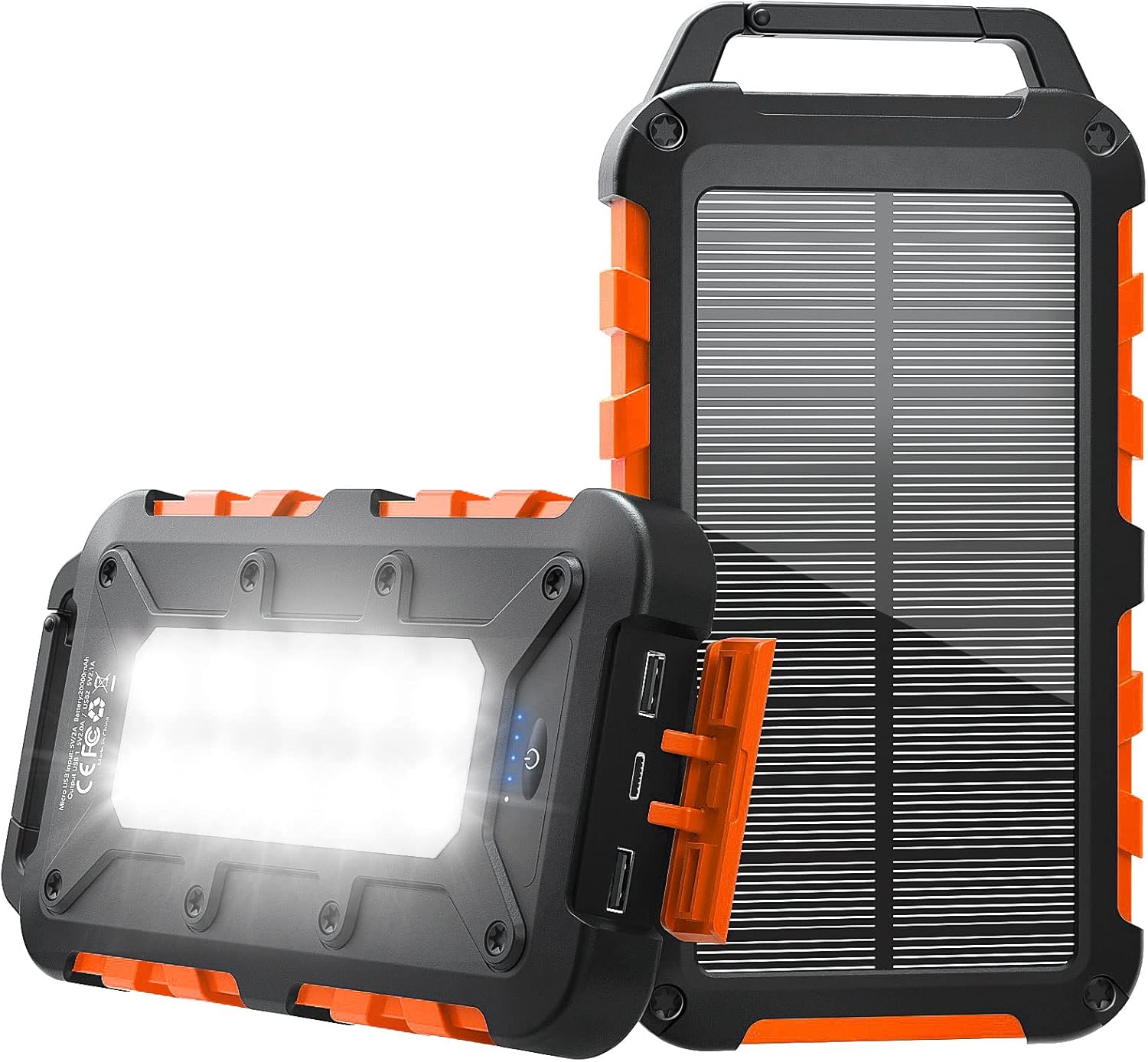

Image: The TOENNESEN Solar Power Bank, showcasing its robust design and integrated solar panel and LED flashlight.

Safety Information

To ensure safe operation and prolong the lifespan of your power bank, please observe the following precautions:

• Do not expose the power bank to extreme temperatures (above 60°C/140°F or below -10°C/14°F), direct sunlight for prolonged periods, or fire.
• Avoid dropping, disassembling, or attempting to repair the device yourself. This may cause damage and void the warranty.
• Keep away from water and liquids. While IPX4 waterproof, it is not designed for submersion.
• Use only certified charging cables and adapters.
• Keep out of reach of children.
• The power bank features a smart chip for multiprotection, including overcurrent, high temperature, overcharge, and overvoltage protection. This ensures safe charging for both the power bank and your connected devices.

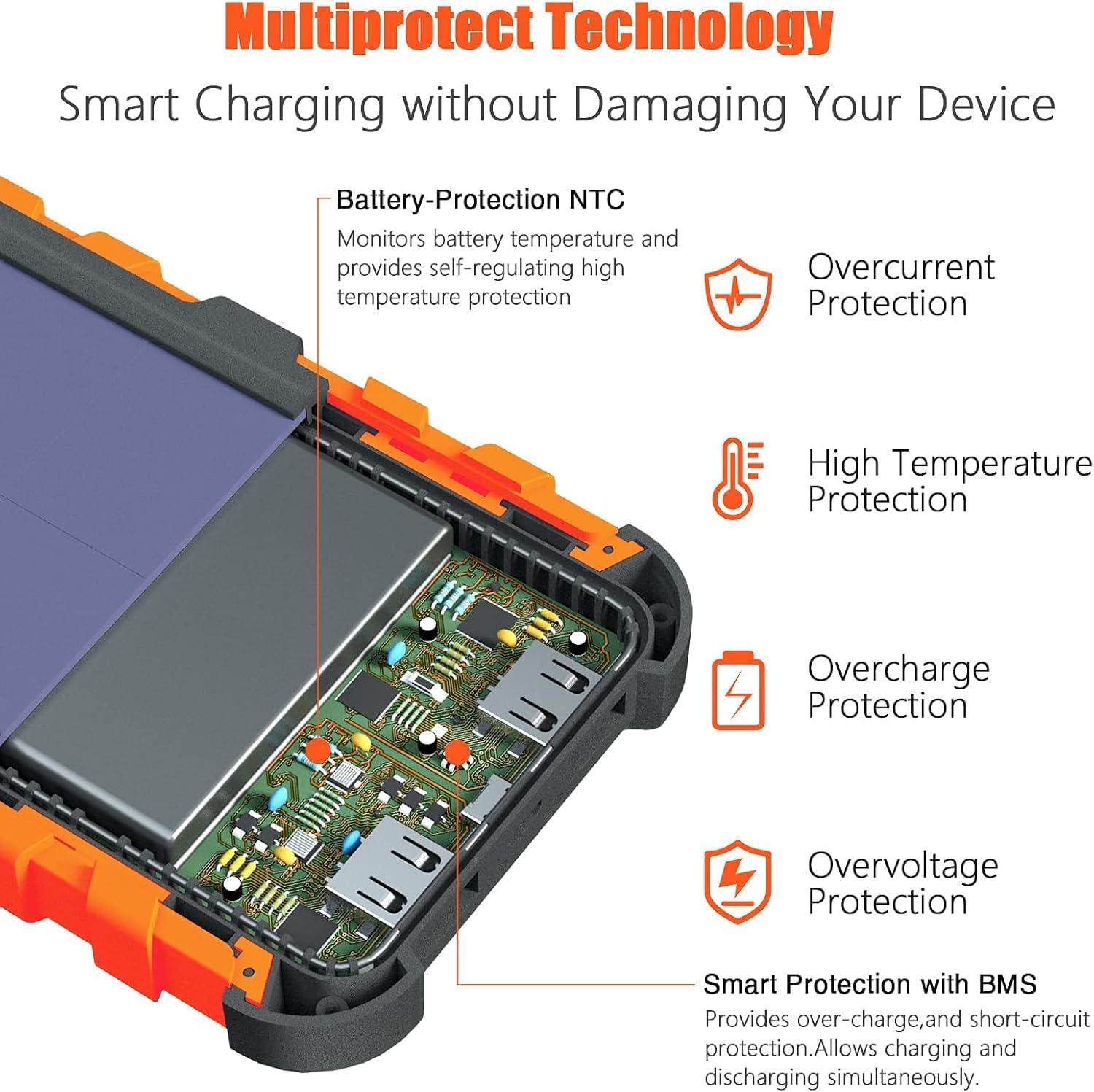

Image: Illustration detailing the multi-protection technology integrated into the power bank for safe charging.

What's in the Box

Upon unpacking your TOENNESEN Solar Power Bank, please ensure all items are present:

• 1 x TOENNESEN Solar Power Bank 20000mAh (Model: R-153A)
• 1 x Micro USB Cable
• 1 x User Manual

Image: The solar power bank, its packaging, micro USB cable, and user manual as included in the box.

Product Overview

Familiarize yourself with the components of your solar power bank:

• Solar Panel: Located on the front, for supplemental charging under direct sunlight.
• LED Flashlight: 10 bright LED bulbs for illumination.
• USB Output Ports (x2): For charging external devices (5V/2.1A and 5V/2A).
• Micro USB Input Port: For charging the power bank via wall adapter.
• Power Button: To turn on/off the device and activate the flashlight.
• LED Indicators: Display battery level and charging status.
• Carabiner Loop: For easy attachment to backpacks or gear.

Image: A detailed view of the power bank's side, highlighting the USB output ports, input port, and power indicator lights.

Setup

Initial Charging (Recommended)

Before first use, fully charge the power bank via a wall outlet using the provided Micro USB cable. This ensures the internal battery is fully activated and calibrated.

1. Connect the Micro USB cable to the power bank's input port.
2. Connect the other end of the cable to a USB wall adapter (not included) or a computer's USB port.
3. The LED indicators will light up to show charging progress. All four LEDs will be solid when fully charged.

Image: The power bank being charged via its Micro USB input port.

Solar Charging (Supplemental)

The solar panel is designed for emergency use and supplemental charging. It is not intended as the primary charging method due to the slower charging speed compared to wall charging.

1. Place the solar panel directly under strong sunlight.
2. The solar charging indicator will illuminate (usually green) to confirm charging is active.
3. For optimal solar charging, ensure the panel is clean and unobstructed.

Operating Instructions

Charging Your Devices

1. Connect your device's USB charging cable to one of the power bank's USB output ports.
2. The power bank will automatically begin charging your device. If not, press the power button once to activate.
3. The LED indicators will show the remaining battery level of the power bank.
4. You can charge two devices simultaneously using both USB output ports.

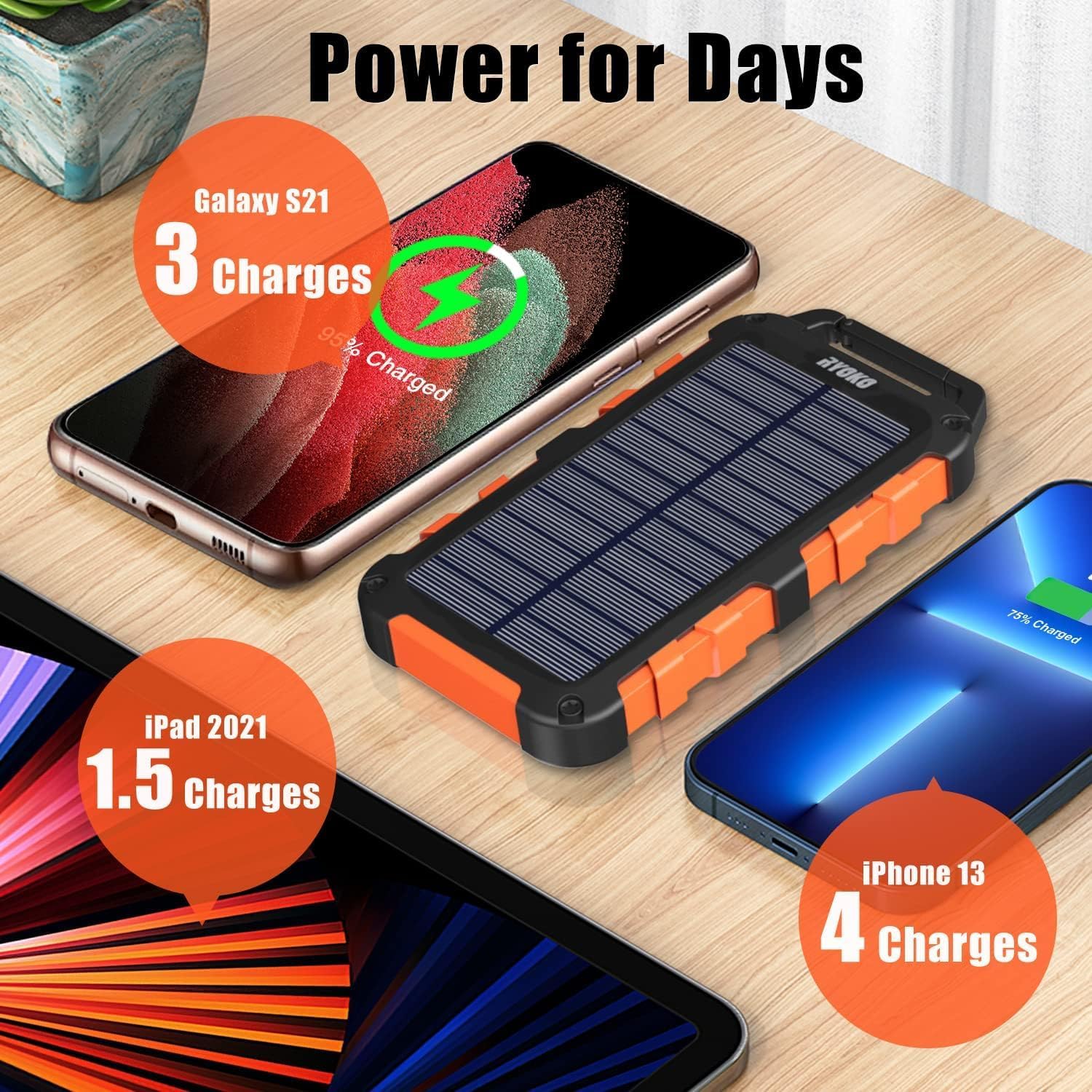

Image: The power bank connected to and charging various electronic devices, demonstrating its capacity.

Image: A visual representation of the wide compatibility of the power bank with different electronic devices.

Using the LED Flashlight

The integrated 10-LED flashlight offers powerful illumination for various situations.

1. To turn on/off: Press and hold the power button for approximately 3 seconds.
2. To cycle modes: Once the flashlight is on, short press the power button to switch between modes (e.g., constant light, SOS, strobe).

Image: Examples of the power bank's LED flashlight in use, demonstrating its brightness and utility in various settings.

Image: A detailed view of the 10-LED flashlight and its activation button.

Maintenance

• Cleaning: Use a soft, dry cloth to clean the power bank. Do not use harsh chemicals or abrasive materials. Ensure the solar panel is clean for efficient solar charging.
• Storage: Store the power bank in a cool, dry place away from direct sunlight and extreme temperatures when not in use. For long-term storage, charge the power bank to about 50-70% every 3 months to maintain battery health.
• Durability: The power bank is designed to be IPX4 waterproof, dust-proof, and shockproof, making it suitable for various outdoor environments. However, avoid intentional submersion or severe impacts.

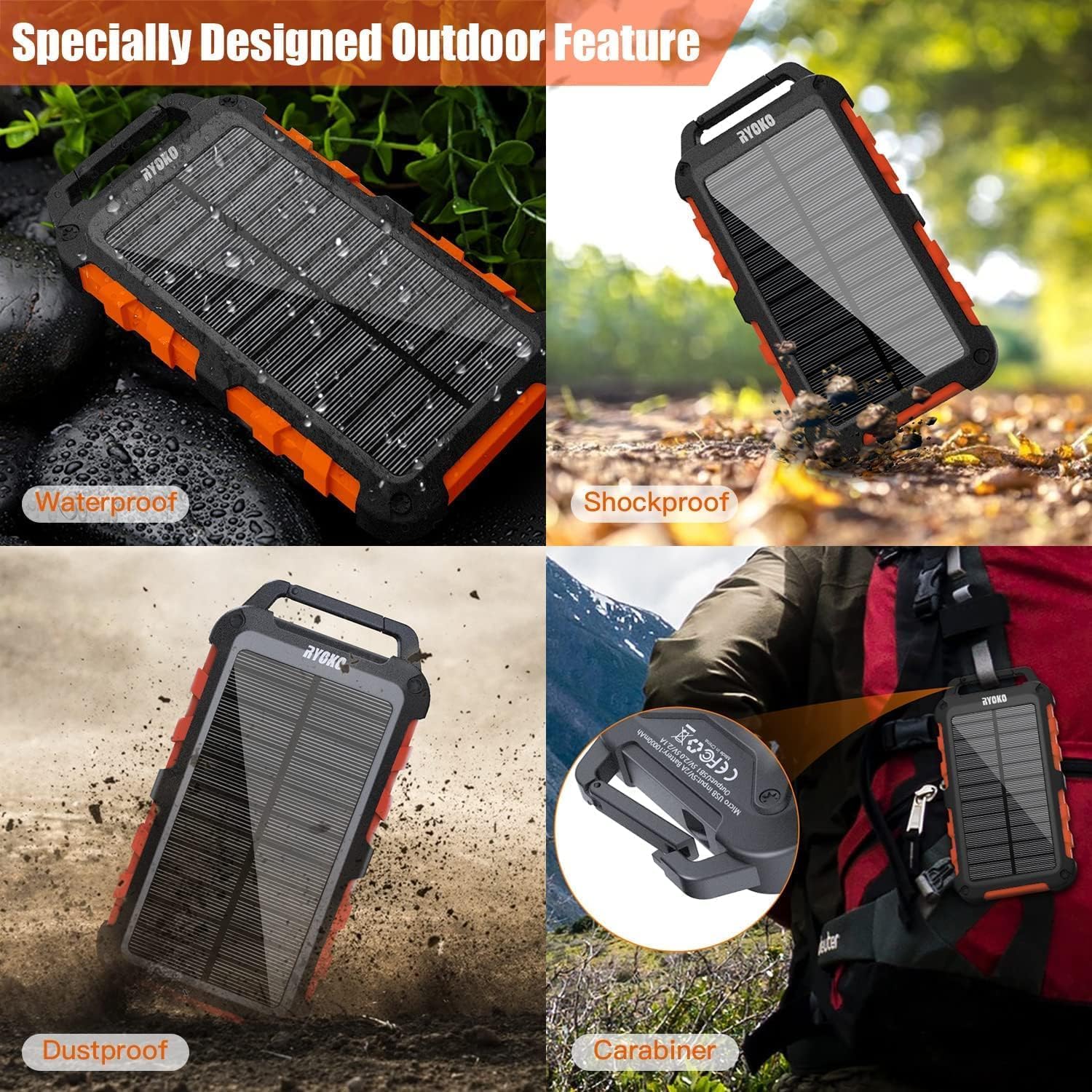

Image: Visual representation of the power bank's waterproof, shockproof, and dustproof capabilities, along with its integrated carabiner loop.

Image: The power bank demonstrating its resilience against shock, dust, and rain.

Troubleshooting

Specifications

Warranty and Support

TOENNESEN provides a standard warranty for this product. For detailed warranty information, please refer to the warranty card included with your purchase or visit the official TOENNESEN website. If you encounter any issues or have questions regarding your Solar Power Bank, please contact our customer support team:

• Email: [Insert Manufacturer Email Here, if available in data, otherwise placeholder]
• Phone: [Insert Manufacturer Phone Here, if available in data, otherwise placeholder]
• Website: TOENNESEN Store on Amazon

Please have your model number (R-153A) and purchase date ready when contacting support.
