1. Safety Information
Please read and understand all instructions before installing or using this product. Failure to do so may result in electric shock, fire, or other hazards that could cause injury or property damage.
- Electrical Safety: Always turn off power at the circuit breaker before beginning installation. Ensure all electrical connections comply with local codes and ordinances. If you are unsure about wiring, consult a qualified electrician.
- Product Integrity: Do not modify the product in any way. Any alterations may void the warranty and create safety hazards.
- Operating Environment: This fixture is rated for indoor and wet locations. Do not expose to direct water spray or submersion.
- Heat: LED fixtures generate heat. Ensure adequate ventilation around the fixture. Do not cover the fixture with insulating material unless it is IC-rated (this product is IC-rated).
2. Product Overview
The Energetic 5/6 Inch LED Recessed Dimmable Downlight is designed for easy retrofit installation into existing 5-inch or 6-inch recessed can housings. It provides 1000 lumens of 3000K Warm White light with seamless dimming capabilities.
Key Features:
- Dimmable: Smooth dimming from 5% to 100%.
- Energy Efficient: 12W LED replaces 150W incandescent, saving up to 90% energy.
- Color Temperature: 3000K Warm White.
- Brightness: 1000 Lumens.
- Certifications: ETL Listed, FCC compliant, IC Rated for direct contact with insulation.
- Durability: Aluminum and plastic construction with a metal baffle trim. Wet rated.
- Lifespan: 50,000+ hours.
Components Included:
- LED Downlight Fixture
- E26 Base Adapter
- Springs (require manual installation)
Product Dimensions:
The fixture measures approximately 7.32 inches in length, 7.32 inches in width, and 2.42 inches in height.
3. Setup & Installation
This LED recessed downlight is designed for simple retrofit installation into existing 5-inch or 6-inch recessed can housings. Ensure the power is OFF at the circuit breaker before starting.

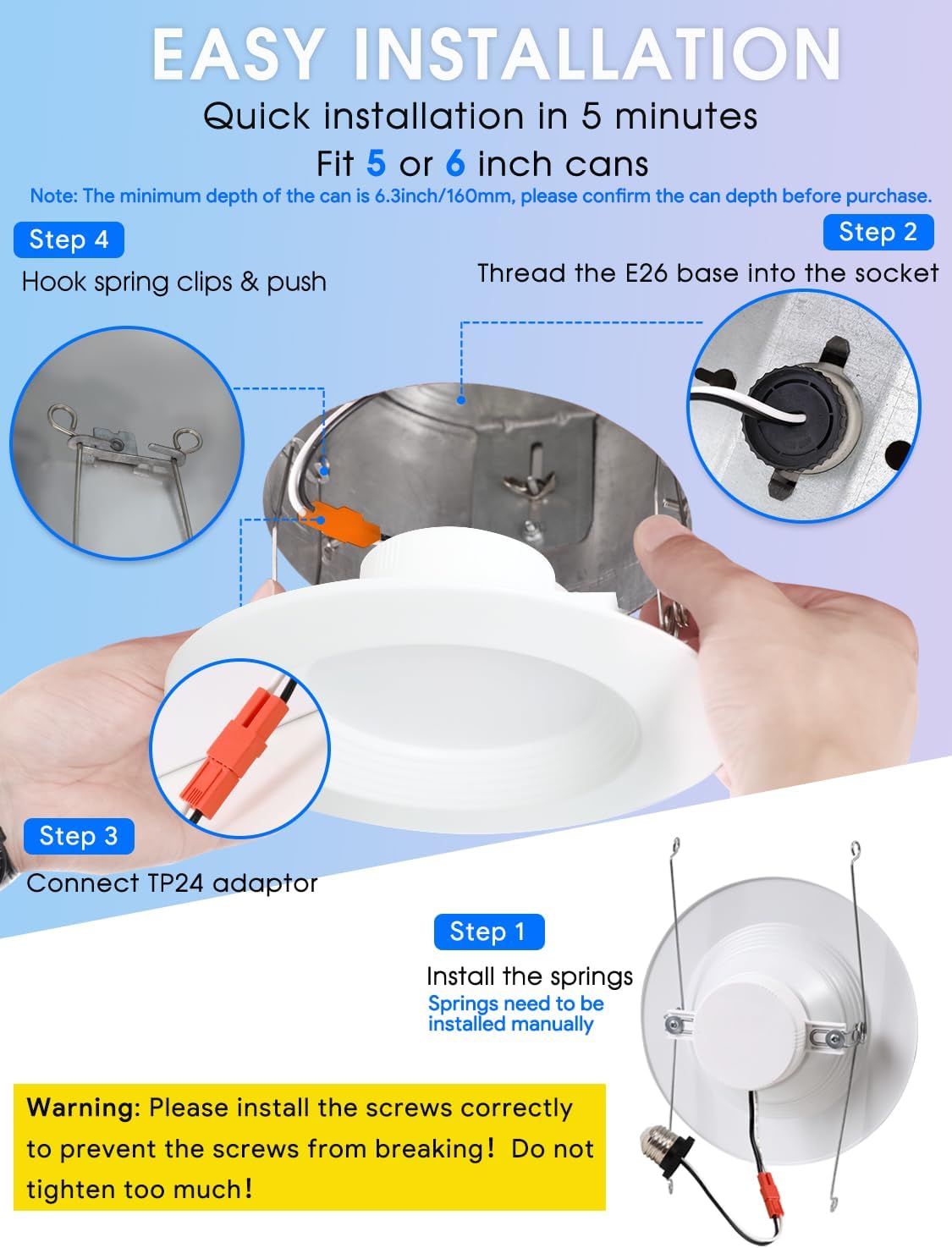

Installation Steps:
- Install the Springs: The springs need to be manually installed onto the fixture. Ensure they are securely attached.
- Thread the E26 Base: Screw the E26 base adapter into the existing E26 socket inside your recessed can.
- Connect TP24 Adaptor: Connect the TP24 adaptor from the fixture to the E26 base adapter. Ensure a secure connection.
- Hook Spring Clips & Push: Gently push the spring clips upwards and insert the fixture into the recessed can. The springs will hold the fixture flush against the ceiling.
Important Note: The minimum depth of the existing recessed can must be 6.3 inches (160mm). Please confirm your can depth before purchase. Ensure screws are installed correctly and do not overtighten to prevent breakage.
4. Operating Instructions
Once installed, the Energetic LED Recessed Downlight operates like a standard light fixture. It is designed for use with compatible dimmers to adjust brightness.
Dimming Functionality:
This fixture offers seamless dimming from 5% to 100%. To utilize the dimming feature, ensure you are using a compatible LED dimmer switch. Refer to the dimmer manufacturer's instructions for proper operation.
Light Output:
The downlight provides 1000 lumens of 3000K Warm White light, suitable for creating a comfortable and inviting atmosphere in various indoor spaces.
5. Maintenance
The Energetic LED Recessed Downlight requires minimal maintenance.
- Cleaning: Ensure the power is off before cleaning. Wipe the fixture with a soft, dry, or slightly damp cloth. Do not use harsh chemicals, abrasive cleaners, or solvents, as these can damage the finish or electrical components.
- Bulb Replacement: This fixture uses integrated LED chips and does not require bulb replacement.
6. Troubleshooting
If you encounter issues with your LED recessed downlight, refer to the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on | No power to the fixture; Loose wiring; Faulty fixture | Check circuit breaker; Verify all connections are secure; Contact support if fixture is faulty. |
| Light flickers | Incompatible dimmer switch; Loose wiring; Voltage fluctuations | Ensure dimmer is LED compatible; Check wiring connections; Consult an electrician for voltage issues. |
| Light does not dim properly | Incompatible dimmer switch; Dimmer not calibrated | Use an LED-compatible dimmer; Refer to dimmer instructions for calibration. |
| Fixture falls out of can | Springs not properly installed or secured; Can depth insufficient | Re-install springs securely; Ensure can depth meets minimum requirement (6.3 inches). |
If these steps do not resolve the issue, please contact customer support.
7. Specifications
| Specification | Detail |
|---|---|
| Brand | E ENERGETIC LIGHTING |
| Model Number | 6IN-1000LM-3000K |
| Color Temperature | 3000K Warm White |
| Wattage | 12 Watts (150W Equivalent) |
| Brightness | 1000 Lumens |
| Voltage | 120 Volts |
| Dimmable | Yes, 5%-100% |
| Material | Aluminum, Plastic |
| Light Fixture Form | Recessed |
| Installation Type | Recessed |
| Indoor/Outdoor Usage | Indoor |
| Water Resistance Level | Water Resistant (Wet Rated) |
| Special Features | 50,000+ Hours Lifespan, Less Heat Output, Shatter Resistant |
| Certifications | ETL, FCC, IC Rated |
| Product Dimensions | 7.32"L x 7.32"W x 2.42"H |
| Item Weight | 3 Pounds |
| Bulb Base | E26 |
| Color Rendering Index (CRI) | 80 |
8. Warranty & Support
Warranty Information:
This Energetic LED Recessed Downlight comes with a 5-year service warranty. The warranty type is manufacturer-and-seller-combination, covering defects in materials and workmanship under normal use.
Customer Support:
For technical assistance, warranty claims, or any questions regarding your product, please contact the manufacturer's customer service. Refer to your purchase documentation for specific contact details.
