Product Overview
The EV ChargePlus 32A SAE J1772 Level 2 replacement cable is designed for seamless integration with all EV charging stations, electric vehicles (BEV), and plug-in hybrids (PHEV) adhering to Type 1 SAE J1772 standards. This 20-foot cable provides ample maneuvering space and features an ergonomic handle with a lock-unlock mechanism for practical use.
Image: The EV ChargePlus 32A SAE J1772 Level 2 Replacement Cable, showing the J1772 connector and the open-end wires.
Installation Guide
Installation of the Level 2 SAE J1772 EV cable requires careful attention to electrical connections. It is highly recommended to use certified electrician services for installation to ensure safety and proper functionality. An installation video is available on the product page for visual guidance.
Required Tools:
- Screwdriver
- AWG20-10 Crimper
- Cable Stripper
- Box Cutter
Image: Illustration of the tools required for the cable replacement process, including a screwdriver, crimper, cable stripper, and box cutter.
Wiring Information:
The cable features labeled wires for correct connection:
- PE (Yellow/Green) – Ground
- L1 (Red) – 1-Phase Line 1
- L2/N (Black) – Neutral Line 2
- CP (Purple) – Control Pilot
Image: A detailed view of the Level 2 EVSE Replacement Cable, highlighting the 32A capacity, 20-foot length, and the color-coded labeled wires (PE, L1, L2/N, CP).
Operation
The EV ChargePlus replacement cable is designed for straightforward operation once installed. It is universally compatible with all EV charging stations and electric vehicles that adhere to Type 1 SAE J1772 standards. For Tesla models, an adapter is required.
Compatibility:
This cable is compatible with Type 1 SAE J1772 standard plugs, fitting most US electric vehicles. Examples include:
- Audi e-Tron
- BMW i3
- Chevrolet Bolt
- Ford Mustang Mach-E
- Hyundai Ioniq 5
- Rivian R1S
- Volkswagen ID.4
- Tesla Models (with adapter)
Image: A close-up of the SAE J1772 connector, illustrating its Type 1 standard plug design and listing compatible electric vehicle models.
Ergonomic Design:
The cable features an ergonomic handle for a comfortable grip during connection and disconnection. It includes a lock-unlock mechanism for secure attachment to the vehicle's charging port. An integrated dust cover protects the connector when not in use.

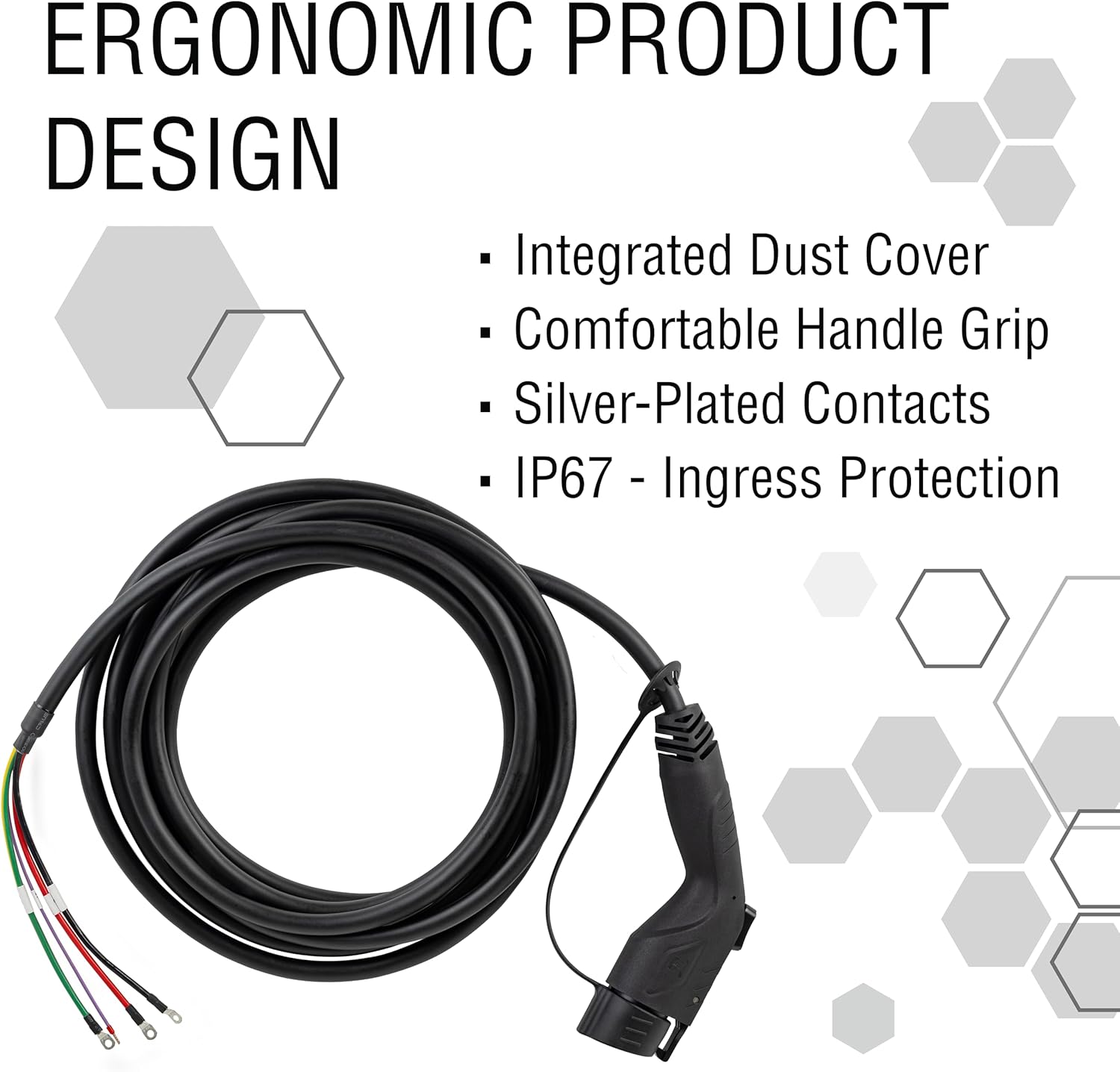

Image: The EV charging cable showcasing its ergonomic design, including the comfortable handle grip, integrated dust cover, and the overall robust construction.
Care and Maintenance
The EV ChargePlus replacement cable is built for durability and longevity. To ensure optimal performance and extend the product's lifespan, follow these general care guidelines:
- Storage: Store the cable in a clean, dry place when not in use. The included compact travel case is ideal for organized storage.
- Handling: Avoid bending or kinking the cable sharply. Do not drive over the cable.
- Cleaning: If necessary, wipe the cable and connector with a clean, damp cloth. Ensure the connector is dry before use.
- Protection: The cable features an IP44 waterproof design (IP67 ingress protection for the connector) and is built to withstand impact, pressure, and abrasion. Silver-plated copper alloy contacts prevent overheating and provide better conductivity.

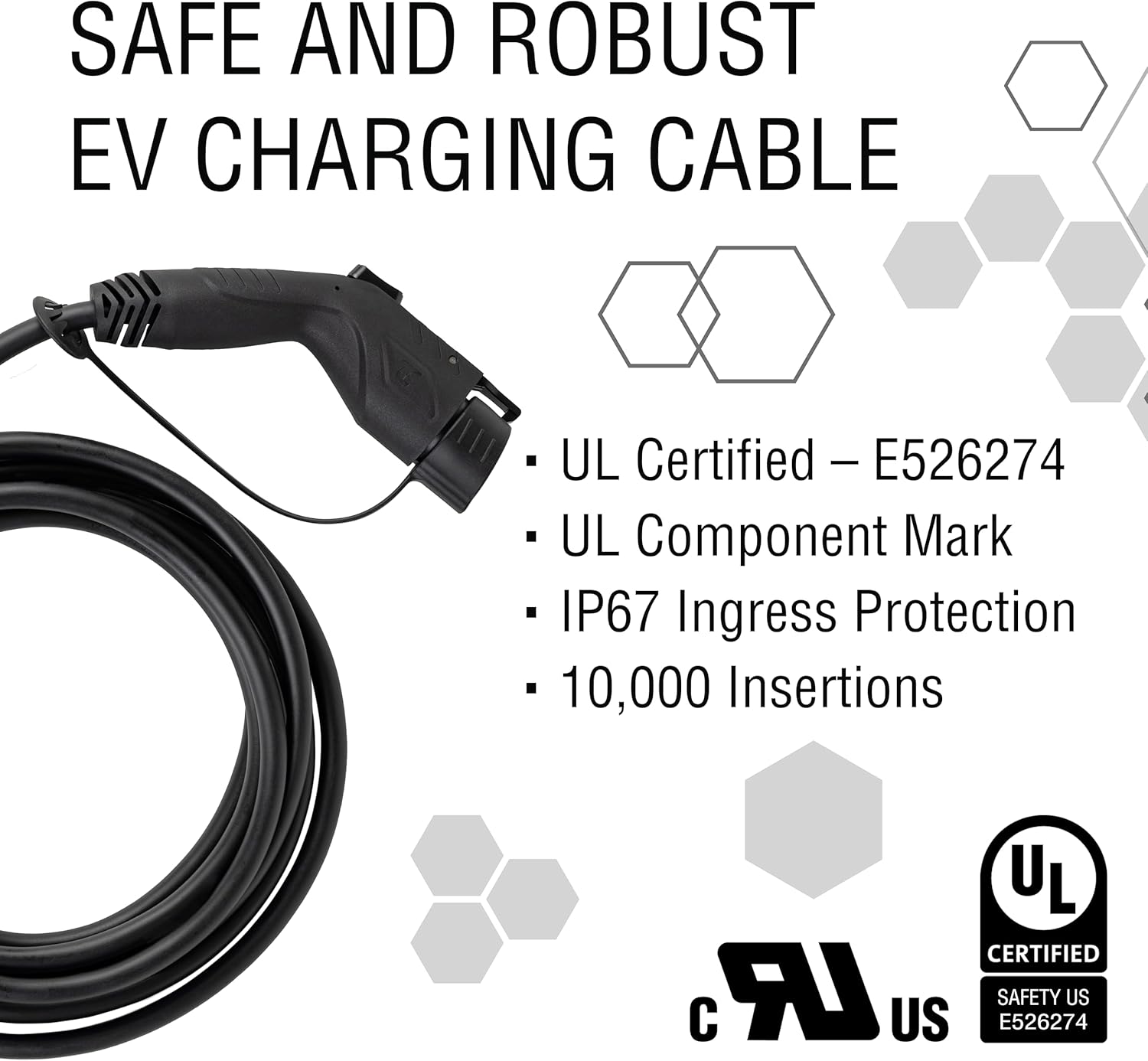

Image: The EV charging cable highlighting its safety and robustness, including UL certification, IP67 ingress protection, and a durability rating of 10,000 insertions.
The cable is designed for up to 10,000 insertions, indicating a long operational life under normal use.
Troubleshooting
If you encounter issues with your EV ChargePlus replacement cable, consider the following common solutions:
- Charging Interruption: Ensure all connections are secure and fully inserted. Check the charging station and vehicle for any error indicators.
- Wiring Issues (during installation): If you are performing the installation yourself, double-check the wire connections against the provided wiring information (PE, L1, L2/N, CP). Incorrect wiring can lead to charging failures. If unsure, consult a certified electrician.
- Cable Damage: Inspect the cable for any visible signs of damage, cuts, or severe kinks. Do not use a damaged cable.
- Compatibility: Verify that your vehicle and charging station are compatible with the SAE J1772 Type 1 standard. Remember that Tesla vehicles require a specific adapter.
For persistent issues or complex problems, it is recommended to contact EV ChargePlus customer support or a qualified electrician.
Technical Specifications
| Feature | Detail |
|---|---|
| Brand | EV + |
| Model Number | EN-WB-CC-RL-32-20F |
| Connector Type | SAE J1772 (Type 1) |
| Compatible Devices | Type 1 Electric Vehicle Charging Stations |
| Amperage | 32 Amps |
| Voltage | 240 Volts |
| Cable Length | 20 feet |
| Color | Black/White |
| Item Weight | 6.29 pounds (2.86 Kilograms) |
| Ingress Protection | IP44 (cable), IP67 (connector) |
| Certifications | UL Certified (E526274), CE, TUV |
| Durability | Up to 10,000 insertions |
| Special Features | Travel-friendly, Ergonomic Design, Silver-Plated Contacts |
| Included Accessories | Compact travel case, air freshener |
Warranty Information
The EV ChargePlus 32A SAE J1772 Level 2 replacement cable comes with a 12-month warranty from the date of purchase. This warranty covers manufacturing defects and ensures the product meets its performance standards under normal use.
For warranty claims or detailed information regarding the terms and conditions, please retain your proof of purchase and contact EV ChargePlus customer support.
Customer Support
For any questions, technical assistance, or support regarding your EV ChargePlus Level 2 EV Charger Replacement Cord, please do not hesitate to contact us. Our team is committed to providing fast, safe, and reliable solutions.
You can find contact information on the official EV + website or through the retailer where you purchased the product. Please have your product model number (EN-WB-CC-RL-32-20F) and purchase details ready when contacting support.
