1. Introduction
This manual provides comprehensive instructions for the safe and efficient use of your vidaXL Wall-Mounted Tool Cabinet, Model 145354. It covers assembly, operation, maintenance, and troubleshooting. Please read this manual thoroughly before assembly and use, and retain it for future reference.
The vidaXL Wall-Mounted Tool Cabinet is designed for organizing and storing tools and equipment in garages, workshops, or utility rooms. Its industrial style, durable metal construction, and lockable door provide secure and efficient storage.
2. Safety Information
- Read all instructions carefully before assembly and use.
- Keep children and pets away from the assembly area.
- Ensure the cabinet is securely mounted to a suitable wall structure (e.g., wall studs) to prevent tipping. Use appropriate wall mounting hardware for your wall type.
- Do not overload the shelves. Distribute weight evenly.
- Use appropriate tools for assembly and wear protective gear if necessary.
- Avoid placing heavy or sharp objects on the top surface of the cabinet without proper support.
3. Package Contents
Before beginning assembly, verify that all parts are present and undamaged. If any parts are missing or damaged, do not proceed with assembly and contact customer support.
Expected components include:
- Cabinet panels (sides, top, bottom, back, door)
- Adjustable shelf
- Shelf supports/pins
- Lock mechanism and keys
- Assembly hardware (screws, nuts, bolts)
- Wall mounting hardware (screws, anchors)
4. Setup and Assembly
Assembly is required for this cabinet. Follow the step-by-step instructions provided in the included assembly guide (if separate) or the general steps below. It is recommended to have two people for wall mounting.
- Assemble the Cabinet Frame: Connect the side panels to the top, bottom, and back panels using the provided hardware. Ensure all connections are secure.
- Install the Door: Attach the cabinet door to the frame using the hinges. Ensure the door opens and closes smoothly.
- Install the Lock: Integrate the lock mechanism into the door as instructed. Test the lock with the provided keys.
- Prepare for Wall Mounting: Choose a suitable location on a sturdy wall. Use a stud finder to locate wall studs for secure attachment. Mark the drilling points accurately.
- Mount the Cabinet: Drill pilot holes as marked. Securely attach the cabinet to the wall using the appropriate wall mounting hardware. Ensure the cabinet is level and firmly fixed to prevent movement.
- Install Adjustable Shelf: Insert the shelf supports into the desired pegboard holes inside the cabinet. Place the adjustable shelf onto the supports.
Figure 4.1: Overall dimensions of the vidaXL Wall-Mounted Tool Cabinet (40 x 19 x 60 cm).
Figure 4.2: Interior view of the cabinet showing the adjustable shelf and pegboard design.
Figure 4.3: Detail of the pegboard system for shelf adjustment and tool organization.
5. Operating Instructions
- Opening the Cabinet: Insert the key into the lock on the door and turn it to the unlocked position. Pull the door open.
- Closing and Locking: Close the cabinet door firmly. Insert the key into the lock and turn it to the locked position. Remove the key to secure the contents.
- Adjusting the Shelf: To change the height of the internal shelf, first remove all items from the shelf. Lift the shelf off its supports. Reposition the shelf supports into the desired holes on the internal pegboard. Carefully place the shelf back onto the supports, ensuring it is level and stable.

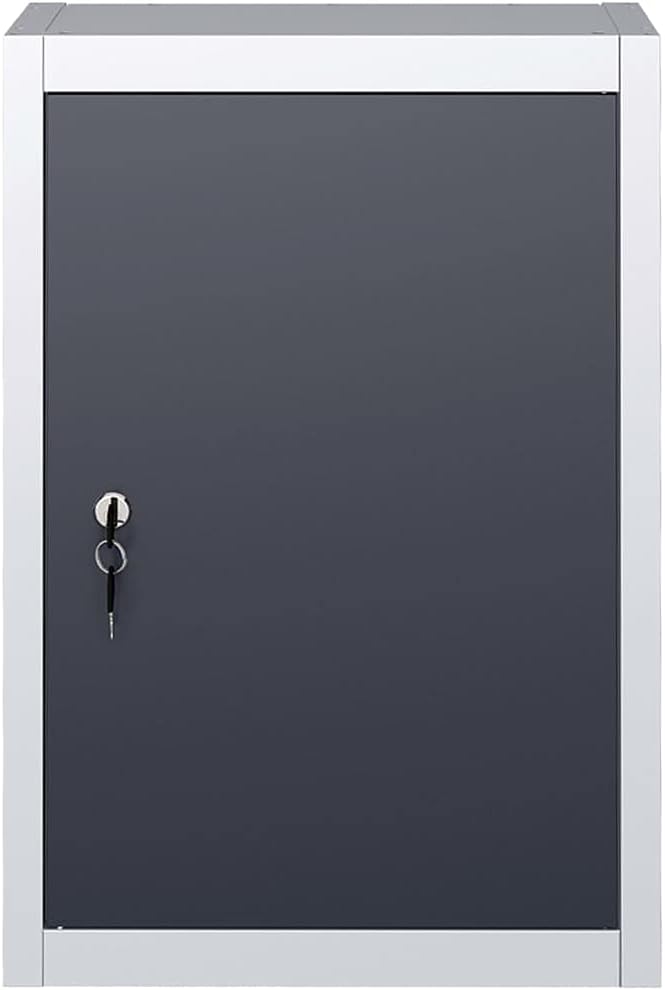

Figure 5.1: Front view of the cabinet, illustrating the lock mechanism.
6. Maintenance
- Cleaning: Wipe the cabinet surfaces with a soft, damp cloth. Avoid using abrasive cleaners, solvents, or harsh chemicals, as these can damage the powder-coated finish.
- Inspection: Periodically inspect all wall mounting hardware and internal fasteners to ensure they remain tight and secure. Tighten any loose screws as needed.
- Lock Care: If the lock mechanism becomes stiff, apply a small amount of graphite lubricant (do not use oil-based lubricants) to the keyhole.
7. Troubleshooting
- Door does not close properly: Check for any obstructions inside the cabinet or along the door frame. Inspect hinges for damage or misalignment. Ensure the cabinet is level.
- Lock is stiff or difficult to turn: Apply a small amount of graphite lubricant to the keyhole. Ensure the key is fully inserted.
- Cabinet feels unstable after mounting: Re-check all wall mounting hardware. Ensure the cabinet is securely fastened to a solid wall structure (e.g., wall studs) using appropriate anchors and screws.
- Shelf sags or is not level: Ensure the shelf supports are fully inserted into the pegboard holes and are positioned at the same height on both sides. Do not overload the shelf.
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | 145354 |
| Dimensions (W x D x H) | 40 x 19 x 60 cm (15.7 x 7.5 x 23.6 inches) |
| Item Weight | 4.9 kg (10.8 lbs) |
| Material | Metal |
| Color | Grey and Black |
| Finish | Powder Coated |
| Style | Industrial |
| Mounting Type | Wall Mount |
| Special Features | Lockable, Adjustable Shelf |
9. Warranty Information
All products sold by vidaXL are covered by at least a 2-year legal guarantee. Please retain your proof of purchase for any warranty claims. The warranty covers manufacturing defects and material faults under normal use. It does not cover damage caused by improper assembly, misuse, neglect, accidents, or unauthorized modifications.
10. Support
For further assistance, parts replacement, or warranty claims, please contact vidaXL customer support. Refer to your purchase documentation for specific contact details or visit the official vidaXL website for the most up-to-date support information.
Website: www.vidaxl.com
