W10124096 Refrigerator Condenser Fan Motor Kit User Manual

1. Product Overview

The ATMA SUPPLY W10124096 Refrigerator Condenser Fan Motor Kit is a replacement part designed to restore optimal cooling performance to your refrigerator. The condenser fan motor is a critical component that helps dissipate heat from the condenser coils, ensuring efficient operation of the refrigeration system.

This kit includes all necessary components for a direct replacement, ensuring compatibility and ease of installation for various refrigerator brands.

2. Product Contents

The W10124096 kit typically includes the following components:

• 1 x Condenser Fan Motor: The primary motor unit, rated at 115V 60HZ 4.1W.
• 1 x Fan Blade: Designed to fit the motor shaft and move air efficiently over the condenser coils.
• 6 x Screws: Various screws for securing the motor and other components.
• 1 x Wire Harness: For electrical connection to the refrigerator's power supply.

Image: Overview of the W10124096 Refrigerator Condenser Fan Motor Kit, showing the motor, fan blade, screws, and wire harness.

Image: Front view of the W10124096 condenser fan motor, showing the shaft and label.

Image: The four-bladed fan component of the kit.

Image: The electrical wire harness included in the kit.

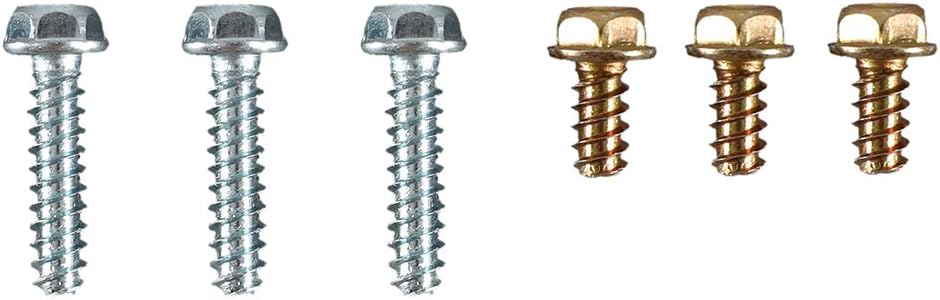

Image: Assortment of six mounting screws provided with the kit.

3. Compatibility

This W10124096 Condenser Fan Motor Kit is compatible with a wide range of refrigerators from various brands. It is designed to replace several part numbers, ensuring broad applicability.

Compatible Brands:

• Whirlpool
• Kenmore
• GE
• Amana
• And other compatible brands.

Replaces Part Numbers:

This kit replaces the following part numbers:

• AP4318657
• 1378525
• 2188538
• 2188727
• 2188728
• 2188729
• 2188732
• 2188891
• 2206005
• 2315538
• 2315558
• AH1957416
• EA1957416
• PS1957416
• W10124096VP
• W10130108
• W10204250
• W10509333
• W10861645
• SM4096

If you are unsure about compatibility with your specific refrigerator model, it is recommended to contact the manufacturer or a qualified technician for verification.

4. Installation Instructions

Safety Warning: Always unplug your refrigerator from the power outlet before attempting any repairs or installations to prevent electric shock or injury.

1. Prepare the Area: Move the refrigerator away from the wall to access the rear panel. Clear any obstructions around the condenser coil area.
2. Access the Condenser Fan: Locate and remove the rear access panel of your refrigerator. This usually involves unscrewing several screws.
3. Disconnect Wiring: Carefully disconnect the wire harness from the old condenser fan motor. Note the orientation of the wiring for reinstallation.
4. Remove Old Motor and Fan Blade: Unscrew and remove the old condenser fan motor. Detach the old fan blade from the motor shaft.
5. Install New Fan Blade: Attach the new fan blade onto the shaft of the new W10124096 motor. Ensure it is securely fastened and oriented correctly.
6. Mount New Motor: Position the new motor in place and secure it using the provided screws. Ensure it is firmly mounted and does not wobble.
7. Connect Wiring: Connect the new wire harness to the new motor and then to the refrigerator's electrical connection point. Double-check all connections for security.
8. Replace Access Panel: Reattach the rear access panel, ensuring all screws are tightened.
9. Restore Power: Plug the refrigerator back into the power outlet.
10. Test Operation: Listen for the fan motor operating and check if the refrigerator begins to cool properly.

For visual guidance, many online video tutorials are available for installing the W10124096 condenser fan motor. Searching for "W10124096 motor installation" on video platforms can provide helpful step-by-step demonstrations.

5. Function and Operation

The condenser fan motor plays a vital role in your refrigerator's cooling cycle. It draws air over the condenser coils, which are located at the back or bottom of the refrigerator. As refrigerant flows through these coils, it releases heat into the surrounding air. The fan motor ensures that this heat is efficiently dissipated, allowing the refrigerant to cool down and return to the evaporator coils inside the refrigerator.

A properly functioning condenser fan motor is essential for maintaining the correct internal temperature of your refrigerator and freezer compartments, preventing overheating of the compressor, and ensuring energy efficiency.

6. Care and Maintenance

To ensure the longevity and efficient operation of your new condenser fan motor and overall refrigerator, consider the following maintenance tips:

• Keep Coils Clean: Periodically clean the condenser coils, usually located near the fan motor. Dust and debris can accumulate on these coils, reducing heat dissipation and forcing the fan motor to work harder. Use a vacuum cleaner with a brush attachment or a coil brush.
• Ensure Proper Ventilation: Make sure there is adequate space around your refrigerator for air circulation, especially at the back and bottom where the condenser and fan are located.
• Regular Inspections: Occasionally check the fan motor area for any unusual noises or excessive vibrations, which could indicate a developing issue.

Always unplug the refrigerator before performing any cleaning or maintenance tasks.

7. Troubleshooting Guide

If your refrigerator is experiencing issues after installing the new condenser fan motor, or if you suspect the motor is failing, refer to the following common symptoms and potential solutions:

If troubleshooting steps do not resolve the issue, it is recommended to consult a qualified appliance repair technician.

8. Technical Specifications

9. Customer Support and Warranty

ATMA SUPPLY is committed to customer satisfaction. If for any reason you are not completely satisfied with your W10124096 Refrigerator Condenser Fan Motor Kit, or if you have any questions regarding its installation or operation, please do not hesitate to contact us.

While specific warranty details are not provided in this manual, ATMA SUPPLY encourages customers to reach out directly for support or to address any concerns. Your satisfaction is our priority.

Please refer to your purchase documentation or the ATMA SUPPLY store page on Amazon for the most current contact information and warranty policy details.
