1. Introduction
Thank you for choosing the SOKA Kitchen Sink Faucet. This manual provides detailed instructions for the safe and efficient installation, operation, and maintenance of your new faucet. Please read this manual thoroughly before installation and retain it for future reference.
Image 1.1: SOKA Kitchen Sink Faucet (Model SK5001AR) in Bright Gold finish.
2. Product Features
- Pull-Out Design: The flexible spout offers a wide range of motion, allowing water to be directed as needed.
- Premium Quality Construction: Features a ceramic disc cartridge for drip-free use and durability, tested for over 500,000 open/close cycles.
- Three-Function Sprayer: Easily switch between stream, spray, and pause modes for various tasks.
- Durable Finish: Stainless steel construction resists corrosion and water spots, ensuring long-lasting performance.
- Easy Installation: Designed for straightforward installation, suitable for 1 or 3-hole setups.
Image 2.1: The pull-down sprayer extends for increased reach and flexibility.
Image 2.2: Illustration of the three spray modes: Stream, Spray, and Pause.
3. Package Contents
Verify that all components are present before beginning installation:
- 1 x SOKA Kitchen Faucet (Model SK5001AR)
- 1 x Hot and Cold Inlet Water Pipe Set
- 1 x Deck Plate (for 3-hole installation)
- Mounting Hardware (nuts, washers, wrench)
- 1 x Installation Instruction Manual (this document)

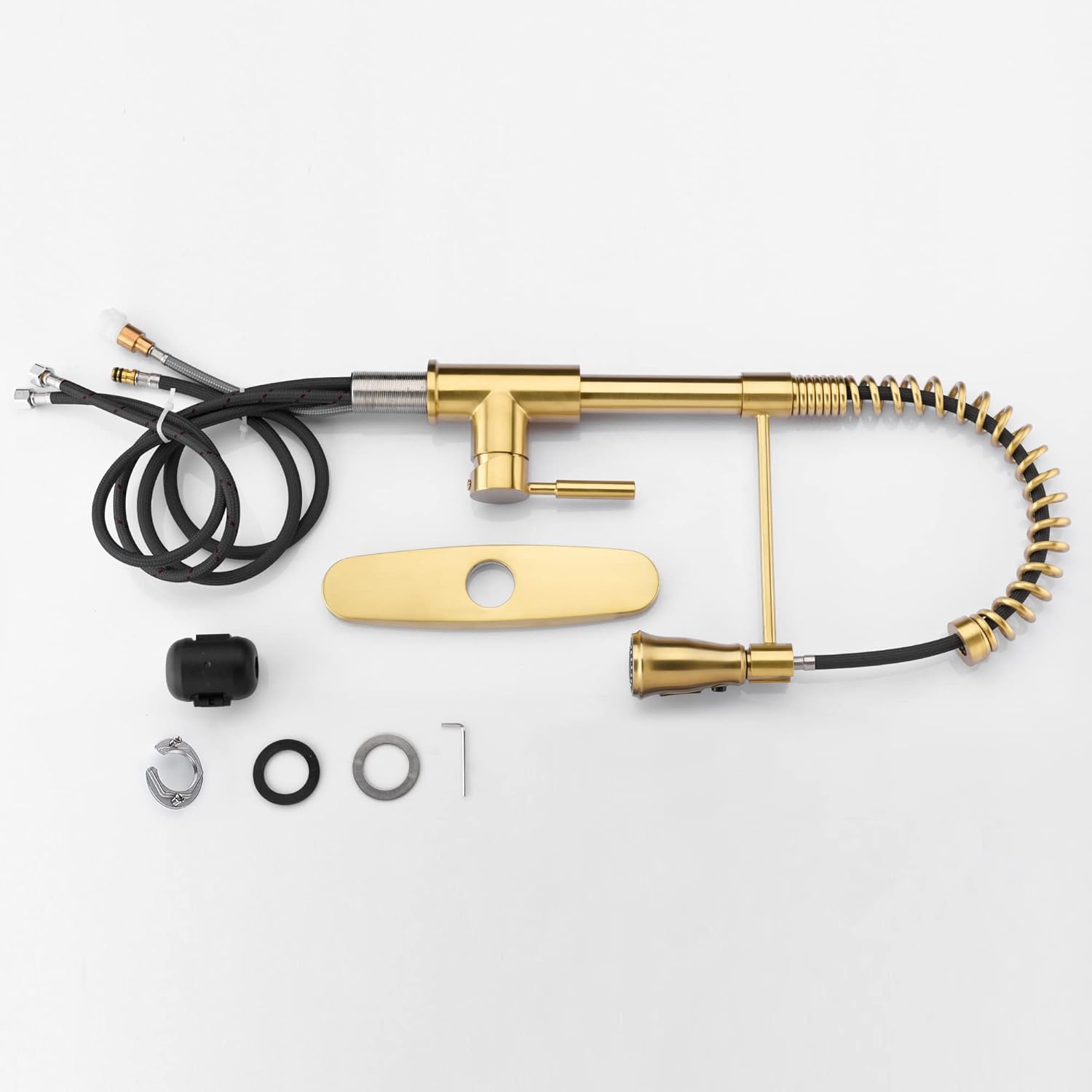

Image 3.1: All parts included in the SOKA Kitchen Faucet package.
4. Specifications
| Feature | Detail |
|---|---|
| Model Number | SK5001AR |
| Material | Solid Stainless Steel (Faucet Body), ABS Plastic (Sprayer Head), Zinc Alloy (Handle) |
| Finish | Brushed Bright Gold |
| Installation Type | Deck Mount (1 or 3-hole compatible) |
| Overall Height | 19.5 inches |
| Spout Height | 6.5 inches |
| Spout Reach | 8.25 inches |
| Deck Plate Length | 10 inches |
| Valve Type | Ceramic Valve |
| Water Mode | Stream, Spray, Pause |
| Maximum Flow Rate | 1.8 Gallons Per Minute |
| Certifications | NSF/AB1953 lead-free regulation compliant, SOKA IAMPO certified, WaterSense |
Image 4.1: Detailed dimensions for installation planning.
5. Setup and Installation
Before You Begin:
- Turn off the main water supply.
- Clear the area under the sink.
- Ensure all package contents are present.
- Tools required: Adjustable wrench, Phillips screwdriver, plumber's putty or silicone sealant, flashlight.
Installation Steps:
- Prepare the Sink Hole: For 1-hole installation, no deck plate is needed. For 3-hole installation, place the deck plate over the sink holes. Ensure the mounting hole size is 1.4-1.5 inches and countertop thickness is a maximum of 2 inches.
- Install the Faucet Body: Insert the faucet body through the hole(s) in the sink or deck plate. Ensure the faucet is oriented correctly.
- Secure the Faucet: From underneath the sink, place the rubber washer, then the metal washer, and finally thread the mounting nut onto the faucet shank. Tighten the nut securely using the provided wrench or an adjustable wrench.
- Connect Water Supply Lines: Attach the hot and cold water supply lines to the corresponding valves under the sink. The faucet includes 3/8" standard pipe connections. Use Teflon tape on threaded connections to prevent leaks.
- Install the Sprayer Hose and Weight: Connect the pull-down sprayer hose to the quick-connect fitting on the faucet's main body. Attach the weight to the lowest point of the pull-down hose under the sink to ensure smooth retraction.
- Test for Leaks: Turn on the main water supply slowly and check all connections for leaks. Operate the faucet in all modes to ensure proper function.
Image 5.1: Visual guide for faucet installation.
Image 5.2: Attaching the weight to the pull-down hose for smooth operation.
6. Operating Instructions
- Water Flow and Temperature Control: The single handle controls both water flow and temperature. Lift the handle to turn on the water and adjust the flow. Move the handle left for hot water and right for cold water.
- Switching Spray Modes: The sprayer head features a button to toggle between stream, spray, and pause functions. Press the button to cycle through the modes.
- Pull-Down Sprayer: Gently pull the sprayer head down from the spout to extend the hose. The hose will retract automatically when released, guided by the weight installed underneath the sink.
7. Maintenance
- Cleaning the Faucet: Clean the faucet regularly with a soft cloth and mild soap. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the finish.
- Cleaning the Sprayer Nozzles: The rubber nozzles on the sprayer head are designed for easy cleaning. Simply rub them with your finger or a soft brush to remove mineral buildup.
- Aerator Maintenance: If water flow decreases, the aerator may be clogged. Unscrew the aerator from the sprayer head, clean any debris, and reattach.
- Checking for Leaks: Periodically inspect all connections under the sink for any signs of leaks. Tighten connections as needed.
Image 7.1: Easy-clean rubber nozzles on the sprayer head simplify maintenance.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Low Water Flow | Clogged aerator; partially closed shut-off valve; kinked supply line. | Clean or replace aerator; ensure shut-off valves are fully open; straighten supply lines. |
| Leaks from Faucet Base | Loose mounting nut; worn O-rings. | Tighten mounting nut; replace O-rings if damaged. |
| Leaks from Sprayer Head | Loose connection; damaged internal seals. | Ensure sprayer hose is tightly connected; contact customer support for replacement parts. |
| Sprayer Hose Does Not Retract | Weight improperly positioned or missing; obstruction under sink. | Adjust or reattach the weight; clear any obstructions. |
9. Warranty and Support
SOKA offers a lifetime warranty on this kitchen faucet, ensuring long-term satisfaction and performance. This warranty covers manufacturing defects and material flaws under normal use.
For any quality problems within the first month, you are eligible for a full refund and a new kitchen faucet. For any quality problems within 1 month, you can receive a new product.
If you encounter any product issues or require assistance, please contact SOKA customer support through Amazon. We are committed to 100% product satisfaction and will respond to inquiries within 24 hours.
Manufacturer: Guangdong Huayi Plumbing Fittings Industry CO.,Ltd
