BLACK+DECKER BDXCAV217G
BLACK+DECKER BDXCAV217G Bagless Canister Vacuum Cleaner User Manual
Model: BDXCAV217G | Brand: BLACK+DECKER
1. Important Safety Instructions
Please read and understand all safety instructions before using this appliance. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Always unplug the vacuum cleaner from the electrical outlet before cleaning or servicing.
- Do not use outdoors or on wet surfaces.
- Do not allow to be used as a toy. Close attention is necessary when used by or near children.
- Use only as described in this manual. Use only manufacturer’s recommended attachments.
- Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
- Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
- Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
- Do not handle plug or vacuum cleaner with wet hands.
- Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
- Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
- Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
- Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
- Do not use without dust cup and/or filters in place.
- Turn off all controls before unplugging.
- Use extra care when cleaning on stairs.
2. Product Overview and Included Components
The BLACK+DECKER BDXCAV217G is a bagless canister vacuum cleaner designed for efficient cleaning across various surfaces. It features a multi-cyclonic system and an anti-allergen HEPA filter.
Image 2.1: Overview of the BLACK+DECKER BDXCAV217G Canister Vacuum and its included accessories.
Included Components:
- Canister Vacuum Unit
- Flexible Hose
- Telescopic Extension Wand
- Floor Nozzle
- Crevice Tool
- Small Brush (Dusting Brush)
- Upholstery Tool
- HEPA Filter (pre-installed)
- Foam Filter (pre-installed)
3. Setup and Assembly
3.1 Attaching the Hose and Wand
- Insert the flexible hose into the suction inlet on the main canister unit until it clicks securely into place.
- Attach the telescopic extension wand to the handle end of the flexible hose.
- Connect the desired cleaning attachment (floor nozzle, crevice tool, small brush, or upholstery tool) to the end of the extension wand.
3.2 Power Cord Management
The vacuum features an automatic cord rewind system.
Image 3.1: To extend the power cord, gently pull it out from the rear of the unit. Do not pull beyond the yellow marker.
- To extend the power cord, gently pull it out from the rear of the unit. Stop pulling when you see the yellow marker. Do not pull beyond the red marker.
- To retract the power cord, press the cord rewind button located on the top of the unit. Guide the cord to prevent whipping.
4. Operating the Vacuum Cleaner
4.1 Powering On/Off
Plug the power cord into a suitable electrical outlet. Press the power button (usually marked with an 'I/O' symbol) on the main canister unit to turn the vacuum on or off.
Image 4.1: The main canister unit features power and suction control dials.
4.2 Adjusting Suction Power
The vacuum features adjustable suction control to optimize cleaning for different surfaces.
Image 4.2: Rotate the dial on the top of the unit to adjust suction from minimum to maximum.
- Rotate the suction control dial on the top of the canister unit to increase or decrease suction power.
- Use lower suction for delicate surfaces like curtains or rugs, and higher suction for carpets and hard floors.
4.3 Using Cleaning Attachments
Select the appropriate attachment for your cleaning task.
Image 4.3: The floor nozzle is suitable for both carpets and hard floors.
- Floor Nozzle: Ideal for general cleaning of carpets, rugs, and hard floors.

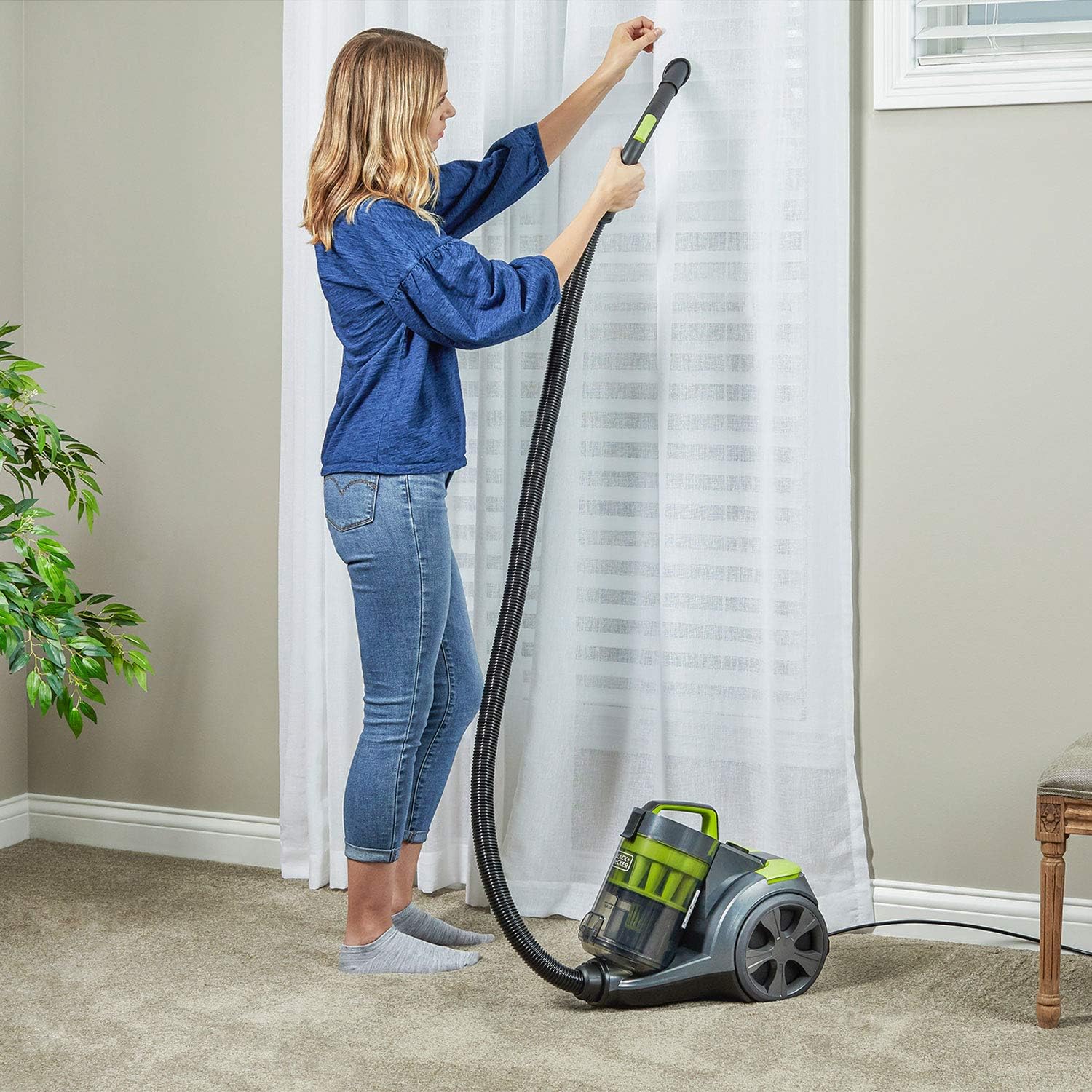

Image 4.4: The extension wand and small brush are effective for cleaning elevated surfaces like curtains.
- Crevice Tool: Use for narrow spaces, corners, and edges.
- Small Brush (Dusting Brush): Suitable for delicate surfaces, blinds, and furniture.
Image 4.5: The upholstery tool is designed for cleaning fabric surfaces such as sofas and chairs.
- Upholstery Tool: Designed for cleaning fabric surfaces like sofas, chairs, and car interiors.
5. Maintenance
Regular maintenance ensures optimal performance and extends the life of your vacuum cleaner.
5.1 Emptying the Dust Bin
Empty the dust bin when the 'MAX' fill line is reached or after each use to maintain suction power.
- Ensure the vacuum is unplugged.
- Press the dust bin release button and lift the dust bin away from the main unit.
- Position the dust bin over a trash receptacle. Press the bottom release button to open the lid and empty contents.
- Close the bottom lid securely and reattach the dust bin to the vacuum unit until it clicks.
5.2 Cleaning and Replacing Filters
The BLACK+DECKER BDXCAV217G uses a multi-cyclonic system with an Anti-Allergen HEPA filter and a foam filter. Both are washable for low maintenance costs.

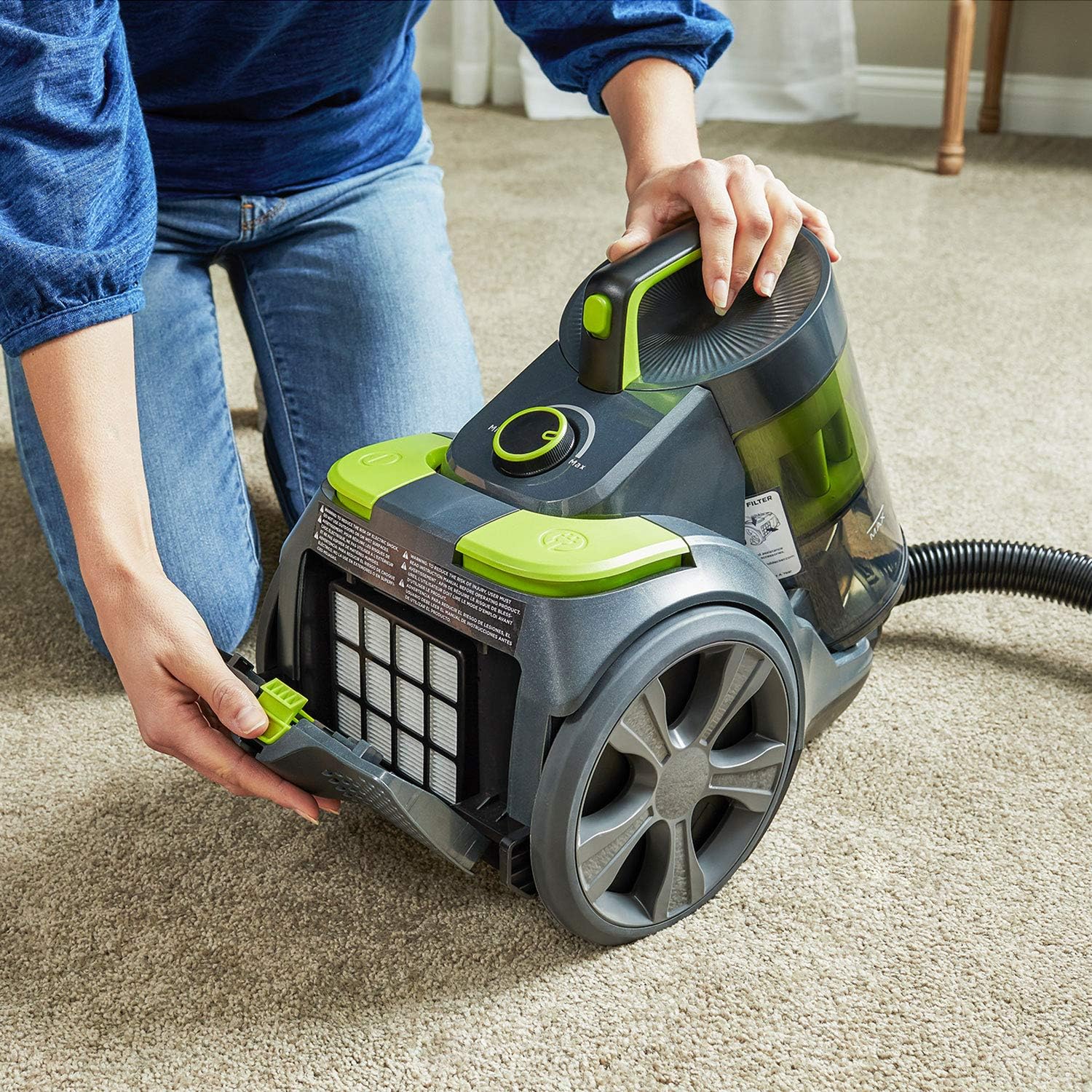

Image 5.1: The filter compartment is located on the side of the main unit.
- Ensure the vacuum is unplugged.
- Locate the filter compartment cover (as shown in Image 5.1) and open it.
- Carefully remove the HEPA filter and the foam filter.
- Rinse both filters under cool running water until the water runs clear. Do not use detergent.
- Allow filters to air dry completely for at least 24 hours before reinserting. Do not use a dryer or other heating device.
- Once completely dry, reinsert the foam filter first, followed by the HEPA filter, and close the compartment cover securely.
Note: For optimal performance, it is recommended to clean the filters regularly, depending on usage. Replace the HEPA filter annually or if it shows signs of damage or reduced effectiveness.
6. Troubleshooting
Review the following common issues and solutions before contacting customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Vacuum does not turn on | Not plugged in; Power outlet fault; Power button not pressed. | Ensure cord is securely plugged into a working outlet. Press the power button firmly. |
| Loss of suction | Dust bin full; Filters clogged; Hose or attachments blocked; Air vent obstructed. | Empty dust bin. Clean or replace filters. Check hose and attachments for blockages and remove. Ensure air vents are clear. |
| Vacuum overheats and shuts off | Clogged filters; Blocked hose/nozzle; Full dust bin; Motor overload. | This unit has a thermal cut-off. Turn off and unplug the vacuum. Empty dust bin and clean filters. Check for blockages in the hose and nozzle. Allow the unit to cool for at least 30 minutes before restarting. |
| Power cord does not retract fully | Cord mechanism jammed; Cord not pulled out far enough initially. | Pull the cord out fully to the yellow marker, then press the rewind button. Gently guide the cord back into the unit. If issues persist, ensure no debris is obstructing the mechanism. |
| Unusual noise | Blockage in hose/nozzle; Foreign object in fan; Motor issue. | Turn off and unplug. Check for and remove any blockages. If noise persists, discontinue use and contact customer support. |
7. Specifications
| Feature | Detail |
|---|---|
| Brand | BLACK+DECKER |
| Model Name | BDXCAV217G |
| Special Feature | Bagless, HEPA Filter, Lightweight, Wheels, Adjustable Suction |
| Filter Type | Cartridge (HEPA) |
| Capacity | 3 Liters |
| Power | 1200 Watts (1.6 horsepower motor) |
| Cordless | No (Corded) |
| Product Dimensions | 14.06"L x 10.47"W x 16.06"H |
| Item Weight | 18.26 pounds |
| Noise Level | 80 Decibels |
| Control Method | Push Button, Touch (for suction adjustment) |
| Recommended Uses | Home (Indoor) |
8. Warranty and Customer Support
For warranty information or customer support, please refer to the warranty card included with your product or visit the official BLACK+DECKER website. Keep your purchase receipt as proof of purchase.
For further assistance, you may contact BLACK+DECKER customer service through their official channels. Please have your model number (BDXCAV217G) and serial number ready when contacting support.
