Yaheetech Office Desk Chair User Manual

1. Introduction

Thank you for choosing the Yaheetech Office Desk Chair. This manual provides essential information for the safe assembly, operation, and maintenance of your new chair. Please read it thoroughly before use and retain it for future reference.

Figure 1: Yaheetech Office Desk Chair (White)

The Yaheetech Office Desk Chair is designed for comfort and ergonomic support, featuring a mid-back leather design, height adjustability, lumbar support, and thick padded armrests and seat. Its sleek white finish and chrome plating offer a luxurious and elegant aesthetic suitable for various office and home environments.

2. Safety Information

Please observe the following safety guidelines to ensure safe operation and prevent injury or damage:

• Maximum Weight Capacity: Do not exceed the maximum weight recommendation of 300 pounds.
• Assembly: Follow all assembly instructions carefully. Ensure all screws and bolts are tightened securely before use.
• Stability: Do not stand on the chair. Avoid leaning excessively to one side, which may cause the chair to tip over.
• Chemical Warning: This product can expose you to chemical Di(2-ethylhexyl)phthalate (DEHP) and Lead which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/furniture.
• Children: Keep children away from the chair during assembly. Do not allow children to play on or around the chair unsupervised.

3. Product Overview

3.1 Components

Before assembly, verify that all components are present and undamaged. Refer to the image below for a visual guide to the chair's parts.

Figure 2: Chair Components

3.2 Key Features

• Comfortable Design: Faux leather back and seat filled with foam to reduce fatigue. Curved mid-height backrest offers excellent lumbar and mid-back support. Cushioned armrests provide extra comfort.
• Adjustable Seating: Easily adjust seat height between 18 and 22 inches. Features a rocking motion for relaxation and a lock-in function for upright seating.
• Durable Construction: Covered in water-resistant faux leather with chrome-plated arms and base for easy cleaning and longevity.
• Mobility: Equipped with 360-degree swivel wheels for smooth movement across hard floors.

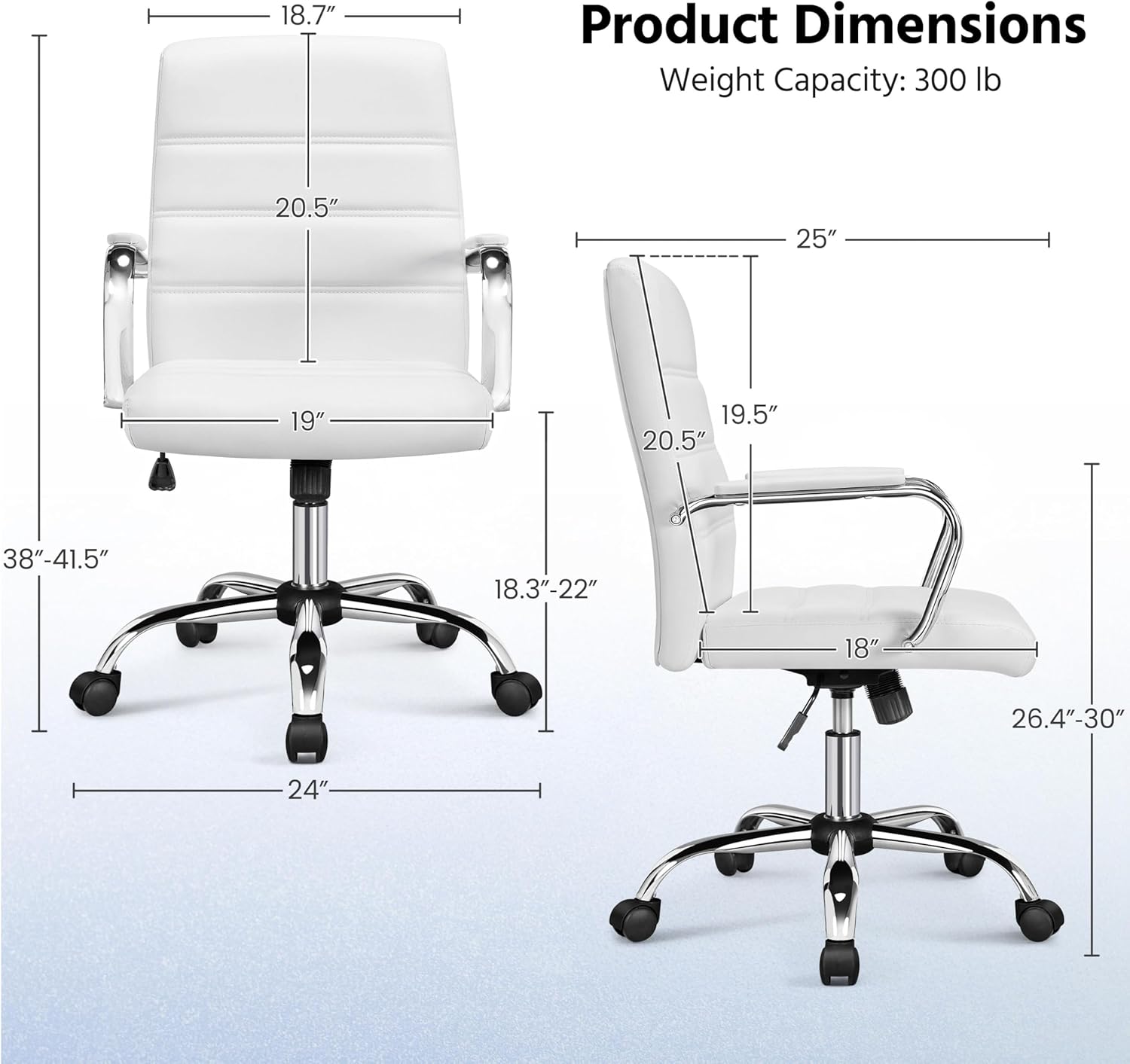

Figure 3: Product Dimensions and Weight Capacity

Figure 4: Comfy Mid-Height Backrest

4. Setup and Assembly

Assembly is quick and easy, typically taking less than 20 minutes. All necessary hardware and tools are included. For a clearer demonstration, please refer to the assembly videos provided.

4.1 Important Pre-Assembly Step

Before installing the gas lift, ensure you remove the black plastic cap from the top of the cylinder. Failure to do so will prevent the chair from adjusting height.

Figure 5: Remove Plastic Cap Before Assembly

Video 1: Note: please remove the black plastic before assembly. This video demonstrates the crucial step of removing the protective cap from the gas lift cylinder before installation.

4.2 Assembly Steps

Follow these steps to assemble your chair:

1. Attach Casters to Base: Insert the five casters (wheels) into the holes at the end of each leg of the metal star base. Push firmly until they click into place.
2. Insert Gas Lift: Place the large end of the gas lift cylinder into the center hole of the assembled star base.
3. Attach Mechanism to Seat: Align the seat plate mechanism (the part with the levers) to the underside of the seat cushion. Ensure the front of the mechanism faces the front of the seat. Secure with the provided screws, tightening them partially first, then fully tightening all screws once aligned.
4. Attach Backrest to Seat: Align the backrest to the seat cushion. Secure the iron sheet (if separate) and the backrest to the seat mechanism using the appropriate screws. Half-tighten screws initially to allow for adjustment, then fully tighten all screws once the backrest is properly aligned and stable.
5. Attach Armrests: Attach the armrests to both the seat and the backrest using the designated screws. Half-tighten screws first. If armrest holes and screws cannot be aligned, gently press the backrest or seat cushion to align them. Fully tighten all armrest screws once both armrests are in place and aligned.
6. Connect Seat Assembly to Gas Lift: Carefully place the assembled seat and backrest onto the top of the gas lift cylinder. Press down firmly to secure.

Video 2: How to install this chair. This comprehensive video provides a step-by-step guide to assembling the Yaheetech Office Desk Chair, from attaching the casters to securing the seat and backrest.

5. Operating Your Chair

Your Yaheetech Office Desk Chair offers several adjustable features to customize your seating experience.

5.1 Height Adjustment

To adjust the seat height, locate the lever on the right side under the seat. While seated, pull the lever upwards to lower the seat. To raise the seat, stand up slightly and pull the lever upwards. Release the lever at your desired height.

5.2 Rocking and Tilt Function

The chair features a rocking function for added comfort. Pull the lever on the right side (the same one for height adjustment) outwards to activate the rocking motion. Push the lever inwards to lock the chair in an upright position.

To adjust the tilt tension, rotate the round knob located under the center of the seat. Turn clockwise to increase tension (making it harder to rock) and counter-clockwise to decrease tension (making it easier to rock).

Figure 6: Chair Adjustments

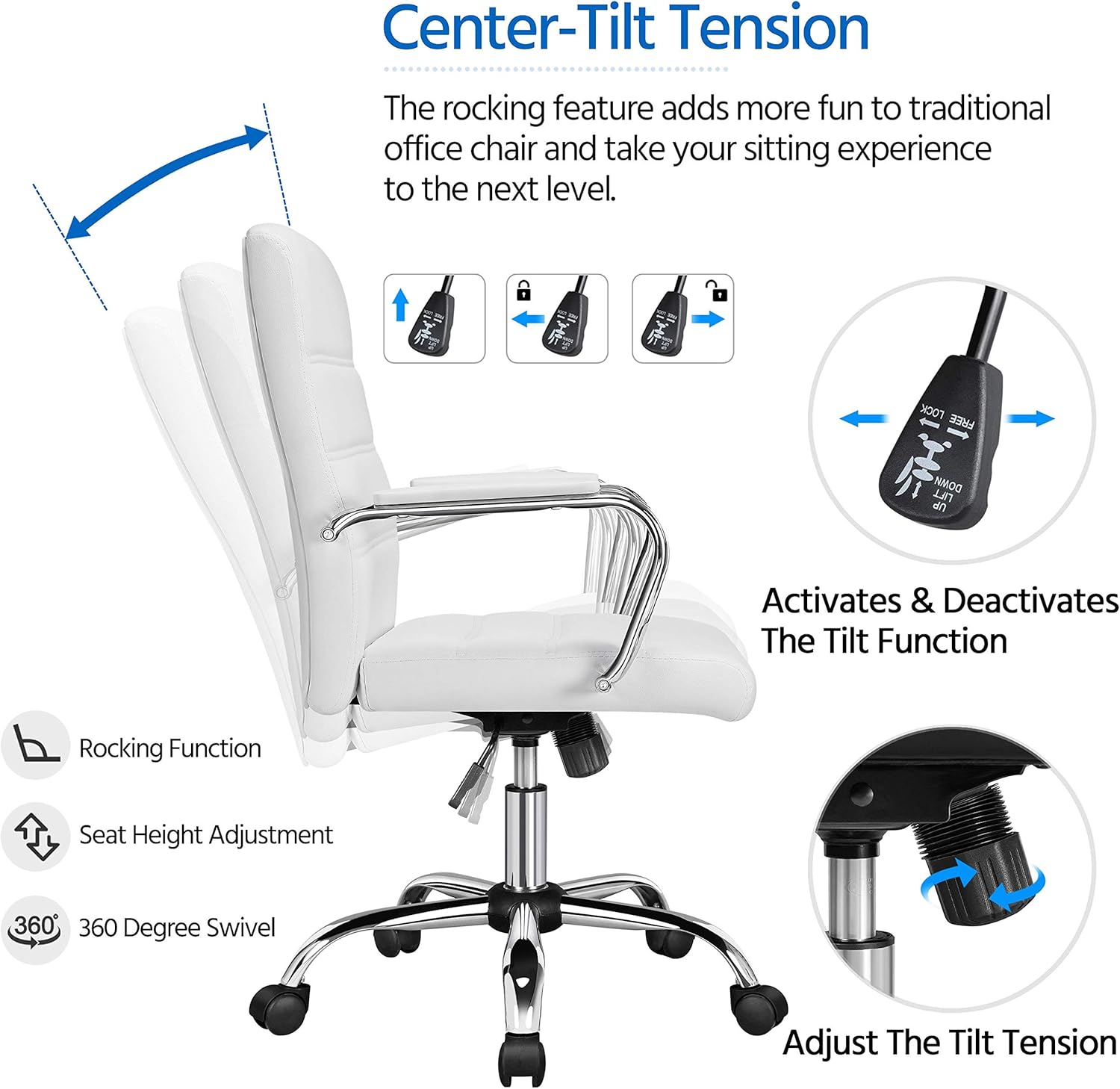

Figure 7: Adjusting Tilt Tension

5.3 Swivel and Mobility

The chair's 360-degree swivel function allows for easy rotation, while the smooth-rolling casters provide effortless movement across your workspace.

Video 3: Yaheetech Mid Back Office Chair with Arms Swivel Desk Chair. This video highlights the chair's swivel and rocking capabilities, demonstrating its flexibility for various tasks.

6. Maintenance and Care

Proper care will extend the life and appearance of your chair.

• Cleaning: The water-resistant faux leather makes cleaning simple. Use a damp cloth and a mild cleanser to wipe away any stains or spills. Avoid harsh chemicals or abrasive cleaners.
• Regular Checks: Periodically check all screws and bolts to ensure they remain tight. Re-tighten if necessary to maintain stability and safety.
• Avoid Direct Sunlight: Prolonged exposure to direct sunlight may cause the faux leather to fade or crack over time.

Figure 8: Water-Resistant Material and Cushioning

7. Troubleshooting

If you encounter any issues with your chair, refer to the common problems and solutions below:

8. Specifications

9. Warranty and Support

Yaheetech provides a standard manufacturer's warranty for this product, covering defects in materials and workmanship under normal use. For specific warranty details, claims, or technical support, please contact Yaheetech customer service directly.

You can also visit the official Yaheetech store for more information and products: Yaheetech Store
