1. Product Overview
The FORTSTRONG FS-7600 HOB is a Grade 1 commercial door closer designed for reliable and consistent door closure in low to medium traffic environments. This unit features a hydraulic mechanism that ensures smooth operation, preventing door slamming while offering a convenient hold-open function. It is ADA compliant and UL Listed, suitable for various residential and commercial applications.

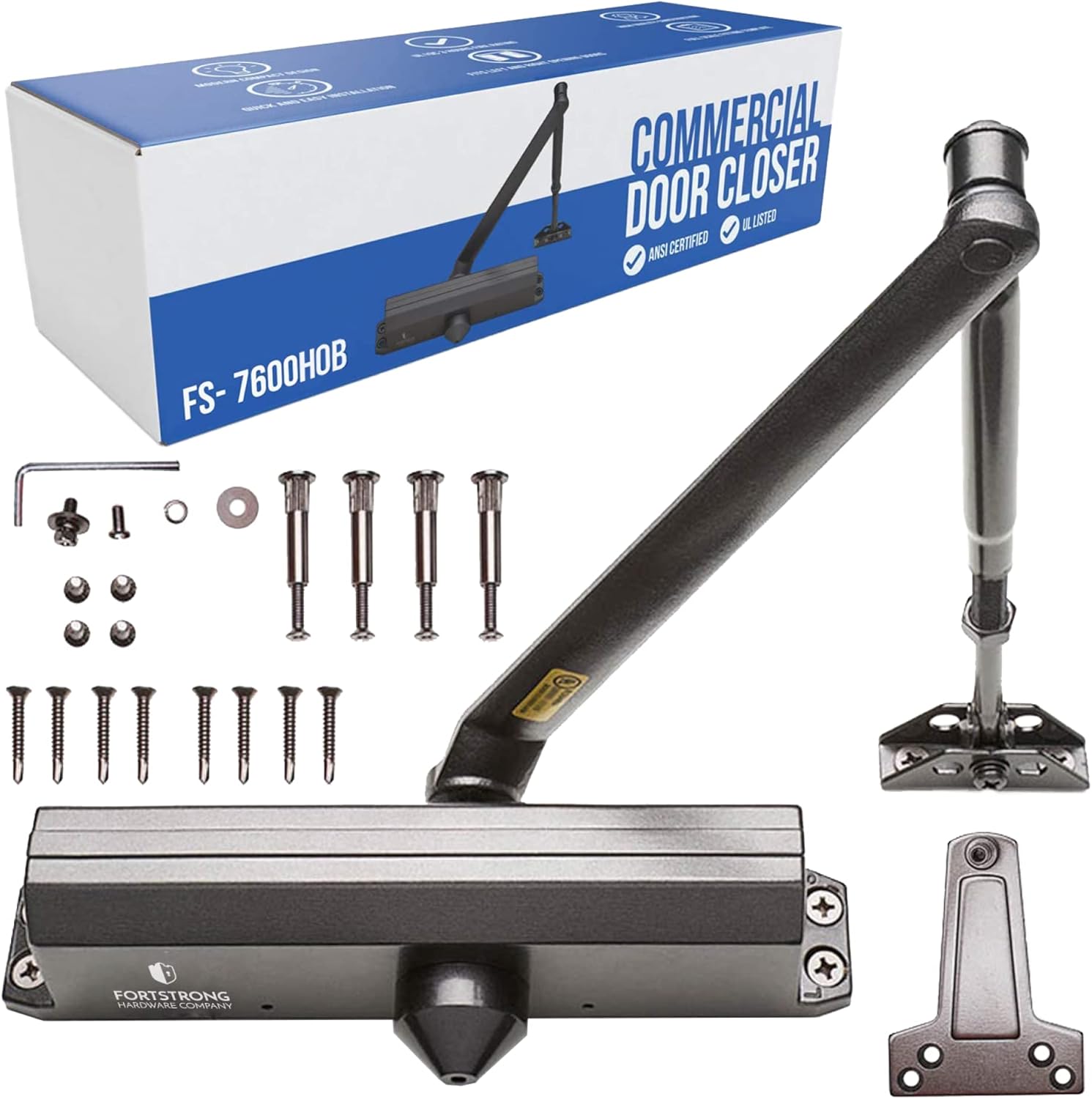

Image 1: FORTSTRONG FS-7600 HOB Commercial Door Closer. This image shows the main body of the door closer and its arm assembly.
2. Key Features
- Durable Construction: Manufactured with quality steel-encased hardware and ADC12 aluminum for long-lasting performance.
- Smooth & Secure Closure: Hydraulic system ensures consistent, secure door closure, preventing slamming.
- Hold-Open Function: Allows the door to remain open at a desired angle for convenience.
- Fully Adjustable: Independent valves allow adjustment of sweep motion, latching speed, and opening force.
- Versatile Application: Suitable for left or right opening doors and various installation methods (Regular, Parallel, Top Jamb).
- Certifications: ADA Compliant, ANSI certified, and UL Listed for safety and performance standards.

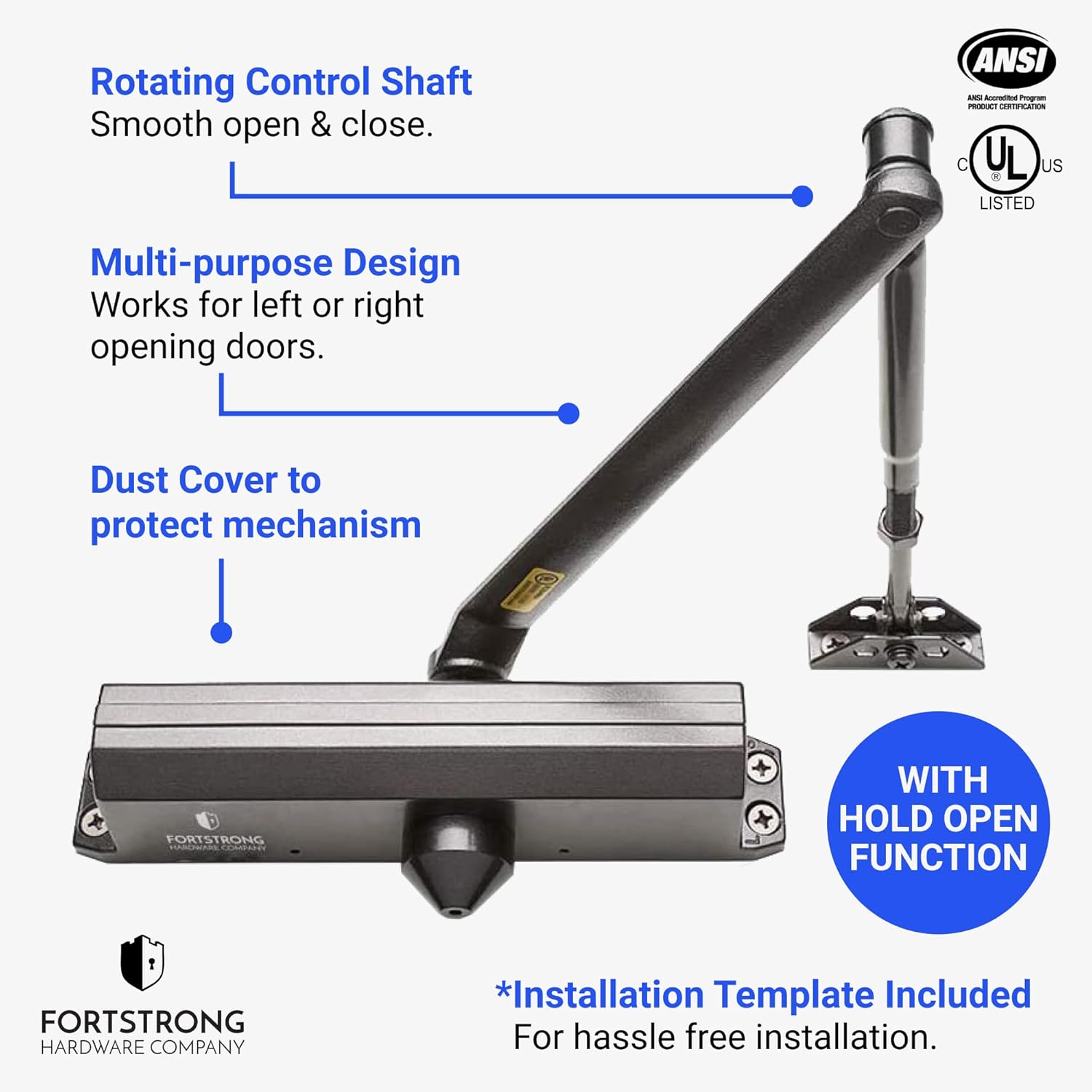

Image 2: Key features of the door closer, highlighting the rotating control shaft for smooth operation, multi-purpose design for left/right doors, dust cover, and hold-open function.
3. Package Contents
Before beginning installation, verify that all components are present in the box:
- Door Closer Unit
- Connecting Arm Assembly
- Parallel Plate
- Fixing Screws
- Sex Nuts
- Installation Template
Image 3: Contents of the product box, showing the door closer, connecting arm, parallel plate, fixing screws, and sex nuts. Required tools for installation are also listed.
Required Tools (Not Included):
- Tape Measure
- Pencil
- Protective Eyewear
- Phillips Screwdriver
- Drill
- 1/8" Drill Bit
4. Installation Guide
The FS-7600 HOB door closer can be installed using several methods to suit your door type and opening direction. Always refer to the included fitting template for precise drilling locations.
Installation Methods:
- Regular Arm Installation: The closer body is mounted on the pull side of the door, and the arm extends away from the door.
- Parallel Arm Installation: The closer body is mounted on the push side of the door, and the arm runs parallel to the door frame.
- Top Jamb Installation: The closer body is mounted on the top jamb of the door frame, and the arm extends over the door.
Image 4: Visual representation of the three versatile installation methods: Regular, Parallel, and Top Jamb.
General Installation Steps:
- Determine the appropriate installation method for your door.
- Affix the provided template to the door and/or frame according to your chosen installation method.
- Mark and drill pilot holes as indicated on the template.
- Mount the closer body and arm assembly using the provided screws and nuts.
- Ensure all connections are secure but do not overtighten.
- Proceed to the Operating Instructions section for adjustment.
5. Operating and Adjustment Instructions
The FS-7600 HOB features independent valves for precise control over door operation. Adjustments should be made incrementally to achieve the desired closing speed and force.
Image 5: Detailed view of the adjustment points on the door closer, including speed regulation, latch regulation, and backcheck control valve.
Adjustment Points:
- Speed Regulation Valve: Controls the speed of the door's sweep motion (the main closing phase). Turn clockwise to decrease speed, counter-clockwise to increase speed.
- Latch Regulation Valve: Controls the speed of the door's final closing phase (latching action). Turn clockwise to decrease speed, counter-clockwise to increase speed.
- Backcheck Control Valve: Controls how far the door opens and provides cushioning to prevent the door from being forced open too wide. Adjust to prevent damage to the door or frame.
- Hold-Open Function: The hold-open mechanism can be engaged or disengaged by adjusting the nut on the connecting arm. Turn counter-clockwise to engage or adjust the hold-open angle.
Important: Make small adjustments (quarter turns) and test the door's operation after each adjustment. Over-adjusting can damage the closer or cause improper function.
6. Maintenance
Regular maintenance ensures optimal performance and longevity of your FORTSTRONG door closer.
- Cleaning: Periodically wipe down the closer body and arm with a soft, damp cloth to remove dust and debris. Avoid abrasive cleaners.
- Fastener Check: Annually inspect all mounting screws and fasteners to ensure they are tight. Re-tighten if necessary, but do not overtighten.
- Fluid Leaks: Check for any signs of hydraulic fluid leaks around the closer body. If leaks are detected, contact customer support.
- Smooth Operation: Observe the door's closing action. If it becomes erratic, too fast, or too slow, refer to the adjustment instructions.
7. Troubleshooting
If you encounter issues with your door closer, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Door closes too fast/slow | Speed or latch regulation valves incorrectly set. | Adjust the Speed Regulation Valve and Latch Regulation Valve incrementally. |
| Door slams shut | Latch regulation valve set too fast. | Decrease the speed of the Latch Regulation Valve. |
| Door is hard to open | Closer spring tension too high (not directly adjustable on this model, but can be influenced by installation). | Ensure the closer is installed correctly and that the door itself operates freely without the closer. If the issue persists, consult a professional. |
| Door does not hold open | Hold-open mechanism not engaged or improperly adjusted. | Adjust the nut on the connecting arm to engage or fine-tune the hold-open function. |
| Hydraulic fluid leak | Damaged seal or closer unit. | Discontinue use and contact FORTSTRONG customer support for assistance. |
8. Specifications
Detailed technical specifications for the FORTSTRONG FS-7600 HOB Commercial Door Closer:
- Model Number: FS-7600 HOB
- Installation Type: Screw-In
- Material: Metal (ADC12 Aluminum)
- Item Weight: 7.19 pounds (3.27 Kilograms)
- Package Dimensions: 12.76 x 4.21 x 3.62 inches
- Door Weight Capacity: Up to 264 lbs
- Certifications: ADA, ANSI, UL Listed
- Color: Black Hold Open
- GTIN (UPC): 759126021160
Image 6: Dimensions of the FS-7600HOB door closer, indicating its compact size and Grade 1 security rating. It is suitable for doors up to 264 lbs.
9. Warranty and Support
FORTSTRONG is committed to providing quality solutions. For any questions, concerns, or warranty inquiries regarding your FS-7600 HOB door closer, please contact FORTSTRONG customer support.
Refer to the product packaging or the official FORTSTRONG website for the most current contact information and warranty details.
