Makita MAK-TB131 Bench Drill User Manual

1. Introduction

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Makita MAK-TB131 Bench Drill. Please read this manual thoroughly before using the tool to ensure proper handling and to prevent injury or damage.

2. General Safety Instructions

Always follow basic safety precautions when using electrical tools to reduce the risk of fire, electric shock, and personal injury.

• Work Area Safety: Keep the work area clean and well-lit. Cluttered or dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
• Electrical Safety: Power tool plugs must match the outlet. Never modify the plug in any way. Avoid body contact with earthed or grounded surfaces.
• Personal Safety: Always wear eye protection. Use hearing protection when operating noisy tools. Dress properly; avoid loose clothing or jewelry that can get caught in moving parts.
• Tool Use and Care: Do not force the power tool. Use the correct power tool for your application. Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools.
• Bench Drill Specific Safety: Secure the workpiece firmly to the table using clamps. Never hold the workpiece by hand. Ensure the chuck key is removed before starting the drill.

3. Product Overview

The Makita MAK-TB131 is a robust bench drill designed for precision drilling tasks. It features a powerful motor and adjustable settings to suit various materials and applications.

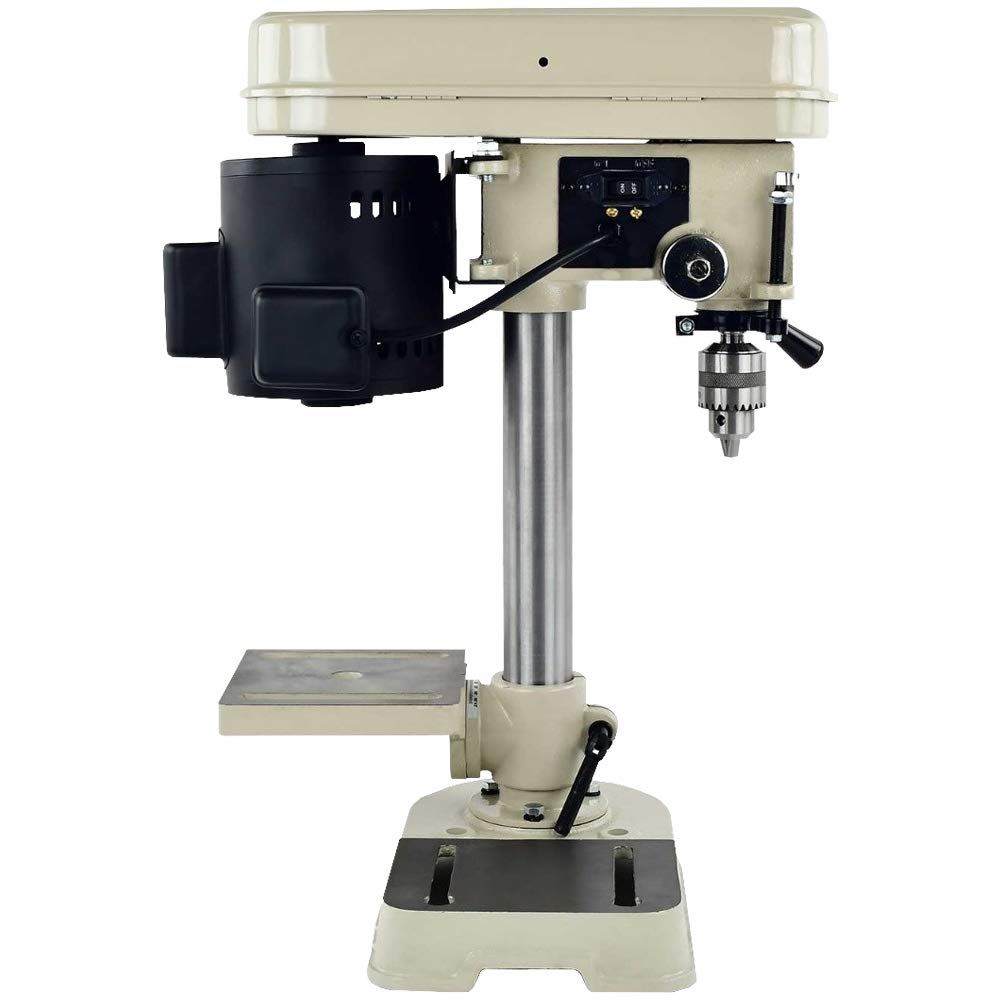

Figure 1: Makita MAK-TB131 Bench Drill. This image shows the complete bench drill unit, highlighting its sturdy construction and key components such as the motor, chuck, and adjustable table.

Key Features:

• Adjustable Speeds: Offers 5 adjustable speeds for optimal drilling performance across different materials.
• Tilting Table: The work table can be rotated 45 degrees to the right or left, allowing for angled drilling.
• Chuck Capacity: Equipped with a 1/2 inch chuck, suitable for a wide range of drill bits.
• Powerful Motor: Features a 780 W motor for reliable and consistent power.
• Durable Construction: Made with metal components for enhanced durability and stability.
• Variable Speed: Provides variable speed control for precise operation.

4. Setup and Assembly

Before operating the bench drill, ensure it is properly assembled and secured to a stable workbench.

1. Unpacking: Carefully remove all components from the packaging. Check for any damage or missing parts.
2. Base Installation: Secure the drill press base to a sturdy workbench using appropriate bolts and nuts. This is crucial for stability and safety.
3. Column Assembly: Attach the column to the base, ensuring it is firmly seated and tightened.
4. Table Assembly: Mount the work table onto the column. Adjust its height and secure it with the locking handle.
5. Head Assembly: Place the drill head assembly onto the top of the column. Ensure all connections are tight.
6. Chuck Installation: Insert the chuck onto the spindle. Use a rubber mallet to gently tap it into place, ensuring a secure fit.
7. Power Connection: Connect the power cord to a grounded electrical outlet.

5. Operating Instructions

Follow these steps for safe and effective operation of your bench drill.

5.1. Installing a Drill Bit

1. Ensure the drill is unplugged from the power source.
2. Open the chuck jaws by turning the chuck key counter-clockwise.
3. Insert the drill bit into the chuck, ensuring it is centered and fully seated.
4. Tighten the chuck jaws securely using the chuck key. Remove the chuck key immediately after tightening.

Figure 2: Close-up of the chuck on the Makita MAK-TB131 Bench Drill. This image illustrates the chuck mechanism where drill bits are inserted and secured for drilling operations.

5.2. Adjusting Speed

The Makita MAK-TB131 offers 5 adjustable speeds. Refer to the speed chart on the drill head for recommended speeds based on material and drill bit size. To change speeds, open the top cover and adjust the belt position on the pulleys as indicated in the speed chart.

5.3. Adjusting the Work Table

• Height Adjustment: Loosen the table locking handle, adjust the table to the desired height, and then firmly tighten the handle.
• Angle Adjustment: Loosen the table tilt locking bolt. Tilt the table to the desired angle (up to 45 degrees left or right) and then securely tighten the bolt.

5.4. Drilling

1. Place the workpiece on the work table.
2. Secure the workpiece using clamps to prevent movement during drilling.
3. Adjust the table height and angle as needed.
4. Turn on the drill.
5. Slowly lower the drill bit into the workpiece using the feed handle. Apply steady, even pressure.
6. Once the hole is drilled, retract the drill bit from the workpiece.
7. Turn off the drill.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your bench drill.

• Cleaning: Keep the drill press clean and free of dust and debris. Use a brush or compressed air to clean the motor vents and moving parts.
• Lubrication: Periodically lubricate moving parts such as the column, spindle, and table adjustment mechanisms with light machine oil.
• Belt Inspection: Check the drive belt for wear, cracks, or damage. Replace if necessary. Ensure proper belt tension.
• Chuck Maintenance: Keep the chuck jaws clean and free of rust. Apply a small amount of lubricant to the chuck threads if it becomes stiff.
• Electrical Inspection: Regularly inspect the power cord for any signs of damage. If damaged, have it repaired by a qualified technician.

7. Troubleshooting

8. Specifications

9. Warranty and Support

For information regarding warranty coverage, technical support, or service inquiries for your Makita MAK-TB131 Bench Drill, please refer to the documentation included with your purchase or contact Makita customer service directly. Keep your purchase receipt as proof of purchase.
