TAJO GT-112 Bluetooth Speaker User Manual

Introduction

Thank you for purchasing the TAJO GT-112 Portable Bluetooth Speaker. This manual provides detailed instructions for the proper setup, operation, and maintenance of your device. Please read this manual thoroughly before use to ensure optimal performance and longevity of your speaker.

Package Contents

Please check the package contents upon unboxing. If any items are missing or damaged, contact your retailer.

• TAJO GT-112 Bluetooth Speaker
• Micro USB Charging Cable
• User Manual (this document)

Image: The TAJO GT-112 Bluetooth Speaker in blue, shown alongside its black micro USB charging cable.

Product Overview

Familiarize yourself with the various parts and controls of your TAJO GT-112 speaker.

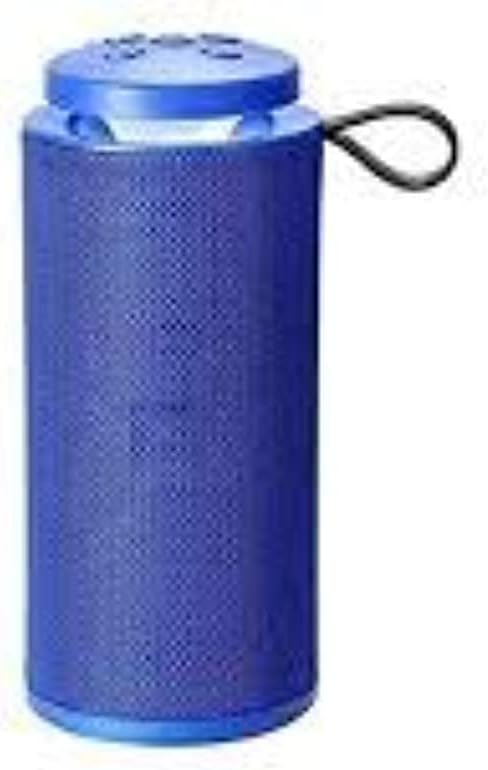

Image: Front view of the blue TAJO GT-112 Bluetooth Speaker, highlighting its cylindrical mesh design and top control panel.

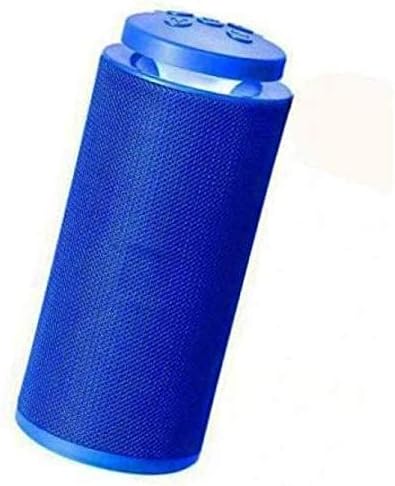

Image: Angled view of the blue TAJO GT-112 Bluetooth Speaker, showing the top control buttons and the integrated carrying strap.

Image: Top view of the blue TAJO GT-112 Bluetooth Speaker, clearly showing the control buttons for power, volume, and mode selection.

Control Buttons (Typical Layout)

• Power Button: Press and hold to turn on/off. Short press to play/pause.
• Mode Button (M): Short press to switch between Bluetooth, TF Card, and other available modes.
• Volume Down / Previous Track (-): Short press for previous track, long press to decrease volume.
• Volume Up / Next Track (+): Short press for next track, long press to increase volume.
• Micro USB Port: For charging the speaker.
• TF Card Slot: For inserting a TF (MicroSD) card.
• LED Indicator: Shows charging status and Bluetooth connection status.

Setup

1. Charging the Speaker

1. Connect the micro USB end of the charging cable to the speaker's micro USB port.
2. Connect the standard USB end of the cable to a USB power adapter (not included) or a computer's USB port.
3. The LED indicator will illuminate, typically red, to show that the speaker is charging.
4. Charging takes approximately 3-4 hours for a full charge. The LED indicator will usually turn off or change color (e.g., blue) when fully charged.

A fully charged battery provides up to 10 hours of playtime at 75% volume.

2. Powering On/Off

• To Power On: Press and hold the Power button for approximately 3 seconds until you hear an audible prompt or see the LED indicator light up.
• To Power Off: Press and hold the Power button for approximately 3 seconds until you hear an audible prompt or the LED indicator turns off.

Operating Instructions

1. Bluetooth Pairing

1. Ensure the speaker is powered on and in Bluetooth mode (the LED indicator will typically flash blue). If not, short press the Mode (M) button to switch to Bluetooth mode.
2. Enable Bluetooth on your mobile device (smartphone, tablet, computer).
3. Search for available Bluetooth devices. You should see "GT-112" or "TAJO GT-112" in the list.
4. Select "GT-112" to connect. Once paired, you will hear a confirmation sound, and the LED indicator will stop flashing and remain solid blue.
5. The speaker will automatically reconnect to the last paired device when powered on, if the device's Bluetooth is active and within range.

2. TF Card (MicroSD) Playback

1. Insert a TF (MicroSD) card with MP3 audio files into the TF card slot on the speaker.
2. The speaker will automatically switch to TF Card mode and begin playing music. If not, short press the Mode (M) button to select TF Card mode.
3. Use the + and - buttons to navigate tracks and adjust volume.

3. Call Function (Built-in Microphone)

• When connected via Bluetooth to your smartphone, the speaker can be used for hands-free calls.
• Answer/End Call: Short press the Power button.
• Reject Call: Press and hold the Power button.
• Redial Last Number: Double-press the Power button.

4. Light Modes

The TAJO GT-112 features a dynamic light display. The speaker includes "Flashing Light" and "Sleep Breathable Light" modes, which can enhance your listening experience. Specific controls for cycling through light modes are typically integrated with the Mode button or a dedicated light button (if present). Refer to the visual cues on your speaker for exact functionality.

Maintenance

• Clean the speaker with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• Keep the speaker away from extreme temperatures, direct sunlight, and moisture.
• While the speaker is described as "waterproof" in some features, avoid submerging it in water. It is generally resistant to splashes and light rain.
• Store the speaker in a cool, dry place when not in use for extended periods.
• Charge the battery at least once every three months to maintain battery health if not used regularly.

Troubleshooting

Specifications

Safety Information

• Do not expose the speaker to extreme temperatures or direct sunlight for prolonged periods.
• Avoid dropping or subjecting the speaker to strong impacts.
• Do not disassemble, repair, or modify the speaker yourself. This will void the warranty and may cause damage or injury.
• Keep the speaker away from water and liquids. While it has some water resistance, it is not designed for submersion.
• Use only the provided or a certified micro USB cable for charging.
• Dispose of the battery and speaker responsibly according to local regulations. Do not dispose of in household waste.

Warranty and Support

The TAJO GT-112 Bluetooth Speaker comes with a standard manufacturer's warranty. For specific warranty terms and conditions, please refer to the warranty card included with your purchase or contact your retailer. For technical support or inquiries, please reach out to the customer service department of your point of purchase.
