1. Safety Information
Please read and understand all safety instructions before assembling and using your PURPLE LEAF Hardtop Gazebo. Failure to follow these instructions may result in injury or damage to the product.
- Always secure the gazebo to a stable foundation to prevent tipping or movement, especially in windy conditions.
- Be cautious of entrapment hazards around windows and doors during assembly and use. Ensure all moving parts operate smoothly.
- Do not use the gazebo in extreme weather conditions, such as severe winds, heavy snow loads exceeding the specified capacity, or intense thunderstorms. Disassemble or secure the gazebo appropriately during such events.
- Keep children and pets away from the assembly area to prevent accidents.
- Ensure all fasteners are tightened securely during assembly and periodically check for tightness during use.
2. Setup & Assembly
Assembly of the PURPLE LEAF 12' x 14' Hardtop Gazebo is required. It is recommended that at least two adults participate in the assembly process. Please ensure you have all components listed in the packing list before beginning.
2.1 Site Preparation
Choose a level and stable location for your gazebo. Ensure adequate clearance around the structure for assembly and future use. The gazebo dimensions are approximately 12 feet by 14 feet.
Image: Diagram showing the overall dimensions of the 12' x 14' Hardtop Gazebo.
2.2 Frame Assembly
Begin by assembling the aluminum frame structure. Connect the main support beams and posts according to the detailed diagrams in your included assembly guide. Ensure all connections are secure before proceeding.
Image: Close-up view of the hardtop gazebo frame structure with wall panels partially installed.
2.3 Roof Installation
Install the PVC roof panels onto the assembled frame. The PVC roof is designed to be extrusion-resistant, bending resistant, and impact resistant. Carefully align each panel and secure it using the provided fasteners. Ensure a watertight seal.
Image: Detailed view of the sturdy PVC roof construction, highlighting its durability.
2.4 Wall and Door Installation
Attach the PC screen wall panels and install the double sliding doors. The PC screen wall offers privacy and enhanced resistance to wind and rain. The oversized windows with netting allow for air circulation and views.
Image: Close-up of the durable PVC screen windows, showing the netting for ventilation.
Image: Detail of the aluminum railings designed to hold the sliding doors and windows in place.
2.5 LED Light Installation
Each power-coated aluminum pole is equipped with 6 LED lights. Install batteries (not included) into the designated battery slots. These lights have independent switches for separate control.

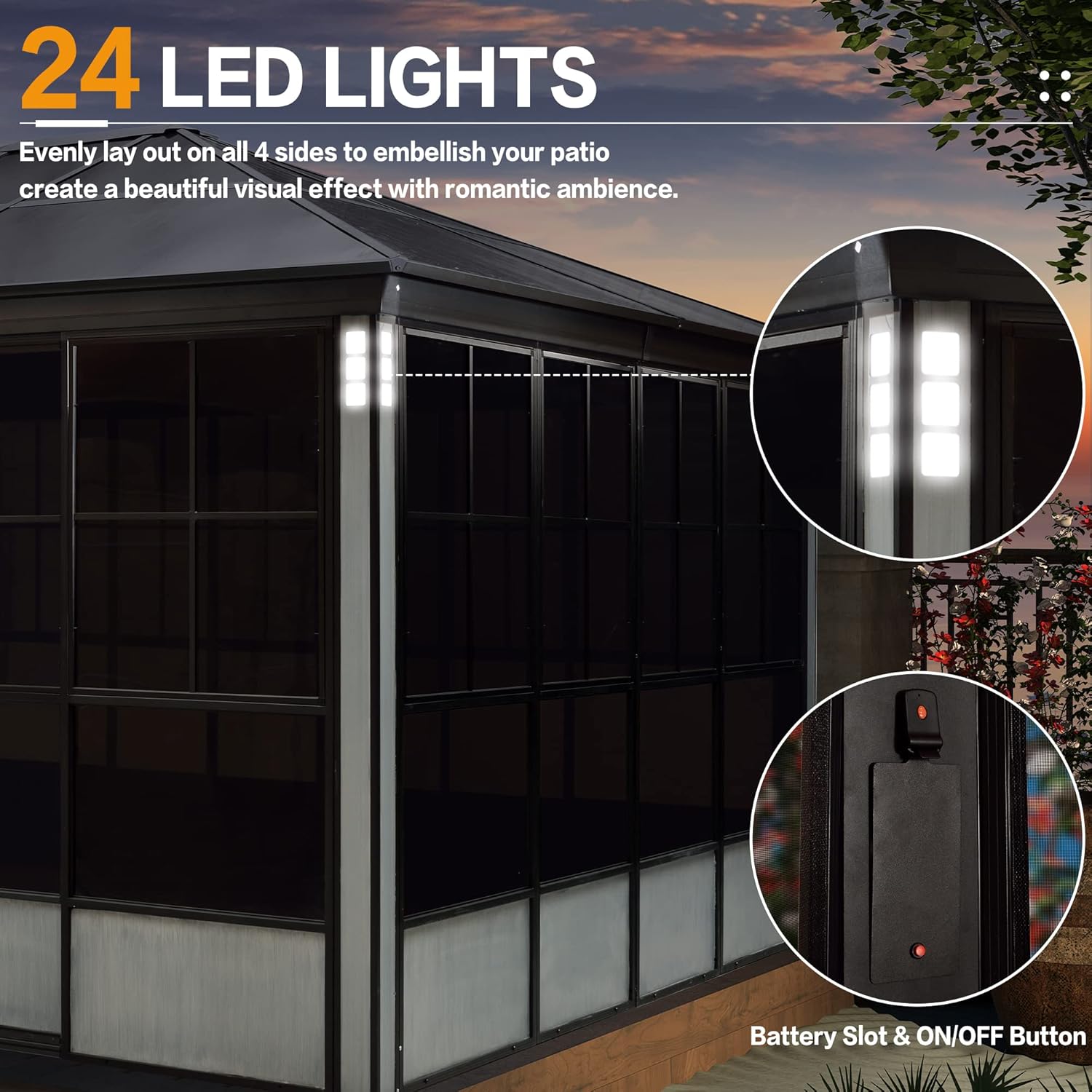

Image: Close-up of the LED lights integrated into a gazebo pole, showing the battery slot and on/off button.
3. Operating Instructions
3.1 LED Lighting System
The gazebo features LED lights on each aluminum pole. To operate, ensure batteries are correctly installed. Each set of lights has an independent switch, allowing you to control them individually. Press the switch to turn the lights on or off.
3.2 Sliding Doors
The front and back walls are fitted with double sliding doors. To open, gently slide the door panels along their aluminum railings. The doors can be semi-opened, fully opened, or closed as desired. Ensure the tracks are clear of debris for smooth operation.
Image: Illustration showing the double sliding doors in different configurations, from fully open to fully closed.
3.3 Window Screens
The oversized windows include netting to allow air circulation while providing privacy and protection. These screens are fixed and do not require manual operation.
4. Maintenance
Regular maintenance will extend the life and appearance of your gazebo.
- Cleaning the Frame: Wipe the aluminum frame with a soft cloth and mild soap and water. Rinse thoroughly and dry to prevent water spots. Avoid abrasive cleaners.
- Cleaning the Roof: The PVC roof can be cleaned with a soft brush or cloth and mild soapy water. Rinse well. Periodically check for debris accumulation, especially after storms, and remove it to prevent damage.
- Cleaning Windows and Screens: Gently clean the PC screen walls and netting with a soft cloth and water. Avoid harsh chemicals that could damage the material.
- LED Lights: Replace batteries as needed. Ensure the battery compartments are dry and free of corrosion.
- Fastener Check: Periodically inspect all bolts and screws to ensure they remain tight. Re-tighten any loose fasteners.
- Winter Care: While the PVC roof is designed to withstand heavy snow, it is advisable to remove excessive snow accumulation to prevent structural stress. If possible, consider disassembling and storing the gazebo in areas with extremely harsh winters.
5. Troubleshooting
This section addresses common issues you might encounter with your gazebo.
| Problem | Possible Cause | Solution |
|---|---|---|
| LED lights not working | Dead batteries, loose connection, switch off | Check battery installation and replace if necessary. Ensure the switch is in the 'ON' position. Verify connections. |
| Sliding doors stick or are difficult to move | Debris in tracks, misaligned track, damaged rollers | Clean tracks thoroughly. Inspect for any obstructions. Check if the door is properly seated in the track. |
| Water leakage from roof | Improperly sealed roof panels, damaged panel | Inspect roof panel seams and ensure they are properly sealed. Check for any cracks or damage to the PVC panels. |
| Gazebo feels unstable | Loose fasteners, improper anchoring | Ensure all assembly fasteners are tight. Verify the gazebo is securely anchored to a stable foundation. |
6. Specifications
- Brand: PURPLE LEAF
- Model: 12' x 14' Hardtop Gazebo
- ASIN: B08PXP15QP
- Dimensions: 12' x 14' (approx. 143.7" x 197.3" footprint, 110.6" peak height)
- Frame Material: Aluminum
- Roof Material: Polyvinyl Chloride (PVC)
- Wall Material: Polycarbonate (PC) Screen Wall
- Water Resistance Level: Water Resistant
- Ultraviolet Light Protection: Yes
- Assembly Required: Yes
- Occupancy: 8-10 persons (estimated)
- LED Lights: Battery-powered, independent switch control
7. Warranty & Support
7.1 Warranty Information
For specific warranty details regarding your PURPLE LEAF 12' x 14' Hardtop Gazebo, please refer to the warranty card included with your product or contact the retailer from whom you purchased the item. Warranty terms typically cover manufacturing defects and material flaws for a specified period.
7.2 Customer Support
If you require assistance with assembly, have questions about operation, or need to report a missing or damaged part, please contact PURPLE LEAF customer service or the retailer where you made your purchase. Have your model number (B08PXP15QP) and purchase date ready when contacting support.
You may also visit the official PURPLE LEAF store for more information: PURPLE LEAF Store on Amazon
