Paula Deen PDKD579
Paula Deen 10 QT Digital Air Fryer Instruction Manual
Model: PDKD579 | Brand: Paula Deen
Important Safeguards
When using electrical appliances, basic safety precautions should always be followed, including the following:
- Read all instructions before use.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against electric shock, do not immerse cord, plugs, or the main unit in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
- Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner.
- The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
- Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
- Do not use appliance for other than intended use.
- This appliance is for household use only.
Product Overview
Components
- Main Unit (with Digital Control Panel)
- 10 QT Cooking Basket
- Crisping Insert/Tray
- Power Cord
Image: The Paula Deen 10 QT Digital Air Fryer, showcasing its sleek blue stainless steel finish and digital control panel.
Digital Control Panel
The intuitive LED display and touch screen controls allow for easy operation and precise cooking adjustments.
- Temperature Control: Use '+' and '-' buttons to adjust temperature (e.g., 170°F to 400°F).
- Time Control: Use '+' and '-' buttons to adjust cooking time (e.g., 1 to 60 minutes).
- 10 Preset Functions: Dedicated buttons for French Fry, Wings, Pizza, Beef, Fish, Chicken, Vegetables, Bake, Air Fry, and Reheat. Each preset has an adjustable time and temperature.
- Power Button: Turns the unit on/off and starts/pauses cooking.
Image: A detailed view of the air fryer's digital control panel, highlighting the 10 preset cooking functions for various food types.
Image: A user's hand interacting with the LED digital control panel, demonstrating the touch functionality for setting time and temperature.
Product Capacity and Design
This 10 QT air fryer features a single basket design, ideal for cooking large portions for 5-10 people. The basket dimensions with the cooking insert are approximately 10 inches (L) x 10 inches (W) x 5.5 inches (H).

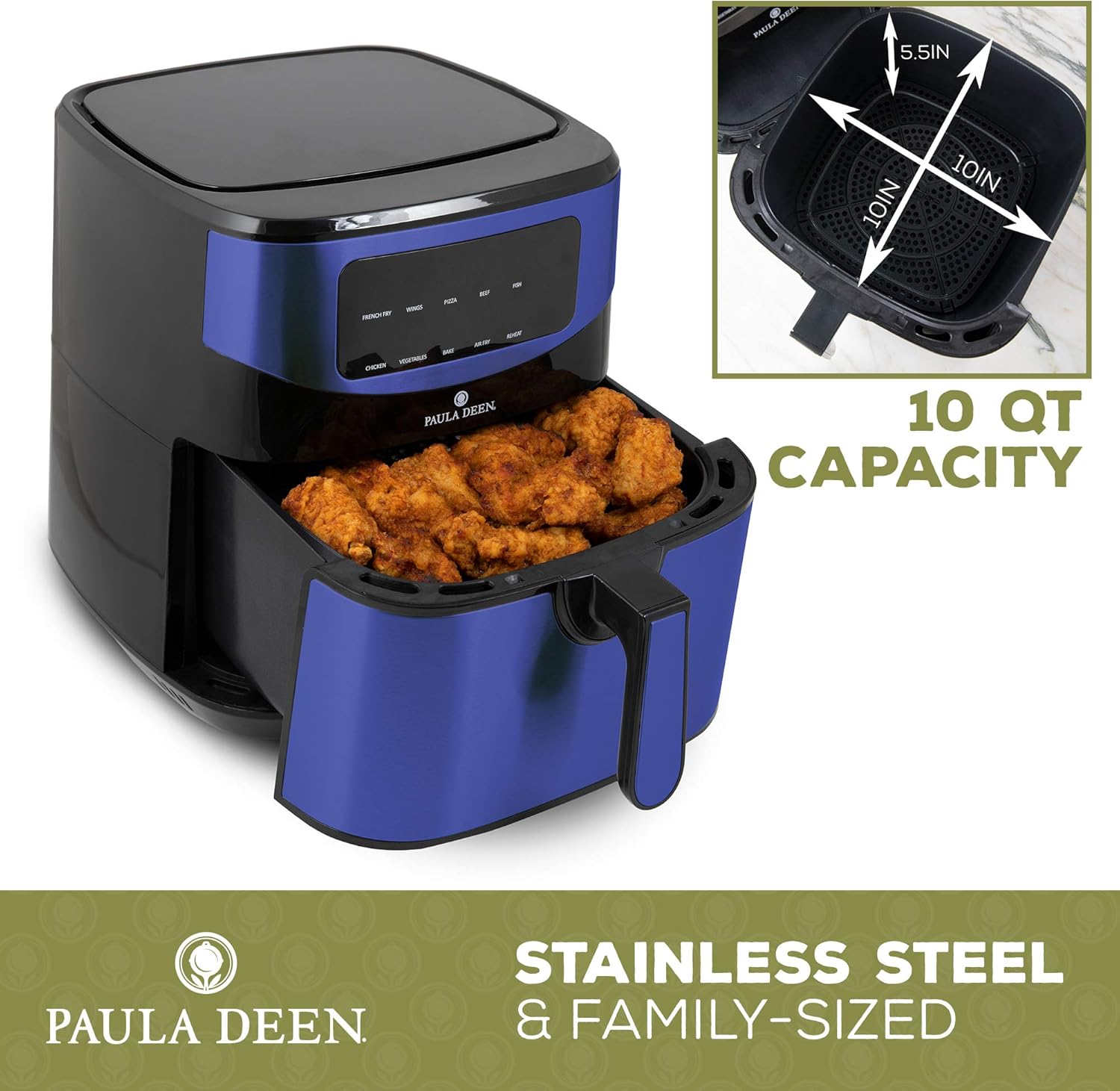

Image: The air fryer with its cooking basket pulled out, filled with fried chicken, illustrating its generous 10-quart capacity.
Image: A diagram showing the overall dimensions of the air fryer, which are 14 inches deep, 14 inches wide, and 11 inches high.
Official Product Video
Video: An official product video from Paula Deen demonstrating the features and ease of use of the 10 QT Digital Air Fryer, including cooking various healthy meals.
Before First Use
- Remove all packaging materials, stickers, and labels from the appliance.
- Clean the cooking basket and crisping insert thoroughly with hot water, dish soap, and a non-abrasive sponge. The basket features an FDA-compliant ceramic non-stick coating.
- Wipe the inside and outside of the appliance with a damp cloth.
- Ensure all parts are completely dry before use.
Operating Instructions
General Operation
- Place the appliance on a stable, level, heat-resistant surface.
- Insert the crisping tray into the cooking basket.
- Place your food into the cooking basket. Do not overfill.
- Slide the cooking basket back into the main unit until it clicks into place.
- Plug the power cord into a grounded wall outlet. The display will illuminate.
- Press the Power button to turn on the air fryer.
- Select a preset function or manually set the desired temperature and time using the '+' and '-' buttons.
- Press the Power button again to start cooking.
- The air fryer will automatically shut off when the timer reaches zero.
Using Preset Functions
The air fryer comes with 10 convenient presets for common dishes. Simply press the icon corresponding to your desired food. The default time and temperature for that preset will appear. You can adjust these settings manually if needed.
- French Fry
- Wings
- Pizza
- Beef
- Fish
- Chicken
- Vegetables
- Bake
- Air Fry (General)
- Reheat
Cooking Guide
The following table provides general guidelines for cooking various foods. Cooking times and temperatures may vary based on food quantity, size, and desired crispiness. Always ensure food is cooked to a safe internal temperature.
| Food Item | Quantity | Temperature | Time | Notes |
|---|---|---|---|---|
| Frozen French Fries | 1 lb | 380°F (193°C) | 15-20 min | Shake basket halfway. |
| Chicken Wings | 1.5 lbs | 400°F (204°C) | 20-25 min | Flip halfway. |
| Chicken Breast | 2 pcs (6-8 oz each) | 375°F (190°C) | 18-22 min | Flip halfway. |
| Salmon Fillets | 2 pcs (6 oz each) | 360°F (182°C) | 12-15 min | Cook until flaky. |
| Brussels Sprouts | 1 lb | 375°F (190°C) | 15-20 min | Toss halfway. |
For additional recipes and cooking tips, refer to the included 50-recipe booklet.
Image: A spread of diverse and healthy dishes, such as roasted chicken, salmon with salsa, and various fried vegetables, all prepared using the air fryer.
Cleaning and Maintenance
Proper cleaning ensures the longevity and optimal performance of your air fryer. Always unplug the appliance and allow it to cool completely before cleaning.
- Cooking Basket and Crisping Insert: These parts feature an FDA-compliant ceramic non-stick coating for easy cleaning. Wash them with hot water, dish soap, and a non-abrasive sponge. Do not use metal utensils or abrasive cleaning materials, as they may damage the non-stick coating. These parts are not dishwasher safe.
- Main Unit: Wipe the exterior of the air fryer with a damp cloth. Do not immerse the main unit in water or any other liquid.
- Heating Element: Use a cleaning brush to remove any food residue from the heating element.
- Ensure all parts are dry before storing or next use.
Image: A hand demonstrating the ease of cleaning the air fryer's basket, which features a non-stick ceramic coating, by simply wiping it with a cloth.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Air fryer does not turn on. | Appliance not plugged in; Basket not inserted correctly. | Ensure power cord is securely plugged into a grounded outlet. Push the basket firmly into the main unit until it clicks. |
| Food is not cooked evenly. | Too much food in the basket; Food not shaken/flipped. | Cook in smaller batches. Shake or flip food halfway through cooking. |
| White smoke coming from the appliance. | Grease residue from previous use; Fatty ingredients. | Clean the basket and crisping insert thoroughly after each use. For fatty foods, you may place a piece of aluminum foil under the crisping insert to catch excess oil. |
| Food is not crispy. | Not enough oil (if applicable); Temperature too low; Cooking time too short. | Lightly coat food with oil. Increase temperature or cooking time. Ensure food is not overcrowded. |
Specifications
- Model Name: Stainless Steel 10 QT Digital Air Fryer
- Model Number: PDKD579
- Capacity: 10 Quarts
- Wattage: 1700 Watts
- Voltage: 110 Volts
- Product Dimensions: 14"D x 14"W x 11"H
- Item Weight: 14 Pounds
- Color: Blue Stainless
- Material: Ceramic (Non-Stick Coating), Stainless Steel (Inner)
- Control Method: Touch (Digital LED Display)
- Special Features: LED Display, Touch Controls, Timer with Automatic Shut-Off, Rapid Air Circulation System, Air Fry, Bake, Reheat
- Air Frying Technology: Hot Air Circulation
- Dishwasher Safe: No (Basket and Insert)
- UPC: 755003157816
Warranty and Support
For warranty information and customer support, please refer to the warranty card included with your purchase or visit the official Paula Deen product support website. Keep your proof of purchase for any warranty claims.
For additional assistance, you may contact Paula Deen customer service through the contact information provided in your product packaging or on the brand's official website.
