Toshiba 32WA3B63DG Smart TV User Manual

1. Introduction

This manual provides essential instructions for the setup, operation, and maintenance of your Toshiba 32WA3B63DG 32-inch HD DLED Smart TV. Please read this manual thoroughly before using your television to ensure proper functionality and safety. Keep this manual for future reference.

Image 1.1: Front view of the Toshiba 32WA3B63DG Smart TV, showcasing its Android TV interface with various streaming applications.

2. Important Safety Information

Always observe the following safety precautions to prevent electric shock, fire, or damage to the television.

• Do not expose the TV to rain or moisture.
• Do not open the TV casing; refer all servicing to qualified personnel.
• Ensure proper ventilation around the TV.
• Protect the power cord from being walked on or pinched.
• Unplug the TV during lightning storms or when unused for long periods.
• Keep the TV away from direct sunlight and heat sources.

3. Package Contents

Verify that all the following items are included in your TV package:

• Toshiba 32WA3B63DG Smart TV
• Remote Control
• Power Cord
• TV Stand (Holder)
• User Manual (this document)

4. Physical Overview

Familiarize yourself with the various ports and connections on your Toshiba Smart TV.

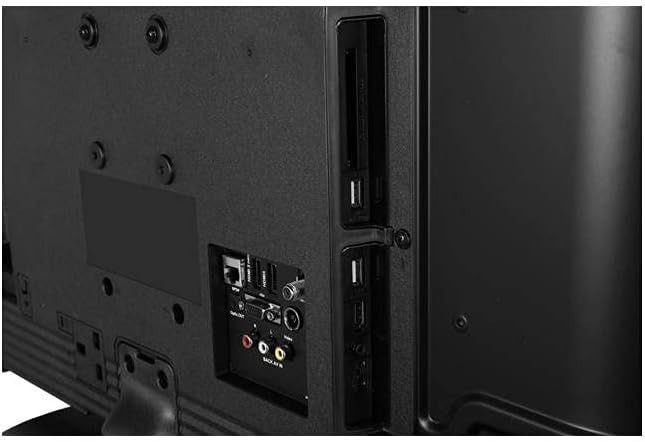

Image 4.1: Rear panel connections of the Toshiba 32WA3B63DG, including HDMI, USB, and antenna inputs.

4.1. Rear Panel Connections

• HDMI (x3): For connecting high-definition devices such as Blu-ray players, game consoles, or set-top boxes.
• USB (x2): For connecting USB storage devices to play media files or for service updates.
• VGA (x1): For connecting a computer.
• CI+ (x1): Common Interface Plus slot for conditional access modules (CAMs).
• RF (x1): For connecting an antenna or cable TV signal.
• RJ45 (Ethernet LAN x1): For a wired internet connection.
• Audio/Video Input: For connecting older devices with composite video and stereo audio.

Image 4.2: Side view of the Toshiba 32WA3B63DG, highlighting its slim profile and accessible side ports.

5. Setup

5.1. Unpacking and Stand Installation

1. Carefully remove the TV from its packaging.
2. Place the TV face down on a soft, flat surface to prevent screen damage.
3. Attach the TV stand (holder) to the designated slots on the bottom of the TV using the provided screws. Ensure it is securely fastened.
4. Alternatively, if wall-mounting, follow the instructions for a VESA 7.5 x 7.5 cm compatible wall mount (not included).

5.2. Connecting Power

• Connect the power cord to the TV's power input.
• Plug the other end of the power cord into a suitable electrical outlet (220-240V).

5.3. Connecting External Devices

• HDMI Devices: Connect HDMI cables from your devices (e.g., game console, Blu-ray player) to the HDMI ports on the TV.
• USB Devices: Insert USB drives into the USB ports for media playback.
• Antenna/Cable: Connect your antenna or cable TV coaxial cable to the RF input.
• Wired Network: For a stable internet connection, connect an Ethernet cable from your router to the RJ45 port.

5.4. Initial Power On and Android TV Setup

1. Press the power button on the remote control or the TV.
2. Follow the on-screen instructions to complete the initial setup, including language selection, country, and network connection.
3. Connect to your Wi-Fi network or use the wired Ethernet connection.
4. Sign in with your Google Account to access the full features of Android TV, including the Google Play Store, Google Assistant, Netflix, and YouTube.

6. Operating Your Smart TV

6.1. Remote Control Functions

Use the provided remote control to navigate the TV's interface. Common buttons include:

• Power: Turns the TV on or off.
• Source: Selects input sources (HDMI, AV, TV).
• Navigation (Arrow) Buttons: Move through menus and options.
• OK/Enter: Confirms selections.
• Back: Returns to the previous screen.
• Home: Accesses the Android TV home screen.
• Volume +/-: Adjusts volume.
• Channel +/-: Changes TV channels.
• Netflix/YouTube/Prime Video Buttons: Direct access to streaming services.
• Google Assistant: Activates voice control (requires microphone on remote).

6.2. Android TV Interface

Your Toshiba Smart TV runs on Android TV, providing access to a wide range of applications and features:

• Google Play Store: Download and install additional apps, games, and content.
• Google Assistant: Use voice commands to search for content, control smart home devices, and get information.
• Built-in Chromecast: Cast content from your smartphone, tablet, or computer directly to the TV.
• Pre-installed Apps: Access popular streaming services like Netflix and YouTube directly from the home screen.

6.3. Network Connectivity

• Wi-Fi: Connect wirelessly to your home network. Navigate to Settings > Network & Internet > Wi-Fi to select your network and enter the password.
• Ethernet (LAN): For a more stable connection, plug an Ethernet cable into the RJ45 port. The TV will automatically detect the wired connection.
• Bluetooth: Connect compatible Bluetooth devices such as headphones or game controllers. Go to Settings > Remotes & Accessories > Add accessory.

7. Maintenance

7.1. Cleaning the TV

• Always unplug the TV before cleaning.
• Use a soft, dry, lint-free cloth to wipe the screen and cabinet.
• For stubborn marks, lightly dampen the cloth with water or a mild, non-abrasive screen cleaner. Do not spray cleaner directly onto the screen.
• Avoid using alcohol, benzene, thinners, or other volatile substances.

7.2. Software Updates

Your TV may receive software updates to improve performance and add new features. Ensure your TV is connected to the internet. You can check for updates manually via Settings > Device Preferences > About > System update.

8. Troubleshooting

Refer to the following table for common issues and their solutions. If the problem persists, contact customer support.

9. Specifications

10. Warranty and Support

For warranty information, please refer to the warranty card included with your product or visit the official Toshiba website for your region. For technical support, troubleshooting assistance beyond this manual, or service inquiries, please contact Toshiba customer service.

Online Support: Visit the official Toshiba support website for FAQs, software downloads, and contact information.
